        GE IC200UDD104
        GE IC200UDD104
        GE IC200UDD104
        GE IC200UDD104
        GE IC200UDD104
        GE IC200UDD104
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle status

          Active / Available from OEM
          Apter Power assists with IC200UDD104 pricing inquiries and provides access to official GE and Emerson technical documentation for purchasing decisions.

        IC200UDD104

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

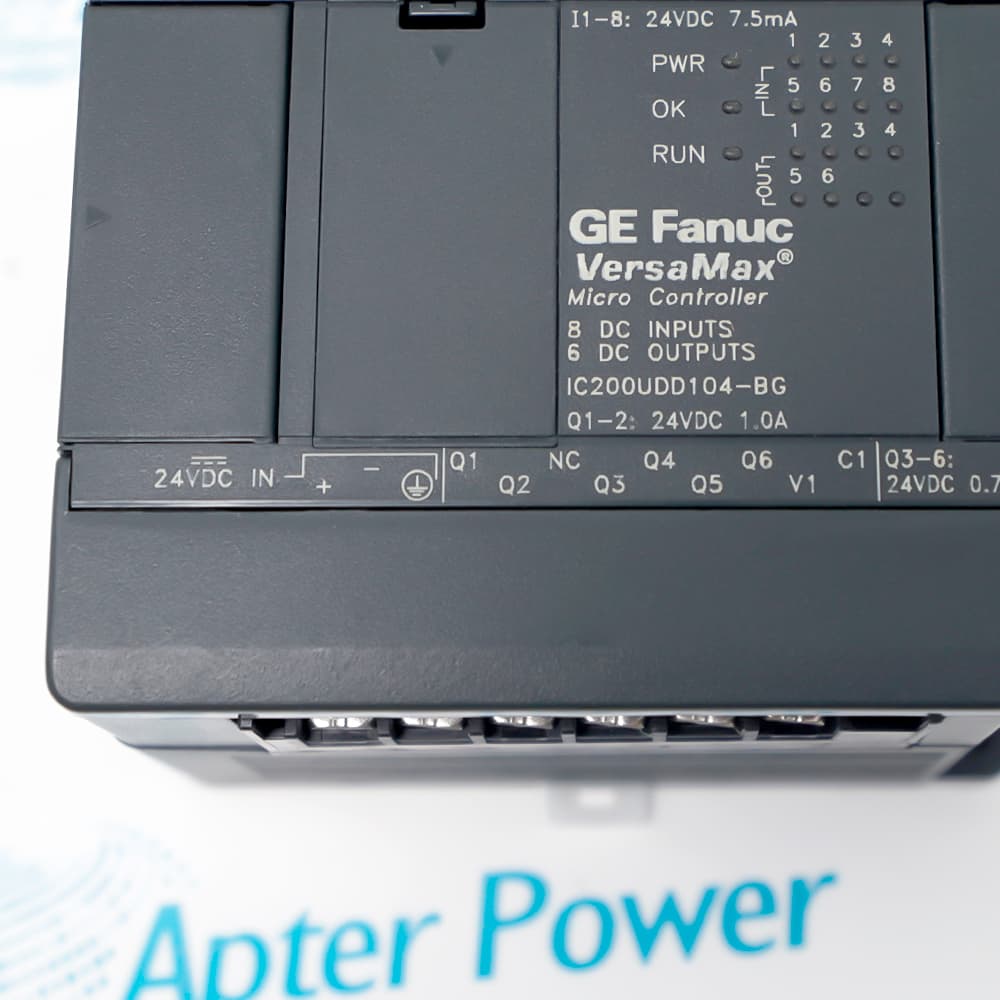

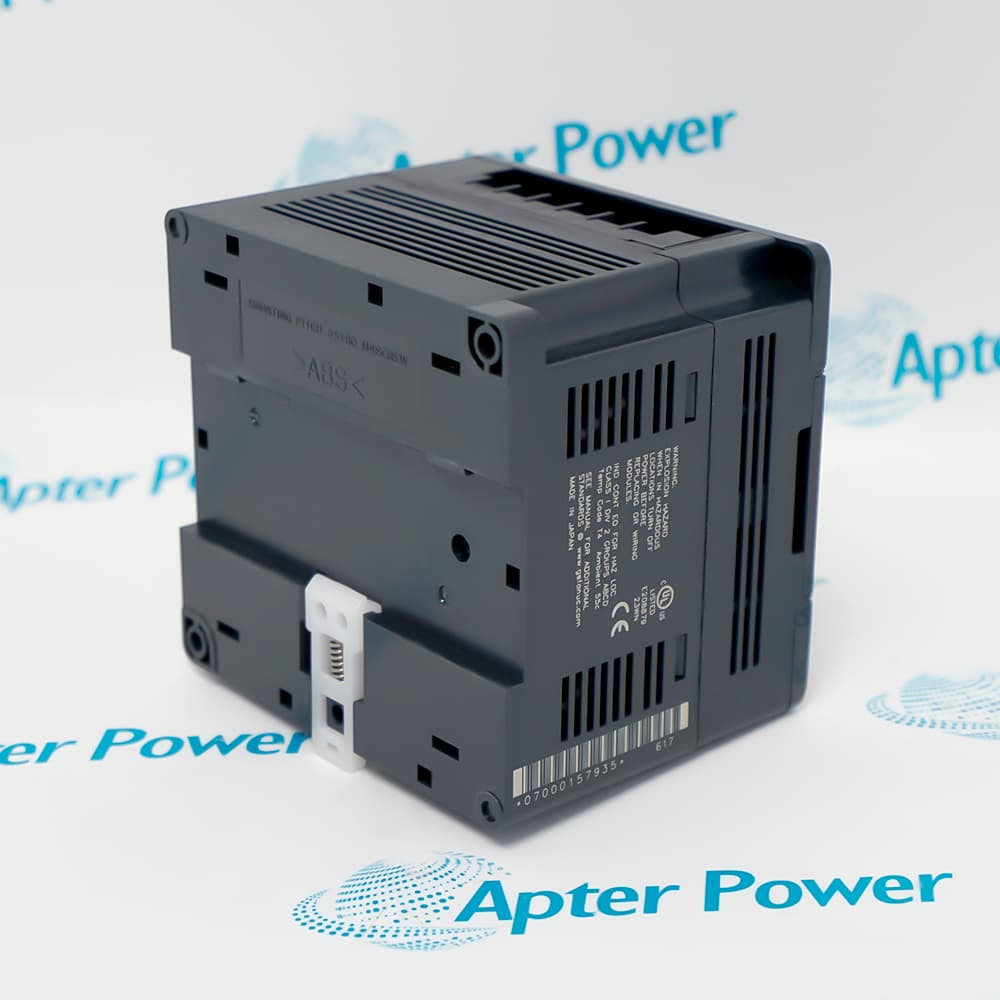

        General Electric IC200UDD104 is a VersaMax Micro 14-point PLC with eight 24 VDC inputs and six 24 VDC outputs for compact machine control.
        In Stock
        Ships by Wednesday, October 28
        Fast Shipping Available
        Get a quick price for IC200UDD104
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for IC200UDD104

        • Manufacturer:
          General Electric
        • Part Number:
          IC200UDD104
        • Product Family:
          GE VersaMax
        • Product Type:
          VersaMax Micro 14-Point PLC
        • Stock:
          1
        • Controller Size:
          Micro 14
        • Built-In Discrete I/O:
          8 inputs; 6 outputs
        • Input Voltage:
          24 VDC
        • Output Voltage:
          24 VDC
        • Logic Memory:
          9K words
        • Data Storage:
          256 words
        • Scan Time:
          1.1 ms per K
        • Serial Port:
          1 RS-232
        • I/O Expansion:
          Up to 4 units
        • High-Speed Counters:
          Up to 4 at 10 kHz, 16-bit
        • Pulse Train/PWM:
          Up to 4 at 5 kHz, 16-bit
        • Real-Time Clock:
          Not included
        • Retentive Supply:
          Supercapacitor only
        • Tariff Code:
          8537101190
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals I/O Program Pulses Expansion

        Features:

        • Combines the CPU and fourteen discrete field points in one compact VersaMax Micro unit.
        • Preserves selected operating values through internal flash and supercapacitor-backed memory.
        • Provides built-in high-speed counting and pulse-generation resources for compact machinery.
        IC200UDD104 belongs to the Micro 14 group, whose point count and memory profile are optimized for small controllers rather than the expanded motion feature set of Micro 20, 40, and 64 models.

        Its single RS-232 connection supplies the built-in serial path; Ethernet for this size is provided through the separate VersaMax SE arrangement rather than an onboard second port.

        The controller can write register values to internal flash, giving an application a deliberate nonvolatile storage path in addition to short-term supercapacitor retention.

        Apter Power provides quotation assistance and access to official GE/Emerson documentation for the General Electric IC200UDD104 VersaMax Micro 14-Point PLC.
        General Electric IC200UDD104 VersaMax Micro 14-Point PLC Manuals, Datasheets, Links
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        Local Field Points on IC200UDD104

        • Input allocation: Eight built-in points receive 24 VDC discrete machine and process states.
        • Output allocation: Six onboard 24 VDC points drive the controller's local discrete loads.
        • Point integration: CPU and field interface share one Micro 14 assembly, reducing separate module count for a small machine.
        • Capacity boundary: Applications needing additional local signals use supported expansion units instead of assigning nonexistent onboard points.

        Memory Use in IC200UDD104

        • Logic space: The controller provides 9K words for the operating program.
        • Data area: A separate 256-word store holds application values used by the logic.
        • Execution profile: Typical scan performance is specified at 1.1 milliseconds per K of logic.
        • Nonvolatile write: Selected register values can be committed to internal flash when the application requires deliberate retention.

        Fast Signals with IC200UDD104

        • Counter count: Up to four high-speed channels can be assigned to pulse accumulation tasks.
        • Counter rate: The Micro 14 implementation supports 16-bit counting at as much as 10 kHz.
        • Generated pulses: Up to four 16-bit pulse-train or PWM functions operate at rates through 5 kHz.
        • Motion boundary: These pulse resources do not add the homing, jogging, ramp, or blended-move commands provided by larger models.

        Extending IC200UDD104 I/O

        • Unit limit: The controller accepts as many as four compatible VersaMax Micro expansion units.
        • Point mix: Expansion selection follows the required discrete, analog, temperature, or positioning signals rather than the base CPU count alone.
        • Power review: Added modules are included in the complete controller and field-supply budget.
        • Architecture choice: A larger Micro controller may be preferable when the final I/O and communication demand would consume most available expansion capacity.
        Description
        For compact machine control, the General Electric IC200UDD104 combines a VersaMax Micro CPU with eight 24 VDC inputs and six 24 VDC outputs in one fourteen-point assembly.

        Program execution on IC200UDD104 uses 9K words of logic memory with a separate 256-word data area. Its scan profile and integrated discrete points suit applications that do not need the broader motion-command set of the larger Micro controllers.

        High-speed functions allow the controller to count incoming pulses and generate pulse-train or PWM outputs directly. These resources support basic pulse-oriented machinery while remaining distinct from homing, jogging and blended-motion commands.

        The base controller can accept as many as four compatible VersaMax Micro expansion units, letting IC200UDD104 grow beyond its onboard I/O when the selected modules and complete power budget remain within system limits.
        Alternative Names
        GE IC200UDD104 General Electric IC 200 UDD 104 IC 200 UDD 104 IC200-UDD104 IC200UDD-104 IC200UDD1O4 IC2O0UDD104 1C200UDD104
        Technical notes
        IC200UDD104 has no real-time clock; applications that depend on calendar time or timestamped scheduling require an external supported time source.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        Why does an IC200UDD104 application not retain calendar time after power loss?
        IC200UDD104 does not include a real-time clock. Its flash and supercapacitor support data retention functions, but they do not create a battery-backed calendar clock.
        Why is a fifth expansion unit not recognized by IC200UDD104?
        IC200UDD104 supports no more than four compatible VersaMax Micro expansion units. Rework the I/O plan or select a controller architecture that supports the required module count.
        Can IC200UDD104 execute positioning motion commands?
        No. IC200UDD104 is a Micro 14 controller and does not include the Find Home, Go Home, Jog, Ramp, or blended-move command set of larger models.
        Why is a portable program FLASH memory module not available for IC200UDD104?
        IC200UDD104 is a Micro 14 controller. Portable program FLASH memory modules are supported on Micro 20, Micro 40 and Micro 64 units, so this expansion option is not available for IC200UDD104.
        What should be checked when an IC200UDD104 output does not switch a 24 VDC load?
        For IC200UDD104, verify the output supply and common connections, load polarity and current, commanded logic state, and whether the affected point or external circuit is open.
        How can IC200UDD104 retain setup values without a battery?
        IC200UDD104 can write register values to internal flash and uses a supercapacitor for retained RAM. Save critical parameters through the intended flash-write procedure.
        Is IC200UDD104 suitable when more than eight local inputs are required?
        IC200UDD104 has eight built-in 24 VDC inputs. Add supported VersaMax Micro expansion I/O or choose a larger controller when the complete point count exceeds the expansion plan.
