        IC200MDL650

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

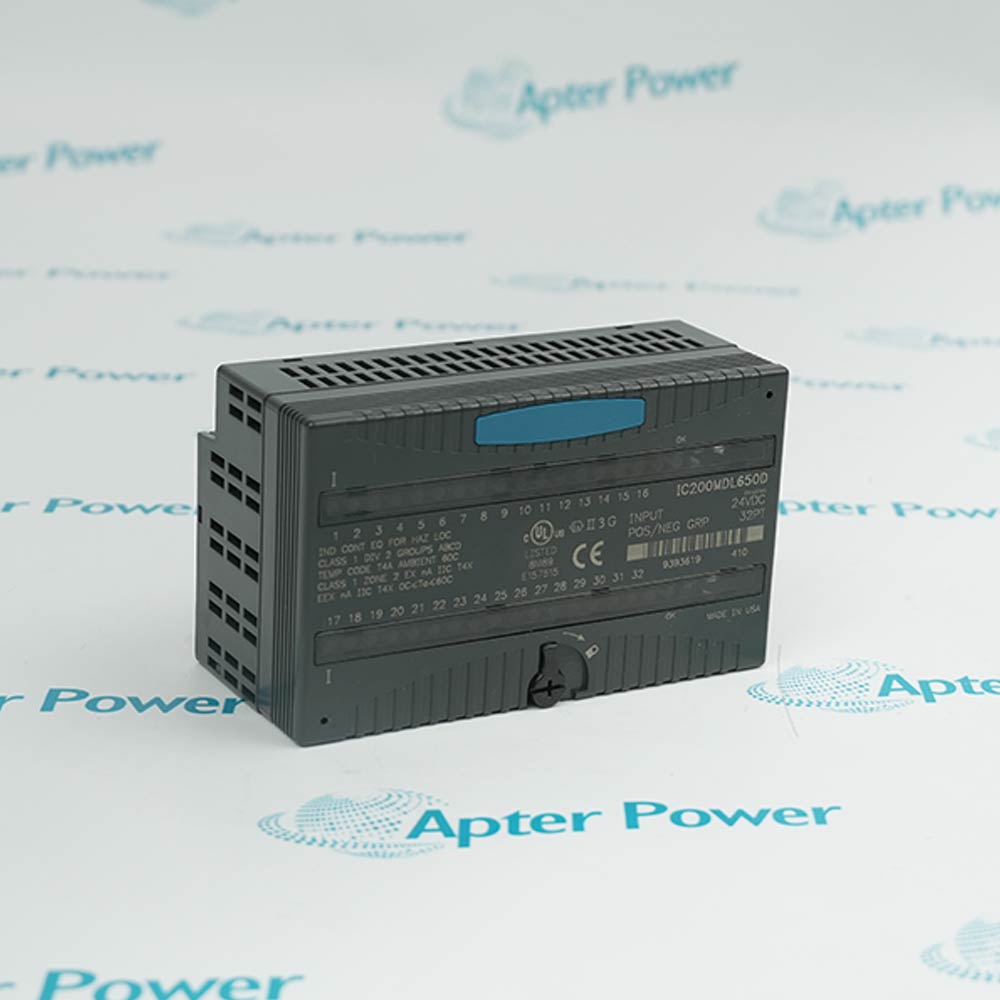

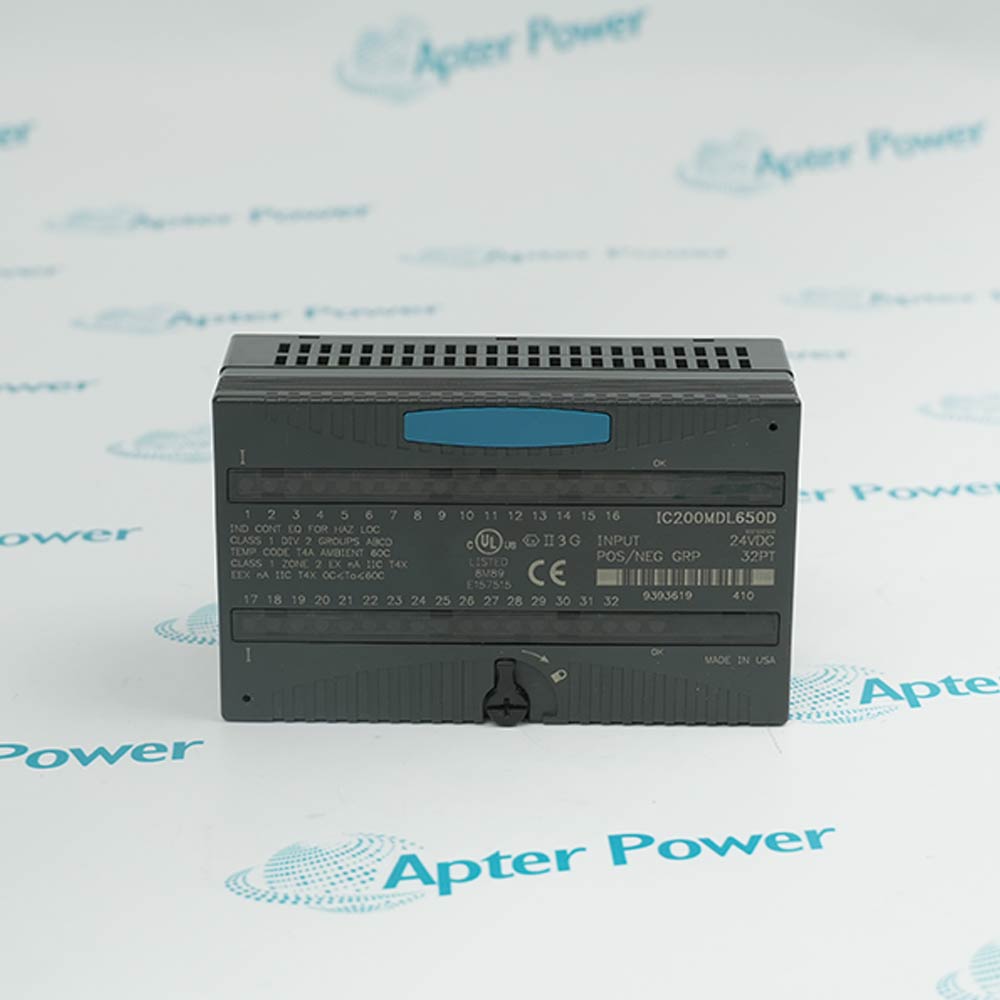

        General Electric IC200MDL650 is a VersaMax 32-point 24 V DC positive/negative-logic input module with four isolated groups of eight.
        In Stock
        Ships by Friday, October 30
        Fast Shipping Available
        Get a quick price for IC200MDL650
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for IC200MDL650

        • Manufacturer:
          General Electric
        • Part Number:
          IC200MDL650
        • Product Family:
          GE VersaMax
        • Product Type:
          32-Point 24 V DC Positive/Negative Logic Input Module
        • Stock:
          1
        • Input points:
          32 in four groups of eight
        • Input logic:
          Positive logic or negative logic; negative logic requires IC200MDL650C or later
        • Input voltage:
          0 to +30 V DC; +24 V DC nominal
        • On-state voltage:
          +15 to +30 V DC
        • Off-state voltage:
          0 to +5 V DC
        • On-state current:
          2.0 to 5.5 mA
        • Off-state current:
          0 to 0.5 mA
        • Basic maximum input response:
          0.5 ms
        • Configurable filter time:
          0 ms; 1.0 ms default; or 7.0 ms
        • Total input response:
          0.5 ms; 1.5 ms default; or 7.5 ms
        • Input impedance:
          10 kΩ maximum
        • Isolation:
          250 V AC continuous; 1500 V AC for 1 minute, input-to-logic/frame and group-to-group
        • 5 V backplane consumption:
          50 mA maximum
        • External power supply:
          None for module operation
        • Indicators:
          One input-state LED per point and one backplane-power OK LED
        • Tariff Code:
          9032900090
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Wiring Filtering Indicators Application
        • Thirty-two 24 V DC inputs are divided into four isolated groups of eight
        • Each group supports positive-logic wiring, while negative logic requires module version C or later
        • Selectable input filtering provides total response choices of 0.5, 1.5, or 7.5 milliseconds

        IC200MDL650 is a General Electric VersaMax digital input module designed for grouped 24 V DC field-state acquisition.

        The module receives thirty-two discrete signals through four groups of eight, reports each input state to the CPU or NIU, and provides a green indicator for every point.

        Before installation or replacement, verify the hardware revision, group polarity, input voltage and current, carrier terminals, filter setting, isolation, and saved VersaMax configuration.

        Availability, condition, price, and shipping time for IC200MDL650 are confirmed during quotation.

        General Electric IC200MDL650 32-Point 24 V DC Positive/Negative Logic Input Module Manuals, Datasheets, Links

        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        • The thirty-two input points are divided into four groups of eight
        • Input devices connect between each input terminal and its group common
        • Positive-logic inputs receive current from field devices, while negative-logic inputs return current to them
        • The module has a 0.5-millisecond basic maximum input response
        • Software-selectable filter times are 0, 1.0, and 7.0 milliseconds
        • The default 1.0-millisecond filter produces a 1.5-millisecond total response
        • Thirty-two green LEDs show the individual input-point states
        • The green OK LED indicates that backplane power is present
        • Input-state processing is performed by the connected VersaMax CPU or network interface unit
        • Discrete machine-state acquisition in VersaMax complex-machine control
        • Grouped 24 V DC sensor monitoring in light process-control systems
        • Position and status feedback collection in motion-control applications
        Description
        IC200MDL650 is a General Electric 32-point 24 V DC positive/negative-logic input module for the VersaMax control and distributed-I/O platform.

        The unit provides four isolated groups of eight inputs, 0 to +30 V DC operation, selectable digital filtering, and one status LED per point.

        Before installation or replacement, confirm the complete catalog number, hardware revision, logic polarity, carrier, terminal wiring, input-device characteristics, filter configuration, and saved project.
        Revisions

        Revision Part #

        Also known as

        IC200MDL650C
        IC200MDL650-C, Series C, Rev C
        Get Parts Quote
        IC200MDL650D
        IC200MDL650-D, Series D, Rev D
        Get Parts Quote
        IC200MDL650E
        IC200MDL650-E, Series E, Rev E
        Get Parts Quote
        IC200MDL650F
        IC200MDL650-F, Series F, Rev F
        Get Parts Quote
        IC200MDL650G
        IC200MDL650-G, Series G, Rev G
        Get Parts Quote
        IC200MDL650K
        IC200MDL650-K, Series K, Rev K
        Get Parts Quote
        IC200MDL650L
        IC200MDL650-L, Series L, Rev L
        Get Parts Quote
        Alternative Names
        IC200MDL650 IC200 MDL650 IC200 MDL 650 GE IC200MDL650 General Electric IC200MDL650 GE Fanuc IC200MDL650 VersaMax IC200MDL650
        Technical notes
        IC200MDL650 negative-logic operation requires version C or later; confirm group commons, field levels, carrier wiring, input filter, and the saved VersaMax configuration before commissioning.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        What module ID is assigned to General Electric IC200MDL650?
        General Electric IC200MDL650 uses module ID 80088008. The VersaMax CPU or network interface unit uses this identifier when recognizing the installed I/O module.
        How much discrete input data does General Electric IC200MDL650 exchange with the controller?
        General Electric IC200MDL650 supplies 32 bits of discrete input data to the connected VersaMax CPU or network interface unit.
        Where is the intelligent processing for General Electric IC200MDL650 performed?
        Intelligent processing is performed by the connected VersaMax CPU or network interface unit. General Electric IC200MDL650 operates as the field-input interface and transfers its input states through the VersaMax backplane.
        Can General Electric IC200MDL650 connect directly to an industrial network?
        No. General Electric IC200MDL650 is a backplane I/O module rather than a standalone network adapter. Network communication is provided by the VersaMax CPU or network interface unit installed in the same station.
        Can General Electric IC200MDL650 be installed or removed without tools?
        Yes. The VersaMax snap-together carrier design permits module installation and extraction without tools. Field wiring remains associated with the selected carrier and terminal arrangement.
        Does the VersaMax platform support hot insertion of General Electric IC200MDL650?
        The VersaMax platform supports hot insertion of I/O modules. Installation must still follow the applicable carrier instructions, controller documentation, site safety procedures, and hazardous-location requirements.
        What should be checked before installing General Electric IC200MDL650?
        Confirm the complete model, hardware revision, group polarity, input-device levels, carrier and terminal assignment, filter setting, isolation needs, and saved VersaMax configuration.
