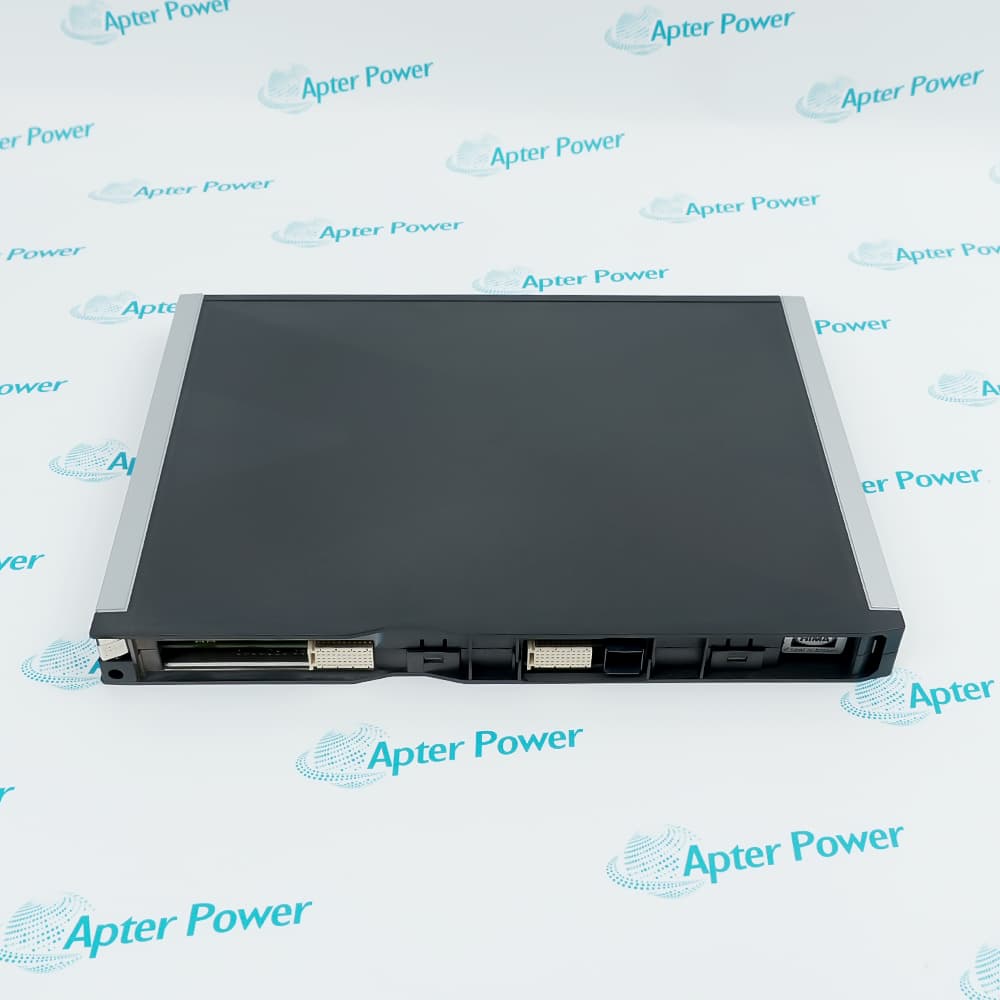

        HIMAX X-CPU01

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        The HIMAX X-CPU01 is a SIL 3 certified processor module for HIMax systems with 1002 architecture, 256 MB memory, 5000 event storage, 4 Ethernet ports, and redundant operation support for up to 4 modules.
        In Stock
        Ships by Wednesday, October 28
        Fast Shipping Available
        Get a quick price for HIMAX X-CPU01
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for HIMAX X-CPU01

        • Manufacturer:
          HIMA
        • Part Number:
          HIMAX X-CPU01
        • Product Family:
          HIMA HIMatrix system
        • Product Type:
          SIL 3 certified processor module
        • Stock:
          2
        • Architecture:
          1002 (two synchronous microprocessors)
        • Safety Certification:
          SIL 3 (IEC 61508), Cat.4/PL e, SIL 4 (EN 50126/50128/50129)
        • User Programs:
          Up to 32
        • Program Memory per Program:
          1023 kB
        • Data Memory per Program:
          1023 kB
        • Total Program/Data Memory:
          10 MB (less 4 kB for CRCs)
        • Event Storage:
          5000 events
        • Ethernet Ports:
          4 × 10/100/1000 Base-T (RJ-45)
        • Supply Voltage:
          24V DC (-15%/+20%), SELV/PELV
        • Current Draw:
          1.4 A
        • Operating Temperature:
          0°C to +60°C
        • Key Benefit:
          Solves high-availability safety control with 1002 fault-tolerant architecture, redundant processor support, and safeethernet communication—maintains SIL 3 integrity while allowing online module replacement.
        • Weight:
          1.3 kg
        • Estimated shipping dimensions:
          31×2.9×23.6cm
        • Tariff Code:
          8517795000
        • Country of origin:
          Germeny
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Application Operating Environment Control Functions

        Features:

        • 1002 processor architecture with two synchronous microprocessors, hardware comparator, and watchdog for SIL 3 fault-tolerant safety control.
        • Redundancy support for up to four processor modules, allowing online replacement and continuous operation.
        • Four 10/100/1000 Base-T Ethernet ports with safeethernet protocol for secure communication between HIMA controllers.
        The HIMAX X-CPU01 runs two synchronous microprocessors, comparing their data constantly. A hardware comparator triggers an interrupt if a fault occurs, and a watchdog monitors both processors. Self-tests ensure safe operation. If a fault persists after restart, the module locks—requiring user intervention.

        Install up to four HIMAX X-CPU01 modules in slots 3-6 (rack 0) or 3-4 (rack 1). The system automatically manages startup order. Remove a faulty module while the system runs—the connector board stays, and remaining processors continue. No shutdown, no process interruption.

        Four 10/100/1000 Base-T ports on the X-CB 001 01 connector board handle safeethernet protocol between HIMax, HIMatrix, and remote I/O. UDP ports 8000 (SILworX), 8001 (remote I/O config), and 6010 (safeethernet) are pre-configured. The module also supports LLDP for network discovery.

        The HIMAX X-CPU01 HIMA Processor Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).

        HIMA HIMAX X-CPU01 Processor Module Manuals, Datasheets, Drivers, Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        HIMA HIMAX X-CPU01 Processor Module Specs

        General

        • Manufacturer HIMA
        • Model HIMAX X-CPU01
        • Condition New Original ready stock
        • Product Family HIMAX X-CPU01-H,HIMAX X-CPU01-F,HIMAX X-CPU02
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Critical Production Process Protection: Emergency Shutdown Systems (ESD), High Integrity Pressure Protection Systems (HIPPS).
        • Combustion and Fire Monitoring: Burner Management Systems (BMS), Fire and Gas Monitoring (F&G).
        • Energy and Piping: Turbine Machinery Control (TMC), Pipeline Automation and Leakage Protection.
        • Large-Scale System Integration: Supports up to 32 user programs running simultaneously, suitable for complex applications requiring centralized processing of large numbers of I/O signals.
        • Operating Temperature: 0°C to +60°C.
        • Power Supply Requirements: 24 VDC (SELV or PELV safety extra-low voltage system).
        • Protection Rating: The module itself is IP20; for use in ex-zone areas, it must be installed in a rack with an IP54 rating or higher.
        • Mounting Structure: The module dimensions are 310 x 29 x 230 mm. It must be mounted on a dedicated base plate, supporting rail or panel mounting.
        • Redundancy Control: Supports XMR architecture, with up to 4 CPU modules (4-fold redundancy) configured on a single rack, enabling seamless fault switching and ensuring uninterrupted coal production.
        • High-Speed ​​Processing: Built-in Real-Time Operating System (RTOS) with a logic processing cycle of up to 10ms, meeting high-speed shutdown requirements.
        • Diagnosis and Event Logging: Built-in diagnostic logs can store up to 2,500 CPU events and diagnostic information transmitted from I/O modules.

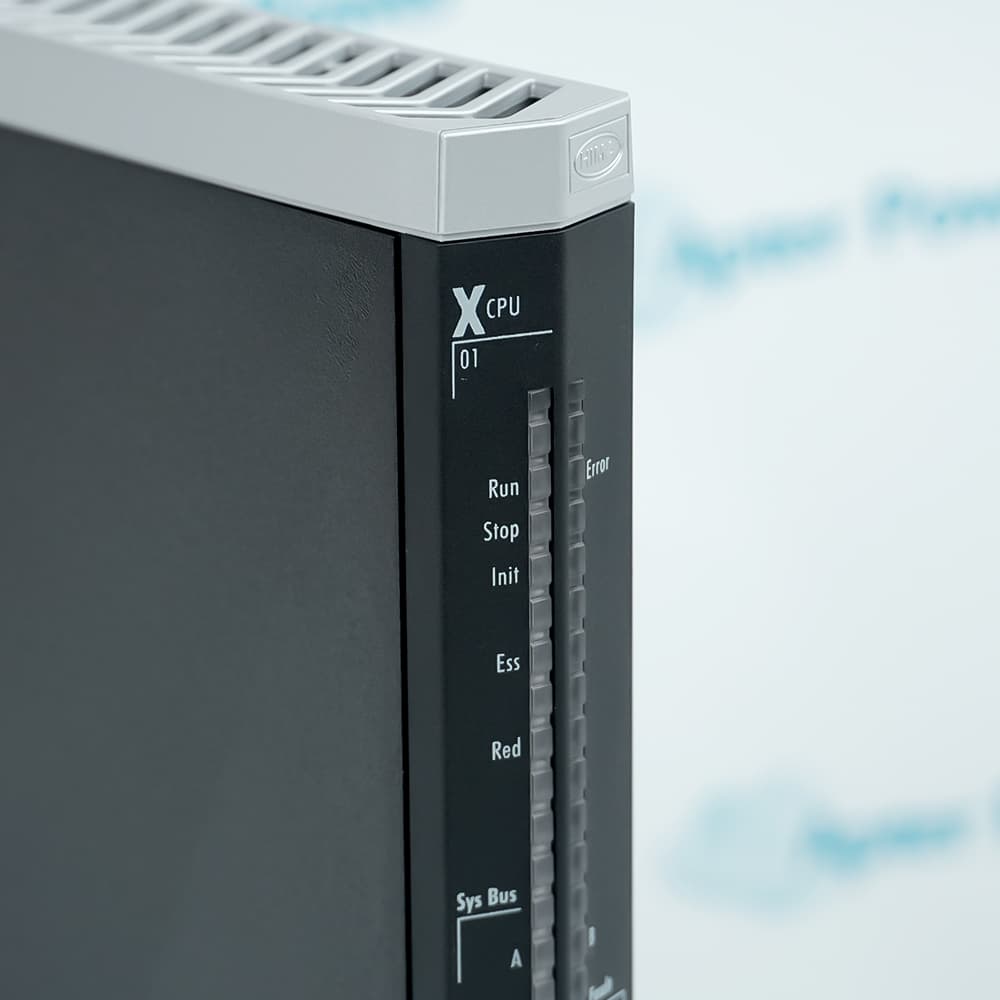

        • The panel features ERR (Error Response) and RUN (Run) LEDs to indicate module health status in real time.
        Description
        The HIMAX X-CPU01 is the central processing unit for the HIMax safety system, mandatory for data processing and system control. It runs up to 32 user programs, handles all central functions including safeethernet communication, and supports redundancy with up to three additional processor modules.

        Built on a 1002 processor architecture with two synchronous microprocessors and a testable hardware comparator, the HIMAX X-CPU01 continuously performs self-tests. A watchdog monitors both processors, and the module records up to 5000 events in non-volatile memory.

        The HIMAX X-CPU01 connects via a X-CB 001 01 connector board providing four 10/100/1000 Base-T Ethernet ports supporting safeethernet and PADT communication. The module requires forced cooling (X-FAN) and operates from 0°C to +60°C.

        This processor solves the pain point of high-availability safety control in SIL 3 applications. The HIMAX X-CPU01’s redundant architecture allows module replacement without interrupting operation, while the 1002 design ensures fault tolerance.
        Alternative Names
        HIMAX X-CPUO1 HIMAX X-CPU0I HIMAX X CPU01 HIMAX X-CPU 31 HIMAX X-CPU01-H HIMAX X-CPU01-F HIMAX X-CPU02 HIMAX X-CPU03 X-CPU 01
        Technical notes
        The HIMA HIMax X-CPU01 is a SIL 3 certified processor module with 1002 architecture (two synchronous microprocessors plus hardware comparator), 256 MB memory, 5000 event storage, and redundancy support for up to four modules allowing online replacement.
