    Apter Power supports HE693PBS106 pricing requests and provides access to official Horner APG technical documentation for product identification and purchasing inquiries.

HE693PBS106

/ 4.9
1001 reviews | Need a Specific Revision?

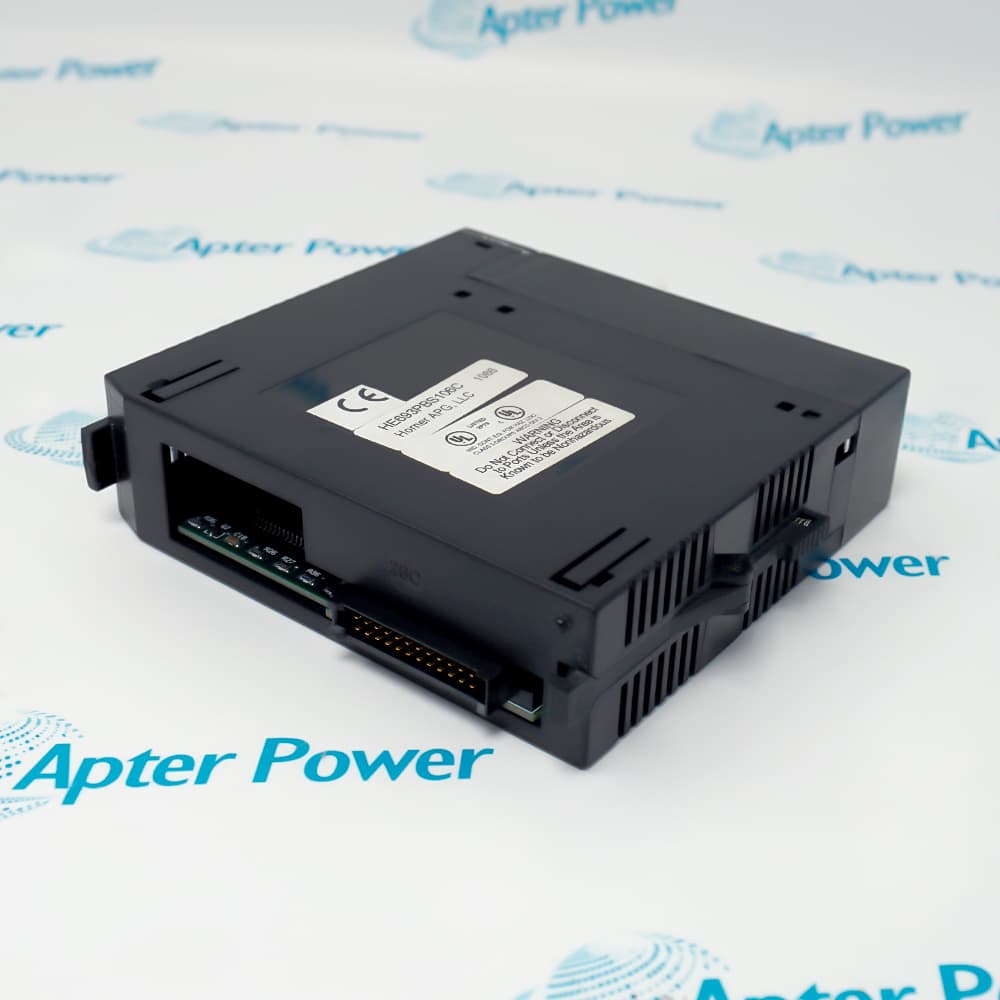

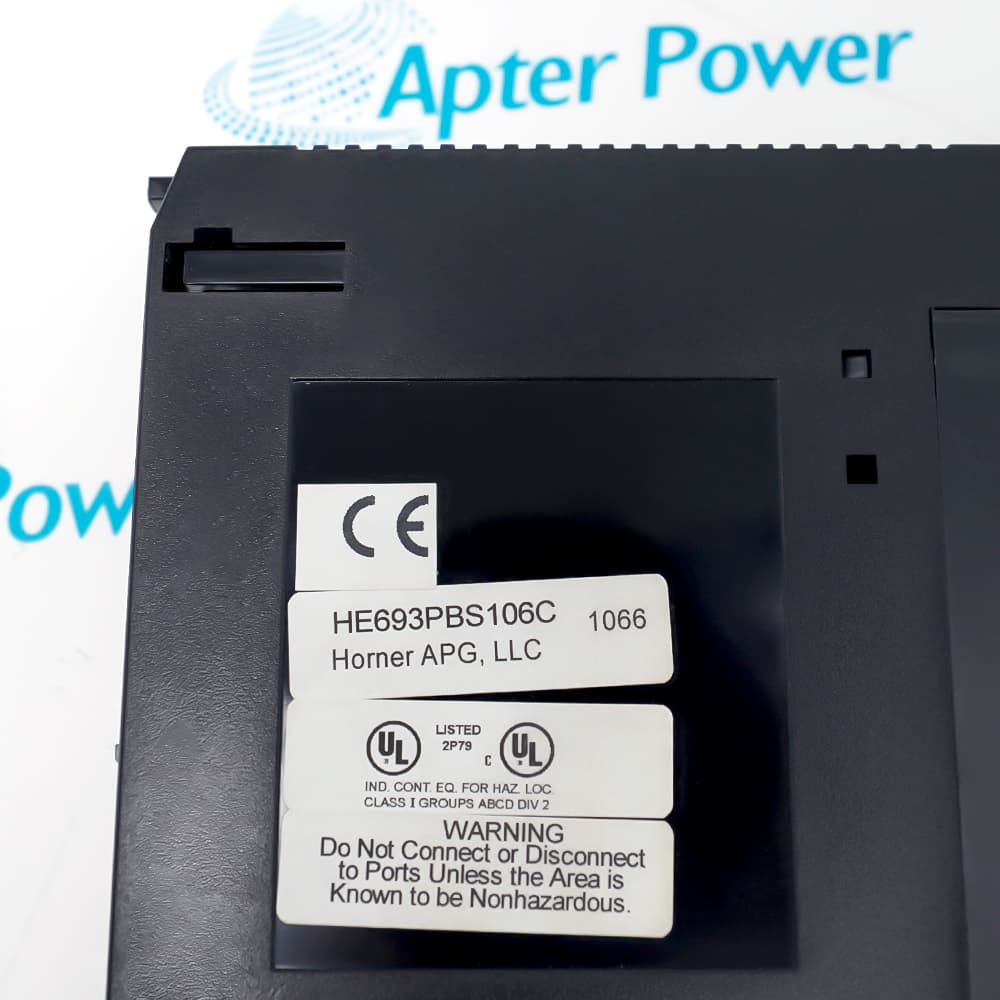

Horner APG HE693PBS106 is a PROFIBUS-DP slave module that connects GE Fanuc Series 90-30 or CEGELEC Alspa 8000 racks to a PROFIBUS master.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for HE693PBS106
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for HE693PBS106

  • Manufacturer:
    HORNER
  • Part Number:
    HE693PBS106
  • Product Family:
    HORNER
  • Product Type:
    PROFIBUS-DP Slave Module
  • Stock:
    1
  • Network Protocol:
    PROFIBUS-DP
  • Compatible PLC Racks:
    GE Fanuc Series 90-30; CEGELEC Alspa 8000
  • Station Address:
    1 to 125
  • Input Data:
    1 to 16 words
  • Output Data:
    1 to 16 words
  • PLC Status Data:
    1 additional input word
  • Network Rate:
    9.6 kbaud to 12 Mbaud
  • Network Connector:
    9-pin PROFIBUS-DP
  • Service Connector:
    9-pin RS-232
  • Configuration Type:
    Foreign Module ID 3
  • Status Indicators:
    OK, RUN, POWER
  • Tariff Code:
    8517629900
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Rack Data Map Diagnostics Wiring

Features:

  • Adds a PROFIBUS-DP slave to compatible racks that do not require a slot-one CPU.
  • Supports LogicMaster-based installations such as racks using the IC693CPU313.
  • Responds to cyclic master requests without independently taking control of the bus.
The HE693PBS106 LogicMaster implementation extends PROFIBUS connectivity to Series 90-30 arrangements that do not support Cimplicity Control or do not need a slot-one processor.

As a slave device, the module acknowledges messages and supplies data only when requested; all connected slaves retain equal priority under control of the master.

Use requires the applicable GE Fanuc Series 90 or CEGELEC Series 8000 programming and configuration environment so the rack map and network project describe the same data exchange.

Apter Power can provide quotation assistance and official Horner documentation access for the Horner APG HE693PBS106 PROFIBUS-DP Slave Module used in legacy PLC installations.
Horner APG HE693PBS106 PROFIBUS-DP Slave Module Manuals, Datasheets, Links
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Local-Rack Use of HE693PBS106

  • Slot placement: The module occupies an available local Series 90-30 or Alspa 8000 position rather than an external remote base.
  • Controller support: LogicMaster operation accommodates racks that neither use Cimplicity Control nor depend on a slot-one CPU.
  • Module identity: The PLC project represents the card as foreign module ID 3 so the backplane reserves the correct data area.
  • Project alignment: Rack configuration and PROFIBUS master mapping are completed as one coordinated interface definition.

Cyclic Word Exchange through HE693PBS106

  • Input allocation: The PLC receives a selectable block of one through sixteen words from the network side.
  • Output allocation: A separately selected one-through-sixteen-word block carries controller data toward the master exchange.
  • Status addition: One extra PLC input word reports communication and firmware state outside the process-data count.
  • Length agreement: Both projects use identical word totals to prevent the module's coded map-mismatch fault.

Interpreting HE693PBS106 Operating States

  • Power state: The POWER indicator distinguishes an unpowered card from one that has reached its internal supply condition.
  • Configuration state: OK and RUN colors separate valid PLC configuration from a module still waiting for usable parameters.
  • Data exchange: A fully green indication identifies the condition in which configuration is valid and PROFIBUS-DP communication is active.
  • Pulse diagnosis: Repeating green counts distinguish initialization failure from an I/O-length mismatch.

HE693PBS106 Connector Roles

  • DP connection: The nine-pin PROFIBUS connector carries the fieldbus link between the slave and master network.
  • Service access: A separate nine-pin RS-232 connector supports firmware-specific maintenance of the slave card.
  • Port separation: Process data remains on the DP interface and is not routed through the service connector.
  • Network hardware: PROFIBUS cable, connectors, shielding, and termination follow the topology required at the installed node.
Description
Horner APG HE693PBS106 adds a PROFIBUS-DP slave interface to a GE Fanuc Series 90-30 or CEGELEC Alspa 8000 local rack, allowing the controller to exchange cyclic data with a PROFIBUS master.

Configured as foreign module ID 3, HE693PBS106 accepts station addresses from 1 through 125 and maps separate PLC input and output areas to the network project. Both sides must use the same word lengths for stable data exchange.

The front assembly separates the nine-pin PROFIBUS connector from a nine-pin RS-232 service port. OK, RUN and POWER indications distinguish configuration, operating and communication states while pulse codes identify initialization and I/O-map faults.

As a DP slave, HE693PBS106 responds to the master rather than controlling bus access. The service connector remains dedicated to firmware maintenance and does not carry normal process-network traffic.
Alternative Names
Horner HE693PBS106 Horner APG HE 693 PBS 106 HE 693 PBS 106 HE693-PBS106 HE693PBS-106 HE693PBS1O6 HE693PBSl06 HE693P8S106
Technical notes
HE693PBS106 reserves one additional PLC input word for module state, so controller logic should keep that diagnostic word separate from cyclic process inputs.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why does HE693PBS106 show green power but a red RUN indicator?
HE693PBS106 has power but is not exchanging PROFIBUS-DP data. Check whether the PLC supplied a valid configuration and whether the master completed parameterization and configuration.
What causes the three-pulse HE693PBS106 fault indication?
Three green pulses on HE693PBS106 indicate that the PLC I/O length does not match the PROFIBUS-DP network map. Align the configured input and output word counts.
How should PLC data areas be allocated for HE693PBS106 without causing a map fault?
Give HE693PBS106 matching input and output lengths in the PLC and PROFIBUS master projects, using 1 to 16 words in each direction and keeping the additional status word outside the process-data count.
Can HE693PBS106 connect to PROFIBUS-PA or PROFIBUS-FMS?
No. HE693PBS106 is designed for PROFIBUS-DP operation and should not be configured as a PROFIBUS-PA or PROFIBUS-FMS interface.
Which rack position can be used for HE693PBS106?
HE693PBS106 can occupy an available local slot in a supported Series 90-30 or Alspa 8000 rack, subject to the PLC configuration and available backplane resources.
Why does HE693PBS106 stay offline after changing its station address?
For HE693PBS106, make the station address agree with the PROFIBUS master project, keep it within 1 to 125, and reload the matching PLC and network configuration.
Is the RS-232 port on HE693PBS106 used for normal PROFIBUS traffic?
No. The HE693PBS106 RS-232 connector is a service port used for slave firmware maintenance; normal process communication uses the nine-pin PROFIBUS-DP connector.
