    Apter Power offers HE693SNP900 quotation assistance and access to official Horner APG technical documentation for product identification and purchasing inquiries.

HE693SNP900

/ 4.9
1001 reviews | Need a Specific Revision?

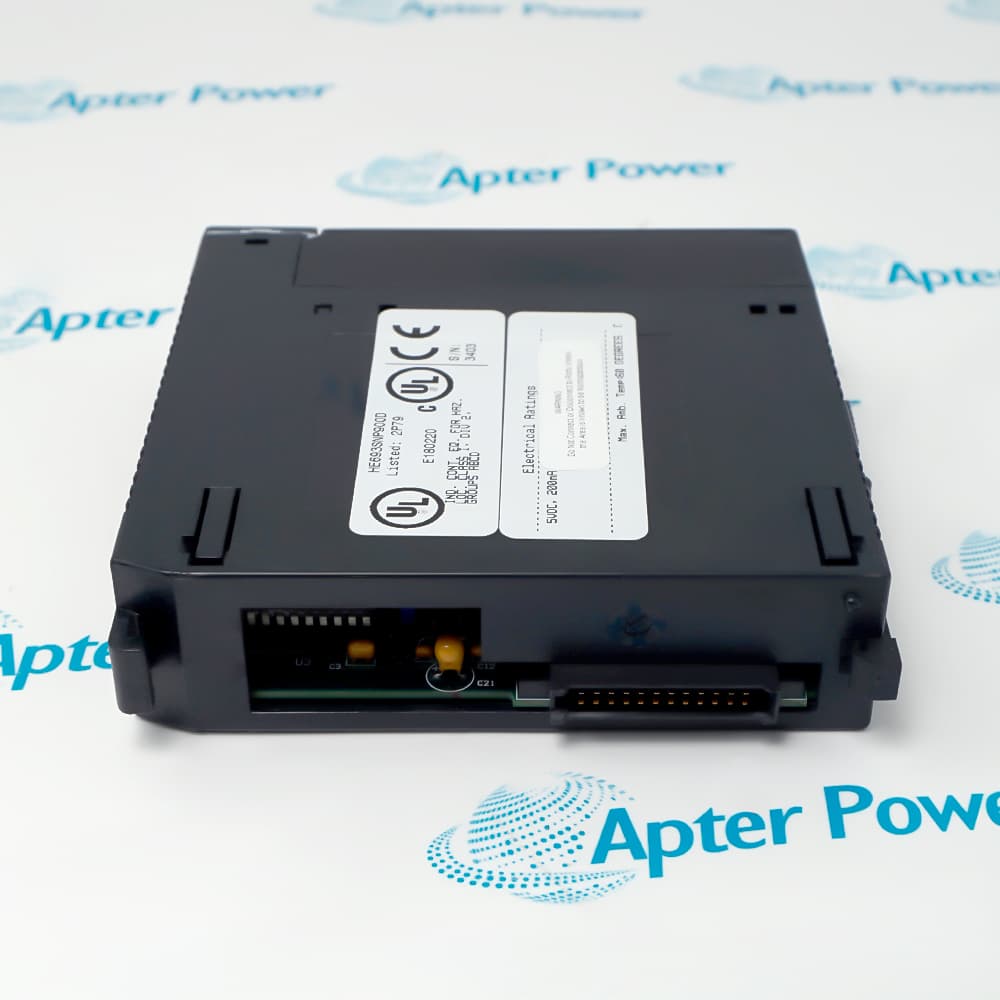

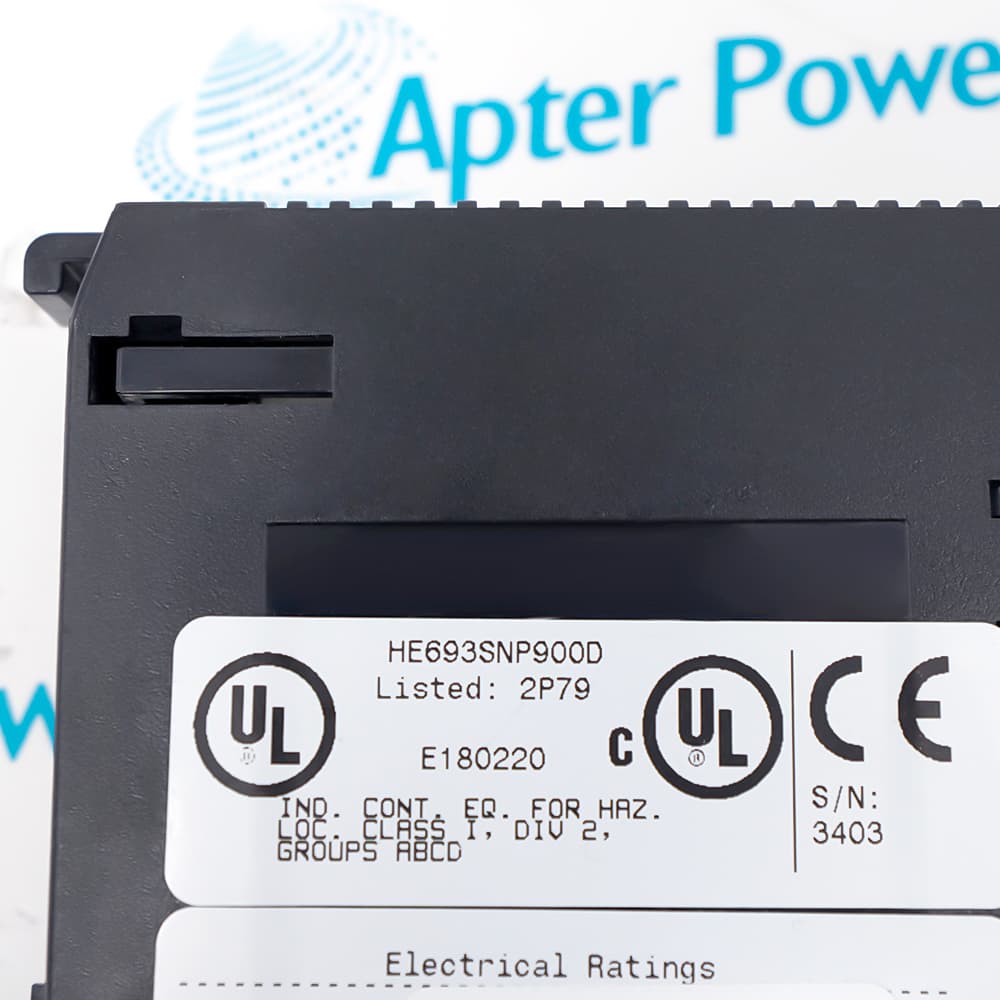

Horner APG HE693SNP900 is a Series 90-30 SNP interface module that adds an RS-232 or RS-485 slave port for access by additional SNP masters.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for HE693SNP900
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for HE693SNP900

  • Manufacturer:
    HORNER
  • Part Number:
    HE693SNP900
  • Product Family:
    HORNER
  • Product Type:
    SNP Interface Module
  • Stock:
    1
  • Interface Function:
    SNP slave
  • PLC Compatibility:
    GE Fanuc Series 90-30
  • Serial Modes:
    RS-232 or RS-485
  • Maximum Network Rate:
    19.2 kbaud
  • SNP Request Size:
    Up to 10,000 bytes
  • Datagram Size:
    Up to 250 bytes
  • Steady-State Current:
    200 mA at 5 VDC
  • Inrush Current:
    300 mA at 5 VDC for 3 ms
  • Minimum PLC CPU Version:
    5.01
  • LogicMaster CPU Requirement:
    6.50 or later
  • Tariff Code:
    8517629900
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Ports Messages Versions Installation

Features:

  • Expands a Series 90-30 controller so multiple SNP masters can reach PLC reference data.
  • Handles SNP requests up to 10,000 bytes and datagrams up to 250 bytes.
  • Introduces additional engineering and protocol functions across documented hardware revisions.
Revision B and later add LogicMaster communications for programming and data access, while the earlier Revision A hardware does not provide that capability.

Revision C introduces SNP-X utilization, and Revision D adds support for the Change SNP ID communication request, making installed hardware identity important during replacement.

The interface serves program and reference-table access but deliberately excludes transfer of the Series 90-30 system configuration, preserving a clear boundary around its engineering role.

For the legacy Horner APG HE693SNP900 SNP Interface Module, Apter Power offers quotation assistance and access to official Horner product documentation.
Horner APG HE693SNP900 SNP Interface Module Manuals, Datasheets, Links
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Serial Interface Setup for HE693SNP900

  • Electrical mode: The selected RS-232 or RS-485 setting matches the master port and installed cable network.
  • Baud setting: Both endpoints use the same supported communication rate up to 19.2 kbaud.
  • SNP identity: The configured slave ID remains unique and consistent with the master application.
  • Topology limit: Radio-modem operation is excluded from the supported interface arrangements.

HE693SNP900 Data-Access Boundaries

  • Reference access: An SNP master reaches PLC reference data through the added slave path as if connected to the native controller interface.
  • Large request: A standard message can address a data block of as much as 10,000 bytes.
  • Datagram limit: Datagram requests use a separate 250-byte maximum that cannot be treated as the normal message ceiling.
  • Configuration exclusion: The port is not used to transfer the Series 90-30 hardware configuration.

Functional Evolution of HE693SNP900

  • Revision A: The initial hardware does not communicate with LogicMaster 90.
  • Revision B: Programming and reference-table access through LogicMaster become available.
  • Revision C: The interface adds use of the SNP-X protocol.
  • Revision D: The Change SNP ID communication request becomes supported.

Series 90-30 Integration of HE693SNP900

  • Free slot: The interface occupies an available position in the local PLC backplane.
  • CPU baseline: Controller firmware meets the minimum version required for module operation and engineering-tool access.
  • Power allowance: The rack budget includes both steady 5 VDC demand and the brief startup inrush.
  • Startup sequence: Port parameters are configured before the SNP master application is connected and started.
Description
An additional SNP slave connection is provided to a GE Fanuc Series 90-30 PLC by the Horner APG HE693SNP900, allowing another compatible master to reach controller reference data.

The serial path on HE693SNP900 can be arranged for RS-232 or RS-485 signaling at rates through 19.2 kbaud. Standard SNP requests and datagrams use different transfer limits, which must be respected by the connected master application.

Installation uses a free local backplane position and a compatible CPU revision. Port parameters are established with the Hand-Held Programmer or LogicMaster 90 before the master is placed into service.

Hardware level affects engineering access and protocol behavior on HE693SNP900: later builds introduce LogicMaster communication, SNP-X use and Change SNP ID support. Replacement therefore requires the complete installed revision to be identified.
Alternative Names
Horner HE693SNP900 Horner APG HE 693 SNP 900 HE 693 SNP 900 HE693-SNP900 HE693SNP-900 HE693SNP9OO HE693SN P900 HE6935NP900
Technical notes
HE693SNP900 is an SNP slave path and does not transfer the Series 90-30 hardware configuration; its engineering access is limited to supported program and reference data.
