8C-PDODA1 51454472-175

/ 4.9
1001 reviews | Need a Specific Revision?

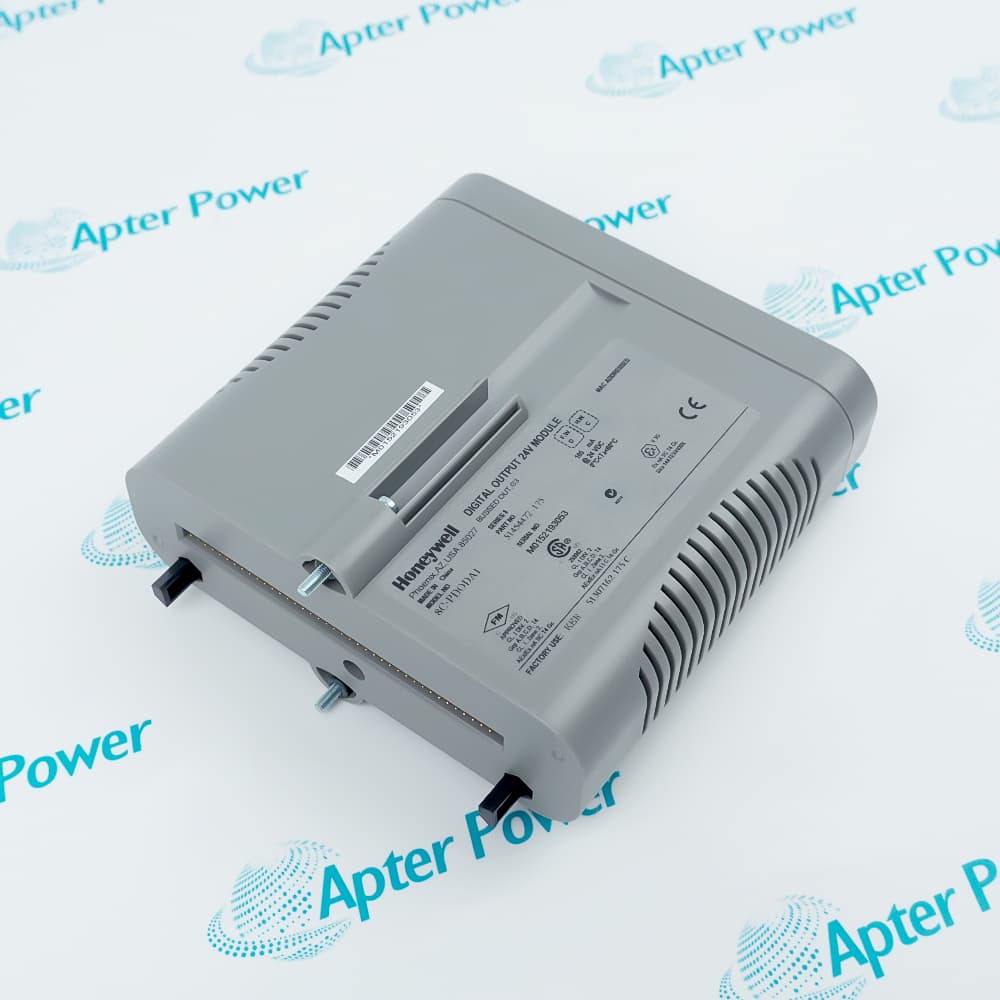

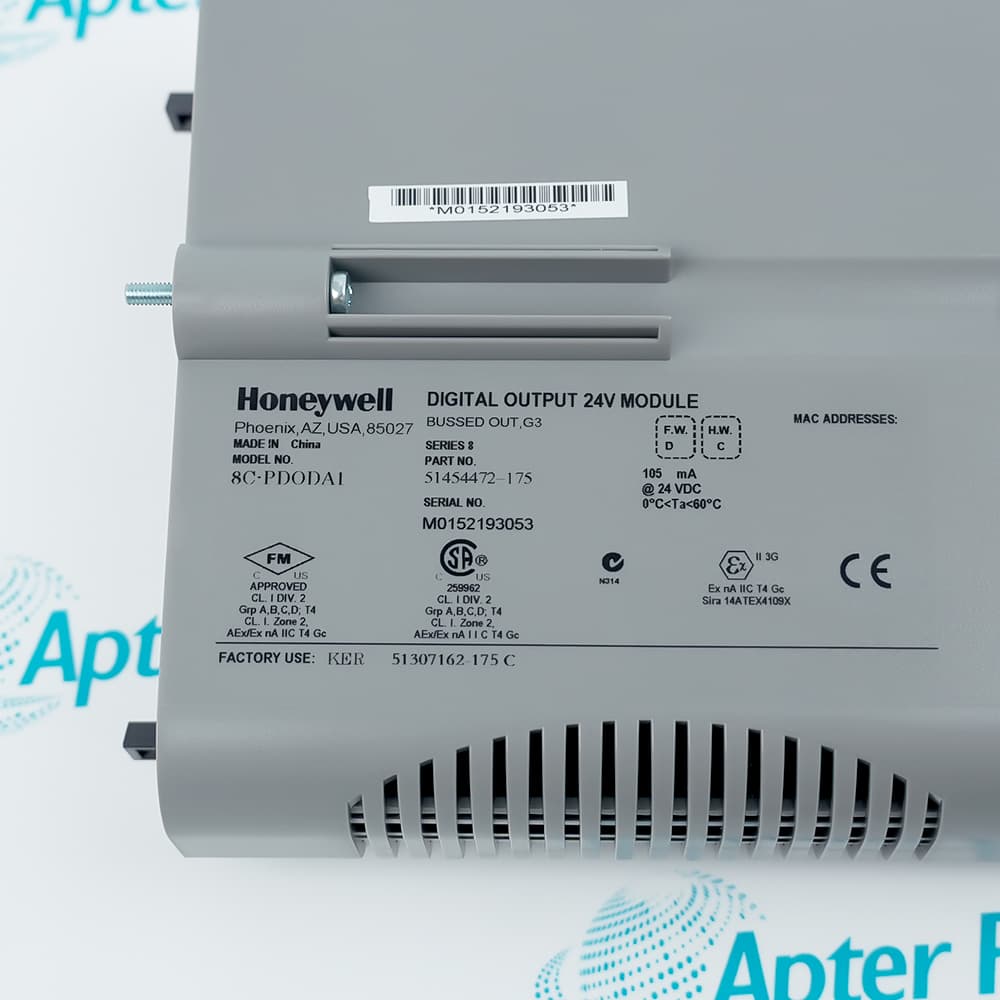

Honeywell 8C-PDODA1 51454472-175 is a coated Series 8 module with 32 bussed 24 VDC source outputs for process equipment, solenoid valves, and interposing relays.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 8C-PDODA1 51454472-175
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 8C-PDODA1 51454472-175

  • Manufacturer:
    Honeywell
  • Part Number:
    8C-PDODA1 51454472-175
  • Product Family:
    Honeywell Experion PKS ( C200, C300 )
  • Product Type:
    Digital Output Module
  • Stock:
    1
  • Output Channels:
    32
  • Output Type:
    Source
  • Voltage Rating:
    24 VDC
  • Module Current Rating:
    105 mA
  • Load Voltage:
    30 VDC maximum
  • Load Current:
    100 mA per channel maximum
  • System-to-Field Isolation:
    1000 VAC RMS with user-supplied field power
  • On-State Voltage:
    24 VDC typical at 0.1 A maximum load current
  • Off-State Leakage Current:
    5 µA maximum
  • Turn-On/Turn-Off Time:
    10 ms maximum
  • Redundant Switchover Current Gap:
    None (0 ms)
  • Removal and Insertion Under Power:
    Supported
  • Operating Temperature:
    0 to 60 °C
  • Storage Temperature:
    -40 to 85 °C
  • Field Excitation:
    Series 8 system power or external 24 VDC supply
  • Short-Circuit Protection:
    One series fuse per eight output channels on DO IOTA
  • Estimated shipping dimensions:
    6x15.2x14.3cm
  • Tariff Code:
    9005100000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Compatibility Environmental Ratings Monitoring & Control Installation

Features:

  • Latched, pulsed, or pulse-width-modulated channel action
  • No output-current gap during redundant switchover
  • One protective series fuse for each group of eight outputs
The 32 source outputs of 8C-PDODA1 51454472-175 share a bussed return, but their commanded behavior is assigned channel by channel. A point can remain latched, issue a timed pulse, or operate with pulse-width modulation according to the control strategy.

A redundant pair transfers without an output-current gap, allowing the connected load path to remain energized through switchover. FAILOPT separately determines whether each point holds its last state or moves to its configured safe state.

Protection is organized on the DO IOTA, where a series fuse serves each bank of eight channels. The output module can be removed or inserted under power while the field wiring remains on the termination assembly.
The Honeywell 8C-PDODA1 51454472-175 Digital Output Module is listed as Active / Available from OEM. Apter Power can assist with availability inquiries and access to available Honeywell documentation.
Honeywell 8C-PDODA1 51454472-175 Digital Output 24 VDC, Field Isolated, Bussed Output, Coated Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Termination hardware choices:

  • Non-redundant base: 8C-TDODA1 is the coated 9-inch IOTA for a single 8C-PDODA1 51454472-175 path.
  • Redundant base: 8C-TDODB1 is the coated 12-inch IOTA used when redundant module support is required.
  • Switchover: The redundant arrangement is specified with no output-current gap during transfer.
  • Relay extension: 8C-SDOX01 can extend the 24 VDC output module through the supported relay arrangement.

Electrical and service boundaries:

  • Channel load: Each 8C-PDODA1 51454472-175 output is rated to 100 mA maximum.
  • Switching response: Turn-on and turn-off time is specified at 10 ms maximum.
  • Temperature range: Operation is specified from 0 to 60 °C, with storage from -40 to 85 °C.
  • Service access: Removal and insertion under power is supported, while DO IOTA fuses protect groups of eight channels.

Per-channel control:

  • Source outputs: 8C-PDODA1 51454472-175 switches positive 24 VDC output paths for connected field loads.
  • Latched action: Individual channels can retain a commanded state until the control strategy changes it.
  • Timed action: Pulsed and pulse-width-modulated behavior can be assigned independently by channel.
  • Safe state: FAILOPT directs each output to hold its last value or shed to a configured safe value.

Field supply selection:

  • Common return: All 32 outputs on 8C-PDODA1 51454472-175 share the same bussed return.
  • System excitation: The output bank can use the Series 8 system supply as its 24 VDC source.
  • External excitation: A separate 24 VDC field supply permits system-to-field galvanic isolation.
  • IOTA wiring: Termination wiring determines whether field outputs reference system power or the external source.
Description
Process loads connected to 8C-PDODA1 51454472-175 receive positive 24 VDC switching from 32 source-type channels that share a common return. The module can drive devices such as solenoid valves and interposing relays within the published per-channel load boundary.

Field excitation may come from Series 8 system power or a separate 24 VDC supply. An external supply enables system-to-field galvanic isolation, with the IOTA wiring establishing the reference used by the entire output bank.

The coated 8C-TDODA1 nine-inch IOTA is used for a single output path, whereas 8C-TDODB1 provides a twelve-inch redundant base. Where dry relay contacts are needed, the supported 8C-SDOX01 relay extension adds that interface to the digital-output assembly.

Each channel is rated for up to 100 mA, with a 30 VDC maximum load voltage, 5 uA maximum off-state leakage, and 10 ms maximum turn-on or turn-off time. Together these limits define the load devices and switching response appropriate for the module.
Alternative Names
8C-PDODA1 8C PDODA1 51454472 175 8CPDODA1 51454472175 Honeywell 8C-PDODA1 51454472-175 HON 8C-PDODA1 51454472-175 Honeywell 8C PDODA1 51454472 175 Honeywell Series 8 8C-PDODA1 Series 8 Digital Output 8C-PDODA1
Technical notes
Honeywell 8C-PDODA1 51454472-175 is a coated 32-channel bussed 24 VDC source-output module for Series 8 field-device control.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which IOTA assemblies pair with 8C-PDODA1 51454472-175?
8C-PDODA1 51454472-175 pairs with the coated 8C-TDODA1 9-inch non-redundant IOTA or 8C-TDODB1 12-inch redundant IOTA.
How does external field power affect 8C-PDODA1 51454472-175?
With 8C-PDODA1 51454472-175, an externally connected 24 VDC supply allows system-to-field galvanic isolation when the IOTA is wired for external excitation.
Which channel behaviors can 8C-PDODA1 51454472-175 provide?
8C-PDODA1 51454472-175 supports latched, pulsed, and pulse-width-modulated output operation on a per-channel basis.
What does FAILOPT control on 8C-PDODA1 51454472-175?
FAILOPT lets each 8C-PDODA1 51454472-175 channel hold its last value or shed to a user-configured safe value.
Can 8C-PDODA1 51454472-175 be removed or inserted while powered?
Honeywell specifies removal and insertion under power as supported for 8C-PDODA1 51454472-175 when site procedures and the correct IOTA arrangement are followed.
How is channel short-circuit protection arranged for 8C-PDODA1 51454472-175?
The DO IOTA used with 8C-PDODA1 51454472-175 has one series fuse per eight channels, totaling four fuses for 32 outputs.
What should be checked when an 8C-PDODA1 51454472-175 output does not switch?
For 8C-PDODA1 51454472-175, check the 24 VDC field source, common return, IOTA power selection, channel mode, FAILOPT setting, fuse group, and diagnostics.
