    Apter Power supports TC-FTEB01 51309512-125 document review, configuration matching and quotation.

TC-FTEB01 51309512-125

/ 4.9
1001 reviews | Need a Specific Revision?

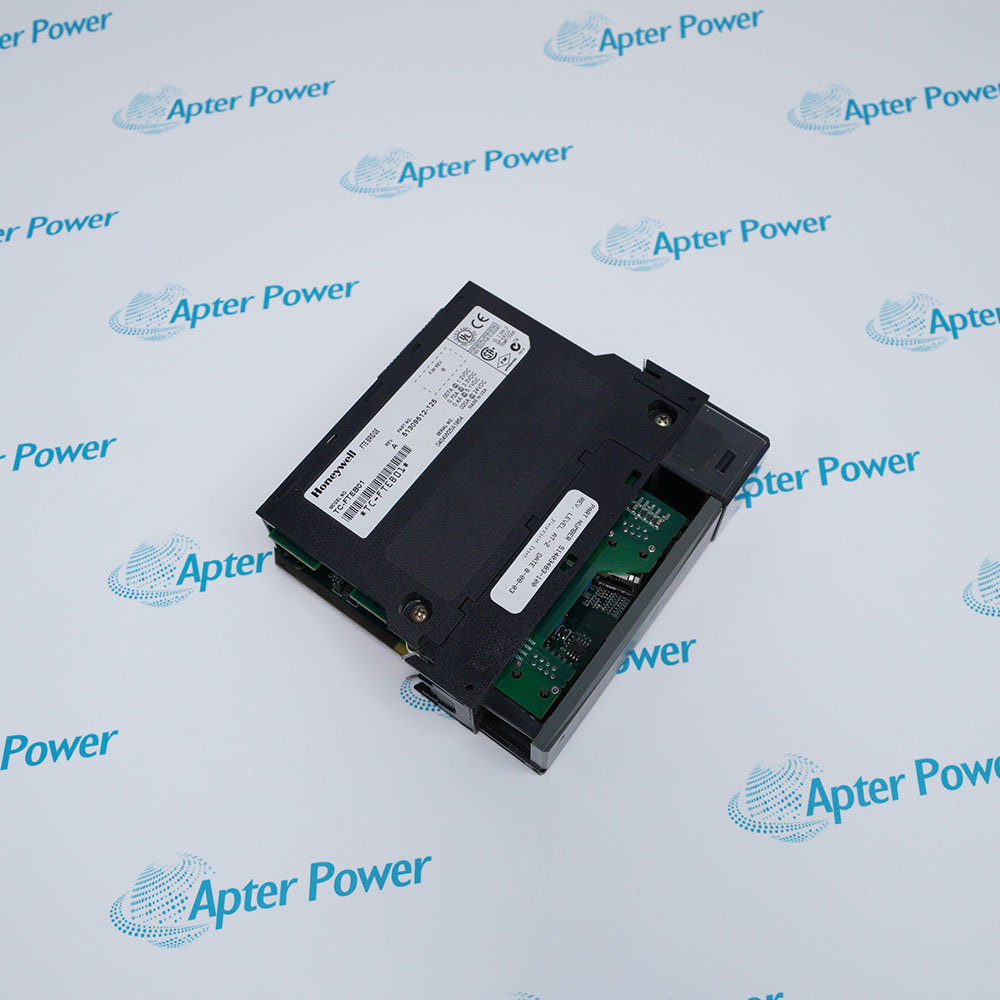

Honeywell TC-FTEB01 51309512-125 is an FTE Bridge for supported Experion PKS C200 and FIM-only chassis arrangements. The supplied nameplate identifies hardware revision A and firmware revision B.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for TC-FTEB01 51309512-125
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for TC-FTEB01 51309512-125

  • Manufacturer:
    Honeywell
  • Part Number:
    TC-FTEB01 51309512-125
  • Product Family:
    Honeywell Experion PKS ( C200, C300 )
  • Product Type:
    FTE Bridge Module
  • Stock:
    1
  • Module designation:
    TC-FTEB01 FTE Bridge
  • Supplied ordering reference:
    51309512-125
  • Network function:
    Fault Tolerant Ethernet communication
  • Controller support:
    C200 controller chassis
  • FIM support:
    FIM-only chassis
  • Maximum bridge quantity:
    One per C200 or FIM-only chassis
  • ACE arrangement:
    ACE included when connected through the documented chassis architecture
  • Hardware revision on supplied nameplate:
    A
  • Firmware revision on supplied nameplate:
    B
  • 1.2 V rail current:
    0.007 A
  • 3.3 V rail current:
    0.70 A
  • 5.1 V rail current:
    0.4 A
  • 24 V rail current:
    0.020 A
  • Manufacturing marking:
    Made in USA
  • Approvals shown on manufacturer label:
    UL Listed, CSA, FM Approved and CE
  • Supported controller architecture:
    Experion PKS C200/C200E Series A chassis
  • Supported I/O arrangement:
    Series A chassis I/O retained during documented C300 modernization
  • Migration role:
    Replaces CNI communication cards in the documented C200/C200E-to-C300 path
  • Migration controller target:
    Experion PKS C300 controller
  • Weight:
    0.617 lbs (0.28 kg)
  • Estimated shipping dimensions:
    3.4 x 14 x 14.5 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Communication & Connectivity Configuration Compatibility & Interoperability

Features:

  • The bridge connects a supported C200 or FIM-only chassis to the Experion Fault Tolerant Ethernet network.

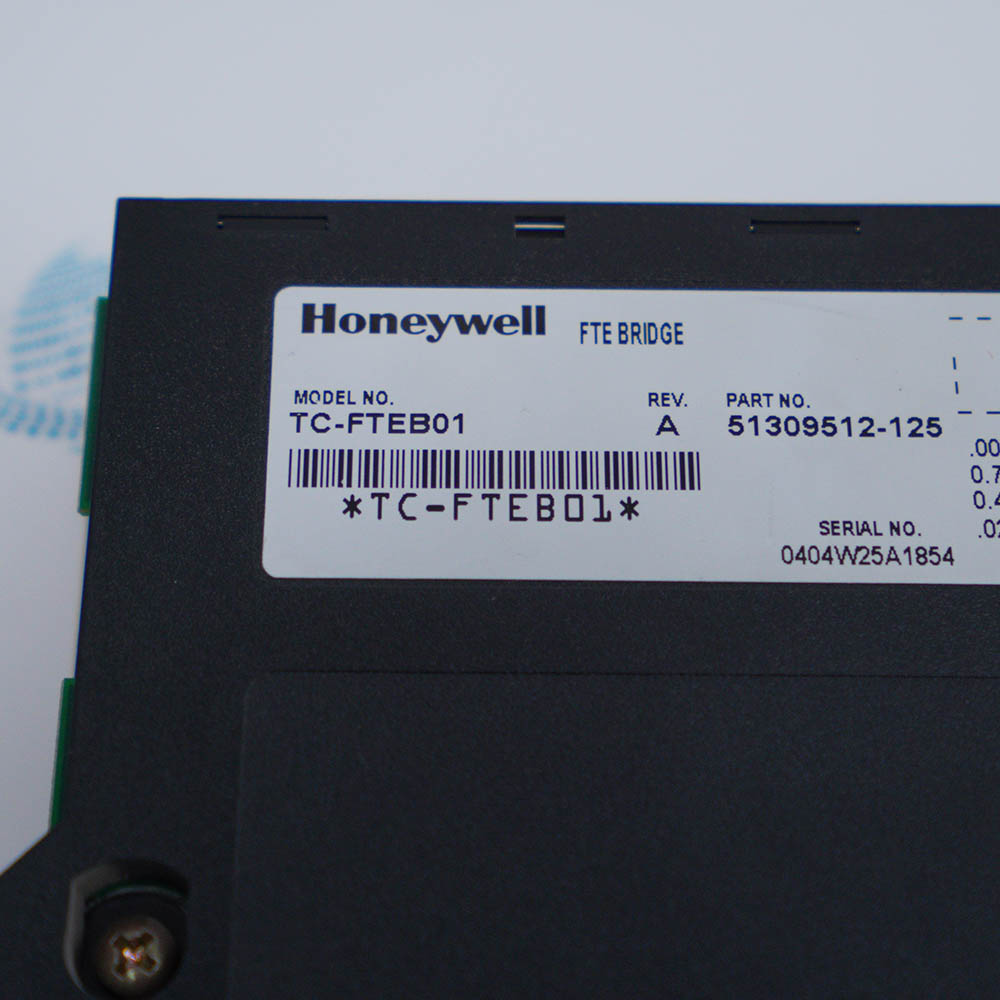

  • The supplied hardware is marked revision A with firmware revision B and part number 51309512-125.
  • Nameplate rail loads include 0.70 A at 3.3 V and 0.4 A at 5.1 V for exact assembly identification.
The current assembly identity combines model TC-FTEB01 with ordering number 51309512-125 and the recorded hardware/firmware revisions.

It mediates chassis communication onto redundant FTE segments so controllers, FIM resources and Experion servers share a resilient data path.

Confirm the node database, chassis slot, FTE A/B cabling and supported release before a replacement bridge is introduced.

Apter Power can support exact-model configuration review and quotation for Honeywell TC-FTEB01 51309512-125.
Verified resources for Honeywell TC-FTEB01 51309512-125: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • C200 control nodes can connect their chassis resources to redundant Experion supervisory communications.
  • FIM-only chassis can expose fieldbus data through the planned FTE node architecture.
  • Maintenance teams can restore a failed bridge while preserving the original FTE addresses and redundant path allocation.
  • The bridge provides coordinated access to controller and Fieldbus Interface Module data within the planned Experion node.
  • Fault Tolerant Ethernet carries control-system traffic over redundant network paths for improved communication availability.
  • Only one bridge is permitted per supported chassis; chassis type, firmware, addressing and topology must be checked.
  • The FTE Bridge function links the supported chassis electronics with the redundant Experion network architecture.
  • Ordering reference 51309512-125 identifies the specific hardware execution required for like-for-like replacement.
  • The configured chassis must be a supported C200 controller location with the correct slot and firmware arrangement.
  • The bridge can be used in a supported FIM-only chassis when the node architecture calls for that arrangement.
  • Only one bridge is allowed in each C200 or FIM-only chassis, preventing unsupported duplicate network interfaces.
  • ACE connectivity is supported through the chassis architecture when the controller and network configuration are matched.
Description
TC-FTEB01 51309512-125 provides the chassis-level path between compatible controller or Fieldbus Interface Module resources and Honeywell Fault Tolerant Ethernet. Redundant network paths carry control and supervisory traffic so the Experion architecture can continue communicating after a single network-path failure.

The 51309512-125 assembly is limited to the C200 or FIM-only chassis use, with one bridge per supported chassis. Its nameplate current values across the 1.2 V, 3.3 V, 5.1 V and 24 V rails help identify the exact electrical loading of this hardware revision.

Replacement planning must include chassis type, Experion release, firmware compatibility, FTE addressing and cable topology. An FTE Bridge should not be moved between nodes until the paired network paths, chassis configuration and database assignment are recorded and approved.
Alternative Names
TC-FTEB01 51309512-125 TC FTEB01 51309512 125 TC-FTEB01-51309512-125 TCFTEB0151309512125 Honeywell TC-FTEB01 51309512-125 Honeywell TC FTEB01 51309512 125 TC-FTEB01 51309512-125 FTE Bridge Module Honeywell TC-FTEB01 51309512-125 Experion PKS C200/C300
Technical notes
Only one TC-FTEB01 51309512-125 is permitted in the supported chassis arrangement; confirm firmware revision B and both FTE network paths before returning the node to redundant service.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Where may TC-FTEB01 51309512-125 be installed?
The bridge supports C200 or FIM-only chassis arrangements, with one unit per compatible chassis.
How are hardware A and firmware B recorded for TC-FTEB01 51309512-125?
The nameplate records hardware revision A and firmware revision B.
How does TC-FTEB01 51309512-125 contribute to FTE resilience?
It links the chassis to the paired Fault Tolerant Ethernet paths used by the Experion node.
Why are the four rail-current values useful for TC-FTEB01 51309512-125 verification?
They identify the electrical loading of this exact assembly and help distinguish it from visually similar bridge hardware.
Which FTE node data must survive a TC-FTEB01 51309512-125 replacement?
Record the chassis database, FTE addresses, firmware, network A/B cabling, node assignment and any ACE/FIM relationships.
How can revision B be confirmed in a TC-FTEB01 51309512-125 quotation?
Include a readable full label, both connector sides, chassis model, Experion release, installed firmware, quantity and destination.
