CC-PDIL01 51405040-176

/ 4.9
1001 reviews | Need a Specific Revision?

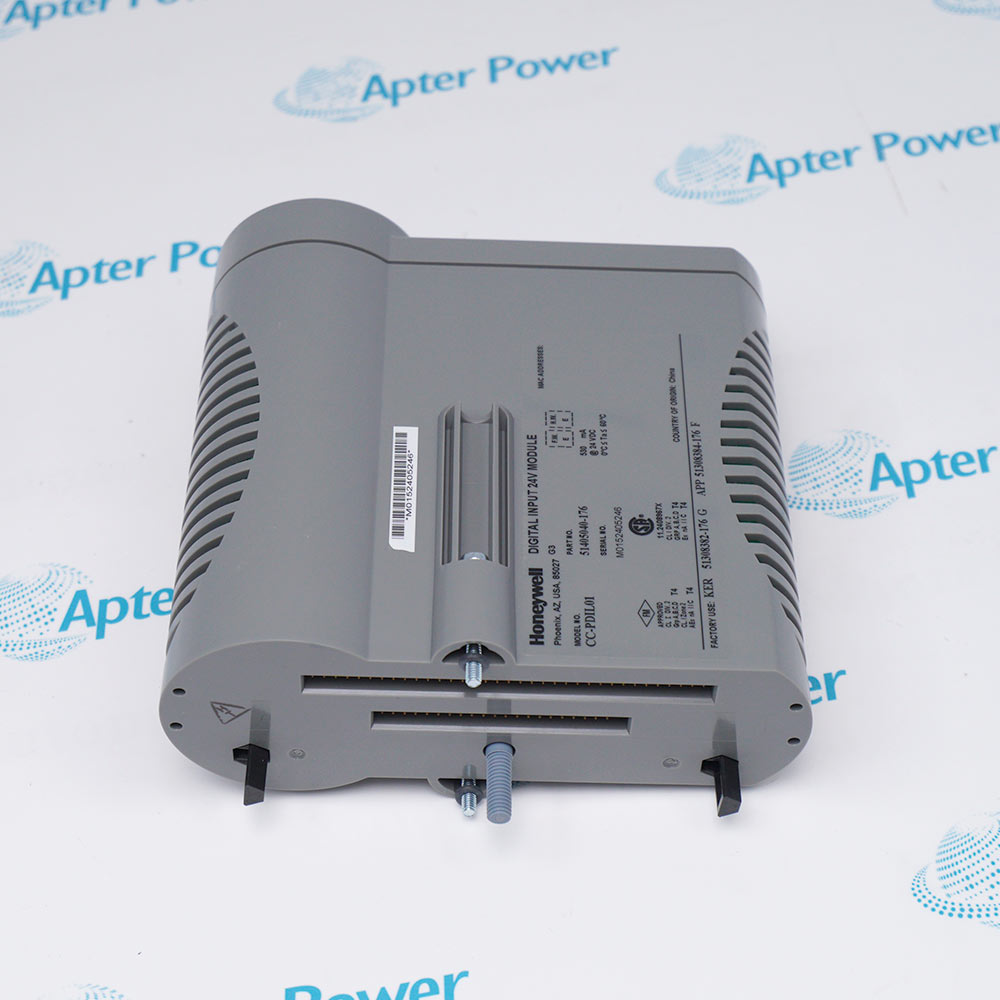

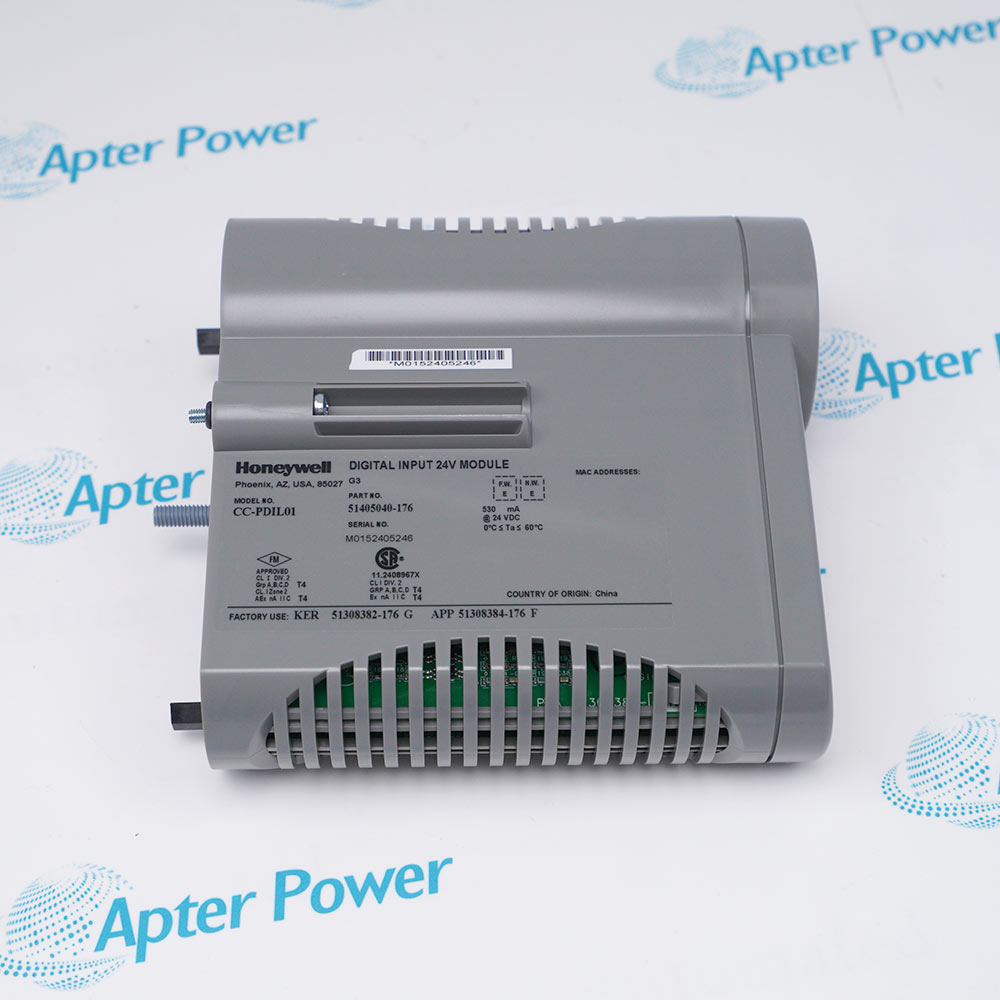

Honeywell CC-PDIL01 is a 32-channel Series C digital input module for 24 VDC discrete field signals.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for CC-PDIL01 51405040-176
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for CC-PDIL01 51405040-176

  • Manufacturer:
    Honeywell
  • Part Number:
    CC-PDIL01 51405040-176
  • Product Family:
    Honeywell Experion PKS ( C200, C300 )
  • Product Type:
    24 VDC Digital Input Module
  • Stock:
    1
  • Input Channels:
    32
  • Power Voltage Range:
    18 to 30 VDC
  • ON Threshold:
    13 VDC or 3 mA minimum
  • OFF Threshold:
    5 VDC or 1.2 mA maximum
  • Input Impedance:
    4.2 kΩ
  • Absolute Delay:
    5 ms ±20%
  • Open-Wire Detection:
    Supported
  • Isolation:
    1500 VAC RMS or ±1500 VDC
  • Compatible IOTAs:
    CC-TDIL01 non-redundant; CC-TDIL11 redundant
  • Field Resistance (ON):
    ≤300 Ω at 15 VDC
  • Field Resistance (OFF):
    ≥30 kΩ at 30 VDC
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Diagnostics & Protection Compatibility Installation

Features:

  • 32-channel discrete input IOM for 24 VDC field circuits.
  • Direct or reverse open-wire detection.
  • Supports CC-TDIL01 or CC-TDIL11 IOTA configurations.
CC-PDIL01 51405040-176 is the ordering configuration for the Honeywell Series C digital input module used with 18 to 30 VDC field circuits.

The module reports the states of connected discrete devices to Experion PKS and provides optical isolation between the field and system sides.

Before installation, match the IOM to the selected IOTA, then verify field resistance, power arrangement, wiring polarity, and redundancy requirements.

Availability is subject to Apter Power stock and complete IOM/IOTA configuration confirmation.
Honeywell CC-PDIL01 51405040-176 manuals and reference links: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Honeywell CC-PDIL01 51405040-176 Series C Digital Input Module

General

  • Manufacturer Honeywell
  • Model CC-PDIL01 51405040-176
  • Condition New and factory sealed
  • Product Family Experion PKS Series C I/O
  • Open-wire detection is available for the documented 24 VDC input arrangement.
  • Optical isolation is implemented in the IOM between field and system circuitry.
  • Direct or reverse indication can be selected to match the required channel behavior.
  • CC-TDIL01 provides the non-redundant IOTA arrangement for CC-PDIL01.
  • CC-TDIL11 provides the redundant IOTA arrangement for the same IOM.
  • Confirm Series C controller support and the complete IOM/IOTA ordering set before replacement.
  • Keep each field circuit within the documented 18 to 30 VDC operating range.
  • Verify ON-state and OFF-state field resistance against the specified thresholds.
  • Confirm field-power selection, redundancy, and terminal assignment before landing conductors.
Description
Honeywell CC-PDIL01 is a 32-channel Series C digital input module designed for 24 VDC discrete field signals.

The module supports open-wire detection, optical isolation in the IOM, direct or reverse indication, and non-redundant or redundant IOTA configurations.

Match the module with CC-TDIL01 for non-redundant service or CC-TDIL11 for redundant service, and confirm field voltage, resistance, and diagnostic requirements before installation.
Alternative Names
CC-PDIL01 Honeywell CC-PDIL01 CC-PDIL01 51405040-176 Honeywell Experion CC-PDIL01 CCPDIL01 51405040-176 CC PDIL01 CC-PDIL0I 5I405040-I76
Technical notes
CC-PDIL01 provides 32 optically isolated 24 VDC digital inputs with open-wire detection. Confirm CC-TDIL01 or CC-TDIL11 IOTA selection before ordering.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which IOTA is used for non-redundant CC-PDIL01 service?
Use the CC-TDIL01 non-redundant IOTA.
Which IOTA supports a redundant CC-PDIL01 configuration?
Use the CC-TDIL11 redundant IOTA.
What input range applies to CC-PDIL01?
The documented field-power range is 18 to 30 VDC.
How does CC-PDIL01 identify an ON state?
An input reaches ON at 13 VDC or 3 mA minimum.
Does CC-PDIL01 support open-wire diagnostics?
Yes. Open-wire detection is included for the documented DI configuration.
What isolation is specified for this digital input module?
The specification lists 1500 VAC RMS or ±1500 VDC isolation.
Which module is recommended instead of phase-out CC-PDIL51?
Honeywell recommends CC-PDIL01 for new greenfield and brownfield expansion work.
What should be confirmed before ordering the module?
Confirm IOTA type, field voltage, redundancy, power arrangement, and diagnostic requirements.
