CC-PAOH01 51405039-175

/ 4.9
1001 reviews | Need a Specific Revision?

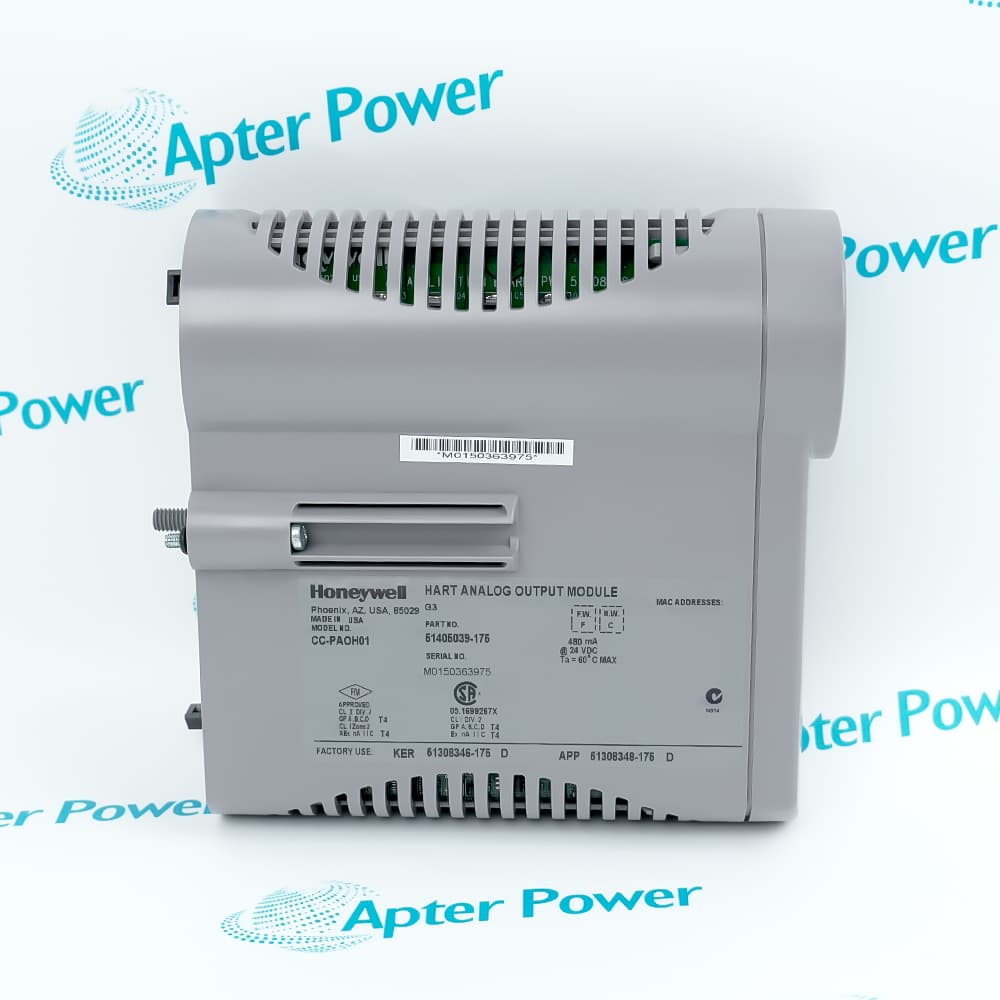

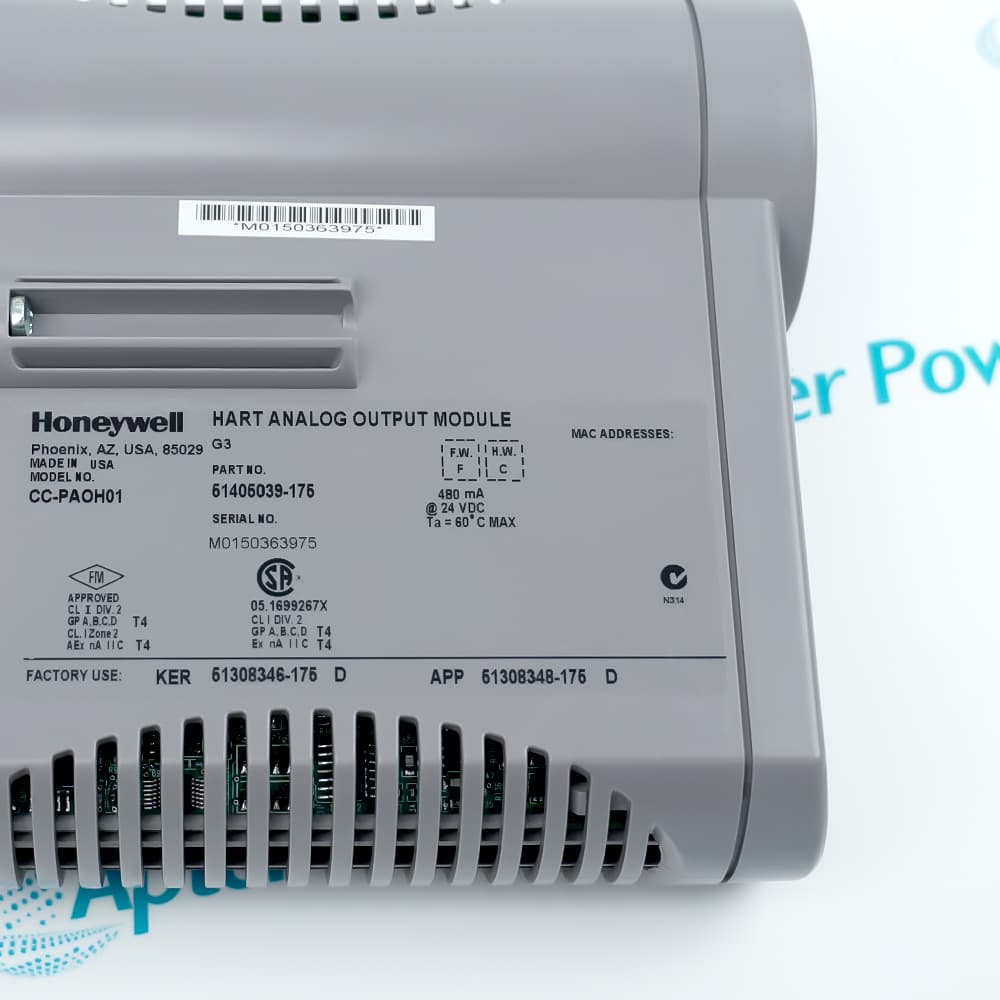

Honeywell CC-PAOH01 is a 16-channel Series C analog output module that drives 4-20 mA actuators and indicating devices while supporting HART communication.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for CC-PAOH01 51405039-175
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for CC-PAOH01 51405039-175

  • Manufacturer:
    Honeywell
  • Part Number:
    CC-PAOH01 51405039-175
  • Product Family:
    Honeywell Experion PKS ( C200, C300 )
  • Product Type:
    Analog Output with HART Module
  • Stock:
    1
  • Output Channels:
    16
  • Output Type:
    4-20 mA
  • HART:
    Supported
  • Maximum Resistive Load:
    800 ohms
  • Response Time:
    Within 1% in 80 ms
  • Redundancy:
    Optional
  • Switchover Gap:
    10 ms maximum
  • Response Time:
    <80 ms (to 1% of final value)
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications PAOH01 Output Quality FAILOPT Behavior HART Output Wiring

Product overview:

  • Output service: 4-20 mA high-level output with HART
  • Diagnostics: Readback discrepancy and open-wire detection
  • Fail behavior: Per-channel hold-last or shed-to-safe configuration
Honeywell CC-PAOH01 is a 16-channel Series C analog output module that drives 4-20 mA actuators and indicating devices while supporting HART communication.

Availability is subject to Apter Power's current inventory and configuration confirmation.
Honeywell CC-PAOH01 Specifications

General

  • ManufacturerHoneywell
  • ModelCC-PAOH01
  • ConditionNew and factory sealed
  • Product FamilyHoneywell Experion Series C I/O
  • Linearity: ±0.05% of full scale nominal
  • Calibrated accuracy: ±0.35% of full scale at 25°C
  • Readback: Output discrepancy diagnostics are provided
  • Hold: A channel can hold its last commanded value
  • Shed: A channel can move to its configured safe value
  • Electronics failure: Output moves to zero if the IOM electronics fails
  • Signal: Each output uses a 4-20 mA current loop
  • Load: Maximum documented resistive load is 800 ohms
  • IOTA: Select the matching standard, redundant, or GI/IS IOTA
Description
Honeywell CC-PAOH01 is a 16-channel Series C analog output module that drives 4-20 mA actuators and indicating devices while supporting HART communication.

Honeywell documents per-channel FAILOPT behavior, output readback diagnostics, open-wire detection, non-incendive output, optional redundancy, and up to 800 ohms resistive load.

The module mounts on CC-TAOX01 for nonredundant use or CC-TAOX11 for redundant installations; GI/IS IOTA options are also documented.

Alternative Names
CC-PAOH01 Honeywell CC-PAOH01 Honeywell Experion CC-PAOH01 CC-PAOH01 Analog Output with HART Module CC-PAOH01 datasheet CC-PAOH01 quotation CCPAOH01 CC-PAOH01
Technical notes
CC-PAOH01: Sixteen-channel 4-20 mA HART output module with readback diagnostics, configurable safe state, and optional redundancy. Confirm the exact Honeywell model and compatible hardware before ordering.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What devices can CC-PAOH01 drive?
It supplies high-level constant current to actuators and recording or indicating devices.
How many outputs are available on PAOH01?
Honeywell specifies 16 output channels.
Does CC-PAOH01 carry HART communication?
Yes. HART instrument status and variables are supported.
What happens when a PAOH01 channel detects an open wire?
The module annunciates a channel soft failure.
Can each output use a different fail behavior?
Yes. FAILOPT is configurable per channel for hold-last or safe-value action.
What load can a PAOH01 current loop drive?
Honeywell specifies up to 800 ohms under the documented supply range.
Which IOTA supports nonredundant PAOH01 installation?
Honeywell lists CC-TAOX01 for the standard nonredundant arrangement.
What must be checked before pairing redundant PAOH01 modules?
Confirm IOTA, hardware revisions, firmware, loop load, and channel safe-state settings.
