    Apter Power supplies original Honeywell DCS modules to ensure continuous process power and protect critical control architectures.

TK-FPDXX2

/ 4.9
1001 reviews | Need a Specific Revision?

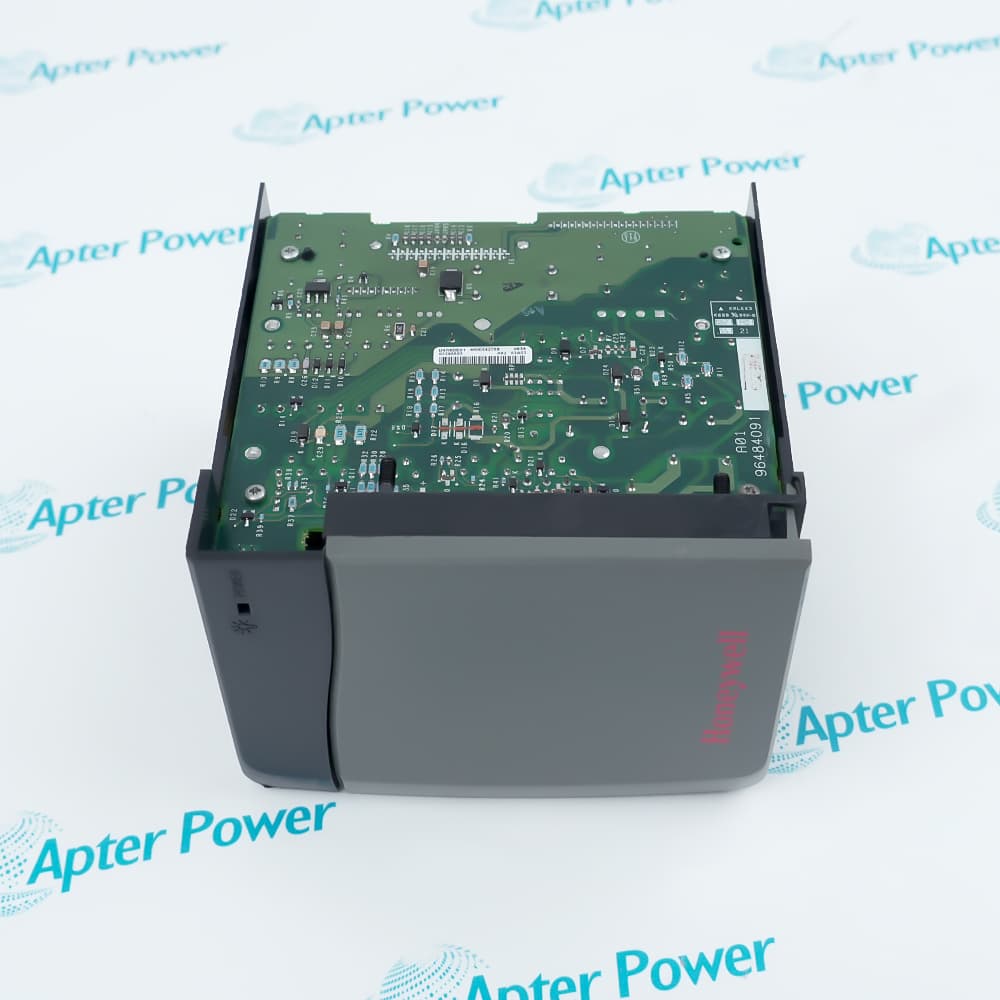

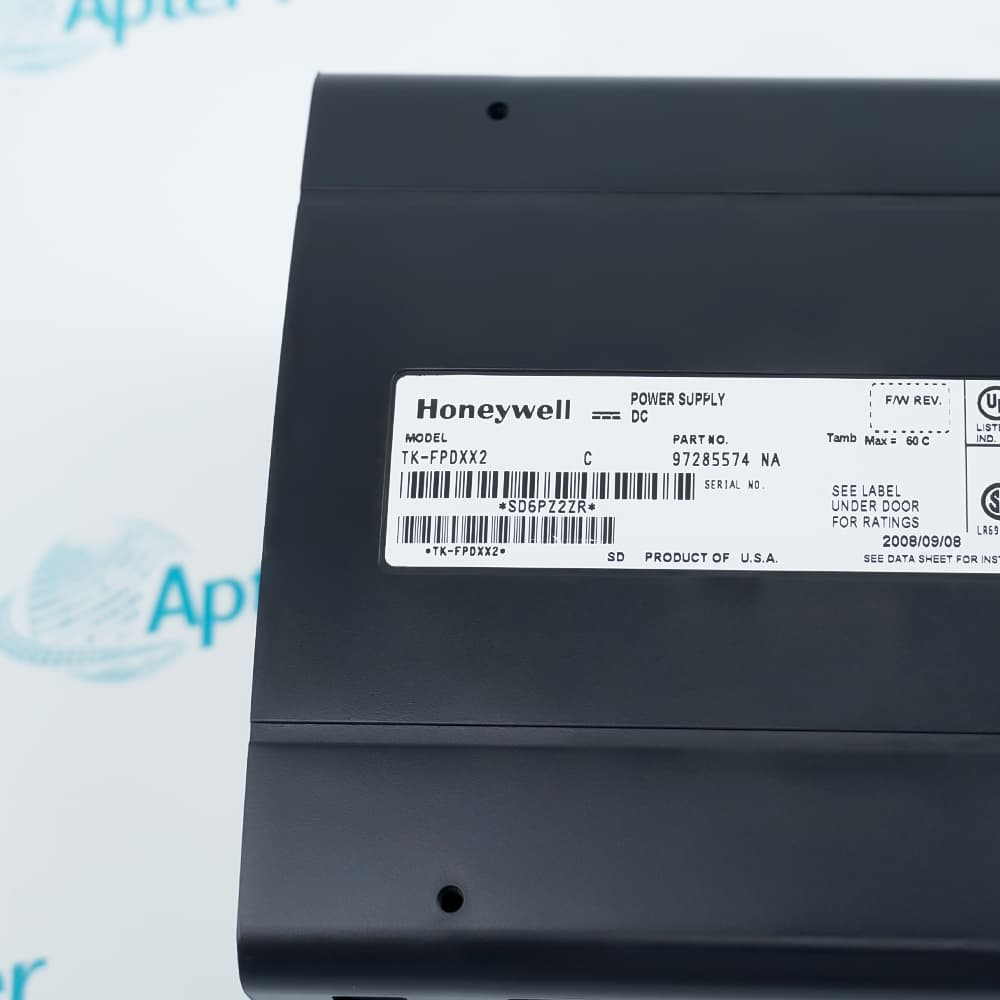

The HONEYWELL TK-FPDXX2 is a Series-A standard, non-redundant Power Supply Module designed to deliver reliable multi-rail DC power directly to industrial chassis backplanes.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for TK-FPDXX2
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for TK-FPDXX2

  • Manufacturer:
    Honeywell
  • Part Number:
    TK-FPDXX2
  • Product Family:
    Honeywell Experion PKS ( C200, C300 )
  • Product Type:
    Power Supply Module
  • Stock:
    1
  • Input Voltage Range:
    19.2-32 VDC
  • Input Power:
    100 W
  • Maximum Inrush Current:
    30 A
  • Total power output maximum, watts:
    70 watts @ 60 degrees Celsius
  • Fuse Protection:
    4 non-replaceable fuse is soldered in place
  • Wiring:
    14 AWG (1.4 mm)
  • Device Type:
    Field Power Distribution Assembly (FPDA)
  • Fusing / Circuit Protection:
    Fusing / Circuit Protection
  • Mounting Style:
    Standard Series C I/O Carrier / Rail Assembly Mounting
  • Weight:
    1.14 kg
  • Estimated shipping dimensions:
    14.4x10.5x14cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Compatibility Configuration & Programming Installation & Integration

Features:

  • Delivers Regulated Multi-Rail DC Power directly across the Honeywell Series-A chassis backplane
  • Supplies High-Capacity Load Distribution up to 70 W total output across 1.2 V, 3.3 V, 5.1 V, and 24.0 V lines
  • Mounts Efficiently on Chassis Left Side without occupying standard user module slots
The HONEYWELL TK-FPDXX2 Power Supply Module serves as the standard, non-redundant power module in Honeywell Series-A chassis systems, delivering regulated DC power directly to all connected hardware. It distributes precise voltage across four internal backplane rails—1.2 V (up to 1.5 A), 3.3 V (up to 4.0 A), 5.1 V (up to 10.0 A), and 24.0 V (up to 2.8 A)—to support continuous, steady-state operation of all architecture modules. The combined total draw across all backplane outputs is capped at 70 W max.

Serving as a fundamental power infrastructure component, the HONEYWELL TK-FPDXX2 Power Supply Module directly impacts the stable execution of the entire control system. Designed as a standard non-redundant supply, a single unit powers the chassis backplane without consuming standard hardware slots. It mounts exclusively on the far-left dedicated position of the chassis, preserving valuable rack space for standard process and I/O modules.

To maintain continuous system operation during industrial power anomalies, the HONEYWELL TK-FPDXX2 Power Supply Module incorporates specialized voltage tolerance capabilities. It can withstand input drops down to 16 V for up to 2 minutes per hour, making it resilient against transient sags caused by heavy motor starting cycles. For safety, the unit contains a factory-soldered, non-replaceable internal fuse intended to mitigate fire hazards during short-circuit conditions, though proper system load calculations must be maintained to prevent overload damage.

The TK-FPDXX2 HONEYWELL Power Supply Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
HONEYWELL TK-FPDXX2 Power Supply Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
HONEYWELL TK-FPDXX2 Power Supply Module Specs

General

  • Manufacturer HONEYWELL
  • Model TK-FPDXX2
  • Condition New Original ready stock
  • Product Family TC- RPCXX1,TC- RPDXX1,TK- RPCXX1
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Fully compatible with Honeywell Experion PKS Series C I/O modules and C300 controller systems.
  • Interfaces directly with standard Series C I/O mounting carriers and field termination assemblies.
  • Supports seamless integration alongside 24 VDC field power supplies and system distribution buses.
  • Configuration Studio: Logged within Honeywell software to map the physical hardware topology and diagnostic channels.
  • Status Monitoring: Diagnostic parameters are assigned within the asset database to trigger operator workstation alarms.
  • LED Indicators: Local troubleshooting is managed via physical LEDs flagging voltage readiness and over-current faults.
  • Snaps securely onto standard Experion Series C I/O carriers for toolless physical installation.
  • Utilizes standardized terminal blocks for simplified field wiring termination and routine maintenance.
  • Integrates seamlessly with Series C power supply modules and C300 controller power buses.
Description
The HONEYWELL TK-FPDXX2 Power Supply Module is a standard, non-redundant Series-A power supply designed specifically to address chassis space constraints and deliver stable multi-voltage power distribution in industrial control environments. This HONEYWELL TK-FPDXX2 Power Supply Module is designed to solve the problem of power supply installation occupying valuable control hardware slots, resolving footprint limitations by mounting directly on the left side of the chassis without consuming any user slots. Applied broadly across industrial automation, process control systems, and manufacturing plant architectures, the HONEYWELL TK-FPDXX2 Power Supply Module ensures dependable continuous power to critical backplane electronics while optimizing overall rack space.

Regarding installation and system integration, the HONEYWELL TK-FPDXX2 Power Supply Module requires #14 AWG (1.4 mm) wiring for secure electrical hookup on the left side of the chassis assembly. To solve issues related to electrical disturbances during high-load facility events, the HONEYWELL TK-FPDXX2 Power Supply Module features robust input tolerance: its input voltage may drop as low as 16 V for a maximum of 2 minutes per hour, making it ideal for environments subject to periodic voltage sags caused by motor starting sequences.

For safety and system maintenance, the HONEYWELL TK-FPDXX2 Power Supply Module integrates a soldered, non-replaceable internal fuse intended primarily to guard against severe short-circuit conditions and mitigate fire hazards, though system operators should note that this fuse may not protect the power supply from physical damage under sustained overload conditions.
Alternative Names
TK FPDXX2 TKFPDXX2 TC-FPDXX2 TCFPD XX2 TK-FPCXX2 tkfpdxx2 TK- RPDXX1 Honeywell C300 Field Power Module TK-FPDXX2
Technical notes
Verify that all field load currents remain within the specified 24 VDC rating of the Honeywell TK-FPDXX2 to maintain proper thermal dissipation across the Series C mounting assembly.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What problem does the TK-FPDXX2 solve?
It helps prevent system shutdowns caused by temporary voltage sags during the startup of large industrial motors.
Can the TK-FPDXX2 handle voltage fluctuations?
Yes. It can tolerate input voltage drops to 16 V for up to two minutes per hour during motor startup.
Where is the TK-FPDXX2 installed?
The module is mounted on the left side of the chassis without occupying a standard I/O slot.
Is the TK-FPDXX2 suitable for system upgrades?
Yes. It is an upgraded replacement for the TC-FPCXX1 and TC-FPDXX1 power supply modules.
What are the benefits of upgrading to the TK-FPDXX2?
It provides improved power performance, supports up to 70 W output, and reduces thermal derating concerns in normal operating conditions.
How do I replace a blown fuse on the Honeywell TK-FPDXX2?
During scheduled service or safely isolated conditions, field engineers can access the built-in fuse holders on the Honeywell TK-FPDXX2 board to inspect and replace blown channel fuses.
