        Honeywell TC-OAV081 97062772 A01
        Honeywell TC-OAV081 97062772 A01
        Honeywell TC-OAV081 97062772 A01
        Honeywell TC-OAV081 97062772 A01
        Honeywell TC-OAV081 97062772 A01
        Honeywell TC-OAV081 97062772 A01
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle Status

          Discontinued / Obsolete by OEM
          Apter Power supplies hard-to-find Honeywell legacy hardware, providing rigorous quality assurance and dependable component replacements for critical industrial control networks.

        TC-OAV081 97062772 A01

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

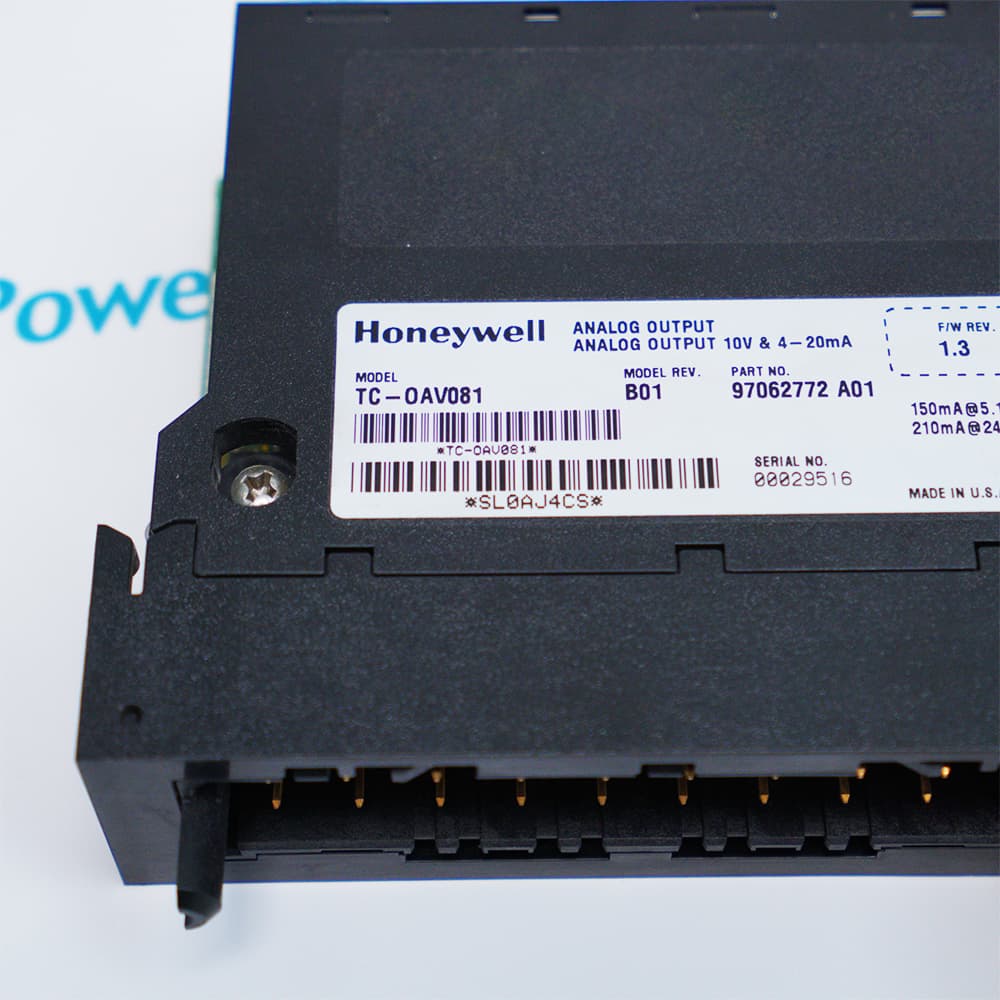

        The Honeywell TC-OAV081 97062772 A01 is an 8-channel analog output module designed to provide both voltage and current output signals within industrial control systems.
        In Stock
        Ships by Thursday, October 29
        Fast Shipping Available
        Get a quick price for TC-OAV081 97062772 A01
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for TC-OAV081 97062772 A01

        • Manufacturer:
          Honeywell
        • Part Number:
          TC-OAV081 97062772 A01
        • Product Family:
          Honeywell Experion PKS ( C200, C300 )
        • Product Type:
          Analog Output Module
        • Stock:
          2
        • Number of Points:
          8 channels
        • Voltage Output Range:
          +/- 10.4 V
        • Current Output Range:
          0 to 21 mA
        • Voltage Resolution:
          320 μV per count
        • Current Resolution:
          650 nA per count
        • Output Overvoltage Protection:
          24 VAC/VDC continuous at room temperature
        • Open Short Circuit Protection:
          Electronically current limited to 21 mA or less
        • Drive Capability:
          >2000 Ω (Voltage), 0-750 Ω (Current).
        • RFI Immunity:
          Error of less than 2.0% of range at 10 V/m, 27 to 1000 MHz
        • Module Update Rate for All Channels:
          25 ms
        • Output Settling Time:
          Less than 2 ms to 95% of final value with resistive loads
        • Power Dissipation:
          6.9 W max
        • Connection Terminal Blocks:
          TC-TBNH, 20-position terminal block
        • Weight:
          0.24 kg
        • Estimated shipping dimensions:
          3.5x14x14.5cm
        • Tariff Code:
          8538900000
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Protection Standards Application scenarios

        Features:

        • Multi-channel analog output design supporting both voltage and current signal generation
        • Defined protection and immunity structure ensuring controlled electrical operation
        • High-speed response with synchronized multi-channel update capability
        The Honeywell TC-OAV081 97062772 A01 is designed as an analog output module providing controlled signal generation for industrial automation systems. It supports 8 output channels capable of delivering both voltage and current signals within defined electrical ranges. The TC-OAV081 97062772 A01 enables structured analog control across multiple field devices in a single module. This allows centralized output management within control system architectures. In operation, the TC-OAV081 97062772 A01 provides precise signal resolution for both voltage and current outputs. It incorporates protection mechanisms such as overvoltage handling and current limiting to maintain defined electrical behavior. The TC-OAV081 97062772 A01 also maintains immunity against radio frequency interference within specified conditions. These characteristics support stable analog signal generation in industrial environments.

        The TC-OAV081 97062772 A01 is designed for fast response performance, with defined module update rate and short settling time for output stabilization. It supports a wide range of load conditions through specified drive capability for both voltage and current modes. The TC-OAV081 97062772 A01 uses structured terminal connections for organized field wiring integration. This ensures consistent signal distribution across all output channels.

        The TC-OAV081 97062772 A01 operates with controlled power dissipation and standardized electrical interfacing to support system-level integration. Its 8-channel architecture allows simultaneous analog output processing across multiple control points. The TC-OAV081 97062772 A01 is structured to maintain stable output behavior under defined operational conditions. This makes it suitable for use in distributed analog control applications within industrial systems.

        The TC-OAV081 97062772 A01 Honeywell Analog Output Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        Honeywell TC-OAV081 97062772 A01 Analog Output Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        Honeywell TC-OAV081 97062772 A01 Analog Output Module Specs

        General

        • Manufacturer Honeywell
        • Model TC-OAV081 97062772 A01
        • Condition New Original ready stock
        • Product Family TK-OAV081,TC-OAH061,TC-OAV061
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Short-circuit protection: The channel features electronic current limiting, automatically limiting the current to 21mA in the event of an external short circuit.
        • Overvoltage shielding: Supports continuous 24VAC/VDC overvoltage protection to withstand voltage surges in the field.
        • Signal isolation: 2550VDC high-voltage isolation between the user side and the system side prevents fault backpropagation.
        • Safety certification: Complies with CE and UL industrial safety standards, suitable for high-reliability projects.
        • Environmental rating: IP65 enclosure protection rating meets the requirements of harsh industrial environments.
        • Quality criteria: High precision, strictly adhering to industrial-grade precision control design specifications.
        • Valve positioning control: Precisely adjusts the opening of flow and pressure control systems.
        • Variable frequency speed control system: Outputs voltage signals to the frequency converter to achieve stepless speed regulation of fans or pumps.
        • Process monitoring display: The parameters are displayed in real time by a pointer-type instrument or a remote recorder.
        Description
        The Honeywell TC-OAV081 97062772 A01 is an analog output module featuring 8 output channels for signal generation in control system environments. It supports a voltage output range of ±10.4 V and a current output range of 0 to 21 mA, allowing flexible analog signal control across different field devices. The TC-OAV081 97062772 A01 is designed for integration within structured automation systems requiring multi-channel analog output capability.

        The Honeywell TC-OAV081 97062772 A01 provides defined signal resolution characteristics, including 320 μV per count for voltage output and 650 nA per count for current output. It is engineered with output protection features such as 24 VAC/VDC continuous overvoltage protection at room temperature and electronically current-limited short-circuit protection capped at 21 mA. These parameters define the electrical control boundaries of the TC-OAV081 97062772 A01.

        The TC-OAV081 97062772 A01 supports a drive capability of greater than 2000 Ω for voltage output and 0–750 Ω for current output. It also maintains RFI immunity with an error of less than 2.0% of range at 10 V/m across 27 to 1000 MHz. The module update rate for all channels is 25 ms, ensuring synchronized output behavior across all 8 channels of the TC-OAV081 97062772 A01.

        The Honeywell TC-OAV081 97062772 A01 features an output settling time of less than 2 ms to 95% of final value under resistive loads. It has a maximum power dissipation of 6.9 W and uses TC-TBNH 20-position terminal blocks for connection. These specifications define the electrical performance and interfacing structure of the TC-OAV081 97062772 A01 within analog output system architectures.
        Alternative Names
        TK-OAH061 TC-OAV061 TK-OAV061 TK-IAH061 TK-OAV081 TCOAV081 TC-OAV08I TC-OAVO81
        Technical notes
        Engineered for mission-critical automation, the Honeywell TC-OAV081 97062772 A01 module delivers robust channel-to-channel isolation and automated fail-safe modes across its 8 analog outputs to ensure maximum plant safety and zero downtime.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        What output signals can Honeywell TC-OAV081 97062772 A01 provide?
        Honeywell TC-OAV081 97062772 A01 supplies eight channels with voltage outputs from -10.4 V to +10.4 V or current outputs from 0 to 21 mA.
        How quickly does Honeywell TC-OAV081 97062772 A01 update all output channels?
        All eight channels are refreshed within 25 ms, while output settling takes less than 2 ms to reach 95% of the final value with resistive loads.
        Can Honeywell TC-OAV081 97062772 A01 tolerate output wiring faults?
        Yes. Electronic current limiting restricts short-circuit current to 21 mA or less, and output overvoltage protection withstands 24 VAC or VDC continuously at room temperature.
        Which terminal block connects field wiring to Honeywell TC-OAV081 97062772 A01?
        Honeywell TC-OAV081 97062772 A01 uses the TC-TBNH 20-position terminal block for field signal connections.
        What is the difference between Honeywell TC-OAV081 97062772 A01 and TK-OAV081?
        Honeywell TC-OAV081 97062772 A01 designates the conformally coated hardware version designed for harsh industrial environments, whereas TK-OAV081 refers to the standard uncoated hardware version.
        How can I request a quote or buy Honeywell TC-OAV081 97062772 A01?
        You can submit a purchase inquiry directly specifying the full part number Honeywell TC-OAV081 97062772 A01 to receive pricing, stock availability, and lead time information.
