Features:
- 4 universal output channels
- Configurable safe digital output circuits
- Matched with compatible four-channel safe output module

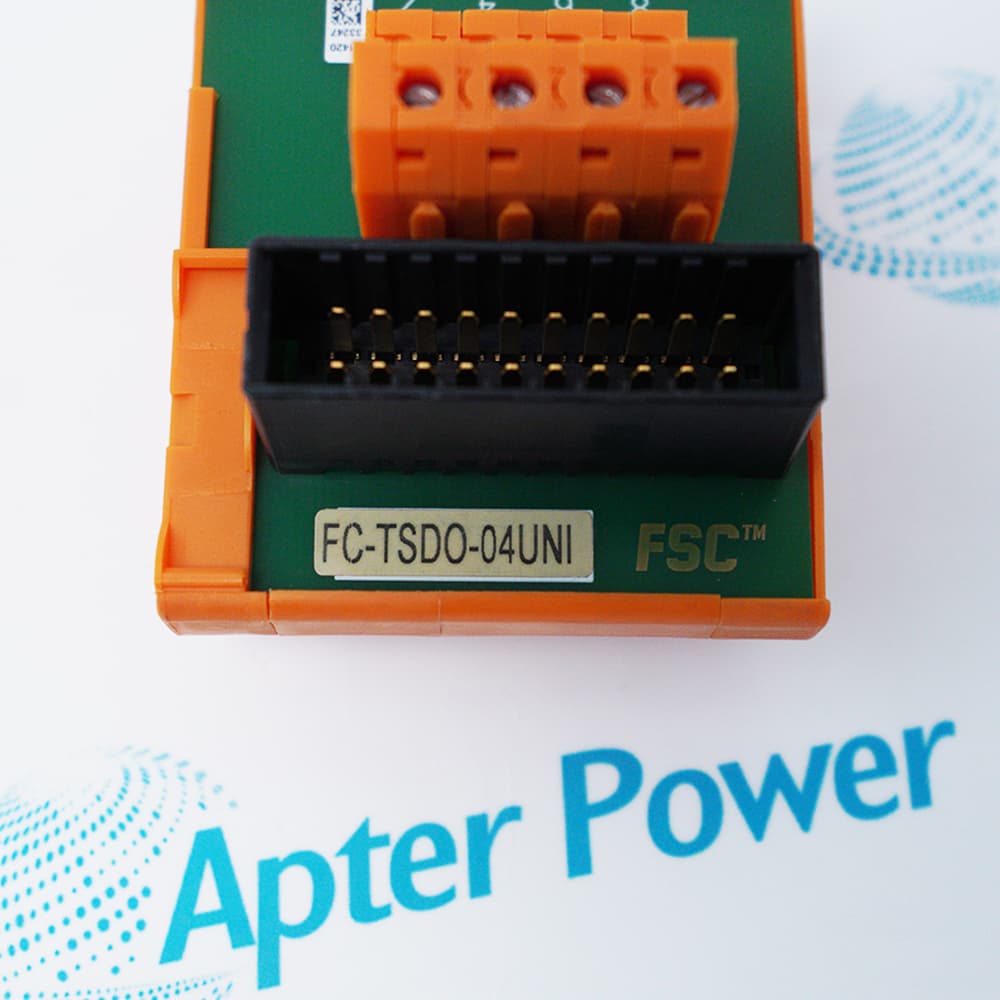

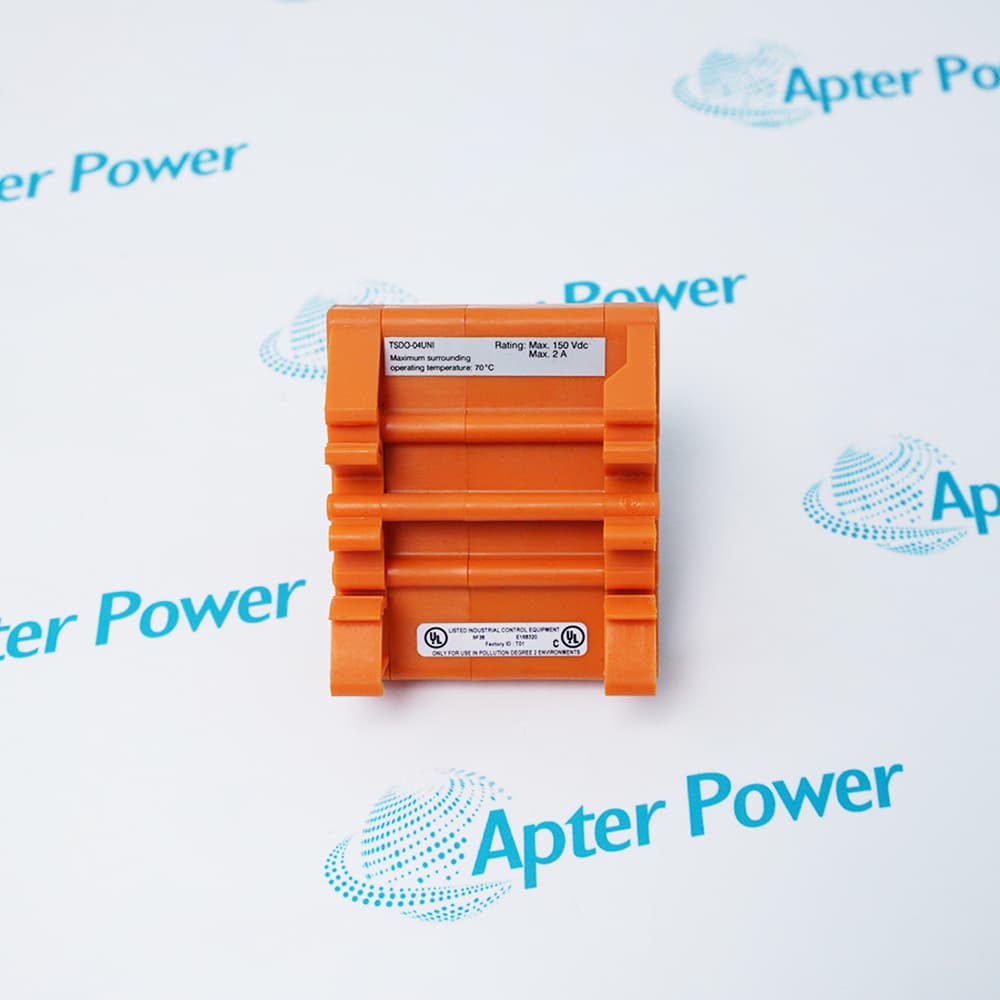

FC-TSDO-04UNI provides universal field termination for safe actuator circuits in a Honeywell Safety Manager installation.
Its conformal-coated fc construction and the documented configurable safe digital output circuits must match the cabinet and field design.
Verify output configuration, wiring and de-energized state and the complete connected path before the equipment is released to operation.
The Honeywell FC-TSDO-04UNI 4-Channel Universal Safe Digital Output FTA is available for quotation and technical support from Apter Power.
Verified resources for FC-TSDO-04UNI:
Signal Data:
- 4 universal output channels
- configurable safe digital output circuits
- System role: universal field termination for safe actuator circuits
Use the documented FC-TSDO-04UNI electrical limits when calculating the complete connected circuit.
Diagnostics:
- Output configuration, wiring and de-energized state
- Check channel and system alarms
- Document normal and fault-state results
Resolve all FC-TSDO-04UNI wiring, power, communication and system diagnostics before release to operation.
Compatibility:
- Matched hardware: compatible four-channel safe output module
- Construction: Conformal-coated FC construction
- Confirm firmware and hardware revision
Match FC-TSDO-04UNI to the approved cabinet, cable, termination and field-device arrangement.
Installation Check:
- Verify power, polarity and grounding
- Confirm terminal allocation and cable identification
- Prove the complete end-to-end function
Record the final configuration and all functional-test results after installing FC-TSDO-04UNI.
