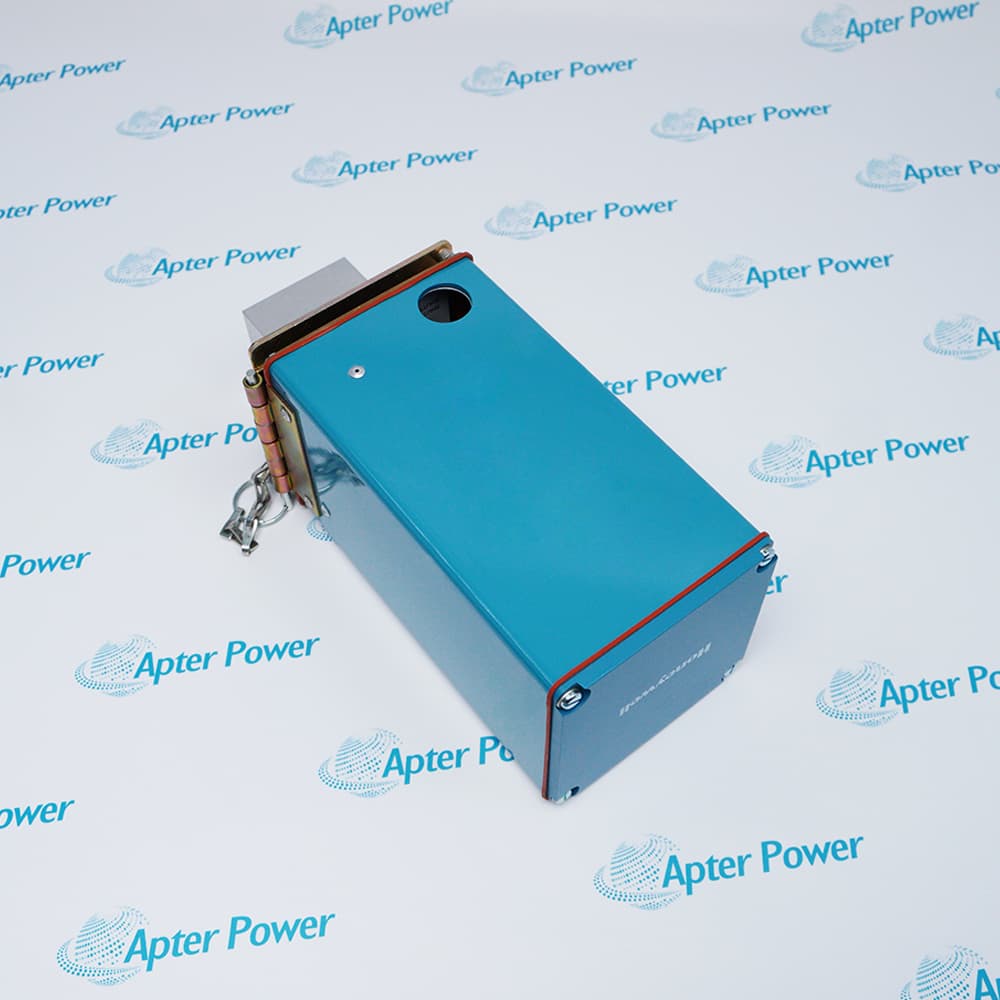

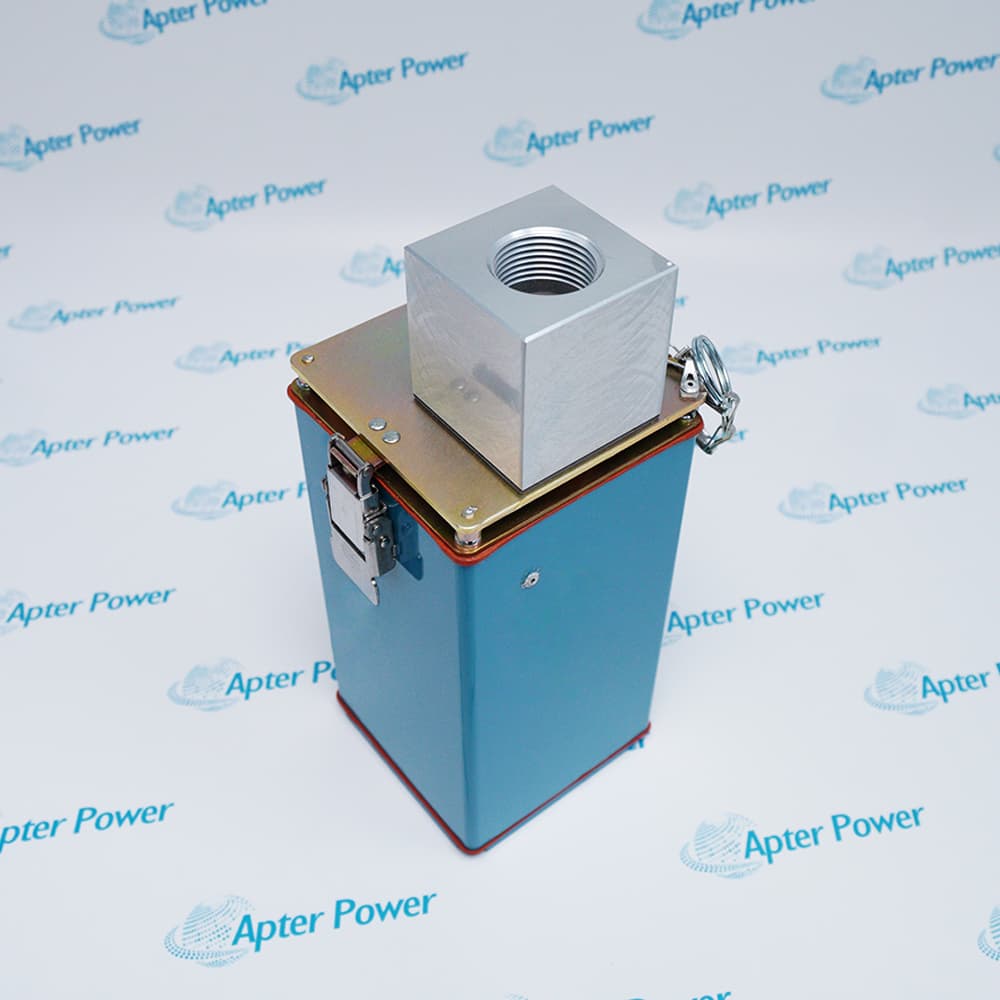

The Honeywell C7076A 1015 is an adjustable-sensitivity solid-state ultraviolet flame detector designed for burner management and flame safety systems that require optimal sensitivity and flame identification capabilities.
Get a quick price for C7076A 1015
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for C7076A 1015

  • Manufacturer:
    Honeywell
  • Part Number:
    C7076A 1015
  • Product Family:
    Honeywell Safety Systems
  • Product Type:
    adjustable sensitivity ultraviolet flame detector
  • Power Supply:
    100V / 120V / 220-240V AC (±10-15%), 50/60Hz
  • Ambient Temperature:
    -40°C to +71°C
  • Max Aspirator Temperature:
    107°C (cooling purge air required above this)
  • Sensitivity Range:
    400 : 1
  • Min. Flame Signal:
    1.4 µA (at detector) / 1.2 V DC (at amplifier)
  • Self-Check Frequency:
    Every 5 seconds
  • Enclosure Rating:
    NEMA 4 (water-tight & dust-tight, indoor/outdoor)
  • Weight:
    3.08 kg
  • Estimated shipping dimensions:
    12x26x10cm
  • Tariff Code:
    8471499100
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Performance & Efficiency Operating Applications

Features:

  • Dual Remote Sensitivity Selection
  • Closed-Loop Dynamic Self-Check
  • Parallel & Redundant Configuration
Two independent sensitivity adjustments (A/B, 400:1 range) can be remotely selected via external switch. Ideal for multi-fuel burners switching between natural gas and heavy oil without manual readjustment.

When used with R7886 amplifier, the internal shutter automatically tests detector and amplifier response every 5 seconds. Any abnormal response triggers safety shutdown or alarm — no “false safety.”

Up to two detectors can be paralleled to one amplifier with independent sensitivity adjustment, enabling online maintenance. In redundant configuration (2 detectors + 2 amplifiers), a single fault triggers alarm only (no shutdown), maximizing uptime for critical applications.

The C7076A 1015 Honeywell adjustable sensitivity ultraviolet flame detector may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell C7076A 1015 adjustable sensitivity ultraviolet flame detector Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Honeywell C7076A 1015 adjustable sensitivity ultraviolet flame detector

General

  • Manufacturer Honeywell
  • Model C7076A 1015
  • Condition New Original ready stock
  • Product Family C7076D1027,C7076A1007
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Wide Dynamic Range of Sensitivity: A 400:1 adjustment range allows for a precise balance between sufficient response to its own flame and suppression of neighboring flames.
  • Remote Automatic Switching: Two sensitivity settings automatically switch according to fuel or load, eliminating the need for downtime adjustments and improving operational efficiency.
  • High Output Signal Strength: Supports signal transmission over tens of meters without special wiring, reducing the need for repeaters.
  • Self-Check Enhances Availability: A shutter self-check is performed every 5 seconds. In case of a fault, immediate safety shutdown or alarm is triggered, avoiding "false safety." With redundant configurations, a single alarm can prevent shutdown, balancing safety and continuous operation.
  • Ambient temperature range: -40°C to +71°C; upper limit of intake pipe temperature: 107°C, purging and cooling are required if exceeded.
  • Positive pressure combustion chamber: Maximum sealing air pressure 5 psig (34.5 kPa), sufficient cooling purge airflow (3 SCFM recommended) and a tight seal are required.
  • Vibration protection requirements: Vibration exceeding 1g requires a vibration-damping mounting bracket; otherwise, the lifespan of electronic components will be shortened.
  • Installation space: Sufficient space must be provided to allow the detector to be swung out along the hinge for maintenance, while avoiding excessively long or thin sight tubes that could lead to UV attenuation.
  • Multi-burner boilers: Boilers with opposing or layered burner arrangements on the front and rear walls require flame discrimination capabilities to ensure that each detector only responds to its own burner and does not falsely report adjacent flames.
  • Multi-fuel combustion systems: When natural gas, light oil, heavy oil, or pulverized coal are used alternately, reliable ignition and monitoring are achieved through remote sensitivity switching, eliminating the need for manual readjustment.
  • Large turndown ratio burners: Flame patterns vary greatly with load; two detectors can be connected in parallel to optimize flame signals at high and low loads respectively, ensuring stability across the entire load range.
  • Power plants and industrial furnaces: Require high-reliability and SIL 3 level safety instrumented systems, and support online maintenance under positive pressure combustion chambers (detectors can be detached without shutting down the system).
Description
Honeywell C7076A 1015 detects ultraviolet radiation emitted from gas, oil, and pulverized coal flames. It features two independent sensitivity controls (A and B), each with a 400:1 dynamic range, and a built-in flame signal meter jack for precise sighting. The optimal aiming point is the first 30% of the flame (the flame root), where UV intensity is highest.

The detector must be used with the R7886 Dynamic Self-Check UV Amplifier, forming a closed-loop self-checking circuit. The internal shutter tests system response every 5 seconds — any failure to respond to simulated flame loss results in a safety shutdown or alarm. This design is critical for industrial burner safety management systems.

Honeywell C7076A 1015 is suitable for single-burner, multi-burner (flame discrimination required), and multi-fuel applications. The NEMA 4 enclosure allows indoor/outdoor installation. The plug-in electronics chassis is field-replaceable for easy maintenance. With cooling purge air and seal-off air, the detector operates reliably in high-temperature, positive-pressure combustion chambers.
Alternative Names
C7076A1015 C7076D1027 C7076A1007
Technical notes
The Honeywell C7076A 1015 must be used within the specified voltage and temperature range, with a minimum stable flame signal of 1.4 µA (detector end) or 1.2 V DC (R7886 amplifier end). The detector is sensitive to hot surfaces above 2200°F (1200°C) and ignition sparks; these sources of interference must be avoided during installation to achieve flame identification.
