Honeywell FC-SCNT02 51460114-176
Honeywell FC-SCNT02 51460114-176
Honeywell FC-SCNT02 51460114-176
Honeywell FC-SCNT02 51460114-176
Honeywell FC-SCNT02 51460114-176
Honeywell FC-SCNT02 51460114-176
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Active / Available from OEM
    Apter Power can verify controller revision, redundant pairing and current sourcing before quotation.

FC-SCNT02 51460114-176

/ 4.9
1001 reviews | Need a Specific Revision?
Honeywell FC-SCNT02 51460114-176 is the S300 Safety Controller SIL 3 for Safety Manager SC, providing increased memory and DNP3 outstation support with backward-compatible FC-SCNT01 replacement.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for FC-SCNT02 51460114-176
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for FC-SCNT02 51460114-176

  • Manufacturer:
    Honeywell
  • Part Number:
    FC-SCNT02 51460114-176
  • Product Family:
    Honeywell Safety Systems
  • Product Type:
    S300 Safety Controller SIL 3
  • Stock:
    1
  • Controller Class:
    S300 Safety Controller SIL 3
  • Catalog Number:
    FC-SCNT02
  • Part Number:
    51460114-176
  • Power Supply:
    24 VDC
  • Rated Current:
    400 mA
  • System Compatibility:
    Safety Manager SC R200.2 or later
  • Weight:
    0.48 kg
  • Estimated shipping dimensions:
    6.8x15.5x16.3cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Malaysia
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Compatibility Communication Safety & Compliance

Features:

  • Provides the S300 Safety Controller SIL 3 configuration for Honeywell Safety Manager SC.
  • Uses increased controller memory required for Safety Manager SC DNP3 outstation functionality.
  • Replaces FC-SCNT01 with documented pin-to-pin and backward compatibility in supported systems.
The current ordering configuration is Honeywell FC-SCNT02 51460114-176, the S300 Safety Controller SIL 3 for Safety Manager SC.

It executes the Safety Manager SC control application and provides the controller hardware required when DNP3 outstation communication is configured.

Before replacement, verify Safety Manager SC release R200.2 or later, the redundant partner arrangement, controller labeling and project-specific hazardous-area approvals.

Availability is subject to Apter Power inventory and verification of part number 51460114-176.

Honeywell FC-SCNT02 51460114-176 manuals and reference links:

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Honeywell FC-SCNT02 51460114-176 General Specifications

General

  • ManufacturerHoneywell
  • ModelFC-SCNT02 51460114-176
  • ConditionNew original ready stock
  • Product FamilySafety Manager SC
  • FC-SCNT02 is documented as a pin-to-pin and backward-compatible replacement for the earlier FC-SCNT01 controller.
  • An FC-SCNT02 can operate with an FC-SCNT01 partner in the same redundant Safety Manager SC controller arrangement.
  • Honeywell supports FC-SCNT02 from Safety Manager SC release R200.2, so the installed system release must be checked before replacement.
  • FC-SCNT02 provides the controller hardware required when Safety Manager SC is configured as a DNP3 outstation.
  • The increased memory capacity supports the additional controller resources used by the DNP3 implementation.
  • DNP3 operation is tied to the supported Safety Manager SC release and must be enabled through the documented system configuration.
  • The controller is identified by Honeywell as the S300 Safety Controller SIL 3 for Safety Manager SC applications.

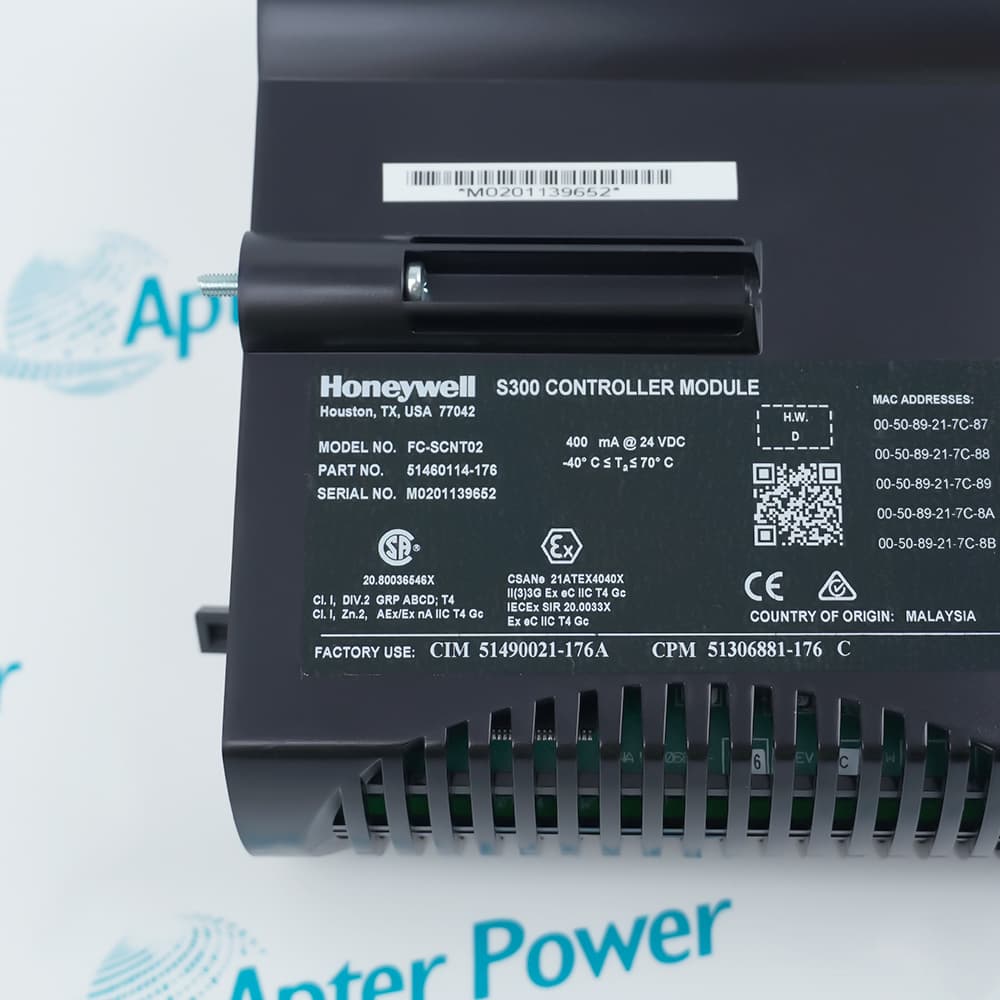

  • The product label carries CSA, ATEX and IECEx hazardous-location markings for the exact 51460114-176 configuration.
  • The nameplate states an ambient temperature range of -40 to +70 degrees C for the marked installation conditions.
Description
Honeywell FC-SCNT02 51460114-176 is the S300 Safety Controller SIL 3 for Safety Manager SC, with increased memory capacity for the supported controller application.

Honeywell identifies FC-SCNT02 as the controller required when Safety Manager SC operates as a DNP3 outstation, and as a pin-to-pin, backward-compatible replacement for FC-SCNT01.

Before replacement, confirm Safety Manager SC release R200.2 or later, the redundant partner configuration and the hazardous-location markings required by the project.
Alternative Names
FC-SCNT02 FC SCNT02 FCSCNT02 51460114-176 51460114176 Honeywell FC-SCNT02 Honeywell S300 Safety Controller SIL 3 Honeywell Safety Manager SC S300 Controller
Technical notes
FC-SCNT02 replaces FC-SCNT01 in supported Safety Manager SC systems and is required for the documented DNP3 outstation function.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why is FC-SCNT02 used in a Safety Manager SC system?
It is the S300 SIL 3 safety controller that executes the supported Safety Manager SC control application.
Can FC-SCNT02 replace an installed FC-SCNT01 controller?
Yes. Honeywell documents FC-SCNT02 as pin-to-pin and backward compatible with FC-SCNT01.
Can FC-SCNT02 and FC-SCNT01 operate as a redundant pair?
Yes. Honeywell states that FC-SCNT02 can work with an FC-SCNT01 partner in a redundant SMSC controller.
Which controller is required for DNP3 outstation operation?
Honeywell specifies FC-SCNT02 with its increased memory for Safety Manager SC DNP3 outstation functionality.
What system release is required for FC-SCNT02?
FC-SCNT02 is supported from Safety Manager SC release R200.2 according to Honeywell system guidance.
Which identifiers should be confirmed when ordering FC-SCNT02?
Confirm catalog number FC-SCNT02, part number 51460114-176, the product label and the installed system release.
