    Honeywell hardware documentation continues to list FC-TERM-0002 for conformal-coated redundant Safety Manager I/O bus installations.

FC-TERM-0002

/ 4.9
1001 reviews | Need a Specific Revision?

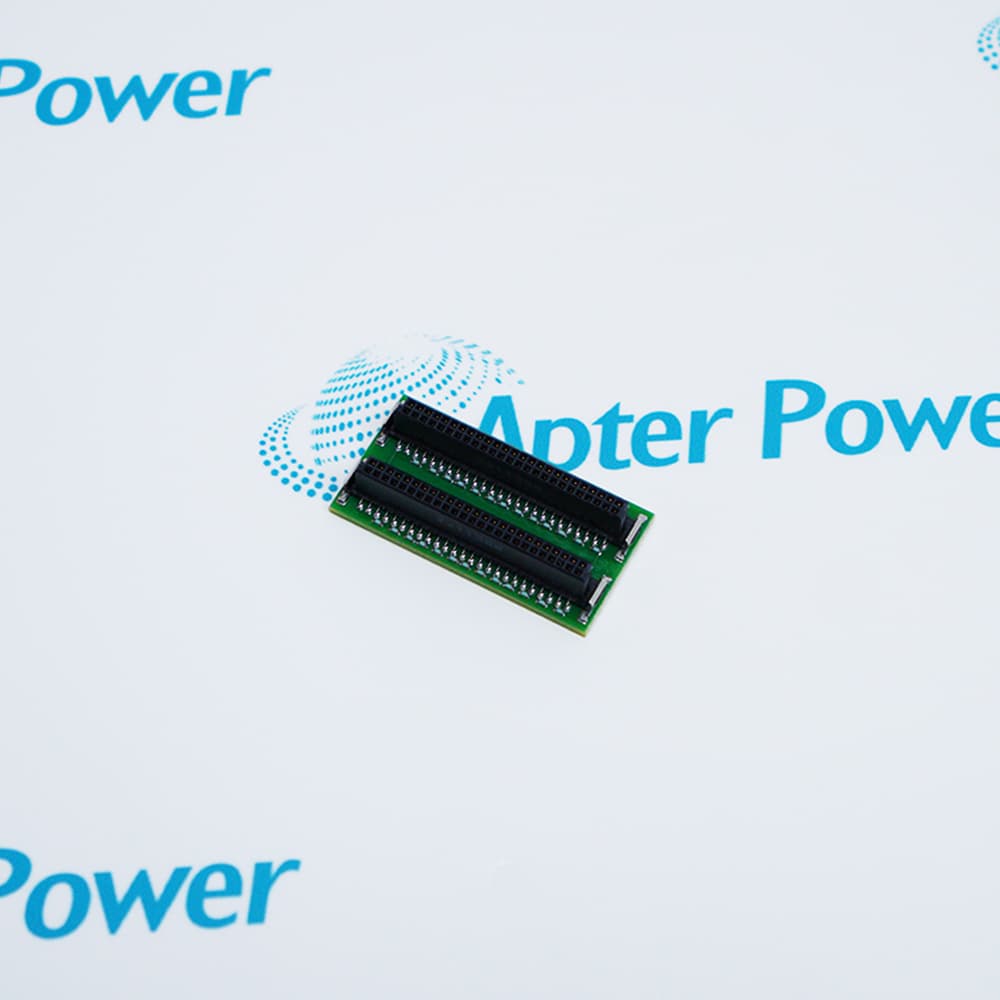

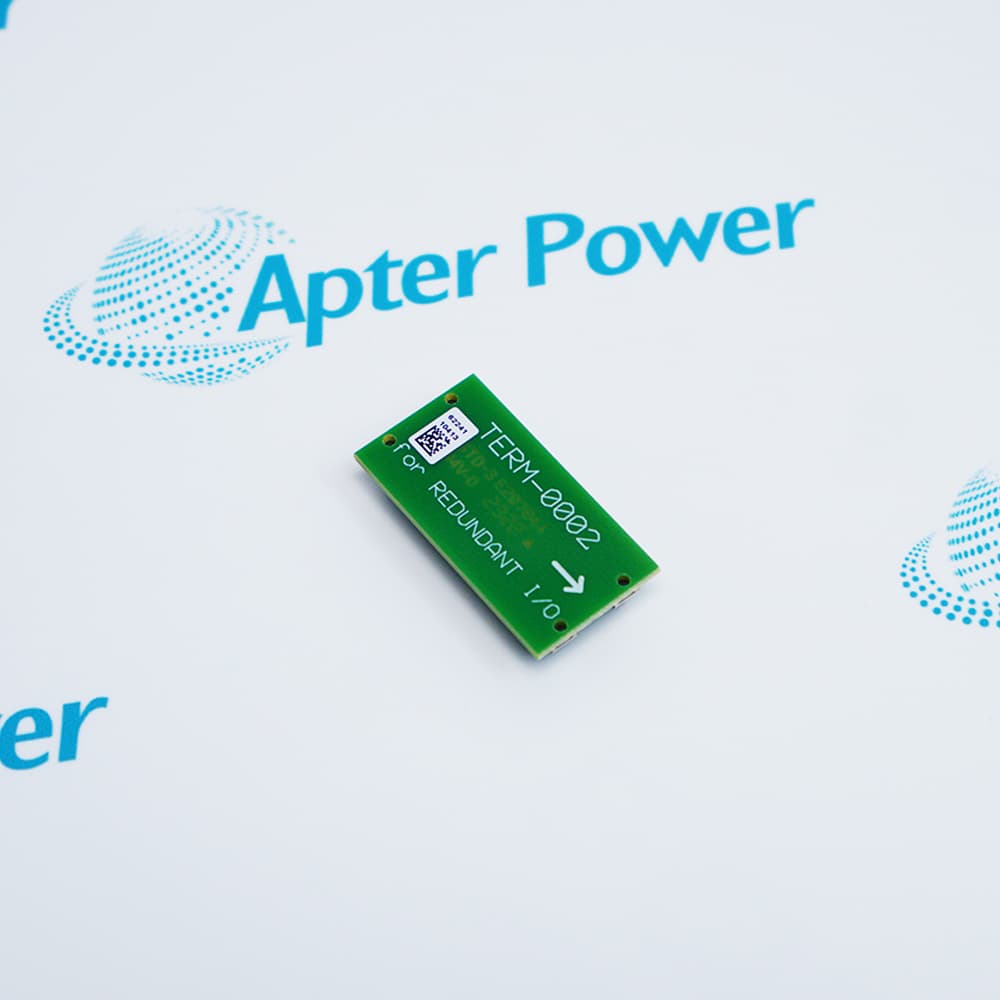

FC-TERM-0002 is a conformal-coated redundant i/o bus terminator for Honeywell Safety Manager systems.
In Stock
Ships by Saturday, October 31
Fast Shipping Available
Get a quick price for FC-TERM-0002
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for FC-TERM-0002

  • Manufacturer:
    Honeywell
  • Part Number:
    FC-TERM-0002
  • Product Family:
    Honeywell Safety Systems
  • Product Type:
    Redundant I/O bus terminator
  • Stock:
    1
  • Module function:
    Redundant I/O bus termination
  • Bus arrangement:
    I/O bus 1.x and 2.x kept separate
  • Termination network:
    54 resistors, 1 kΩ each
  • Connectors:
    2 × 50-pin SMC female
  • Supply current:
    50 mA from the 5 V DC Control Processor
  • Dimensions:
    19.7 × 38.1 × 7.8 mm
  • Approximate weight:
    4.5 g
  • Coating:
    Conformal-coated FC version
  • Weight:
    0.01 kg
  • Estimated shipping dimensions:
    3.7x1.9x0.7cm
  • Tariff Code:
    8471499100
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Safety & Compliance Performance & Efficiency

Product overview:

  • Conformal-coated redundant I/O bus terminator
  • 54 × 1 kΩ termination resistors
  • Separated redundant bus sections

FC-TERM-0002 completes a redundant Honeywell Safety Manager I/O bus and provides the electrical termination expected by the control processor diagnostics.

It is the FC construction for projects that specify conformal-coated hardware; the redundant topology and cable routing must still match the system design.

Verified resources for FC-TERM-0002:

Verified specifications for FC-TERM-0002:

  • Module function: Redundant I/O bus termination
  • Bus arrangement: I/O bus 1.x and 2.x kept separate
  • Termination network: 54 resistors, 1 kΩ each
  • Connectors: 2 × 50-pin SMC female
  • Supply current: 50 mA from the 5 V DC Control Processor
  • Dimensions: 19.7 × 38.1 × 7.8 mm
  • Approximate weight: 4.5 g
  • Coating: Conformal-coated FC version

Typical applications:

  • Conformal-coated redundant I/O bus termination
  • Safety Manager installations in controlled industrial cabinets
  • Like-for-like service replacement of FC terminators

FC-TERM-0002 is intended for redundant Safety Manager bus paths where the hardware coating level is part of the approved project configuration.

Safety and compliance:

  • Documented approvals: CE, TÜV, UL, CSA and FM
  • Controller software monitors terminator presence
  • Conformal-coated hardware option

Retain the certified cabinet arrangement, cable separation and approved hardware configuration when replacing the terminator.

Performance and efficiency:

  • 54-resistor passive termination network
  • 50 mA consumption from the processor 5 V rail
  • Dual 50-pin connection for redundant paths

The passive network stabilizes the redundant bus endpoint while the conformal coating supports the specified environmental protection strategy.

Description

FC-TERM-0002 is a conformal-coated redundant i/o bus terminator for the Honeywell Safety Manager platform. The conformal-coated module provides 54 termination resistors for the redundant I/O bus while keeping I/O bus 1.x and 2.x separated.

Select FC-TERM-0002 where the project requires conformal coating and redundant I/O termination. Confirm the two 50-pin SMC cable connections, the documented bus end position and the applicable cabinet environmental requirements before installation.

Alternative Names
FC-TERM-0002 FC TERM 0002 Honeywell FC-TERM-0002 Honeywell FC TERM 0002 Safety Manager FC-TERM-0002 FC-TERM-0002 Redundant I/O bus terminator FCTERM0002 Redundant I/O bus terminator Honeywell Safety Manager FC-TERM-0002
Technical notes
FC-TERM-0002 is the conformal-coated redundant I/O bus terminator for Safety Manager. Its dual 50-pin interface keeps the redundant bus sections separated while providing the required termination network.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How is FC-TERM-0002 integrated into a Safety Manager configuration?
It is used at the termination point of a redundant Safety Manager I/O bus built with the specified redundant flat-cable assemblies.
Which technical interfaces or ratings define FC-TERM-0002?
The key documented points are Module function: Redundant I/O bus termination; Bus arrangement: I/O bus 1.x and 2.x kept separate; Termination network: 54 resistors, 1 kΩ each; Connectors: 2 × 50-pin SMC female. Confirm these values against the installed chassis and project hardware list.
Which compatibility checks are required before installing FC-TERM-0002?
Check FC coating requirement, redundant bus cable type, connector orientation, controller generation and terminator location.
Which slot, bus position or chassis location is specified for FC-TERM-0002?
Fit it at the defined redundant bus termination position and verify both 50-pin SMC connectors before energizing the system.
What diagnostic symptoms can indicate a FC-TERM-0002 connection or hardware problem?
Missing, incorrect or poorly seated FC-TERM-0002 termination can create I/O bus reflections, communication errors and a terminator diagnostic from the control processor. Inspect both 50-pin connections and confirm the required bus-end position.
Can FC-TERM-0002 replace a related FS, FC, S or R version directly?
It should replace an FC-TERM-0002 of the same redundant configuration; TERM-0001 and FS versions require an engineering review.
Which commissioning checks should be completed after fitting FC-TERM-0002?
Verify terminator detection in system diagnostics, continuity of both redundant paths, cable seating and separation of I/O bus 1.x and 2.x before returning the system to service.
Which engineering data is needed to match and quote FC-TERM-0002?
Provide the complete FC-TERM-0002 reference, controller and chassis type, Safety Manager release, slot or bus arrangement, coating requirement, existing hardware revision, required quantity and project approval requirements.
