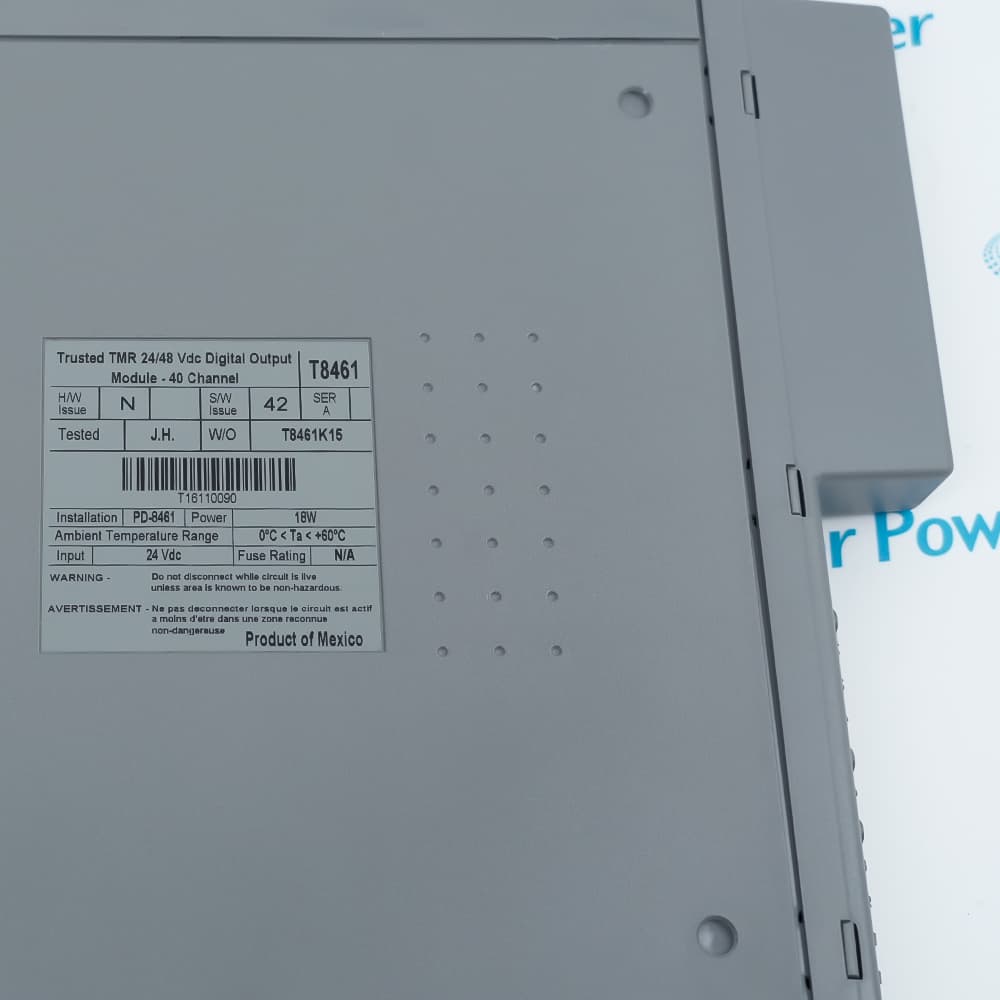

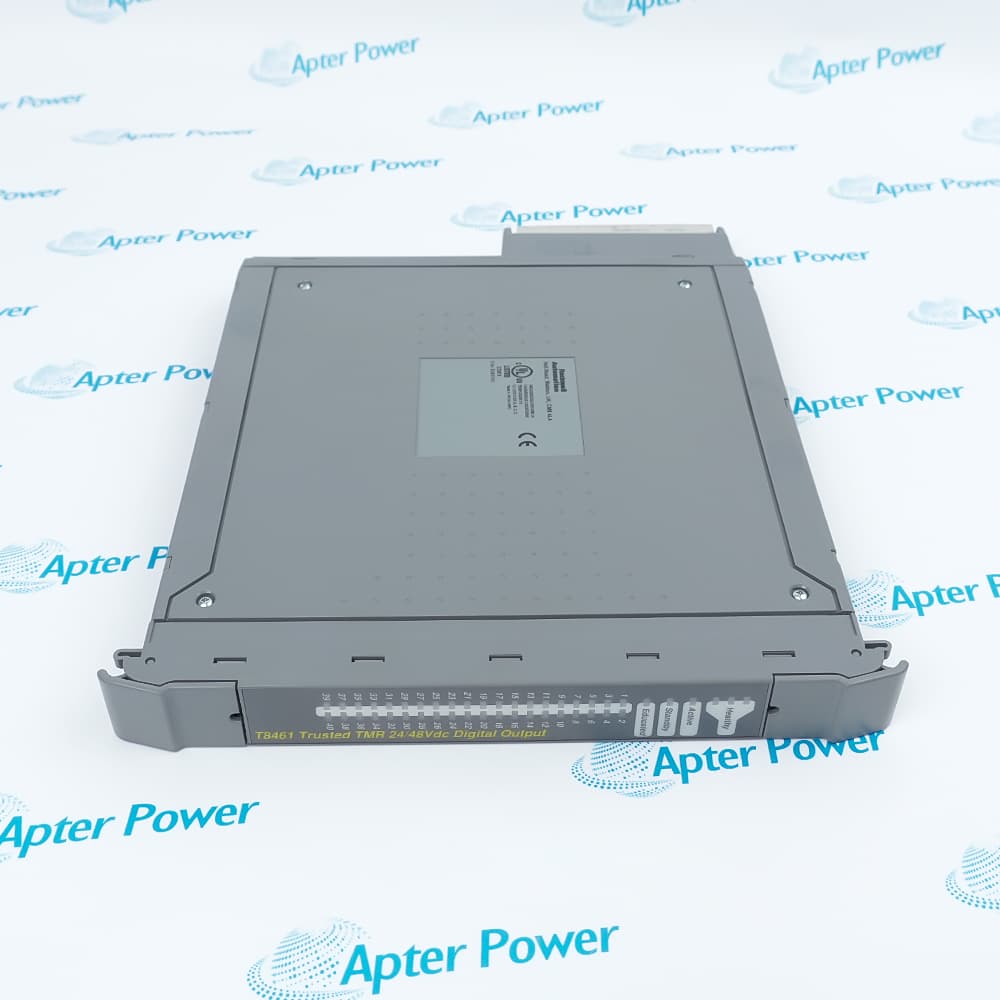

T8461 provides 40 monitored 24/48 V DC output channels with TMR voting, group fail-safe switching, and line diagnostics.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for T8461
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for T8461

  • Manufacturer:
    ICS Triplex
  • Part Number:
    T8461
  • Product Family:
    Trusted Triple Modular Redundant
  • Product Type:
    Trusted TMR 24/48 V DC Output Module
  • Stock:
    1
  • Output architecture:
    Triple modular redundant
  • Output channels:
    40
  • Nominal field voltage:
    24/48 V DC
  • Channel grouping:
    5 groups of 8
  • Output diagnostics:
    Voltage and current monitoring
  • Field fault monitoring:
    Open and short circuit
  • Sequence of events:
    1 ms resolution
  • Impulse isolation:
    2500 V
  • External output fuses:
    Not required
  • Hazardous-area direct connection:
    Not approved
  • Weight:
    1.3 kg
  • Estimated shipping dimensions:
    26.6 x 3.1 x 30.3 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Output Voting Line Monitoring Hot Replacement Product Applications

Features:

  • Forty monitored outputs: grouped 24/48 V DC channels combine control and field diagnostics
  • TMR output decision: triplicated processing supports safety-system output voting
  • Fail-safe grouping: group switches provide a documented de-energization mechanism
T8461 drives and supervises forty DC field outputs inside the Trusted TMR architecture.

Its engineering distinction is the combination of channel diagnostics, group fail-safe control, and time-stamped output events rather than a simple relay-only interface.

Acceptance should connect each output to its load current, termination, suppression, safety demand, diagnostic baseline, and validated application state.
Apter Power can review T8461 load groups, diagnostics, wiring, safety configuration, condition, and documentation before quotation.
ICS Triplex T8461 Trusted TMR 24/48 V DC Output Module Manuals, Datasheets, Links
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Triplicated processing: preserve the configured TMR output decision for every used channel.
  • Group structure: document the five eight-channel load groups and their field supplies.
  • Command proof: compare demanded state with channel voltage, current, and feedback evidence.
  • Open load: investigate wiring, load continuity, and configured monitoring conditions.
  • Short circuit: isolate the group and inspect load, suppression, and field cable before reset.
  • SOE review: use the 1 ms event record to relate channel faults to system demand.
  • System state: verify the approved active/standby and maintenance conditions before removal.
  • Field isolation: control hazardous energy and output-group power under the site procedure.
  • Function validation: retest diagnostics, commanded state, and external device response after replacement.
  • Safety solenoid control: operate documented DC loads with channel and wiring supervision.
  • Critical shutdown outputs: use grouped fail-safe switching in a validated Trusted TMR function.
  • Event-based diagnostics: correlate output demands and faults through high-resolution sequence records.
Description
T8461 is a 40-channel Trusted TMR digital output module for 24/48 V DC field loads. The module arranges outputs in groups of eight and combines triplicated processing with automatic voltage and current diagnostics.

Each channel of T8461 is monitored for commanded state and field-wiring faults, while group fail-safe switches provide a controlled de-energization path. The module also records output events with 1 ms sequence-of-events resolution.

Before installing T8461, verify load voltage and current, field termination, group allocation, line-monitoring conditions, external suppression, safety configuration, and the approved replacement procedure. Direct hazardous-area connection is not stated for this module and must not be inferred.
Alternative Names
ICS Triplex T8461 Output Module Trusted 40-Channel TMR Output T8461 24 48 VDC Digital Output PD-T8461 Output Module
Technical notes
T8461 monitors voltage, current, and field wiring across 40 grouped outputs, so an open- or short-circuit alarm can originate outside the module. Before replacement, isolate the affected load group, compare commanded and measured state, inspect suppression and termination, then follow the documented active/standby procedure and revalidate the safety function.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why can one T8461 channel report a line fault while its commanded state is correct?
Check load continuity, field cable, termination, suppression, monitoring thresholds, and measured current. The logic command can be valid even when the external electrical path is open or shorted.
What should be isolated when a group fail-safe switch operates on T8461?
Treat all eight channels in the affected group as one diagnostic boundary. Secure the process, isolate group power, review common faults and load currents, and restore only after the cause is verified.
How should T8461 be tested after a hot replacement?
Confirm the module reaches the approved operational state, compare channel and group diagnostics, command each permitted output, verify field feedback, and document the safety-function test before returning to automatic control.
Can T8461 be wired directly to hazardous-area devices?
The official module information does not approve direct hazardous-area connection. Use the documented barriers or system architecture required by the site classification and applicable certification rather than inferring suitability from DC ratings.
How can sequence-of-events data help diagnose T8461 trips?
Compare the 1 ms output event timestamps with safety demands, field feedback, group alarms, and power disturbances to determine whether the electrical fault preceded or followed the command transition.
Which evidence should accompany a T8461 sourcing request?
Provide full nameplate images, load voltage and current, channel and group map, termination hardware, diagnostics, safety-system role, quantity, condition, destination, and outage schedule.
