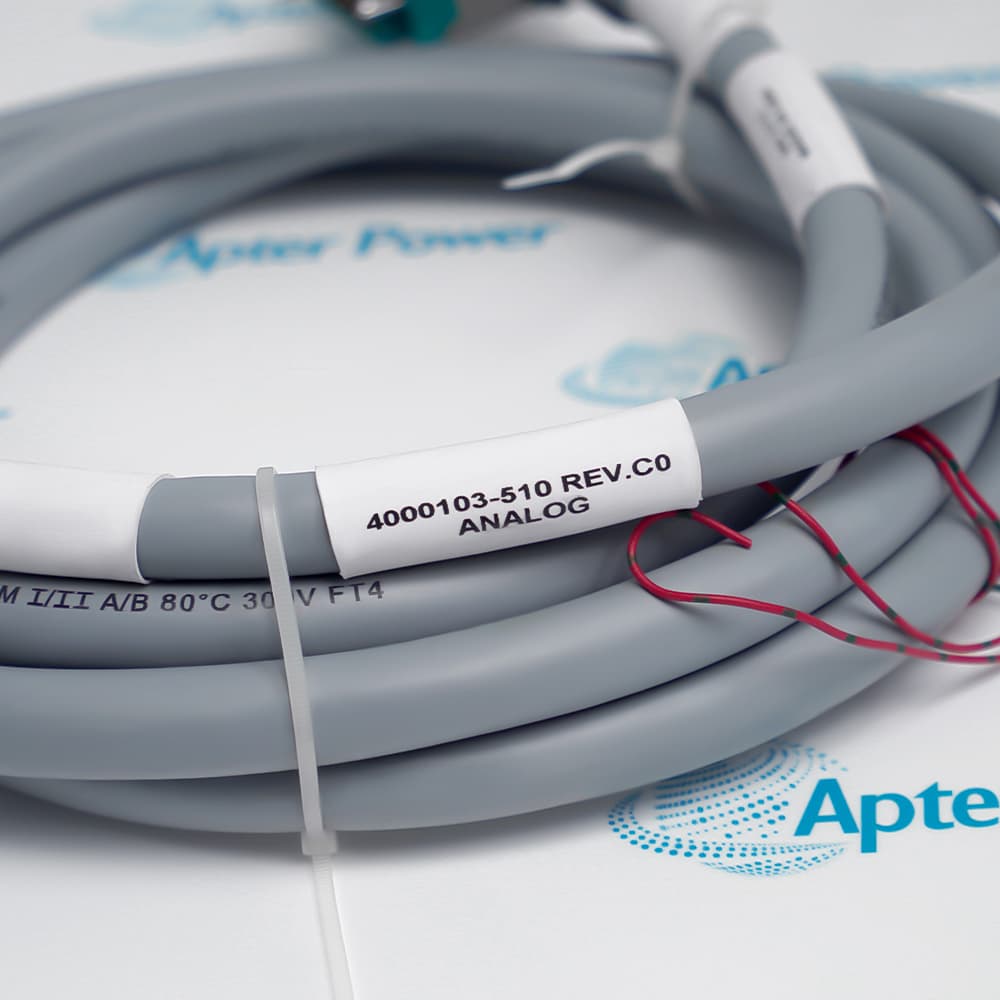

Triconex 4000103-510 is a 10 ft interface cable assembly listed in Tricon and Trident technical product guides for supported external termination assemblies.
In Stock
Ships by Tuesday, September 29
Fast Shipping Available
Get a quick price for 4000103-510
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 4000103-510

  • Manufacturer:
    Invensys
  • Part Number:
    4000103-510
  • Product Family:
    Triconex
  • Product Type:
    10 ft Tricon Interface Cable Assembly
  • Stock:
    1
  • Product family:
    Tricon / Trident field termination hardware
  • Cable type:
    Interface cable assembly
  • Cable length:
    10 ft (approximately 3 m)
  • Trident kit reference:
    9764-510 RTD/TC/AI Termination Panel Kit
  • Trident module reference:
    Model 2352
  • Tricon ETA cross-references:
    9765-610, 9766-210, 9766-510 and 9771-210
  • Tariff Code:
    8544421100
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Interface Compatibility Installation Application
  • Provides the documented 10 ft interface connection
  • Links supported Tricon or Trident termination hardware
  • Requires exact termination-panel and module compatibility confirmation

4000103-510 is a 10 ft interface cable assembly listed in Tricon and Trident technical product guides for supported external termination assemblies.

The published cross-reference associates this cable with multiple compatible external termination assembly kits and specifically lists it in the 9764-510 RTD/TC/AI termination panel kit for Trident Model 2352.

Before installation or replacement, verify the complete cable part number, connector condition, required termination assembly, controller platform, cable routing and continuity before installation.

Availability, condition, price, and shipping time for 4000103-510 are confirmed during quotation.

Triconex 4000103-510 Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • The published cable length is 10 ft
  • The cable is supplied as an interface cable assembly
  • Connector pinout and retention must match the documented termination hardware
  • The 9764-510 kit uses this cable with Trident Model 2352
  • Tricon cross-references also list the cable with selected external termination assemblies
  • Compatibility must be confirmed by the complete termination assembly model
  • De-energize and follow the site safety procedure before cable work
  • Inspect connector pins, strain relief, shielding and cable jacket
  • Perform continuity and loop verification before returning the safety function to service
  • 4-20 mA analog signal interfacing through the 9764-510 termination kit
  • RTD temperature input interfacing through the 9764-510 termination kit
  • Thermocouple temperature input interfacing through the 9764-510 termination kit
Description
4000103-510 is a 10 ft interface cable assembly listed in Tricon and Trident technical product guides for supported external termination assemblies.

The published cross-reference associates this cable with multiple compatible external termination assembly kits and specifically lists it in the 9764-510 RTD/TC/AI termination panel kit for Trident Model 2352.

Before installation or replacement, confirm the complete cable part number, connector condition, required termination assembly, controller platform, cable routing and continuity before installation.
Alternative Names
4000103-510 4000103510 Triconex 4000103-510 Invensys 4000103-510 Triconex 4000103-510 cable 4000103-510 10 ft interface cable
Technical notes
Triconex 4000103-510 is a 10 ft interface cable; select it by exact termination assembly and module documentation, then verify continuity, shielding, routing and loop operation.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What must be confirmed before ordering Triconex 4000103-510?
Confirm both connected devices, the termination-panel or kit number, connector orientation, required cable length and the exact cable part number shown in the system documentation. A similar Triconex cable may use different wiring or keying.
Are connectors, termination panels or mounting hardware included with Triconex 4000103-510?
Do not assume they are included. Confirm whether the quotation covers only the cable assembly or also includes the required termination hardware, connectors and accessories.
Can an existing Triconex 4000103-510 cable be reused during a module replacement?
It may be reused only if its connectors, pinning, shielding and physical condition remain suitable for the approved module and termination assembly. Replace it if damage, corrosion, intermittent continuity or an unauthorized repair is found.
What symptoms may indicate a faulty Triconex 4000103-510 cable?
Possible signs include intermittent channels, multiple unexplained I/O faults, communication that changes when the cable is moved, unstable readings or faults affecting points that share the same termination path.
What should be checked if the I/O fault remains after installing Triconex 4000103-510?
Verify connector seating and orientation, endpoint compatibility, pin mapping, shield and ground connections, termination-panel condition and module diagnostics. Do not assume the cable is the cause until the complete signal path has been checked.
What should be documented before replacing Triconex 4000103-510?
Record both endpoint models, connector orientation, routing, shield bonding, tag numbers and loop test results.
What acceptance checks matter after installing Triconex 4000103-510?
Verify secure seating, continuity, shield and ground practice, point mapping, channel diagnostics and a controlled functional loop test.
