9662-110

/ 4.9
1001 reviews | Need a Specific Revision?

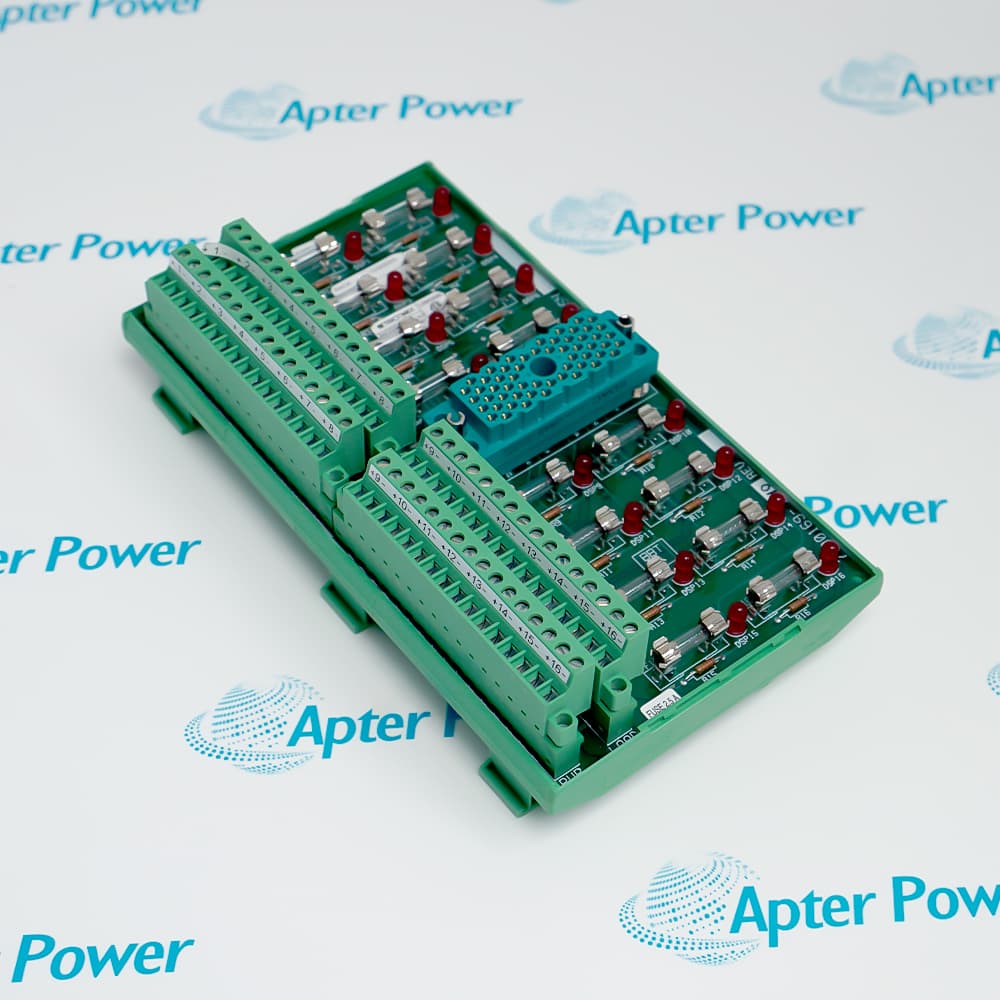

Triconex 9662-110 is a non-commoned sixteen-point 24 VDC digital-output termination panel for the Tricon 3604E module.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 9662-110
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 9662-110

  • Manufacturer:
    Invensys
  • Part Number:
    9662-110
  • Product Family:
    Triconex
  • Product Type:
    Digital Output External Termination Panel
  • Stock:
    1
  • Panel function:
    Non-commoned digital output field termination
  • Signal class:
    24 VDC digital output
  • Points:
    16
  • Compatible module:
    3604E
  • Termination style:
    Separate load and power terminal groups
  • Load terminals:
    LOAD+ and LOAD- for each point
  • Power terminals:
    PWR+ and PWR- for each point
  • Fuse count:
    16
  • Fuse indication:
    Blown-fuse indicators
  • Panel width:
    4.5 in (11.43 cm)
  • Panel length:
    7.75 in (19.685 cm)
  • Panel height:
    4.25 in (10.795 cm)
  • ETA assembly:
    3000570-310
  • Legacy FT1 cable:
    4000094-310
  • FT4 cable:
    4000188-310
  • Z cable:
    4000193-310
  • LSZH cable:
    4000141-310
  • Housing:
    DIN-rail-compatible plastic housing
  • Mounting standard:
    DIN 50 022
  • Field-wire terminals:
    Compression terminals
  • Supported wire size:
    24 to 12 AWG (0.3 to 2.1 mm²)
  • Operating temperature:
    32 to 140 °F (0 to 60 °C)
  • Storage temperature:
    -40 to 167 °F (-40 to 75 °C)
  • Relative humidity:
    5% to 95%, non-condensing
  • Output module channels:
    16
  • Weight:
    1.146 lbs (0.52 kg)
  • Estimated shipping dimensions:
    19.8 x 11.2 x 6 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Integration Connectivity Compatibility & Interoperability

Features:

  • Provides sixteen non-commoned 24 VDC digital-output field circuits.

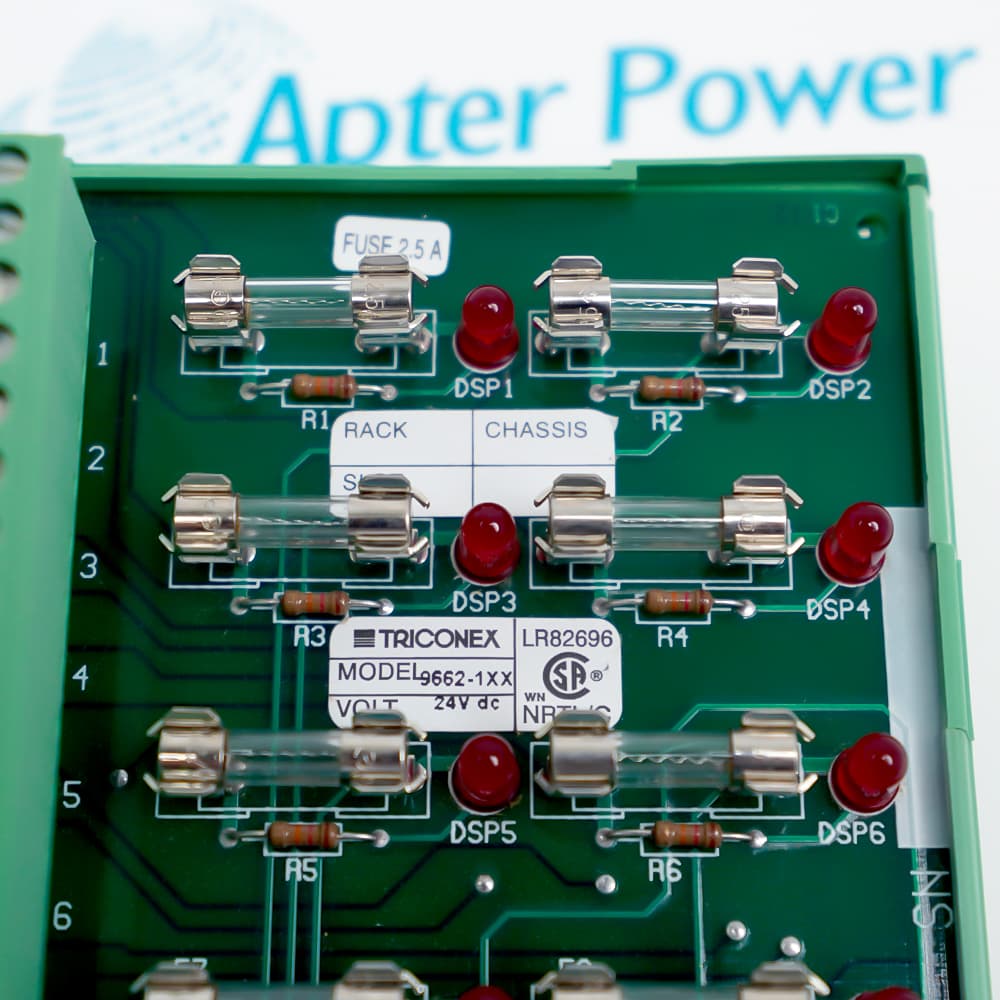

  • Includes sixteen fuses with individual blown-fuse indication.
  • Matches the 3604E module through the specified Tricon interface cable.
The ordering identity is 9662-110, the non-commoned 16-point termination panel listed for a 3604E output module.

Separate LOAD and PWR terminals make each field loop independently serviceable while point fuses localize circuit protection.

Verify the ETA, cable, fuse ratings, point schedule and polarity against the approved safety-system drawings before transfer.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for Triconex 9662-110: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Terminates sixteen 24 VDC output circuits from a Tricon 3604E module.
  • Provides point-level fuse isolation for solenoids, relays and shutdown devices.
  • Supports maintainable field wiring in emergency shutdown and other critical-control cabinets.
  • Each of the sixteen channels has dedicated LOAD+ and LOAD- terminals.
  • Separate PWR+ and PWR- terminals preserve the non-commoned supply arrangement.
  • The panel mounts on DIN rail with the published external-termination dimensions.
  • Point fuses protect the individual 24 VDC field-output paths.
  • Blown-fuse indicators identify the affected circuit without relying only on controller diagnostics.
  • Conductor polarity and channel numbering must follow the 3604E loop schedule.
  • This panel pairs with the sixteen-point 3604E module.
  • ETA 3000570-310 and FT4 cable 4000188-310 are listed for the 9662-110 assembly.
  • Low-smoke and legacy cable options have separate part numbers and must be selected by installation requirement.
Description
Triconex 9662-110 Every one of the sixteen 24 VDC output paths receives dedicated load and power terminals on this non-commoned Tricon termination panel. DIN-rail construction places the field interface close to cabinet wiring while preserving channel-by-channel circuit separation for the associated output module.

Individual point fuses and blown-fuse indicators localize protection faults without disturbing unrelated outputs. This arrangement supports faster maintenance in critical digital-output applications, especially where separate field feeds or circuit ownership must remain visible at the termination layer.

Interface selection must follow the complete loop design rather than connector appearance. Output-module pairing, ETA identity, cable family and length, low-smoke requirement, point numbering, load polarity, field power, fuse values, conductor routing, and terminal torque should all match the installed Tricon drawings.
Alternative Names
9662-110 9662 110 9662110 Triconex 9662-110 Invensys Triconex 9662-110 Tricon 9662-110 Termination Panel 9662-110 16-Point DO ETP
Technical notes
9662-110 is non-commoned: verify all sixteen independent power and load pairs plus the matching 3604E cable before energizing the panel.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which Tricon output module is paired with 9662-110?
The official field-termination table lists it as the non-commoned panel option for the 16-point 3604E module.
How does 9662-110 isolate field circuits?
Every point has separate power and load terminals together with its own fuse and blown-fuse indication.
Where is 9662-110 applied in a safety system?
It terminates individually powered 24 VDC solenoid, relay and trip circuits from a Tricon output module.
What information supports a 9662-110 quotation?
Provide the exact panel code, 3604E module, cable type, condition, quantity, destination and delivery requirement.
Can a commoned output panel replace 9662-110?
Not without engineering review, because the power distribution, terminal arrangement and field-loop fault isolation differ.
Which part numbers should be checked with 9662-110?
Confirm the ETA, interface cable and any LSZH requirement against the Tricon Field Terminations Guide and panel drawing.
