    Apter Power supplies E84AYCPMV quotations, manuals, and exact-module matching.

E84AYCPMV

/ 4.9
1001 reviews | Need a Specific Revision?

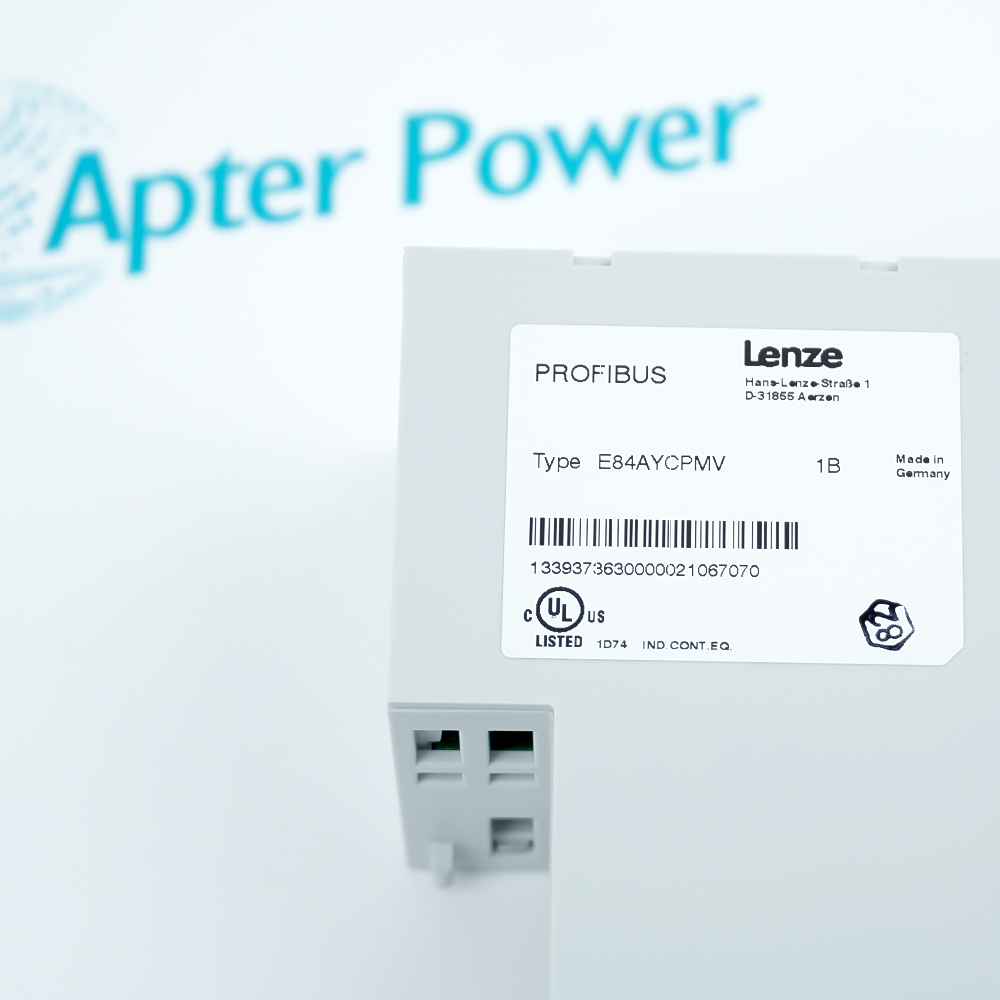

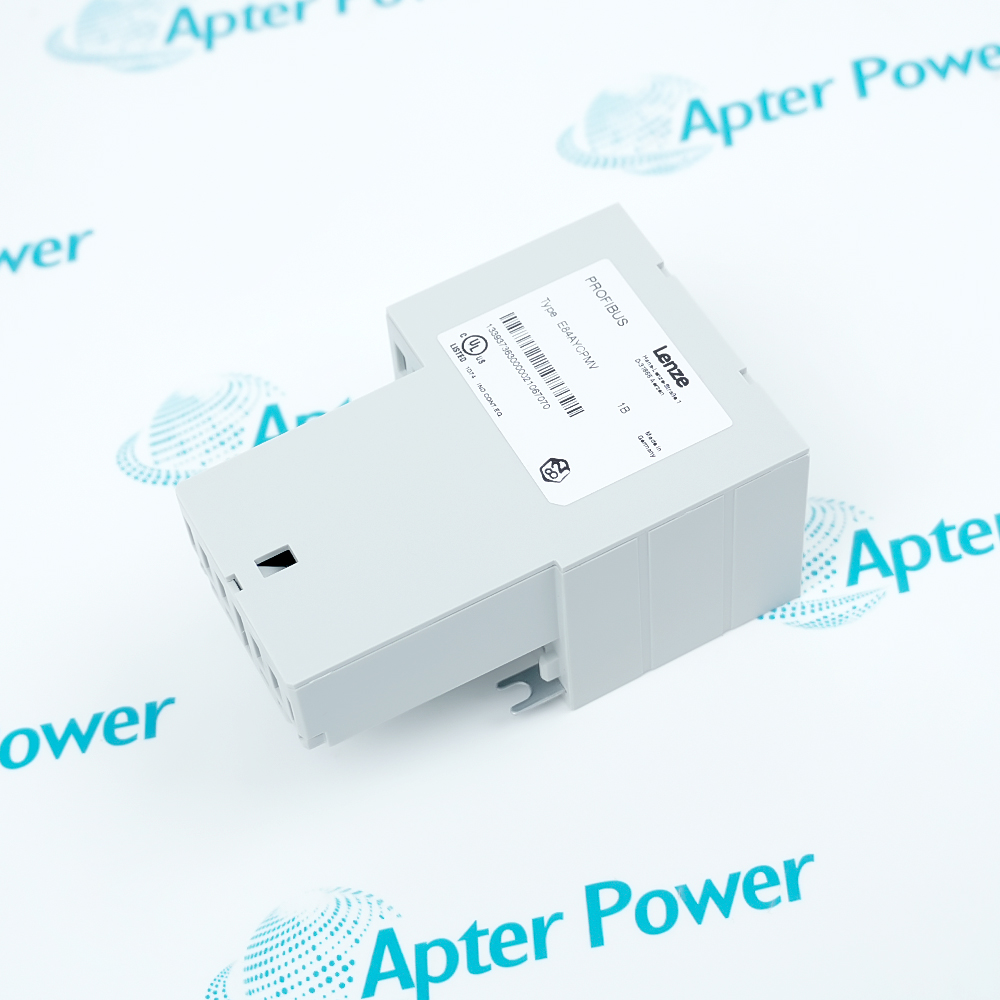

Lenze E84AYCPMV is a coated PROFIBUS DP communication module that links 8400-series inverter drives to a master controller over an RS-485 fieldbus.
In Stock
Get a quick price for E84AYCPMV
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for E84AYCPMV

  • Manufacturer:
    Lenze
  • Part Number:
    E84AYCPMV
  • Product Family:
    Lenze Drives
  • Product Type:
    Coated PROFIBUS Communication Module
  • Stock:
    1
  • Supported drives:
    8400 StateLine, HighLine, and TopLine
  • Installation slot:
    MCI
  • Communication profiles:
    DP-V0 and DP-V1
  • Physical medium:
    RS-485
  • Bus connector:
    9-pin female Sub-D
  • Automatic baud detection:
    9.6 kbit/s to 12 Mbit/s
  • Station address range:
    1 to 126
  • Process data:
    Up to 16 words per direction
  • Status indicators:
    5 LEDs
  • Bus isolation:
    Electrically isolated from the drive electronics
  • Degree of protection:
    IP20
  • Operating temperature:
    -10 to +55 °C
  • Storage temperature:
    -25 to +60 °C
  • Transport temperature:
    -25 to +70 °C
  • Weight:
    0.2 kg
  • Estimated shipping dimensions:
    7x10.2x5.1cm
  • Tariff Code:
    8538909100
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Bus Interface Data Exchange Addressing Environment

Features:

  • Connects Lenze 8400 StateLine, HighLine, or TopLine drives to PROFIBUS DP.
  • Exchanges as many as sixteen cyclic process-data words in each direction.
  • Combines an isolated RS-485 Sub-D interface, address switches, and five status LEDs.
Lenze E84AYCPMV occupies the drive's MCI slot and converts internal drive data into PROFIBUS telegrams.

DP-V0 carries the cyclic control exchange while DP-V1 provides the acyclic path for parameters and diagnostics.

The coated V variant retains the same communication function while distinguishing its environmental construction from the S version.

The Lenze E84AYCPMV Coated PROFIBUS Communication Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Lenze E84AYCPMV Coated PROFIBUS Communication Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

RS-485 connection path

  • Connector: A nine-pin female Sub-D connector provides the external PROFIBUS connection.
  • Medium: The physical layer uses an electrically isolated RS-485 interface.
  • Topology: A line can be extended or branched through approved PROFIBUS repeaters.
  • Termination: Termination must be present at the defined ends of each RS-485 bus segment.

Cyclic and acyclic communication

  • DP-V0: Cyclic telegrams carry drive control and status process data.
  • DP-V1: Acyclic services provide parameter and diagnostic access outside the cyclic exchange.
  • Process image: Up to sixteen data words are available in each communication direction.
  • Master relationship: E84AYCPMV operates as the drive-side PROFIBUS slave for the controlling master.

Station configuration controls

  • Address range: A unique station address from 1 to 126 identifies the module on the bus.
  • Hardware setting: DIP switches provide a direct method for assigning the station address.
  • Software setting: The documented code or drive configuration path can assign the address when permitted.
  • Baud detection: The module automatically detects supported transmission rates from 9.6 kbit/s to 12 Mbit/s.

Coated-module operating limits

  • Protection: The installed communication module is rated IP20.
  • Operation: The documented operating range is -10 to +55 °C.
  • Storage: The storage classification permits -25 to +60 °C.
  • Transport: The transport classification permits -25 to +70 °C.
Description
Lenze E84AYCPMV is the coated version of the E84AYCPM PROFIBUS communication module for 8400 StateLine, HighLine, and TopLine inverter drives. Installed in the drive's MCI slot, it links the internal drive-control data to an external PROFIBUS master.

Process communication through Lenze E84AYCPMV uses PROFIBUS DP-V0 for cyclic data and DP-V1 for acyclic parameter access. As many as sixteen process-data words can travel in each direction, separating continuously exchanged control values from parameter and diagnostic transactions.

The external bus path of Lenze E84AYCPMV uses an electrically isolated RS-485 interface on a nine-pin female Sub-D connector. The module detects supported baud rates from 9.6 kbit/s to 12 Mbit/s, while its station address is assigned by DIP switches or drive configuration.

Five LEDs on Lenze E84AYCPMV divide drive, module, and bus status into visible indications during commissioning. The module receives its operating power from the 8400 drive, so the fieldbus cable carries communication rather than a separate module supply.
Alternative Names
E84AYC PMV E84AYC-PMV E84AY CPMV E84AYCPM V Lenze E84AYCPMV E84AYCPMV PROFIBUS E84AYCPMV Communication Module E84AYCPMY
Technical notes
E84AYCPMV is the coated V version; do not replace it with E84AYCPMS without checking the required coating and full product key.
