    Apter Power supplies factory-fresh Omron S8VK-C48024 hardware, providing plant engineers with a dependable, current-generation 480W power source to ensure continuous, efficient control panel operations.

S8VK-C48024

/ 4.9
1001 reviews | Need a Specific Revision?

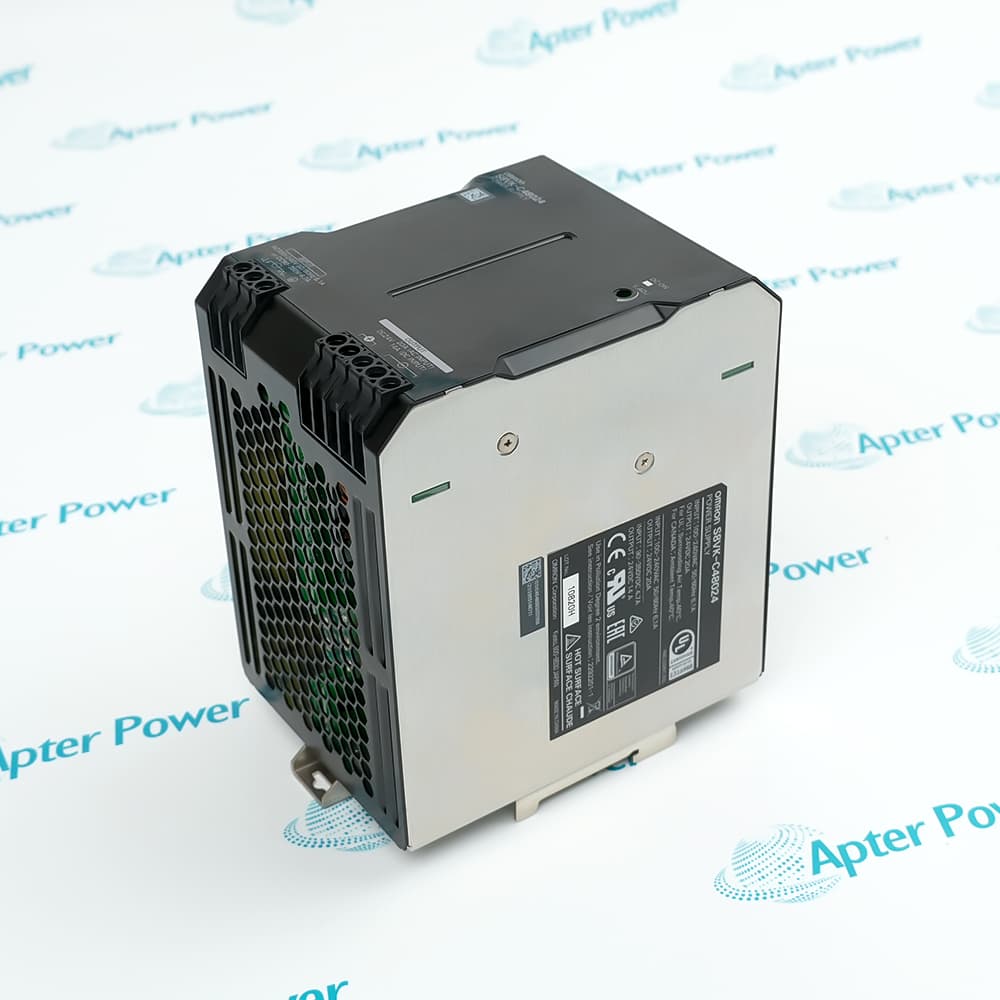

The Omron S8VK-C48024 is a high-performance switching power supply designed for industrial automation applications.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for S8VK-C48024
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for S8VK-C48024

  • Manufacturer:
    Omron
  • Part Number:
    S8VK-C48024
  • Product Family:
    Omron
  • Product Type:
    Switch Mode Power Supply
  • Stock:
    1
  • Output Voltage:
    24V DC
  • Output Current:
    20A
  • Output Power:
    480W
  • Efficiency:
    91%
  • Mounting Method:
    DIN Rail
  • Operating Temperature Range:
    -25°C to +60°C
  • Certifications:
    CE, cURus, TUV
  • Weight:
    0.94 kg
  • Estimated shipping dimensions:
    16x11.5x12.5cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Performance & Efficiency Monitoring & Control

Features:

  • High-Efficiency 91% Power Conversion Topology
  • Active Power Factor Correction up to 0.97
  • Resilient 3G Vibration Defending Shell
The Omron S8VK-C48024 integrates advanced switching power topologies that elevate typical operating efficiency to an impressive 91% under standard 230 VAC grid conditions. By minimizing heat dissipation inside electrical cabinets, it actively prevents internal temperature build-up, extends the service life of nearby control hardware, and contributes to green factory initiatives worldwide.

Engineered with premium power factor correction hardware, the Omron S8VK-C48024 dynamically aligns voltage and current waveforms to yield an extraordinary 0.97 power factor rating. This advanced configuration drastically mitigates unwanted harmonic emissions, reduces raw current consumption across lines, and ensures strict compliance with International standard EN61000-3-2.

The mechanical frame of the Omron S8VK-C48024 features standard IP20 protection paired with heavy-duty structural reinforcing brackets capable of dampening consistent 3G mechanical stress. This ensures the single-phase module maintains reliable contact and uninterrupted electronic output when installed directly alongside vibrating processing machinery or heavy stamping equipment.

The S8VK-C48024 Omron Switch Mode Power Supply may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Omron S8VK-C48024 Switch Mode Power Supply Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Omron S8VK-C48024 Switch Mode Power Supply

General

  • Manufacturer Omron
  • Model S8VK-C48024
  • Condition New Original ready stock
  • Product Family NE2A-SCPU01,NE2A-DNS21,NE2A-PD025
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • High-Density PLC and Remote I/O Control Cabinets: The Omron S8VK-C48024 serves as the central 24VDC heartbeat for extensive automated logic systems, reliably fueling CPU racks, safety relays, and high-density analog I/O modules.
  • Automated Packaging and Materials Handling Conveyors: Engineered to withstand structural shifts, this model delivers uninterrupted electrical supply to optical tracking lines, sorting gates, and distributed pneumatic valves along large assembly lanes.
  • Semiconductor and Precision Electronic Manufacturing: Featuring clean output waves and low harmonic interference, the power block safeguards sensitive silicon chip wafer-handling systems from electrical noise anomalies.
  • Industrial HVAC and Large-Scale Building Management: The wide thermal tolerance range allows the supply module to function consistently inside perimeter mechanical rooms, driving air handlers, dampeners, and ventilation field networks.
  • Superior 91% High-Efficiency Thermal Footprint: Delivering top-tier performance, the Omron S8VK-C48024 converts raw line input to steady DC output with negligible heat waste, keeping the localized control enclosure exceptionally cool.
  • Active PFC Harmonic Suppression: Integrated active power factor mechanics suppress line interference down to EN61000-3-2 parameters, optimizing source energy and alleviating neutral line stress.
  • Dynamic Low-Volt Input Compensation: The unit actively regulates its 24VDC output even during severe brownouts or deep voltage sags, maintaining stability down to its absolute lower grid bound of 85 VAC.
  • Resilient 3G Shock Resistance Framework: Validated under tough industrial test protocols, the internal circuits avoid micro-fractures, ensuring continuous conduction across high-vibration machinery assemblies.
  • Front Panel Visual Diagnostics: The sharp green "DC ON" LED gives maintenance personnel an immediate indicator of successful voltage conversion without needing a digital multimeter.
  • Integrated Precision Analogue Voltage Adjuster: A robust V.ADJ potentiometer allows manual tuning from -10% to +15%, enabling compensation for long cable runs to distant components.
  • Smart Overcurrent Fold-Forward Protection: The protective circuit activates at 105% load, limiting output delivery during blockages and clearing automatically once normal operation resumes.
  • Secure Single-Phase Latching Isolation: Overvoltage conditions trigger an immediate safety shutdown latch, isolating downstream networks from voltage overshoots until input power is manually recycled.
Description
As a flagship member of Omron's Lite family, the Omron S8VK-C48024 achieves a masterful balance between international quality standards and affordability. It serves as a rock-solid foundation for budget-conscious B2B system integrators and OEMs who refuse to compromise on operating lifetime, electrical safety, and industrial-grade toughness across international boundaries.

Equipped with intelligent multi-voltage management circuitry, the Omron S8VK-C48024 handles worldwide grids seamlessly by accepting universal AC input (85 to 264 VAC) and flexible DC input (90 to 350 VDC). Furthermore, its built-in active Power Factor Correction (PFC) optimizes current usage up to a typical 0.97 power factor, minimizing harmonic pollution and aligning with stringent global efficiency requirements.

The mechanical architecture of the Omron S8VK-C48024 features a ruggedized book-type metallic enclosure optimized for maximum space-saving efficiency inside crowded switchgear assemblies. Designed to sustain constant thermal stress and high vibration levels up to 3G, this heavy-duty unit guarantees continuous, fault-free operation even within the most aggressive automated factory floor conditions.

System safety remains paramount with the integrated electronic safety framework of the Omron S8VK-C48024. Featuring precise overvoltage shutdown latches and smart overcurrent auto-resetting protocols, this power unit actively insulates downstream sensitive PLCs, complex I/O modules, and high-speed motion controllers from destructive line anomalies and persistent load shortages.

Alternative Names
S8VK-C48O24 SBVK-C48O24 SBVK-C4BO24 S8VKC48024
Technical notes
The Omron S8VK-C48024 demands standard vertical installation on a 35mm DIN rail with proper airflow ventilation clearances to prevent thermal derating under heavy loads. When utilizing a DC input source with the Omron S8VK-C48024, system engineers must connect an external fast-acting fuse rated at 350 VDC (minimum) and 12A directly to the line input terminal to ensure compliance with global safety standards.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the input voltage range of the Omron S8VK-C48024?
The input voltage range of this power supply is 100-240V AC and 90-350V DC.
What is the output power of the Omron S8VK-C48024?
The output power of this power supply is 480W.
What is the operating temperature range of the Omron S8VK-C48024?
The operating temperature range of this power supply is -25°C to +60°C.
What are the exact structural wiring connections and input terminal allocations supported by the Omron S8VK-C48024?
The Omron S8VK-C48024 features clear nomenclature-labeled heavy-duty screw terminal blocks at the top and bottom faces. The top terminal block contains four distinct slots providing parallel output paths for DC (+V) and (-V) connections, allowing convenient secondary branch distribution. The bottom terminal features separate inputs for Line (L), Neutral (N), and a dedicated Protective Earth (PE) terminal that must be grounded securely to ensure full electromagnetic compliance and safety shielding.
Does the Omron S8VK-C48024 provide granular diagnostic indicators or output tracking features for PLC integration?
The front panel of the Omron S8VK-C48024 features a high-visibility green "DC ON" LED indicator that acts as a fundamental visual status monitor. This LED remains stably illuminated whenever the internal circuitry outputs a voltage equivalent to 80% to 90% or more of the rated 24VDC value. For deep diagnostics, engineers can manual-trim the voltage adjustment screw (V.ADJ) between -10% and +15% to calibrate lines while checking downstream analog inputs on the PLC.
