    For Siemens 39RTMCAN, Apter Power provides quotations, product selection, and system matching.

39RTMCAN

/ 4.9
1001 reviews | Need a Specific Revision?
Siemens 39RTMCAN is an APACS+ resistance temperature module with eight labeled I/O groups, 24 V DC power and temperature-input signal handling.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 39RTMCAN
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 39RTMCAN

  • Manufacturer:
    Siemens
  • Part Number:
    39RTMCAN
  • Product Family:
    Siemens Moore
  • Product Type:
    APACS+ Resistance Temperature Module
  • Stock:
    1
  • Control system:
    APACS+
  • I/O group references:
    1 through 8
  • Module power:
    24 V DC, 0.175 A maximum
  • I/O signal rating:
    24 V DC, 2.5 mA maximum
  • ROM revision:
    3.01
  • Weight:
    4.233 lbs (1.92 kg)
  • Estimated shipping dimensions:
    4.1x26x30.7cm
  • Tariff Code:
    8537101190
  • Country of origin:
    United States
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals RTD Inputs Power Path I/O Groups Module ID

Features:

  • APACS+ resistance temperature module
  • Eight I/O groups numbered 1 through 8
  • Separate module-power and I/O-signal ratings
Siemens 39RTMCAN connects resistance-temperature measurement circuits to the APACS+ control system.

The front I/O section of 39RTMCAN divides installed connections among eight numbered group references.

Separate 24 V DC ratings distinguish the 39RTMCAN module-power input from its lower-current I/O signal path.

The Siemens 39RTMCAN APACS+ Resistance Temperature Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 39RTMCAN APACS+ Resistance Temperature Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Resistance Temperature Inputs

  • Module role: Resistance-temperature measurement input
  • Control platform: APACS+
  • Field organization: Eight numbered I/O groups

Power and Signal Ratings

  • Module supply: 24 V DC
  • Module current: 0.175 A maximum
  • I/O signal circuit: 24 V DC at 2.5 mA maximum

I/O Group Organization

  • Group count: Eight
  • Reference range: 1 through 8
  • Front arrangement: Each connection area follows one numbered group reference

Module Identification

  • Model: 39RTMCAN
  • Designation: Resistance Temperature Module
  • ROM revision: 3.01
Description

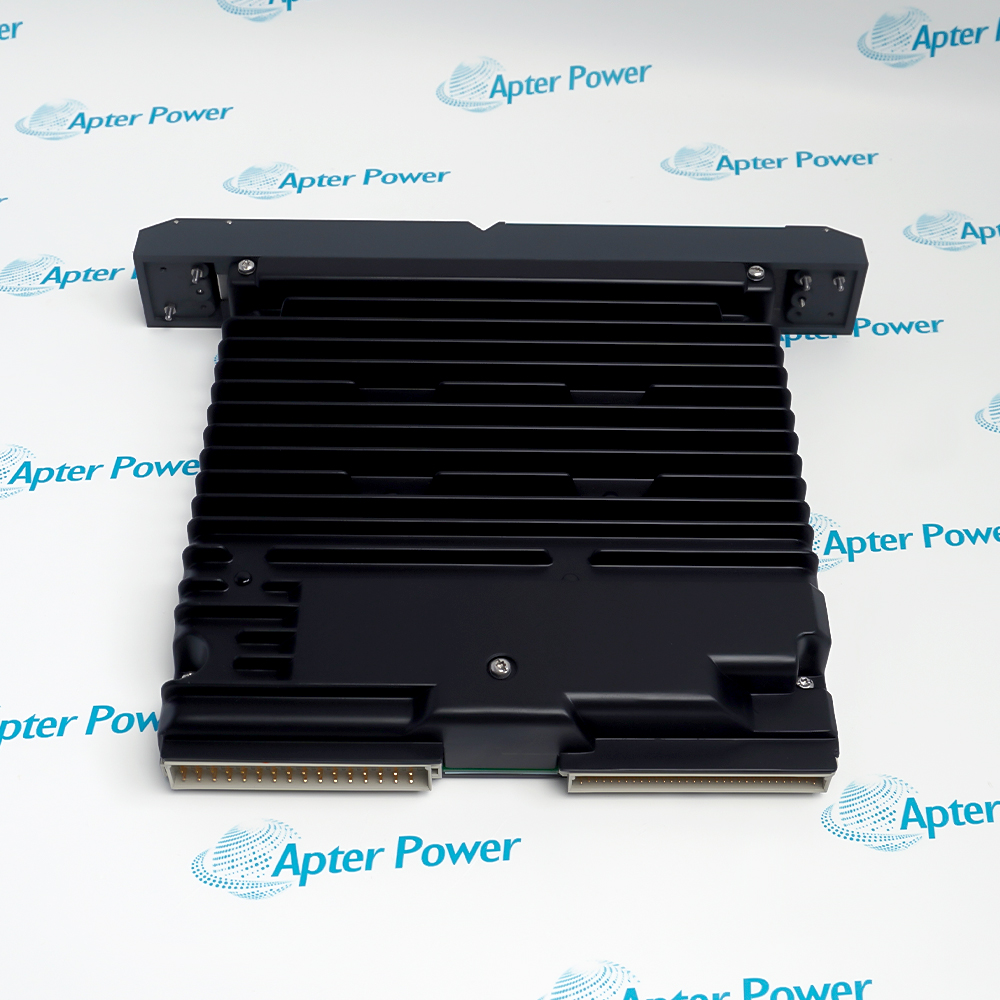

Siemens 39RTMCAN is an APACS+ resistance temperature module that brings resistance-temperature measurements into the control system. Its field connections, module electronics and rack interface are contained in one plug-in assembly.

Eight numbered I/O groups on 39RTMCAN organize the installed temperature points as groups 1 through 8. The front group references keep each connection area associated with a distinct position rather than one shared, unlabeled field section.

Power for 39RTMCAN is identified separately from its I/O signal circuit. The module-power input is rated 24 V DC at 0.175 A maximum, while the labeled I/O signal path is 24 V DC at 2.5 mA maximum.
Alternative Names
Siemens 39RTMCAN Siemens Moore 39RTMCAN Moore Products 39RTMCAN 39RTMCAN Resistance Temperature Module APACS+ 39RTMCAN RTM 39RTMCAN Temperature Input Module Moore 39RTMCAN APACS Module 39 RTM CAN Resistance Module
Technical notes
39RTMCAN is the unsuffixed APACS+ resistance temperature module; its label specifies ROM 3.01, 24 V DC power and I/O groups 1–8.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What control-system role does Siemens 39RTMCAN perform?
39RTMCAN is the APACS+ resistance temperature module. It receives the installed resistance-temperature measurement circuits through its grouped I/O section.
How are field points organized on Siemens 39RTMCAN?
The module divides its front I/O section into eight numbered groups, labeled 1 through 8. This keeps each installed connection area tied to a distinct group reference.
Why must module power and I/O signal ratings be separated for Siemens 39RTMCAN?
The label gives different maximum values for the two circuits. Module power is 24 V DC at 0.175 A maximum, while the I/O signal path is 24 V DC at 2.5 mA maximum.
Which revision information is shown for Siemens 39RTMCAN?
The documented unit carries ROM revision 3.01. Record that revision with the complete 39RTMCAN model when comparing the installed hardware record.
What identity should be retained when documenting Siemens 39RTMCAN?
Use the complete 39RTMCAN model together with the Resistance Temperature Module designation. Do not reduce the record to a generic APACS temperature card description.
