39SAMCAN 16133-71/8

/ 4.9
1001 reviews | Need a Specific Revision?
Siemens Moore 39SAMCAN 16133-71/8 is an APACS Standard Analog Module marked for 24 VDC, 4–20 mA I/O, ROM 3.05, and a 1.0 A maximum load.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 39SAMCAN 16133-71/8
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 39SAMCAN 16133-71/8

  • Manufacturer:
    Siemens
  • Part Number:
    39SAMCAN 16133-71/8
  • Product Family:
    Siemens Moore
  • Product Type:
    Standard Analog Module
  • Stock:
    1
  • Control platform:
    APACS
  • Module designation:
    SAM — Standard Analog Module
  • Part number:
    16133-71/8
  • Power:
    24 VDC
  • Maximum current:
    1.0 A
  • I/O signal:
    24 VDC, 4–20 mA
  • ROM version on label:
    3.05
  • Marked isolation:
    600 V, channel to ModuPAC and ground
  • Weight:
    1.96 kg
  • Estimated shipping dimensions:
    4x25.7x30.5cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Communication & Connectivity Diagnostics & Protection Installation

Features:

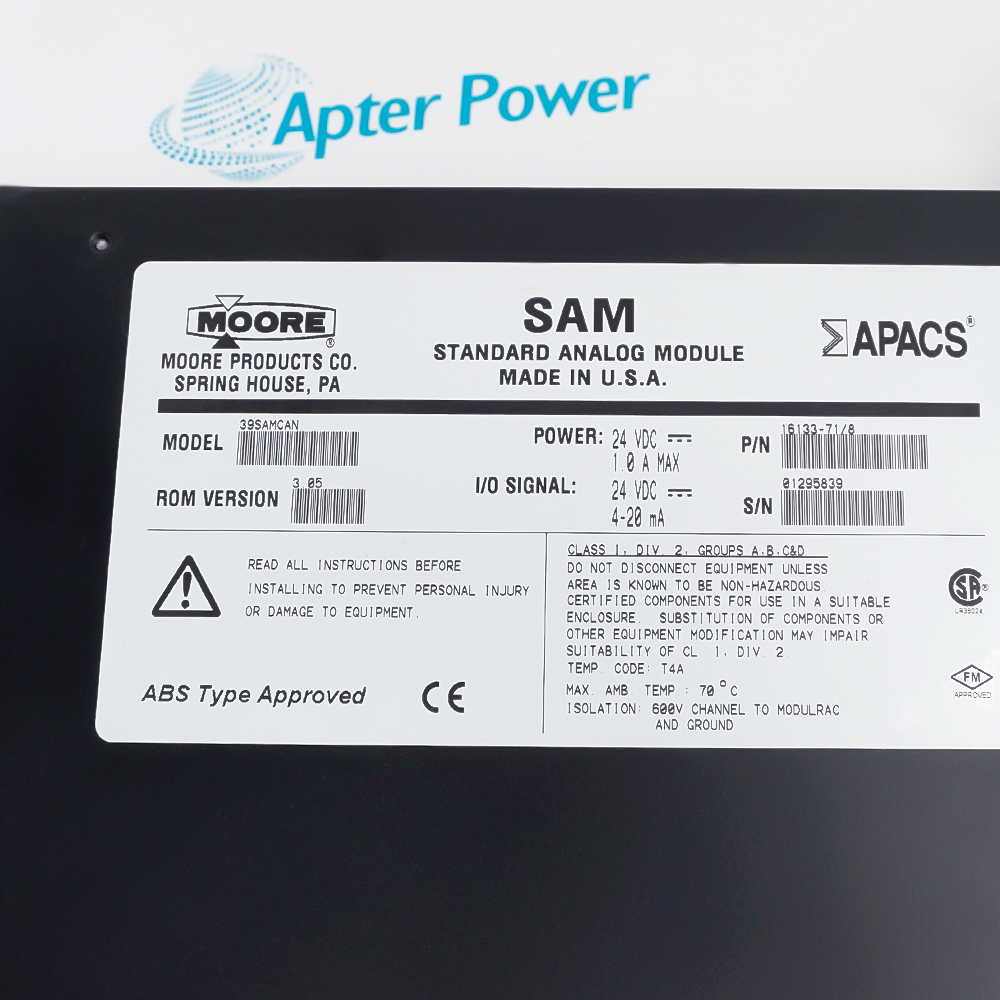

  • Moore-era identity: the exact plate shows P/N 16133-71/8.
  • Isolation marking: 600 V is stated from channel to ModuPAC and ground.
  • Analog-loop range: the documented field signal is 24 VDC, 4–20 mA.
This variant represents an earlier Moore Products implementation of the APACS standard analog module.

Its nameplate separates a 1.0 A module load from the 4–20 mA field-signal entry.

The manufacturer era, exact /8 suffix, isolation wording, and ROM record are all needed to identify the unit accurately.
Apter Power can review 39SAMCAN 16133-71/8 Moore-era label evidence, isolation marking, condition, and sourcing requirements.
Verified resources for Siemens 39SAMCAN 16133-71/8: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Processes documented 4–20 mA field loops in the installed APACS+ and ModuPAC arrangement.
  • Supports legacy process measurements where the exact /8 nameplate and ROM marking are retained.
  • Fits maintenance work that must preserve the original power, isolation, and field-wiring boundaries.
  • Operates through the proprietary APACS+ and ModuPAC architecture rather than a stand-alone fieldbus.
  • Module power and the field I/O signal are separate circuits and must remain distinct in the wiring record.
  • Communication and terminal assignments should be taken from the approved cabinet drawing, not the label alone.
  • The nameplate states a 600 V isolation boundary from channel to ModuPAC and ground.
  • ROM 3.05 should be recorded with the installed configuration when diagnosing or receiving a spare.
  • Loop-current measurement and grounding review help distinguish field noise from an internal module fault.
  • Use the listed maximum of 1.0 A at 24 VDC for cabinet power planning.
  • Do not disconnect the unit in a classified area unless the area is known to be non-hazardous.
  • Preserve the 4–20 mA wiring map and enclosure certification before restoring the circuit.
Description
The Moore Products nameplate identifies 39SAMCAN 16133-71/8 as a SAM Standard Analog Module for the APACS control platform. Siemens later listed the 39SAMCAN core among APACS+ products, while this page remains anchored to the exact Moore-era /8 P/N.

A marked isolation boundary distinguishes 39SAMCAN 16133-71/8: the plate states 600 V from channel to ModuPAC and ground. This wording should guide the insulation review without being expanded into an unsupported channel-to-channel claim.

When 39SAMCAN 16133-71/8 is selected for service, the 1.0 A maximum power line, 24 VDC and 4–20 mA I/O entry, ROM 3.05, and complete /8 P/N should be checked as one record. Similar 39SAMCAN branding alone is not an interchangeability statement.
Alternative Names
16133-71/8 Moore SAM /8 SAM P/N 16133-71/8 16133-71-8 39SAMCAN 39SAMCAN 16133718 39samcam16133718
Technical notes
Keep the full 39SAMCAN 16133-71/8 identification with the module during service because adjacent 39SAMCAN order configurations must not be treated as automatically interchangeable.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Does 39SAMCAN 16133-71/8 have 600 V channel-to-channel isolation?
No. Its label states 600 V from channel to ModuPAC and ground, so that boundary must not be expanded into a channel-to-channel rating.
Can 39SAMCAN 16133-71/8 be treated as identical to the /13 configuration?
No official equivalence was found; compare the full part number, current limit, ROM, wiring, isolation wording, and APACS+ records.
What should be investigated when a 39SAMCAN 16133-71/8 loop becomes noisy?
Measure the 4–20 mA loop, review field grounding and the documented ModuPAC isolation boundary, then check the APACS+ configuration.
Why should ROM 3.05 remain recorded for 39SAMCAN 16133-71/8?
It helps identify the installed configuration during maintenance, but it does not by itself prove compatibility with another ROM marking.
Which hazardous-location warning applies to 39SAMCAN 16133-71/8?
Do not disconnect the equipment unless the area is known to be non-hazardous, and use certified components in a suitable enclosure.
Which power value belongs in the cabinet audit for 39SAMCAN 16133-71/8?
Use the nameplate maximum of 1.0 A at 24 VDC and keep the separate 4–20 mA I/O entry tied to the field-loop drawing.
