    Apter Power provides quotation, migration-sourcing support for Siemens Moore Module Bus hardware.

39MBXNAN 16180-1/17

/ 4.9
1001 reviews | Need a Specific Revision?

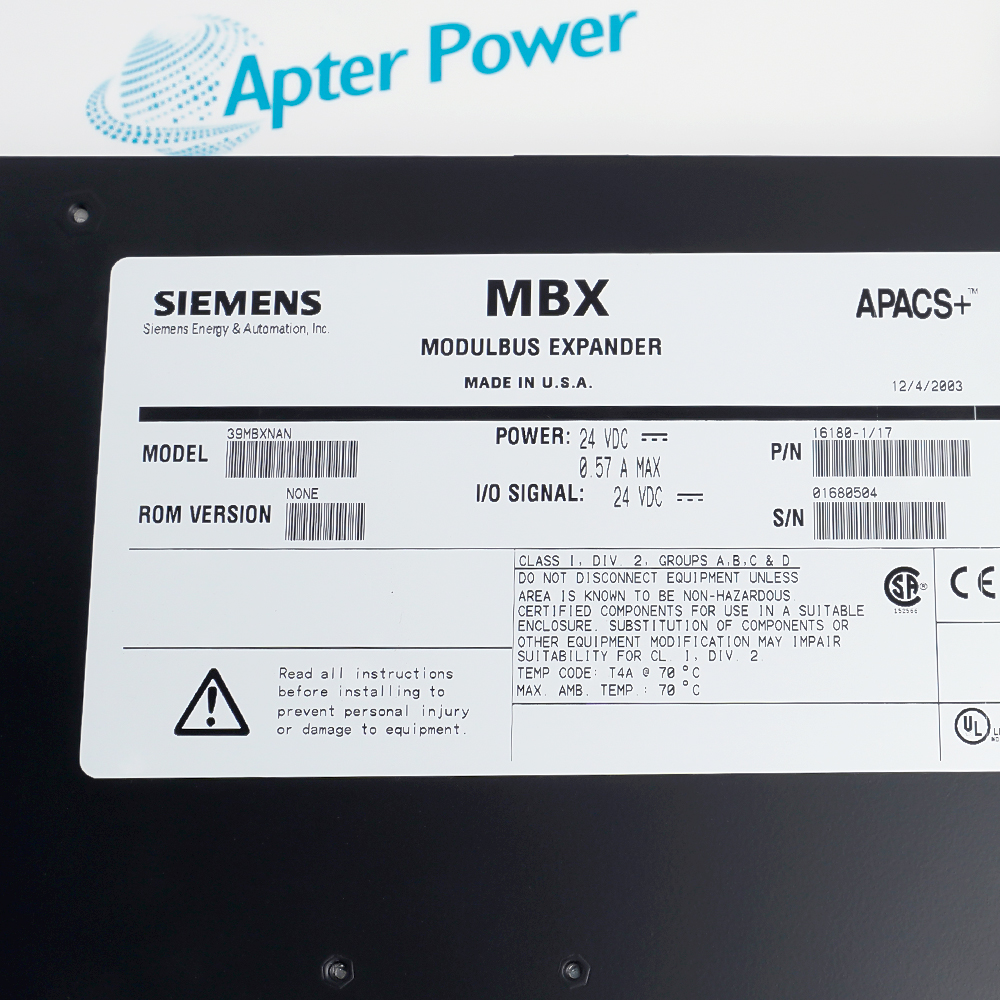

Siemens 39MBXNAN 16180-1/17 combines the APACS+ Module Bus Expander base code with a complete service-stock identifier.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 39MBXNAN 16180-1/17
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 39MBXNAN 16180-1/17

  • Manufacturer:
    Siemens
  • Part Number:
    39MBXNAN 16180-1/17
  • Product Family:
    Siemens Moore
  • Product Type:
    APACS+ Module Bus Expander
  • Stock:
    1
  • Base model:
    39MBXNAN
  • Published product role:
    Module Bus Expander
  • System family:
    APACS+ / M-Net
  • Power Supply:
    24 VDC, 0.57 A max.
  • I/O Signal:
    24 VDC
  • Complete stock identifier:
    16180-1/17
  • ROM Version:
    None
  • Hazardous Location:
    Class I, Division 2, Groups A, B, C & D
  • Temperature Code:
    T4A at 70°C
  • Maximum Ambient Temperature:
    70°C
  • Markings:
    CSA, CE and UL
  • Weight:
    2 kg
  • Estimated shipping dimensions:
    4 x 25.7 x 30.5 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Module Bus Function Migration Paths Service Matching Product Applications

Features:

  • Legacy bus expansion: The module supports APACS+ M-Net connectivity.
  • Module Bus function: Its network role is distinct from generic Modbus communication.
  • Service identity: The complete installed code is 39MBXNAN 16180-1/17.
The module belongs to the communication layer of an installed APACS+ system.

Migration planning starts by documenting the data paths currently carried by its Module Bus position.

The /17 suffix remains an exact service reference because the available OEM record does not decode it.

Apter Power supports Siemens 39MBXNAN 16180-1/17 sourcing with quotation and migration-scope review.
Verified resources for Siemens 39MBXNAN 16180-1/17: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • M-Net family: Siemens groups 39MBXNAN with Module Bus products.
  • Installed role: The expander supports the APACS+ cabinet communication path.
  • Protocol boundary: The product identity does not define a generic Modbus interface.
  • Module Bus plus ACM-to-S7: IEM 6EQ20101AA005XX0 is the listed Siemens path.
  • Peer-to-peer requirement: IEM 6EQ20102AA005XX0 adds the stated ACM/CCM scope.
  • Project engineering: Migration requires configuration and interface review, not only a part-number change.
  • Complete code: Keep 39MBXNAN 16180-1/17 on the RFQ and receiving check.
  • Network inventory: Record Module Bus, ACM-to-S7 and peer-to-peer duties before replacement.
  • Variant boundary: Do not infer /14 and /17 equivalence from the shared base model.
  • APACS+ Module Bus service: The module expands the installed M-Net communication path.
  • Legacy spare replacement: Exact /17 matching preserves the requested hardware identity.
  • Network modernization: The IEM matrix supports selection by required communication function.
Description
APACS+ systems use 39MBXNAN 16180-1/17 to expand the legacy Module Bus network within the Siemens M-Net architecture. The module's purpose is bus connectivity between installed APACS+ resources, not general-purpose Modbus communication.

Keeping 39MBXNAN 16180-1/17 in service means preserving the communication duties assigned to its Module Bus position. The /17 label is therefore a hardware-matching reference rather than a published network-feature code.

When the network is modernized, 39MBXNAN 16180-1/17 moves to an engineered IEM solution selected by function. Module Bus with ACM-to-S7 communication and ACM/CCM peer-to-peer communication are separate migration requirements in the Siemens matrix.
Alternative Names
39MBXNAN 16180-1/17 39MBXNAN 16180 1 17 39MBXNAN 16180-1-17 39MBXNAN16180117 UPH:39MBXNAN UPH 39MBXNAN Siemens 39MBXNAN 16180-1/17
Technical notes
39MBXNAN 16180-1/17 is an APACS+ M-Net/Module Bus expander. Treat the complete /17 label as the service identity, and map the existing Module Bus, ACM-to-S7 and peer-to-peer duties before selecting an IEM migration path.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can 39MBXNAN 16180-1/17 be specified as a generic Modbus interface?
No. Siemens documents the base product in the M-Net and Module Bus context; a Modbus specification would assign the wrong network role.
Which IEM should be evaluated when replacing 39MBXNAN 16180-1/17 for Module Bus and ACM-to-S7 communication?
Evaluate 6EQ20101AA005XX0, the Siemens IEM path listed for Module Bus interface and ACM-to-S7 communication.
The modernization project needs ACM and CCM peer-to-peer communication. Is the basic path for 39MBXNAN 16180-1/17 enough?
Not by itself. Siemens lists 6EQ20102AA005XX0 for the added peer-to-peer scope, so the controller communication requirements must be documented first.
Can 39MBXNAN 16180-1/14 be accepted automatically in place of 39MBXNAN 16180-1/17?
No automatic equivalence is published. Match the complete /17 service label unless the installed project records establish suitability for the other build.
Can an IEM be installed as a drop-in replacement for 39MBXNAN 16180-1/17?
Do not treat it as a drop-in exchange. The IEM is a migration solution that requires network-function mapping, configuration work and cabinet-interface review.
