    Apter Power coordinates 6AV6545-0CA10-0AX0 manuals, quotations, HMI selection, and TP 270 model matching.

6AV6545-0CA10-0AX0

/ 4.9
1001 reviews | Need a Specific Revision?
Operators use Siemens 6AV6545-0CA10-0AX0 as a SIMATIC TP 270 touch HMI to display process screens, enter commands and exchange data with connected controllers.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6AV6545-0CA10-0AX0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6AV6545-0CA10-0AX0

  • Manufacturer:
    Siemens
  • Part Number:
    6AV6545-0CA10-0AX0
  • Product Family:
    Siemens Simatic HMI
  • Product Type:
    SIMATIC TP 270 6-inch Touch Panel
  • Stock:
    1
  • Display Type:
    STN, 256 colors
  • Screen Diagonal:
    5.7 in
  • Resolution:
    320x240 pixels
  • Touch Technology:
    Analog resistive
  • Rated Current:
    0.6 A
  • Typical Power Input:
    15 W
  • Processor:
    32-bit RISC
  • Configuration Memory:
    2048 KB
  • Operating System:
    Windows CE
  • Serial Interfaces:
    2x RS232, 1x RS422, 1x RS485
  • RS485 Rate:
    12 Mbit/s maximum
  • USB Port:
    1
  • Memory Card:
    1x CF card slot
  • Front Protection:
    IP65
  • Rear Protection:
    IP20
  • Configuration Software:
    ProTool V5 SP3 or WinCC flexible Standard 2004 and higher
  • Runtime Languages:
    5
  • Project Languages:
    32
  • Messages:
    4000 maximum
  • Variables per Device:
    2048
  • Configurable Screens:
    300
  • Archives per Device:
    20
  • User Groups:
    50
  • Mounting Position:
    Vertical; up to 35° inclination without external ventilation
  • Weight:
    2.7514 lbs (1.248 kg)
  • Estimated shipping dimensions:
    19.7x26.6x9.8cm
  • Tariff Code:
    85371098
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Operator Interface Project Capacity Data Archiving Panel Integration

Features:

  • A 5.7-inch STN touch display gives operators a 320x240-pixel local process interface.
  • The panel stores a 2 MB configuration containing screens, variables, alarms, recipes and user controls.
  • Serial, USB and CF-card connections separate controller communication, peripherals and data storage.
Configured process screens convert controller tags into operator-visible values, messages and command objects.

The front IP65 boundary is created by the installed panel face, while the rear remains an IP20 cabinet-side assembly.

Project recovery depends on retaining the engineering file, communication settings and any CF-card archive data.

The Siemens 6AV6545-0CA10-0AX0 SIMATIC TP 270 6-inch Touch Panel may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6AV6545-0CA10-0AX0 SIMATIC TP 270 6-inch Touch Panel Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

How the operator interface is organized

  • Touch input: The analog-resistive surface maps operator presses to the configured screen objects.
  • Screen output: The 320x240 STN display presents 256-color process graphics, messages and controls.
  • Language set: A project can contain 32 languages and expose five as online runtime languages.
  • User control: Fifty user groups and 32 user rights divide permitted operator actions.

Limits that shape a TP 270 project

  • Tag space: The panel supports up to 2,048 variables, with 200 variables on one screen.
  • Screen count: Up to 300 configurable screens can be included.
  • Alarm design: The message system supports 4,000 messages divided into 32 alarm classes.
  • Recipe structure: Up to 300 recipes can contain 500 data records with 1,000 entries per record.

Where runtime records are stored

  • Archive types: The panel supports alarm and process-value archives.
  • Storage targets: Archive files can reside on a CF card or an Ethernet network location.
  • File format: CSV output can be read by applications such as Excel or Access.
  • Retention method: Sequential, circular, short-term, alarm and process-value logging methods are available.

Cabinet and controller integration

  • Panel seal: Correct cutout and clamp installation are required for the IP65 front rating.
  • Rear boundary: The IP20 rear side must remain inside the appropriate enclosure.
  • Controller links: Serial and Ethernet drivers connect the project to the documented PLC families.
  • Engineering tool: Use the supported ProTool or WinCC flexible generation to transfer a compatible project.
Description
Siemens 6AV6545-0CA10-0AX0 is a SIMATIC TP 270 6-inch touch operator panel with a 5.7-inch STN color display. Its resistive touch surface provides the local command layer, while the configured screens present controller values, alarms and operating states to the machine operator.

The 6AV6545-0CA10-0AX0 stores a project in 2 MB of user configuration memory and runs Windows CE on a 32-bit RISC processor. A project can organize up to 300 configurable screens and 2,048 variables, linking visual objects and operator entries to the tags exchanged with the selected controller driver.

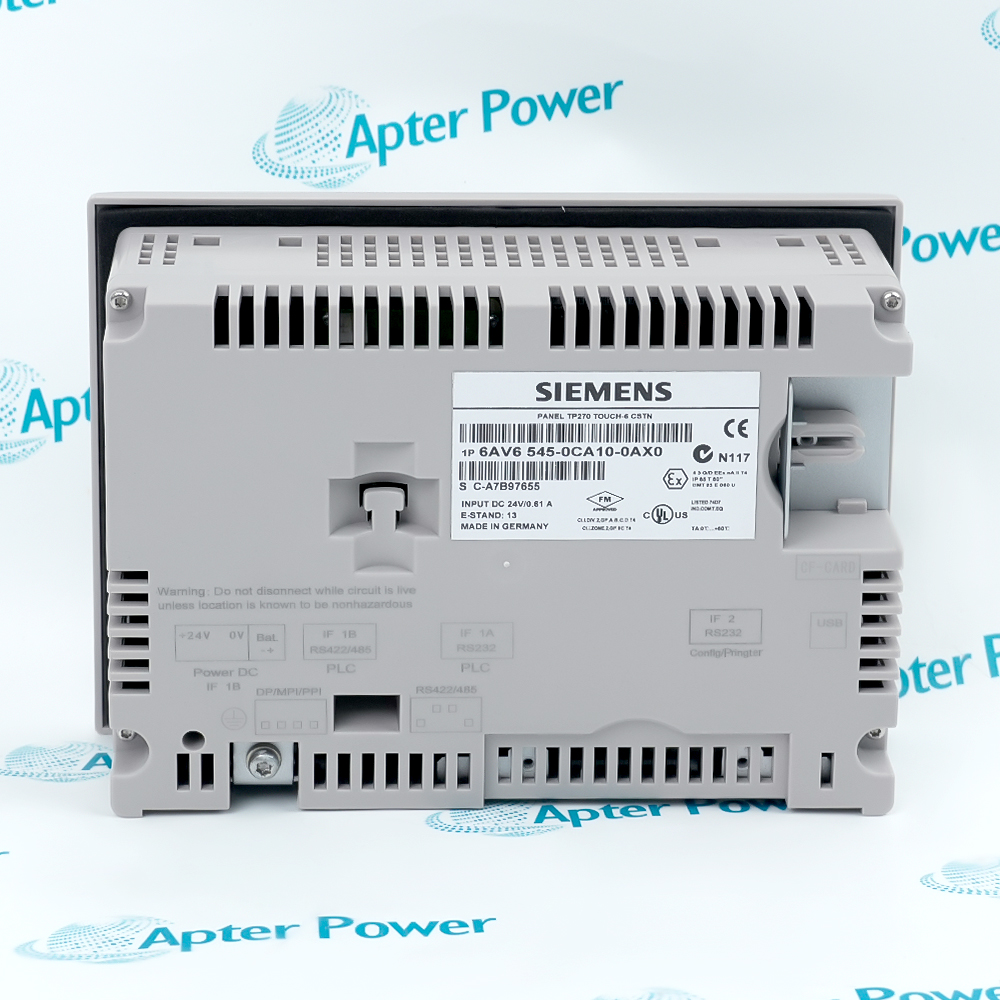

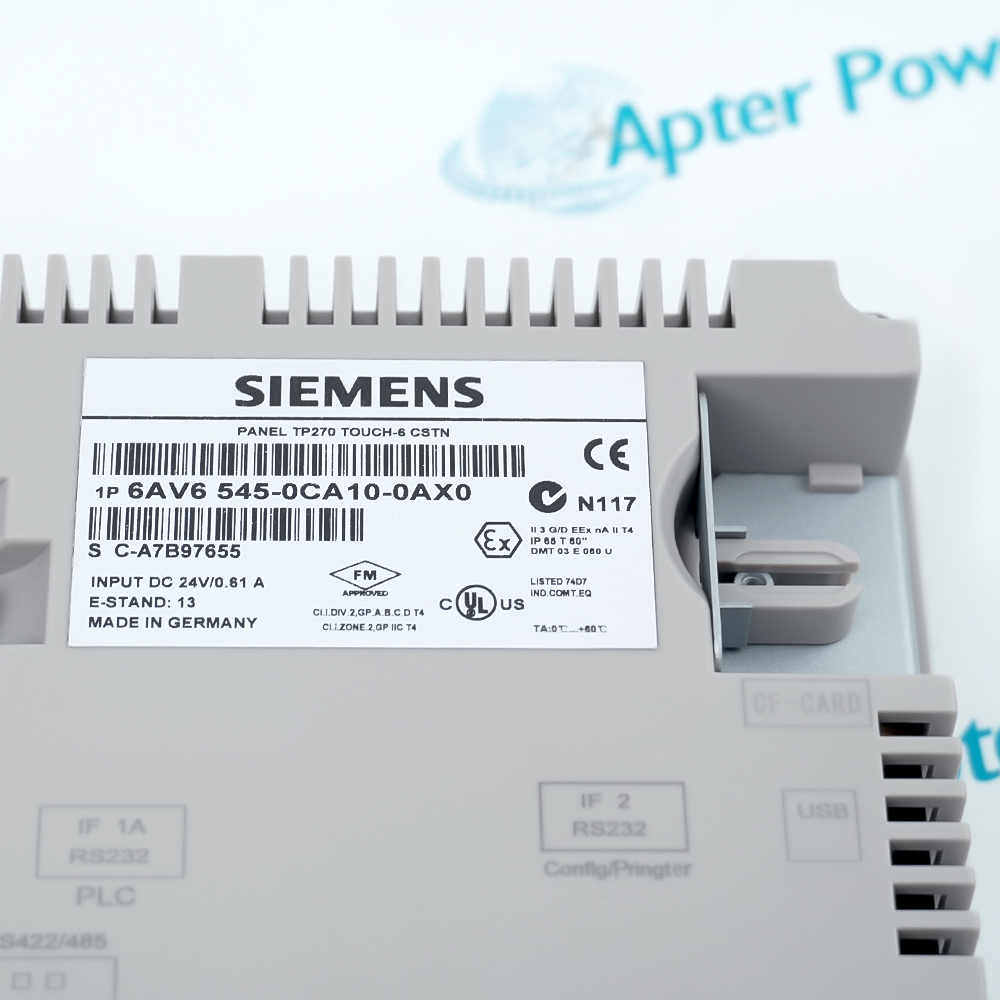

Two RS232 ports, one RS422 port, one RS485 port, USB and a CF-card slot divide the panel's communication and service paths. Through these interfaces, 6AV6545-0CA10-0AX0 can transfer a project, connect supported controllers, attach approved peripherals and store archives on removable or network media.

The panel front is rated IP65 while the rear is IP20, so 6AV6545-0CA10-0AX0 depends on the enclosure cutout and mounting clamps for front-side protection. Vertical installation is specified, with inclination limited to 35 degrees without external ventilation, and the project software must match the documented ProTool or WinCC flexible generation.
Alternative Names
6AV65450CA100AX0 6AV6 545-0CA10-0AX0 6AV6545 0CA10 0AX0 Siemens 6AV65450CA100AX0 SIMATIC TP 270 6 Touch Panel TP270 6-inch Touch Panel Siemens TP 270 5.7-inch STN HMI SIMATIC TP270 Touch Operator Panel
Technical notes
Siemens 6AV6545-0CA10-0AX0 is the 5.7-inch STN touch version of the TP 270 family. Preserve the original project, communication-driver settings and CF-card data before replacing or reloading the panel.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What identifies 6AV6545-0CA10-0AX0 as the correct TP 270 panel variant?
The 6AV6545-0CA10-0AX0 is the 6-inch TP 270 with a 5.7-inch 320x240 STN color touch display and 2 MB configuration memory; match all of those details to the installed panel.
How should an old project be protected before changing 6AV6545-0CA10-0AX0?
Back up the engineering project, runtime communication settings and any CF-card data before removing 6AV6545-0CA10-0AX0 so screens, tags, archives and controller drivers can be reproduced.
Which engineering software can open a project intended for 6AV6545-0CA10-0AX0?
The Siemens data sheet lists ProTool V5 SP3 or higher and WinCC flexible Standard 2004 or higher for 6AV6545-0CA10-0AX0; the actual project file must agree with the software generation.
Why can the front of 6AV6545-0CA10-0AX0 be IP65 while its rear is only IP20?
The installed face of 6AV6545-0CA10-0AX0 forms the front enclosure seal, whereas the electronics and connectors on the rear depend on the host cabinet for protection.
Where can 6AV6545-0CA10-0AX0 store process and alarm archives?
The 6AV6545-0CA10-0AX0 can write archive data to a CF card or an Ethernet location in readable CSV form, subject to the configured archive method and available storage.
What communication detail should be recorded before replacing 6AV6545-0CA10-0AX0?
Record which RS232, RS422, RS485 or Ethernet driver and transfer path the project uses because 6AV6545-0CA10-0AX0 supports several controller families through different interfaces.
