Features:
- Compact CPU with Integrated MPI and PROFIBUS DP Interface for S7-300 Rack Systems
- Built-In Digital I/O and High-Speed Counter Capability for Integrated Control Tasks
- Micro Memory Card and 40-Pin Front Connector Required for System Commissioning

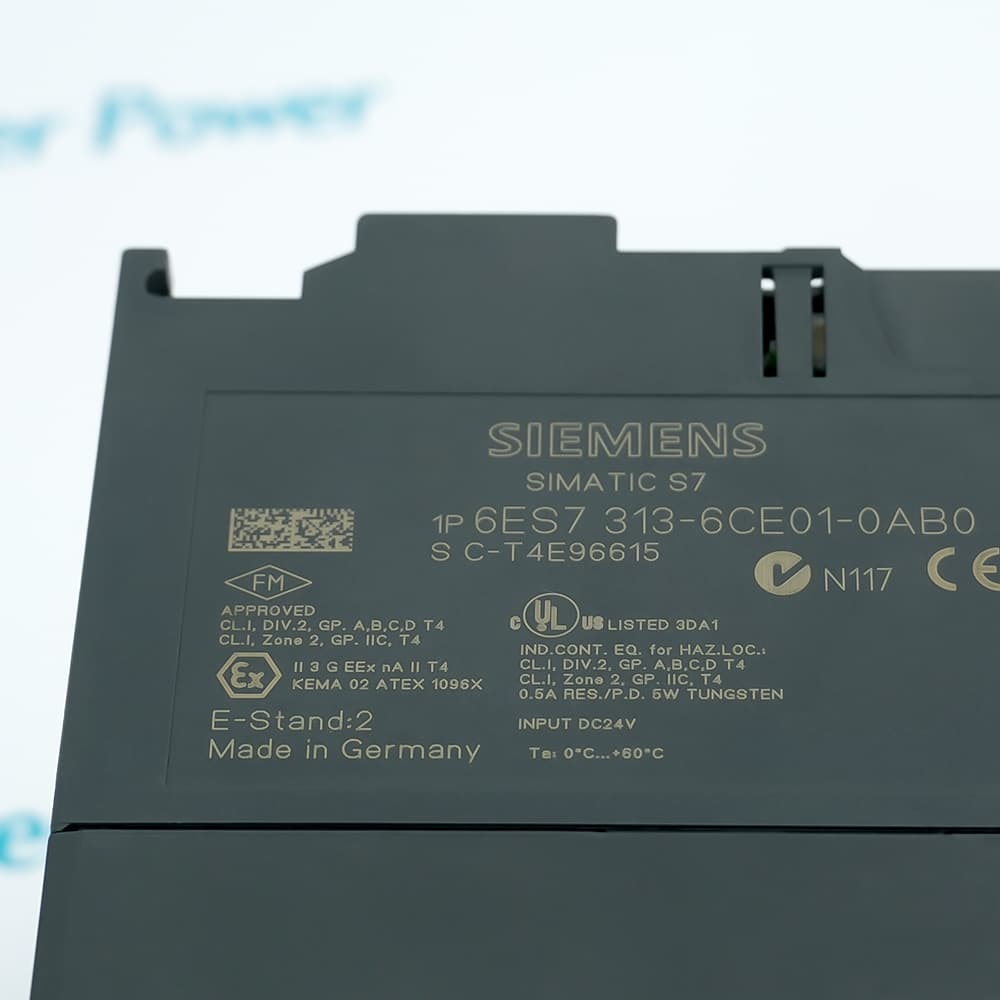

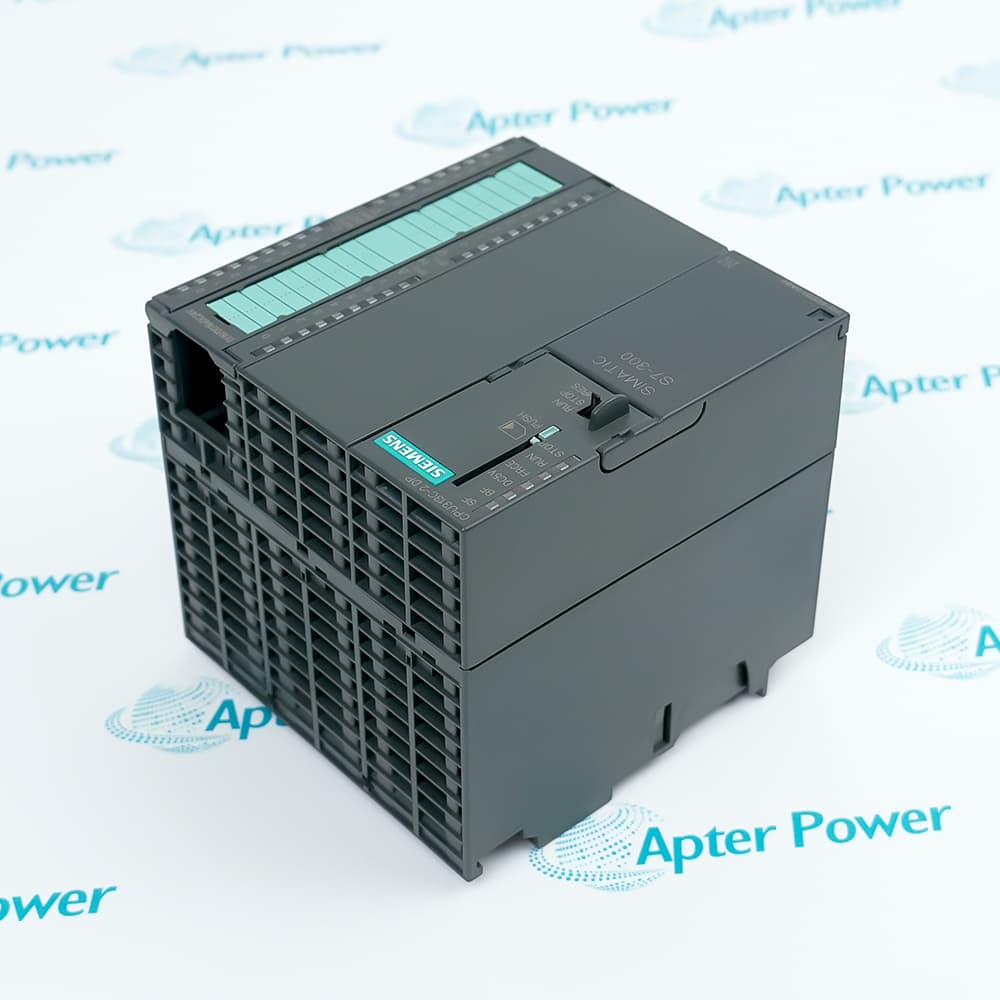

The Siemens 6ES7313-6CE01-0AB0 COMPACT CPU Module operates as the central processing unit in a SIMATIC S7-300 rack, providing program execution, integrated I/O processing, and distributed communication management to all connected modules and field devices. It continuously receives incoming 24V DC power through its integrated power supply and distributes regulated internal voltages and control signals through the rack backplane to support steady state operation of all local and remote I/O modules. Seamless PROFIBUS DP communication is standard with the 6ES7313-6CE01-0AB0, however using an optional MPI network configuration will allow additional programming device and HMI connectivity in the event of direct panel access requirements. The 6ES7313-6CE01-0AB0 has made improvements in several areas over previous CPU designs in addition to incorporating universal 24V DC input power capability and onboard digital I/O within the S7-300 rack.
The 6ES7313-6CE01-0AB0 provides essential control functions common to the entire rack, and is a critical component of the automation path, directly affecting the proper, normal operation of the overall control system. One 6ES7313-6CE01-0AB0 CPU is required per rack as the central controller. The 6ES7313-6CE01-0AB0 occupies a standard single slot in the rack and is always installed in the designated CPU slot position within the S7-300 configuration.
For distributed automation applications, the S7-300 system utilizes the integrated PROFIBUS DP interface of the 6ES7313-6CE01-0AB0 to connect remote ET 200 I/O stations. In addition to standard local digital I/O operation, the DP master configuration also performs automatic cyclic data exchange with distributed slave devices. The S7-300 distributed I/O configuration executes communication using the internal PROFIBUS protocol specified in the CPU interface options. Using this method, the DP master system continually monitors the communication health and data validity of all connected slave stations. If the system detects that a remote I/O device is no longer providing valid process data (outside configured response monitoring or tolerance levels), it will automatically trigger the corresponding station failure diagnostic and place an event in the CPU diagnostic buffer.
The 6ES7313-6CE01-0AB0 Siemens COMPACT CPU Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7313-6CE01-0AB0 COMPACT CPU Module Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Siemens 6ES7313-6CE01-0AB0 COMPACT CPU Module Specs
General
- Manufacturer Siemens
- Model 6ES7313-6CE01-0AB0
- Condition New Original ready stock
- Product Family 6ES7392-1AM00-0AA0,6ES7392-1BM01-0AA0
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- High-Speed Counting & Positioning: With its 3 integrated 30 kHz counters, it is used in packaging and bottling lines to solve the problem of high-speed bottle counting and precise label positioning.
- Distributed I/O Networks: Featuring a PROFIBUS DP interface, this Siemens 6ES7313-6CE01-0AB0 acts as a master/slave to coordinate multiple remote terminals (like ET 200M), solving the challenge of long-distance wiring in large manufacturing plants.
- Standard Machinery: It is frequently found in wood-processing, textile, and plastic-injection molding machines where a compact footprint is required without sacrificing.
- Mounting: It is mounted directly onto a standard S7-300 DIN rail. It can be expanded with up to 8 additional SM (Signal Modules), FM (Function Modules), or CP (Communication Processors) to the right of the CPU.
- Wiring: The 16 DI/16 DO signals are accessed via a 40-pin front connector. This design solves the issue of downtime during maintenance, as the pre-wired connector can be swapped to a new CPU without re-terminating individual wires.
- Software Integration: Engineering is performed via STEP 7 (V5.2 SP1 or higher). The CPU uses a Micro Memory Card (MMC) to store the hardware configuration and user program, ensuring the system can be restored instantly if the hardware is replaced.
- Temperature: Standard horizontal installation allows for an operating temperature of 0°C to 60°C. For vertical installations, the limit is reduced to 40°C.
- Protection Class: It is rated at IP20, meaning it is designed for installation inside a control cabinet to protect against dust and accidental contact.
- Robustness: It is engineered for high electromagnetic compatibility (EMC) and vibration resistance, solving the problem of electrical noise interference common in heavy industrial environments near large motors or drives.
