Siemens 6ES7361-3CA01-0AA0
Siemens 6ES7361-3CA01-0AA0
Siemens 6ES7361-3CA01-0AA0
Siemens 6ES7361-3CA01-0AA0
Siemens 6ES7361-3CA01-0AA0
Siemens 6ES7361-3CA01-0AA0
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Discontinued / Obsolete by OEM
    Apter Power supports 6ES7361-3CA01-0AA0 identification, documentation review and quotation.

6ES7361-3CA01-0AA0

/ 4.9
1001 reviews | Need a Specific Revision?

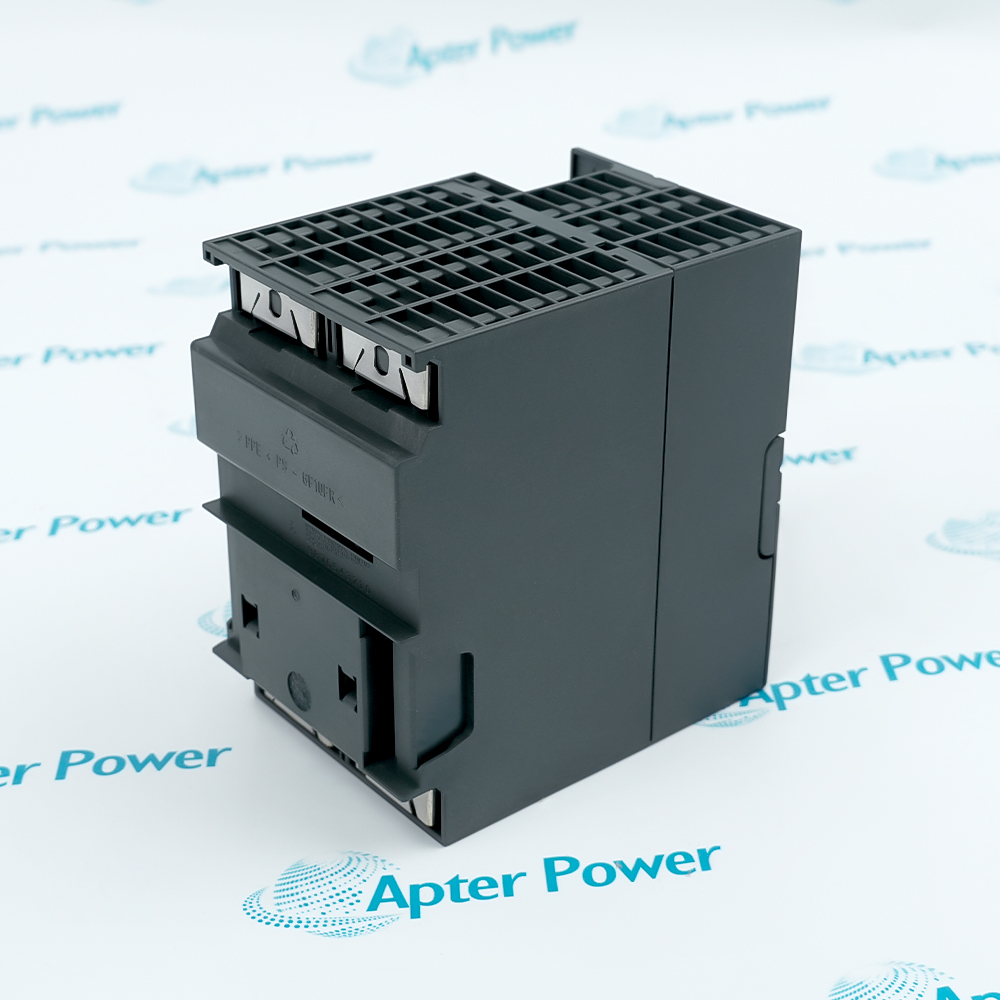

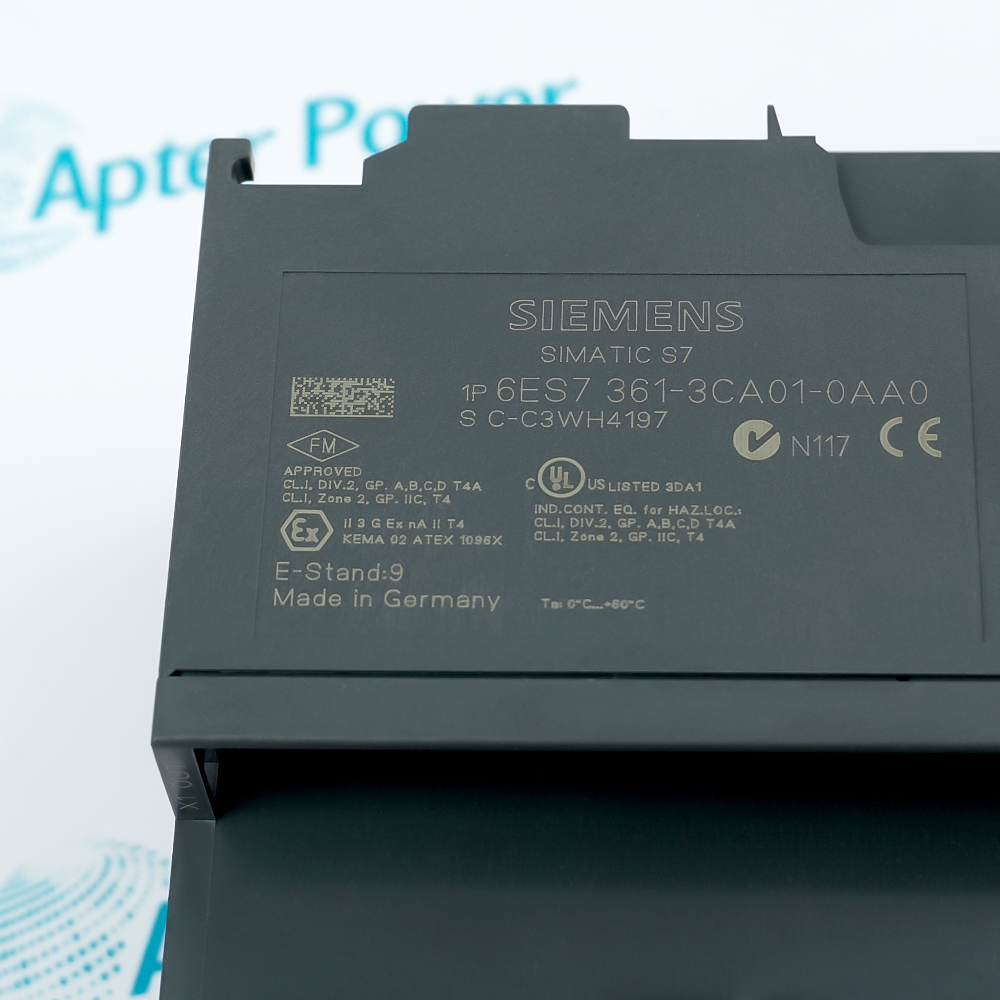

Siemens 6ES7361-3CA01-0AA0 is the IM 361 receiving interface for an S7-300 expansion rack. It connects the rack to an IM 360 central-rack interface and supplies the expansion backplane from 24 V DC.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6ES7361-3CA01-0AA0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7361-3CA01-0AA0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7361-3CA01-0AA0
  • Product Family:
    Siemens Simatic S7-300
  • Product Type:
    Expansion Rack Interface Module
  • Stock:
    1
  • External supply:
    24 V DC
  • Maximum supply current:
    500 mA
  • Power loss:
    Approximately 5 W
  • Supported buses:
    C-bus included
  • Maximum interfaces in expansion chain:
    3
  • Mounting location:
    S7-300 expansion rack
  • Upstream interface:
    IM 360 central-rack module
  • Interface designation:
    IM 361
  • Interfaces per CPU:
    Maximum 3
  • Expansion-rack connection:
    Connects an expansion rack to the central rack through IM 360
  • Weight:
    0.897 lbs (0.407 kg)
  • Estimated shipping dimensions:
    13.3 x 15.4 x 8.9 cm
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Communication Control Protection

Features:

  • Receives the S7-300 expansion-bus connection in an extension rack.
  • Uses an external 24 V DC source to support the expansion-side interface electronics.
  • Passes communication and K-bus traffic to modules installed in the connected rack.
This order number is the expansion-side IM 361 execution for the IM 360/361 rack link.

It couples remote rack modules into the same logical S7-300 controller configuration.

The 24 V feed, cable direction and configured rack address require individual verification at installation.

Apter Power can review sourcing, documentation and system matching for 6ES7361-3CA01-0AA0.
Verified resources for Siemens 6ES7361-3CA01-0AA0: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Expansion cabinets use the receiver to add I/O capacity beyond the space available in the central rack.
  • Multi-rack machines retain one CPU project while distributing modules between mechanically separate rack sections.
  • Service teams can replace a failed receiving interface without changing the functional assignment of the connected I/O.
  • One rack-interface cable arrives from the central-rack IM 360 or preceding expansion stage.
  • The communication bus and K-bus continue through the defined S7-300 expansion topology.
  • Connectors must be fully seated before the 24 V supply is restored.
  • The CPU supervises the configured expansion rack through normal S7-300 hardware diagnostics.
  • Loss of the 24 V interface supply removes the connected rack from the controller view.
  • Cable order and rack address narrow fault isolation when multiple expansions are present.
  • Correct polarity is required on the 24 V DC supply terminals.
  • Power isolation prevents connector damage while changing the rack-interface cable.
  • Cabinet protection must account for the module's IP20 industrial construction.
Description
6ES7361-3CA01-0AA0 terminates the S7-300 rack-connection cable on the expansion side. It transfers the communication bus and K-bus while deriving internal rack power from the connected 24 V DC supply.

Each expansion rack in the supported chain uses an IM 361 so additional I/O and function modules communicate with the CPU in the central rack. The interface can consume up to 500 mA from the external supply and dissipates about 5 W.

Replacement requires the same expansion-rack position, supply polarity, cable direction and hardware-configuration address. The 80 mm module width and downstream rack loading must be included in the mechanical and electrical check.
Alternative Names
6ES7361-3CA01-0AA0 Siemens 6ES7361-3CA01-0AA0 6ES7361 3CA01 0AA0 6ES73613CA010AA0 6ES7361-3CA01-0AA0 Expansion Rack Interface Module Siemens SIMATIC S7-300 IM 360/361/365 Siemens 6ES7361-3CA01-0AA0 Expansion Rack Interface Module
Technical notes
Apply 24 V DC with correct polarity to 6ES7361-3CA01-0AA0 and isolate power before disturbing either rack-interface cable.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Where is Siemens 6ES7361-3CA01-0AA0 installed within an S7-300 rack chain?
It occupies the receiving position in an expansion rack, downstream of the central-rack IM 360.
What external power does Siemens 6ES7361-3CA01-0AA0 require?
The interface is supplied from 24 V DC and can draw up to 500 mA.
What plant expansion problem does Siemens 6ES7361-3CA01-0AA0 solve?
It lets additional S7-300 modules operate in a separate expansion rack under the same CPU configuration.
How should maintenance teams source Siemens 6ES7361-3CA01-0AA0 during phase-out?
Keep the full order number and rack topology with the spare request, since a generic interface-module description is insufficient.
Which wiring records prevent errors when Siemens 6ES7361-3CA01-0AA0 is exchanged?
Document 24 V polarity, incoming and outgoing interface cables, rack address and installed module sequence.
What details should a Siemens 6ES7361-3CA01-0AA0 manual request include?
State the central interface, number of expansion racks, CPU family and exact order identity.
