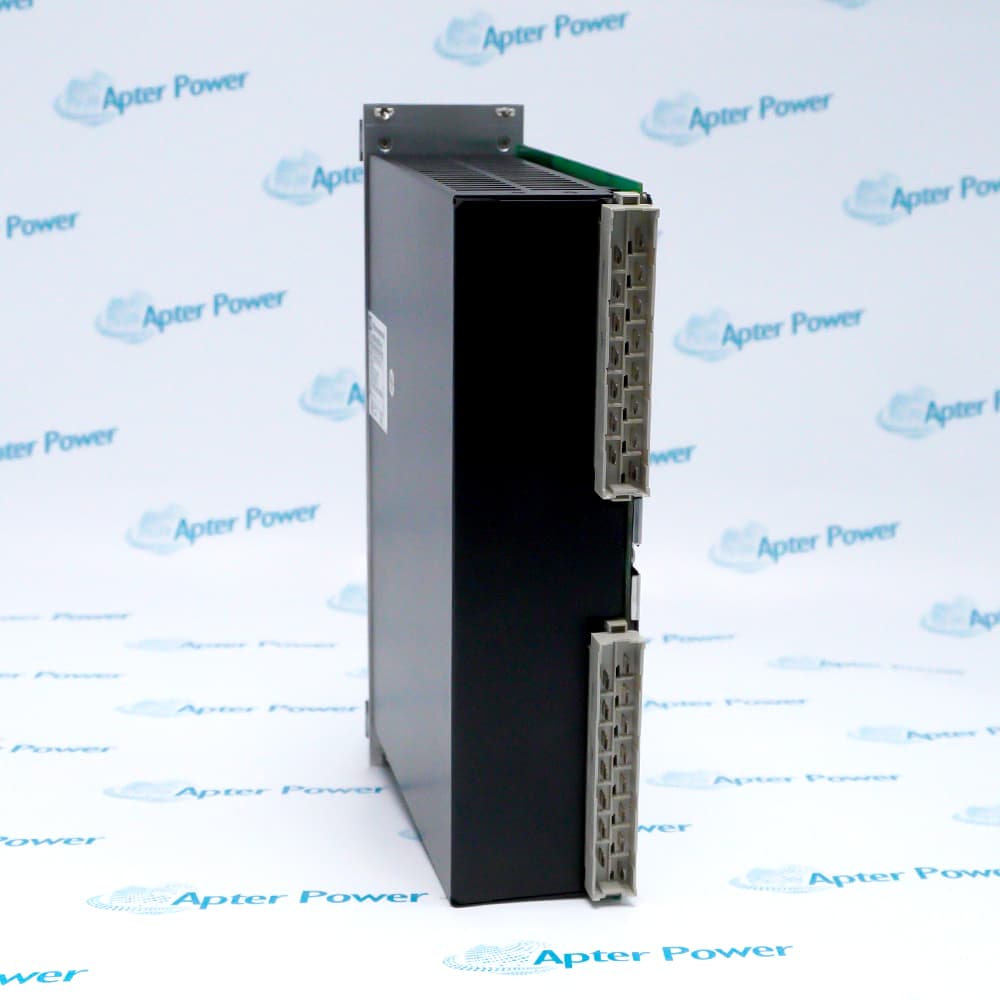

Vibro-Meter VM600 RPS6U 200-582-200-013
Vibro-Meter VM600 RPS6U 200-582-200-013
Vibro-Meter VM600 RPS6U 200-582-200-013
Vibro-Meter VM600 RPS6U 200-582-200-013
Vibro-Meter VM600 RPS6U 200-582-200-013
Vibro-Meter VM600 RPS6U 200-582-200-013
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Active / Available from OEM
    Apter Power provides RPS6U 200-582-200-013 quotes, documents and rack-configuration guidance.

VM600 RPS6U 200-582-200-013

/ 4.9
1001 reviews | Need a Specific Revision?
Vibro-Meter VM600 RPS6U 200-582-200-013 is a 24 VDC input rack power supply with a 300 W total output. It feeds the VM600 backplane through regulated +5 V, +12 V and -12 V rails.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for VM600 RPS6U 200-582-200-013
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for VM600 RPS6U 200-582-200-013

  • Manufacturer:
    Vibro-Meter
  • Part Number:
    VM600 RPS6U 200-582-200-013
  • Product Family:
    VM600 RPS6U Rack Power Supplies
  • Product Type:
    24 VDC Rack Power Supply
  • Stock:
    1
  • Input Type:
    24 VDC
  • Input Voltage Range:
    18 to 32 VDC
  • Earlier Hardware Output:
    300 W total
  • Output Rails:
    +5 VDC, +12 VDC and -12 VDC
  • Rack Form Factor:
    6U plug-in module
  • Backplane Interface:
    Two DIN 41612 type H15 connectors
  • Installation Modes:
    Single, redundant or capacity configuration
  • Status Indication:
    Front-panel supply status LEDs
  • Protection:
    Input and output protection functions
  • Cooling Requirement:
    Rack airflow and load dependent
  • Operating Temperature:
    0 to +70 °C
  • Storage Temperature:
    -40 to +85 °C
  • Humidity:
    5 to 90% non-condensing
  • Dimensions:
    Approximately 262 x 60 x 190 mm
  • Mass:
    Approximately 2.4 kg
  • Variant Warning:
    Do not apply later 330 W data to this -013 unit
  • Weight:
    5.291 lbs (2.4 kg)
  • Estimated shipping dimensions:
    6 x 19 x 26.1 cm
  • Tariff Code:
    8537101190
  • Country of origin:
    Switzerland
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Performance & Efficiency Power Protection

Features:

  • Earlier 24 VDC input configuration rated for 300 W rack output.
  • Regulated +5 V and ±12 V rails for VM600 monitoring cards.
  • 6U plug-in construction with front status indication and protected outputs.
The current ordering configuration is VM600 RPS6U 200-582-200-013, an earlier 24 VDC, 300 W power-supply module.

It converts an 18 to 32 VDC source into the regulated rails required by the installed VM600 rack cards.

Calculate rack load and confirm cooling, backplane connectors and redundancy mode before replacement.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for Vibro-Meter VM600 RPS6U 200-582-200-013:Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

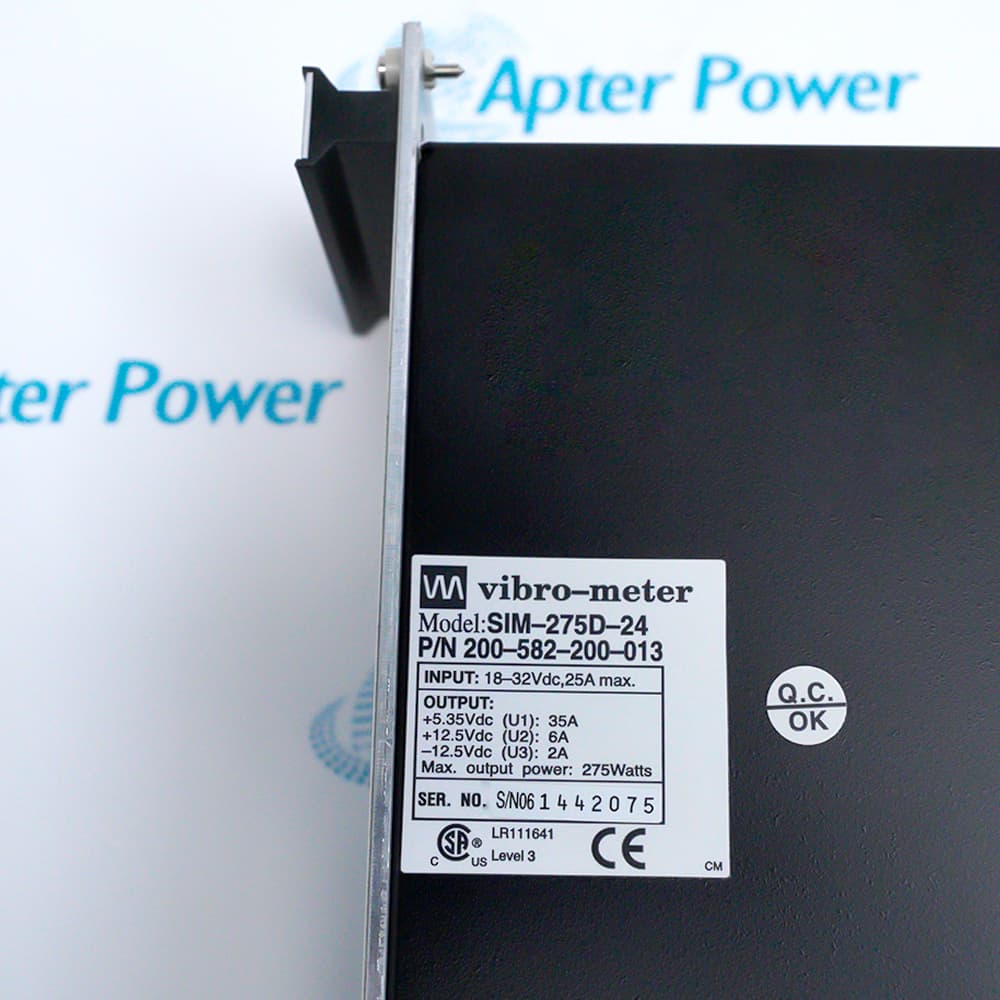

VIBRO METER VM600 RPS6U SIM-275D-24 200-582-200-013 DC Power Supply Module Specs

General

  • Manufacturer VIBRO METER
  • Model VM600 RPS6U SIM-275D-24 200-582-200-013 DC
  • Condition New Original ready stock
  • Product Family VM600 RPS6U AC,VM600 RPS6U 110 DC,VM600 RPS6U
Important Notice:Other accessories,manuals,cables,calibration data,software,etc.are not included with this equipment unless listed in the above stock item description.All prices are shown in USD.
  • Supplies regulated DC rails to VM600 machinery protection and monitoring racks.
  • Supports approved dual-supply arrangements for redundancy or additional rack capacity.
  • Fits retrofit requirements that specifically call for the earlier 24 VDC 300 W configuration.
  • Delivers a combined 300 W rating for the earlier -013 hardware configuration.
  • Converts an 18 to 32 VDC input into regulated +5 V and ±12 V outputs.
  • Requires temperature and airflow derating to remain within the approved rack load envelope.
  • Provides front status indication for supply and output conditions.
  • Includes protective behavior for abnormal input, output and thermal conditions.
  • Requires rack-voltage and load verification after installation or redundant-supply changes.
Description
VM600 RPS6U 200-582-200-013 is the earlier 24 VDC input, 300 W RPS6U configuration for VM600 racks, delivering regulated +5 V, +12 V and -12 V supplies through two H15 backplane connectors.

The 6U module supports single-supply, redundant or additional-capacity arrangements for machinery protection and condition monitoring racks, with front-panel status indication and protective functions.

Confirm the rack load, airflow and supply arrangement before replacement. Do not apply later 330 W variant data to this -013 unit, and verify redundancy behavior before returning the system to operation.
Alternative Names
Vibro-Meter VM600 RPS6U 200-582-200-013 VM600 RPS6U 200 582 200 013 VM600-RPS6U-200-582-200-013 200582200013 Vibro-Meter 24 VDC rack supply 200-582-200-013 RPS6U 300 W VM600 power module VM600 24VDC rack PSU RPS6U SIM-275D-24 earlier configuration
Technical notes
VM600 RPS6U 200-582-200-013 is the earlier 300 W configuration; verify rack load, airflow, backplane connectors and redundancy mode before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How is VM600 RPS6U 200-582-200-013 used in redundant racks?
A compatible second supply can share the rack architecture where the approved VM600 configuration provides redundancy.
Why must VM600 RPS6U 200-582-200-013 be identified as a 300 W unit?
This -013 ordering configuration belongs to the earlier 300 W hardware and must not inherit later 330 W ratings.
Which input source powers VM600 RPS6U 200-582-200-013?
It accepts the documented 24 VDC supply range and converts it to the regulated VM600 rack rails.
Can Apter Power quote the earlier 300 W VM600 RPS6U 200-582-200-013 without confusing it with later 330 W units?
Provide the complete -013 number, 24 VDC input, rack type, installed load, redundancy arrangement and quantity.
Which rack-power conditions must be recalculated before installing VM600 RPS6U 200-582-200-013?
Recheck total card load, backplane connections, available cooling, input range, redundancy mode and the existing supply revision.
What information supports a VM600 RPS6U 200-582-200-013 quotation?
Provide input voltage, rack type, installed card load, redundancy requirement and quantity for technical matching.
