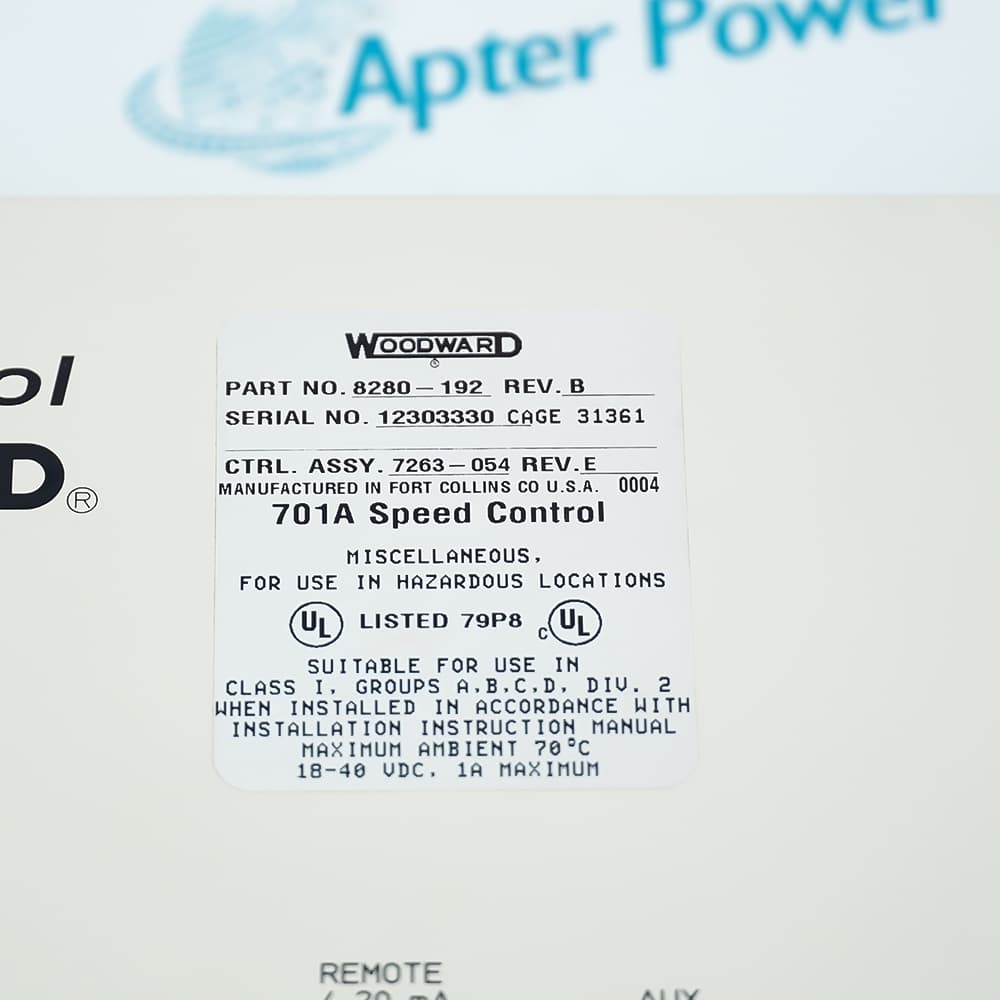

Woodward 701A low-voltage digital speed control with magnetic-pickup input and 0-200 mA actuator output.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 8280-192
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 8280-192

  • Manufacturer:
    Woodward
  • Part Number:
    8280-192
  • Product Family:
    Woodward
  • Product Type:
    Woodward 701A Digital Speed Control
  • Stock:
    1
  • Controller family:
    Woodward 701A
  • Power supply:
    18-40 V DC
  • Power consumption:
    8 W nominal
  • Speed input:
    MPU, 60 to 15000 Hz
  • Actuator output:
    0-200 mA
  • Remote speed input:
    4-20 mA
  • Operating temperature:
    -40 to 70 degrees C
  • Weight:
    2.35 kg
  • Estimated shipping dimensions:
    37.4x24.1x5.5cm
  • Tariff Code:
    9032890000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Speed Input Actuator Output Droop Control Product Applications

Features:

  • Engine-governing role: The 701A controller regulates reciprocating-engine speed through a closed control loop.
  • Pickup-to-actuator path: Magnetic-pickup speed feedback is converted into an actuator command.
  • Operating flexibility: Isochronous, droop, and remote speed-reference functions support different governing tasks.

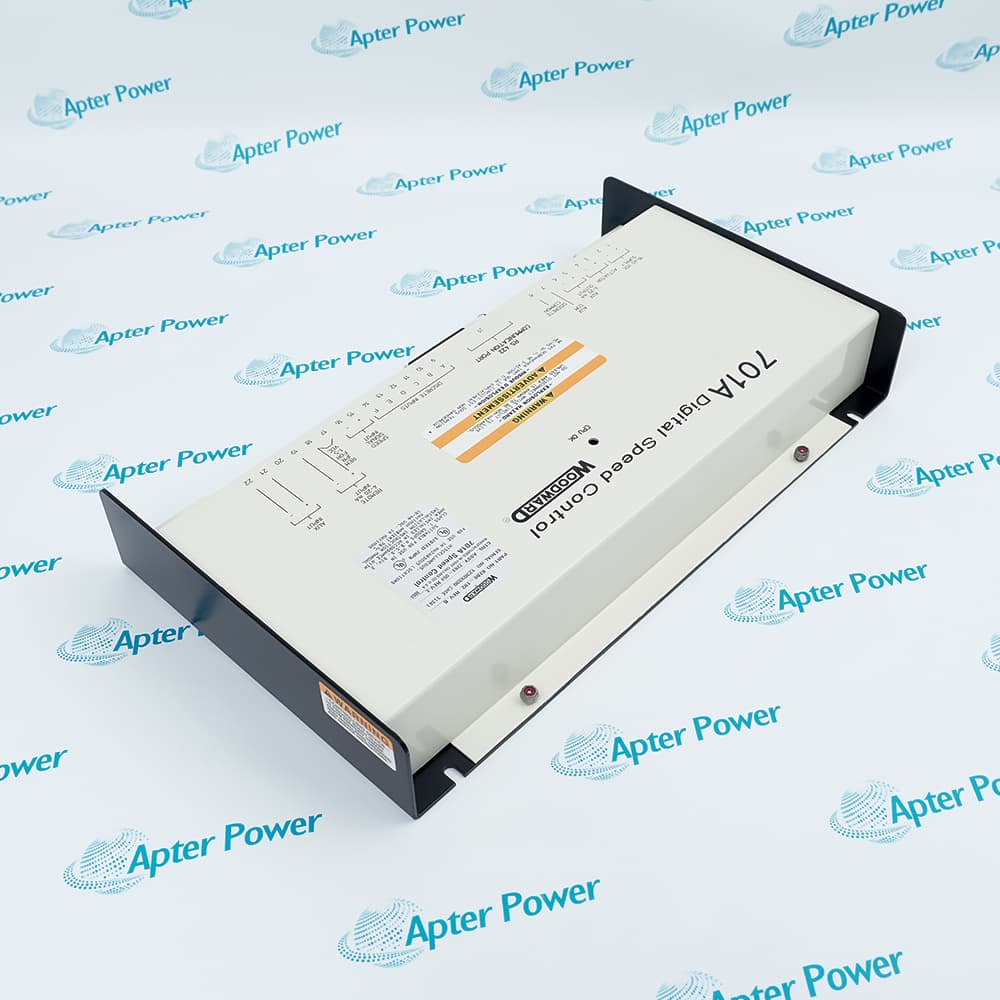

8280-192 is the Woodward 701A catalog configuration that links measured engine speed with an electronic actuator command. Its purpose is to keep the driven machine near the requested operating speed as load changes.

The controller sits between the rotating-speed pickup and the fuel or energy actuator. It interprets the speed signal, compares it with the selected reference, and adjusts the actuator through the governing loop.

Product selection must follow the actual engine-governor arrangement rather than the 701A family name alone. The pickup, actuator, power system, and intended control mode define the installation represented by this catalog.

Apter Power can help review official documentation for 8280-192, coordinate quotation, and support catalog-specific sourcing.
Woodward 8280-192 Woodward 701A Digital Speed Control Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Magnetic-pickup input supports 60 to 15000 Hz
  • Set engine speed from the actual gear-tooth count
  • Verify MPU gap and signal amplitude during cranking
  • Catalog configuration provides a 0-200 mA actuator output
  • Confirm actuator polarity and current direction
  • Tune dynamics only after mechanical linkage checks
  • Isochronous and droop control modes are supported
  • Remote speed reference accepts a 4-20 mA command
  • Independent overspeed protection remains required
  • Reciprocating-engine mechanical drive speed control
  • Generator-set governing with approved load-sharing design
  • Replacement of the same 701A catalog in documented engine systems
Description
8280-192 is the Woodward 701A configuration with magnetic-pickup speed input, low-voltage DC power, and a 0-200 mA actuator output. Official model-selection data identifies catalog 8280-192 for reciprocating-engine speed control duties.

8280-192 supports isochronous or droop operation and accepts a remote speed command. Commissioning should verify MPU frequency and signal level, actuator current direction and range, 18-40 V DC supply, speed set points, dynamics, overspeed protection, and the driven-machine procedure.
Alternative Names
Woodward 8280 192 701A MPU Low-Voltage Speed Control
Technical notes
8280-192 must be configured for the installed engine, magnetic pickup, gear tooth count, and 0-200 mA actuator. Verify 18-40 V DC power, MPU frequency and amplitude, actuator polarity, remote-speed input, droop settings, dynamics, and independent overspeed protection. Perform commissioning under the engine manufacturer's approved start and load procedure.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why can an engine using 8280-192 fail to reach stable speed during cranking?
The magnetic-pickup signal must be usable within the documented 60 to 15000 Hz input range. Check MPU gap, amplitude, polarity, and actual gear-tooth count before tuning the governor.
Can 8280-192 drive an actuator that requires more than 200 mA?
No. This catalog provides a 0-200 mA actuator output, so an actuator outside that current requirement needs a different approved control arrangement.
When should droop mode be selected instead of isochronous control on 8280-192?
Select droop only when the generator or mechanical-drive load-sharing design requires it. Prove the intended sharing behavior before connecting the unit to a common load.
How should the remote speed reference be checked while commissioning 8280-192?
Apply a known 4-20 mA command and verify the expected speed response with the engine unloaded or under the approved test condition. Stop if scaling or direction is incorrect.
Which protection must remain independent of 8280-192?
Maintain the engine's independent overspeed protection. Governor speed control is not a substitute for a separate shutdown path, so prove that protection before operational testing.
Before replacing 8280-192, what tuning information should be retained?
Keep the MPU gear data, actuator direction and current, supply arrangement, speed references, droop/isochronous choice, and proven dynamic settings. Recommission from that baseline rather than copying an unrelated engine setup.
