    Apter Power supplies CPCR-FR01RB-T3L for maintenance of matching YASKAWA DC servo axes.

CPCR-FR01RB-T3L

/ 4.9
1001 reviews | Need a Specific Revision?
YASKAWA CPCR-FR01RB-T3L is a DC servo controller matched to the UGTMEM-03LB motor for legacy controlled-motion axes.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for CPCR-FR01RB-T3L
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for CPCR-FR01RB-T3L

  • Manufacturer:
    YASKAWA
  • Part Number:
    CPCR-FR01RB-T3L
  • Product Family:
    Yaskawa Servo Drive
  • Product Type:
    DC Servo Controller
  • Stock:
    1
  • Documented Motor Pairing:
    UGTMEM-03LB
  • Motor Rated Speed:
    1000 rpm
  • Maximum Drive Speed:
    1700 rpm
  • Weight:
    2.06 kg
  • Estimated shipping dimensions:
    4.6x27.7x25cm
  • Tariff Code:
    Please confirm the destination before shipping
  • Country of origin:
    Japan
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Servo Pairing Control Path Controller Interface Applications

Features:

  • Defined motor pairing: The controller is documented with the UGTMEM-03LB DC servo motor.
  • Legacy motion control: It closes the speed-control loop for an installed CPCR-FR_RB axis.
  • Exact suffix boundary: FR01RB-T3L distinguishes the matched rating and interface from visually similar controllers.
CPCR-FR01RB-T3L is the controller side of a legacy YASKAWA DC servo combination rather than a general-purpose AC drive.

The motor pairing and feedback path determine how the controller closes the speed loop around the installed axis.

Replacement work therefore begins with complete controller and motor label matching before power is applied.

Apter Power can help confirm YASKAWA CPCR-FR01RB-T3L controller identity, UGTMEM-03LB motor pairing and supplied scope before quotation.
YASKAWA CPCR-FR01RB-T3L DC Servo Controller Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Matched motor: The documented combination uses the UGTMEM-03LB DC servo motor.
  • Speed reference: The motor rating provides the normal operating anchor for the axis.
  • Feedback loop: Controller stability depends on the correct motor feedback and polarity.
  • Capacity match: Another CPCR-FR controller is not accepted only because its enclosure fits.
  • Command input: The machine control sends the speed or motion demand to the servo controller.
  • Power conversion: The controller regulates motor current to follow the command.
  • Feedback correction: Measured motor response closes the loop and corrects error.
  • Current regulation: The power stage changes motor current as command and feedback error change.

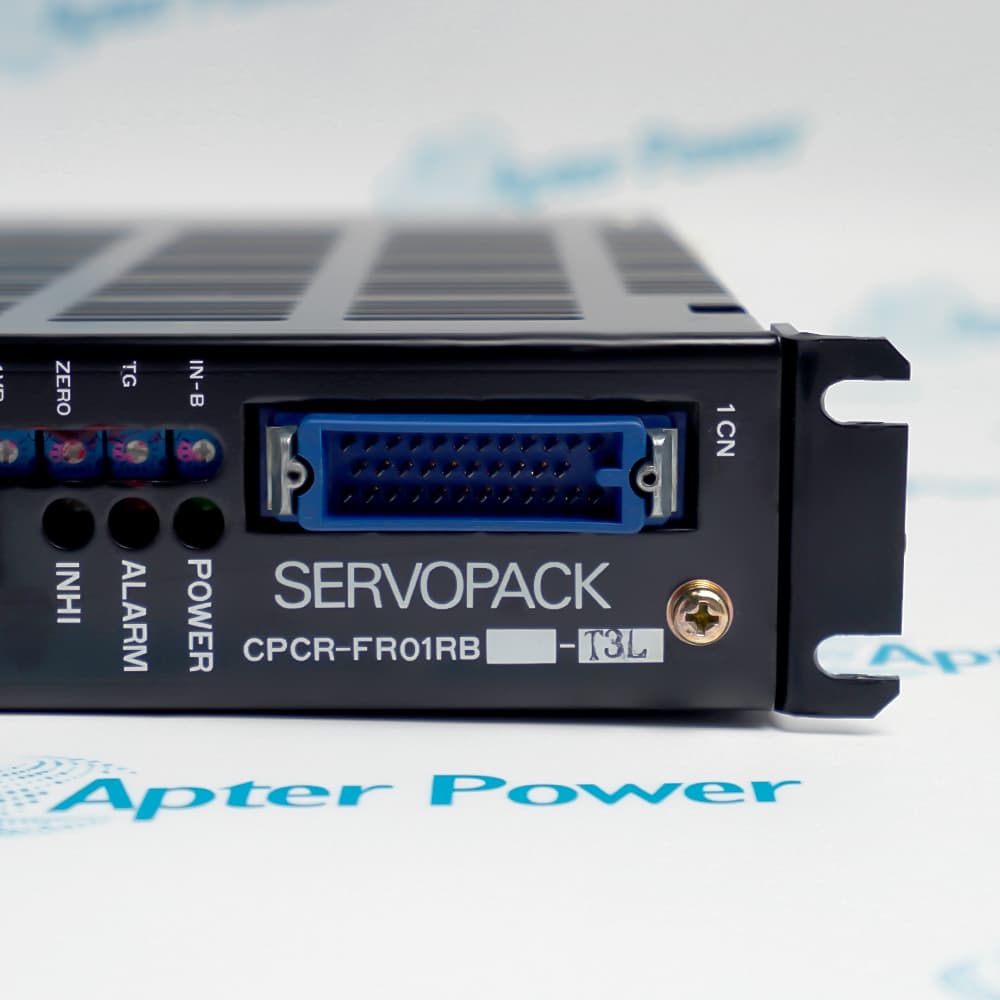

  • 1CN interface: The front multipin connector links the controller to the machine harness.
  • Labeled terminals: Power and motor conductors are separated by the controller terminal design.
  • Status indication: POWER, ALARM and INHI indicators distinguish supply, fault and inhibit states.
  • Ventilated enclosure: Openings around the power electronics maintain the intended cabinet cooling path.
  • Legacy machine axes: Restores DC servo speed control in equipment designed for this controller.
  • Feed mechanisms: Supports controlled material or tool movement through the matched motor.
  • Indexing equipment: Maintains repeatable axis response where the original control remains in service.
  • Machine-tool feeds: Regulates an established DC servo axis used to position a tool or workpiece.
Description
CPCR-FR01RB-T3L is a YASKAWA DC servo controller identified in the CPCR-FR_RB Servo User Manual. Its documented pairing with the UGTMEM-03LB motor creates a defined drive-and-motor combination for speed-controlled legacy machinery.

CPCR-FR01RB-T3L supports a 1000 rpm motor operating point and a documented maximum drive speed of 1700 rpm for that pairing. The exact controller suffix protects the power stage and feedback relationship from being confused with another CPCR-FR capacity or motor combination.
Alternative Names
CPCRFR01RBT3L
Technical notes
CPCR-FR01RB-T3L uses service adjustments that define the established axis response; changing them without a baseline can destabilize the speed loop even when the controller and motor are correct. Record every adjustment position before removal, restore that baseline, and stop the limited-command test if speed, current or direction becomes unstable.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
An installed axis uses a UGTMEM-03LB motor. Is CPCR-FR01RB-T3L the matching controller?
Yes. YASKAWA documents this controller-and-motor pairing. Confirm the complete motor and controller labels and the feedback connection before the axis is energized.
Can CPCR-FR01RB-T3L replace another CPCR-FR unit with the same connector layout?
Not on connector fit alone. Compare the full controller suffix, motor pairing, supply, feedback and machine adjustments before treating another unit as compatible.
CPCR-FR01RB-T3L shows POWER without ALARM, but INHI remains active. What should maintenance decide?
Treat the controller as inhibited and trace the machine run-permissive path before replacing the power stage. An active inhibit can prevent motion while the controller otherwise appears healthy.
The motor connected to CPCR-FR01RB-T3L starts in the wrong direction. What should maintenance verify?
Stop motion and verify command polarity, motor connections and feedback direction against the machine drawing. Do not continue by reversing only one circuit because command and feedback must remain coordinated.
The motor connected to CPCR-FR01RB-T3L creeps with a zero speed command. Where should diagnosis begin?
Measure the incoming command at zero and compare it with the feedback response before changing adjustments. Command offset or feedback error must be separated from a mechanical load problem.
An axis reaches speed unloaded but stalls under machine load with CPCR-FR01RB-T3L. What should be separated?
Separate supply or current-limit restriction from a seized mechanism and an incorrect motor pairing. Repeated high-command testing should stop until the source of the load-dependent stall is identified.
