ADV142-S02 S1

/ 4.9
1001 reviews | Need a Specific Revision?

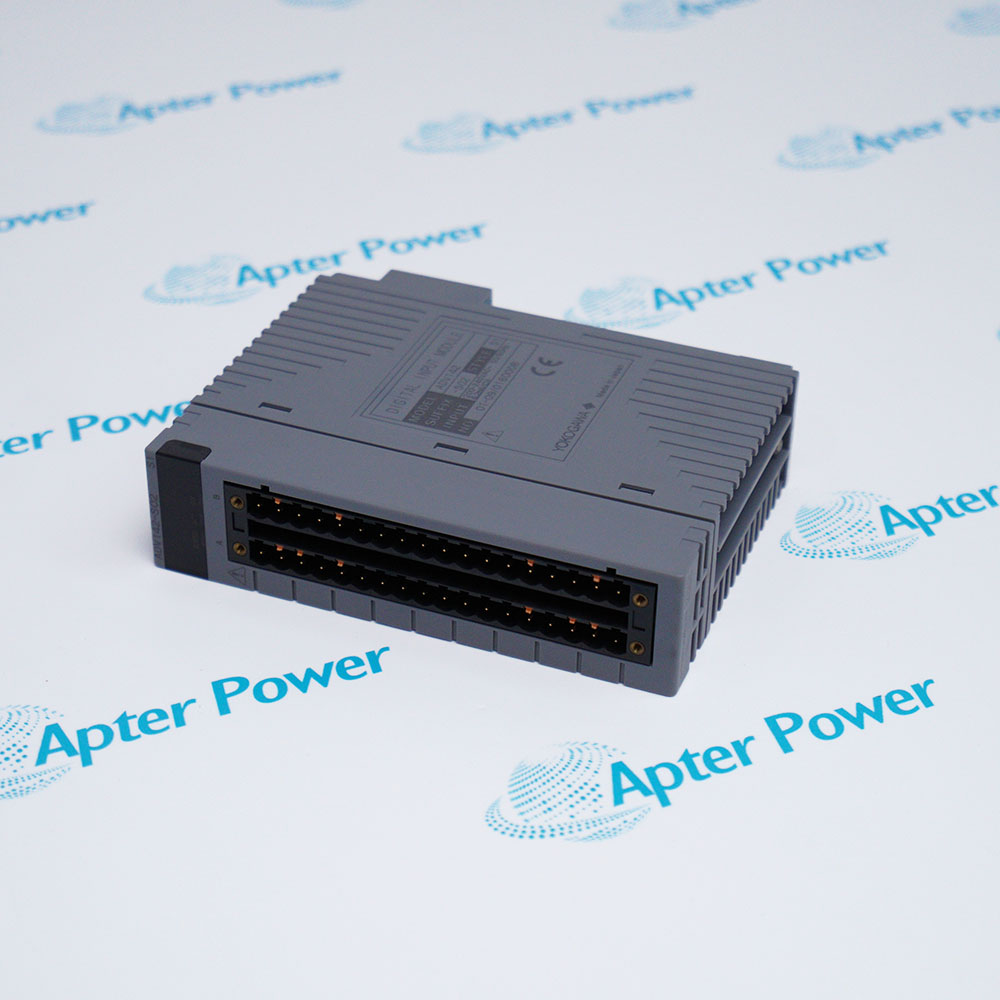

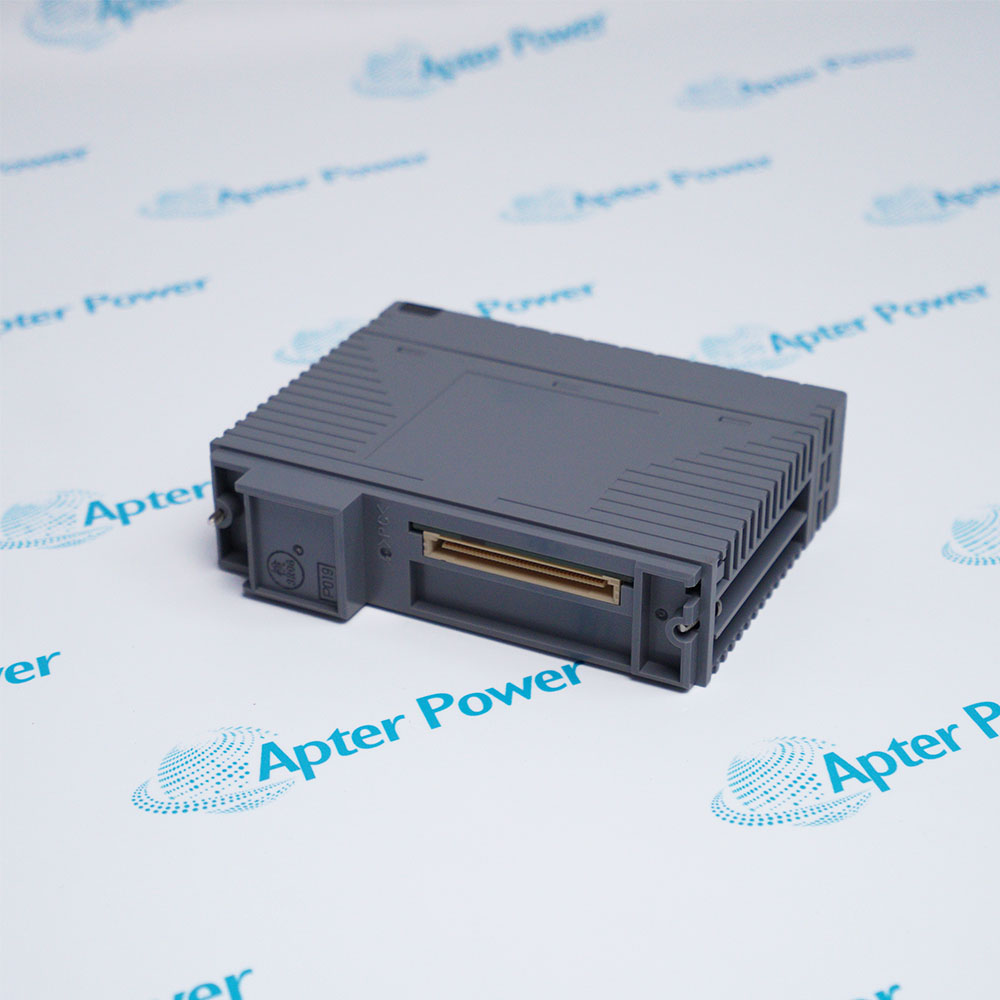

The Yokogawa ADV142-S02 S1 is a 16-channel, high-voltage AC digital input module designed for rugged industrial automation. Engineered for reliability, this module delivers precise ON/OFF status detection and pushbutton edge counting for 200-240 V AC signals in demanding process applications.
Get a quick price for ADV142-S02 S1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for ADV142-S02 S1

  • Manufacturer:
    Yokogawa
  • Part Number:
    ADV142-S02 S1
  • Product Family:
    Centum CS-Centum VP
  • Product Type:
    AC Digital Input Modules
  • Rated Input Voltage:
    200 to 240 V AC, 50/60 Hz
  • Input ON Voltage (Peak):
    160 V AC (226 V) to 264 V AC (373 V)
  • Input OFF Voltage (Peak):
    20 V AC (28 V) or less
  • Input Current (TYP):
    6.2 mA (@240 V/60 Hz)
  • Input Current (MAX):
    9.3 mA / channel
  • Withstanding Voltage:
    2 kV AC (Signal to System) for 1 min
  • Input Response Time:
    160 ms or less (Status input)
  • Max. ON/OFF Cycle:
    2.5 Hz (Pushbutton input)
  • Weight:
    0.26 kg
  • Estimated shipping dimensions:
    3.2x10.7x13cm
  • Tariff Code:
    8538909190
  • Country of origin:
    Japan
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Compatibility & Interoperability Performance & Efficiency

Features:

  • High-Voltage AC Direct Input
  • Dual Redundancy Ready
  • Extreme Environment Survivability
Eliminate the need for external step-down converters. The Yokogawa ADV142-S02 S1 directly accepts 200-240 V AC inputs with a precise 20 V AC OFF threshold, ensuring reliable OFF-state detection even in systems with residual voltage or leakage current.

Maximize system availability. The Yokogawa ADV142-S02 S1 supports dual-redundant configurations, allowing two modules to monitor the same field signal. If one module fails, the other seamlessly takes over, guaranteeing zero downtime for critical safety and control loops.

Deploy confidently in harsh conditions. Built with the ISA Standard G3 option, the Yokogawa ADV142-S02 S1 resists corrosive gases commonly found in pulp mills and wastewater treatment plants, while its wide -20 to 70°C operating range ensures performance where standard electronics fail.

The ADV142-S02 S1 Yokogawa AC Digital Input Modules may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Yokogawa ADV142-S02 S1 AC Digital Input Modules Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Yokogawa ADV142-S02 S1 AC Digital Input Modules

General

  • Manufacturer Yokogawa
  • Model ADV142-S02 S1
  • Condition New Original ready stock
  • Product Family ADV141-P10 S1,ADV142-P13 S1,ADV141-S13 S12
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Power Generation: Monitoring breaker statuses, disconnect switches, and high-voltage relay contacts.
  • Heavy Manufacturing: Reading limit switches on hydraulic presses and 220V AC motor starter feedback.
  • Chemical Processing: Safe status indication from pumps, valves, and agitators in corrosive vapor environments (G3 coated).
  • HVAC & Utilities: Interfacing with 200-240V AC compressor controls, fan status, and safety interlocks.
  • System Compatibility: Fully integrates with Yokogawa CENTUM VP, CS 3000, and Stardom controllers.
  • Redundancy: Supports dual-redundant configurations for high-availability process control.
  • Wiring: Uses the ATC4S-60 pressure clamp terminal block for secure, vibration-resistant field wiring.
  • Signal Mixing: Shares a common with other 16-channel AC modules; requires AC inputs to be same phase per common.
  • Reliable Switching: Precisely detects ON/OFF states with a 160 ms response time, filtering out electrical noise.
  • Low Heat Dissipation: Consumes only 500 mA from the 5V DC bus, minimizing heat load inside your control cabinet.
  • Maintenance Reduction: Solid-state design with no moving parts ensures a long operational lifespan in frequent switching applications (up to 2.5 Hz).
  • Accurate Counting: The integrated pushbutton function reliably counts edges up to 2.5 Hz (400 ms cycle), perfectly matched to mechanical switch bounce characteristics and replacing standalone mechanical counters.
Description
The Yokogawa ADV142-S02 S1 is specifically engineered to handle 200-240 V AC, 50/60 Hz signals, making it the ideal choice for interfacing with field devices in high-voltage environments. With a clear ON voltage threshold of 160 V AC and an OFF voltage below 40 V AC, it ensures reliable state detection without ambiguity, significantly reducing the risk of false triggering in electrically noisy industrial settings.

Beyond simple status detection, the Yokogawa ADV142-S02 S1 features a dedicated pushbutton input function capable of counting edges up to 2.5 Hz, perfect for control panel integrations. For mission-critical operations, this module supports dual-redundant configurations, allowing seamless failover and maximum system uptime without any single point of failure in the input chain.

Certified with CE and built with the optional ISA Standard G3 (-S02 suffix), the Yokogawa ADV142-S02 S1 is protected against corrosive atmospheres and operates reliably across a wide temperature range of -20 to 70 °C. Its 1.35 kV AC isolation between commons and 2 kV AC to the system provides superior protection against surges, ensuring long-term stability and safety in chemical plants, power stations, and heavy manufacturing facilities.
Alternative Names
ADV142-S03 S1 ADV141-S13 S1 ADV141-S12 S1 ADV142-P13 S1 ADV141-P10 S1
Technical notes
The Yokogawa ADV142-S02 S1 features a typical input current of 6.2 mA and a maximum of 9.3 mA per channel. It is critical to note that AC input signals connected to the same common must be of the same phase to prevent short circuits, and all input signals must be sine waves.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How fast can the Yokogawa ADV142-S02 S1 detect pushbutton presses?
For pushbutton input mode, the module requires a minimum ON detection time of 200 ms and supports a maximum switching cycle of 2.5 Hz (400 ms period). This is designed for mechanical pushbutton edge counting, not high-speed pulse train detection. For status input mode, the response time is 160 ms.
In which harsh industrial environments can the Yokogawa ADV142-S02 S1 be used?
This module is ideal for environments with high electrical noise, temperature fluctuations, or mild corrosive gases. Its ISA Standard G3 coating protects against corrosion in chemical/petrochemical plants, while its high AC voltage rating makes it immune to the electrical interference common in power generation and steel mills.
Which Yokogawa control systems is the Yokogawa ADV142-S02 S1 compatible with?
While primarily designed for CENTUM VP and CS 3000 systems, this AC input module is a standard I/O module. It integrates via the backplane bus, meaning compatibility depends on your specific node (like AFV30, AFV40). Please verify your node's support for 16-channel AC I/O modules.
What happens if there is a voltage spike on the input line?
The Yokogawa ADV142-S02 S1 is robustly protected. It offers a withstand voltage of 2 kV AC between the input signal and the system, and 1.35 kV AC between commons. This high isolation protects your expensive controller from destructive line surges.
