        ADV161-P50 S2

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

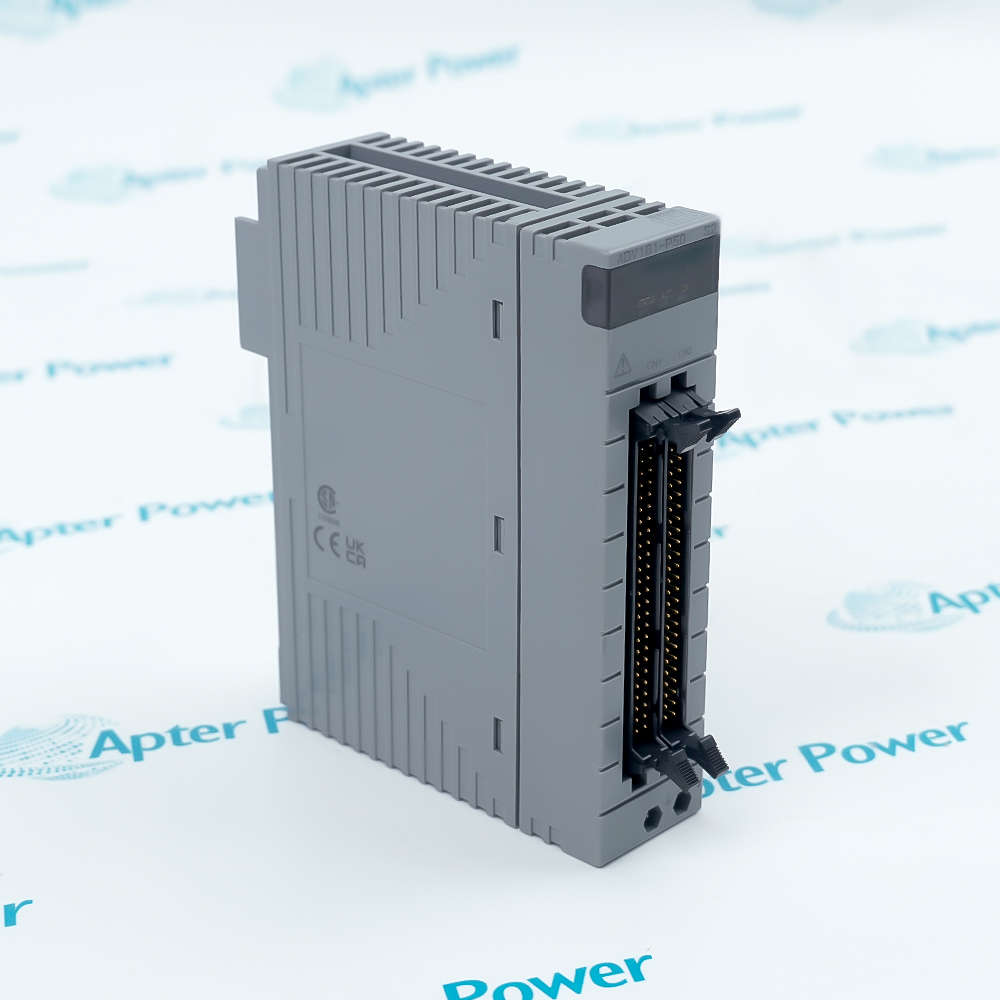

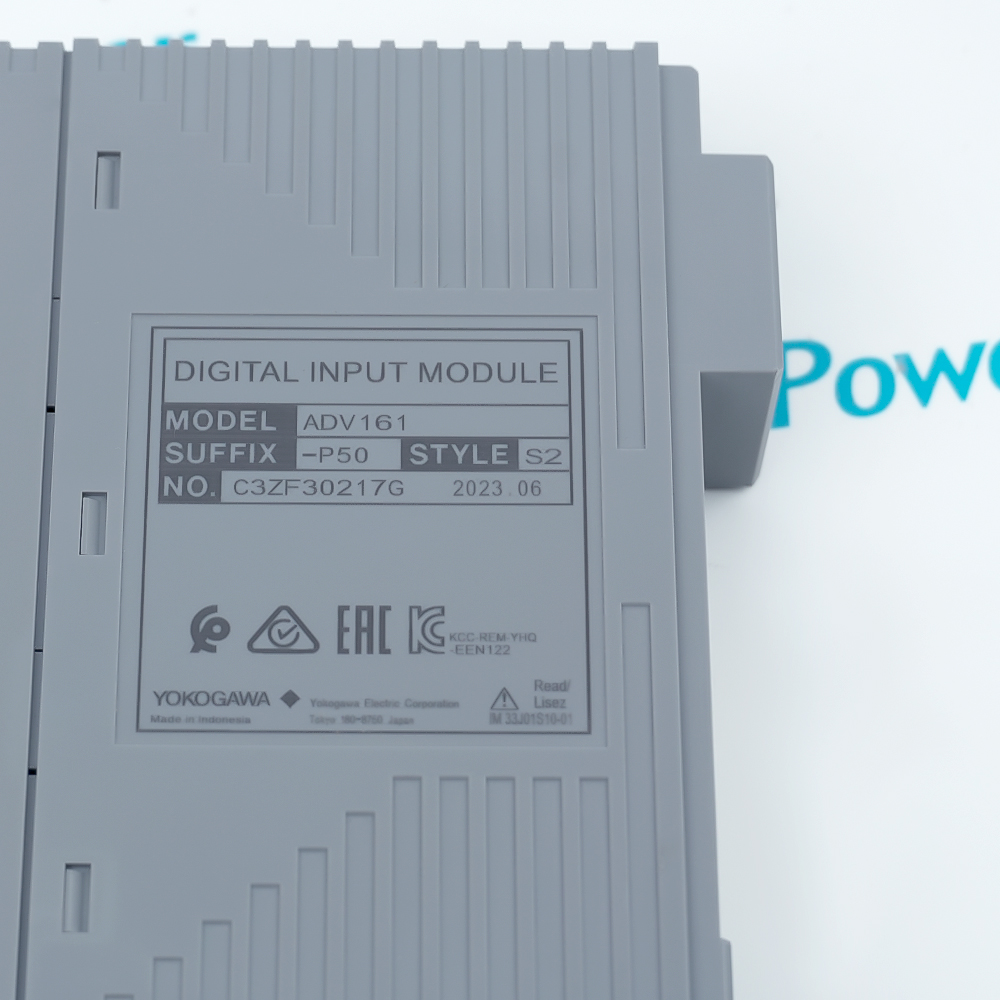

        Yokogawa ADV161-P50 S2 is a 64-channel 24 V DC digital input module that groups field status or pushbutton signals into four 16-channel common sections.
        In Stock
        Fast Shipping Available
        Get a quick price for ADV161-P50 S2
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for ADV161-P50 S2

        • Manufacturer:
          Yokogawa
        • Part Number:
          ADV161-P50 S2
        • Product Family:
          Centum CS-Centum VP
        • Product Type:
          64-Channel 24 V DC Digital Input Module
        • Stock:
          1
        • Common grouping:
          Four groups of 16 channels
        • Input ON range:
          20–26.4 V DC
        • Input OFF level:
          5 V DC or less
        • Input current:
          2.5 mA ±20% per channel at 24 V DC
        • Maximum input voltage:
          30 V DC
        • Status-input response:
          8 ms or less
        • Pushbutton minimum ON time:
          20 ms
        • Pushbutton maximum cycle:
          25 Hz
        • System-to-input withstand:
          2 kV AC for one minute
        • Between-common withstand:
          500 V AC for one minute
        • Module current:
          550 mA at 5 V DC maximum
        • External connection:
          AKB337 dedicated cable or MIL connector cable
        • Weight:
          0.661 lbs (0.3 kg)
        • Estimated shipping dimensions:
          3.28x12.55x13cm
        • Tariff Code:
          8538900000
        • Country of origin:
          Indonesia
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Channel Groups Status Input Pushbutton Mode Cable Path

        Features:

        • Acquires sixty-four 24 V DC field states through four 16-channel common groups.
        • Supports standard status detection and pushbutton edge counting without SOE capture.
        • Routes both 50-pin channel banks through AKB337 or compatible MIL cable assemblies.
        Yokogawa ADV161-P50 S2 concentrates high-density digital acquisition in one CENTUM VP Field I/O module.

        Every input remains individually addressed even though sixteen channels share each common connection.

        Field polarity, common grouping and cable assignment must be coordinated before the module is wired.

        The Yokogawa ADV161-P50 S2 64-Channel Digital Input Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        Yokogawa ADV161-P50 S2 Digital Input Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

        Four Common Blocks of Sixteen Inputs

        • Group Assignment: Inputs 1–16, 17–32, 33–48 and 49–64 form the four common groups.
        • Common Terminals: Each group exposes repeated common terminals beside its sixteen signal pins.
        • Polarity Rule: All externally supplied 24 V DC commons must use the same polarity.

        ON/OFF State Transfer

        • ON State: A field voltage inside the ON range is transferred as an active channel state.
        • OFF State: Signals at or below the OFF threshold are reported as inactive.
        • Response Interval: The status-input response interval determines when the new state reaches the controller.

        Edge Detection without SOE

        • Edge Counting: Pushbutton mode counts qualifying input edges rather than capturing SOE timestamps.
        • Minimum Pulse: An ON pulse must remain present for the documented minimum detection time.
        • Cycle Limit: The input cycle must remain within the maximum pushbutton frequency.

        Dual MIL Connector Routing

        • Connector Banks: Two 50-pin MIL connectors divide the first and second groups of thirty-two inputs.
        • AKB337 Path: AKB337 cables carry channel and common conductors to the external terminal hardware.
        • Cable Detection: Disconnected-cable detection uses the designated CBSE circuit on supported terminal boards.
        Description
        Yokogawa ADV161-P50 S2 is a 64-channel 24 V DC digital input module for the CENTUM VP Field I/O architecture. It receives sink or source field states and divides the channels into four common groups of sixteen.

        Within each group, Yokogawa ADV161-P50 S2 shares the common connection while retaining a separate input path for every channel. The externally supplied 24 V DC polarity must remain the same across all four groups when the module is wired through its paired MIL connectors.

        For ordinary status signals, Yokogawa ADV161-P50 S2 transfers an ON or OFF state to the control system after the input-response interval. When a channel is configured for pushbutton service, the module detects input edges using the documented minimum pulse width and maximum operating cycle.

        The AKB337 cable path connects Yokogawa ADV161-P50 S2 to terminal or relay hardware without a separate pressure-clamp adapter. Electrical isolation separates the field circuits from system logic, while the four common groups define the boundaries that must be followed during wiring.
        Alternative Names
        ADV161-P50 S2 ADV161 P50 S2 ADV161P50S2 Yokogawa ADV161-P50 S2 YOKOGAWA ADV161-P50 S2 CENTUM ADV161-P50 S2 ADV161-P50 Style S2 ADV161-P50 S2 Digital Input Module
        Technical notes
        Yokogawa ADV161-P50 S2 groups sixty-four 24 V DC inputs by sixteen and connects field wiring through AKB337 or MIL cable assemblies.
        Exceptional Service
