ADV169-P00 S1

/ 4.9
1001 reviews | Need a Specific Revision?

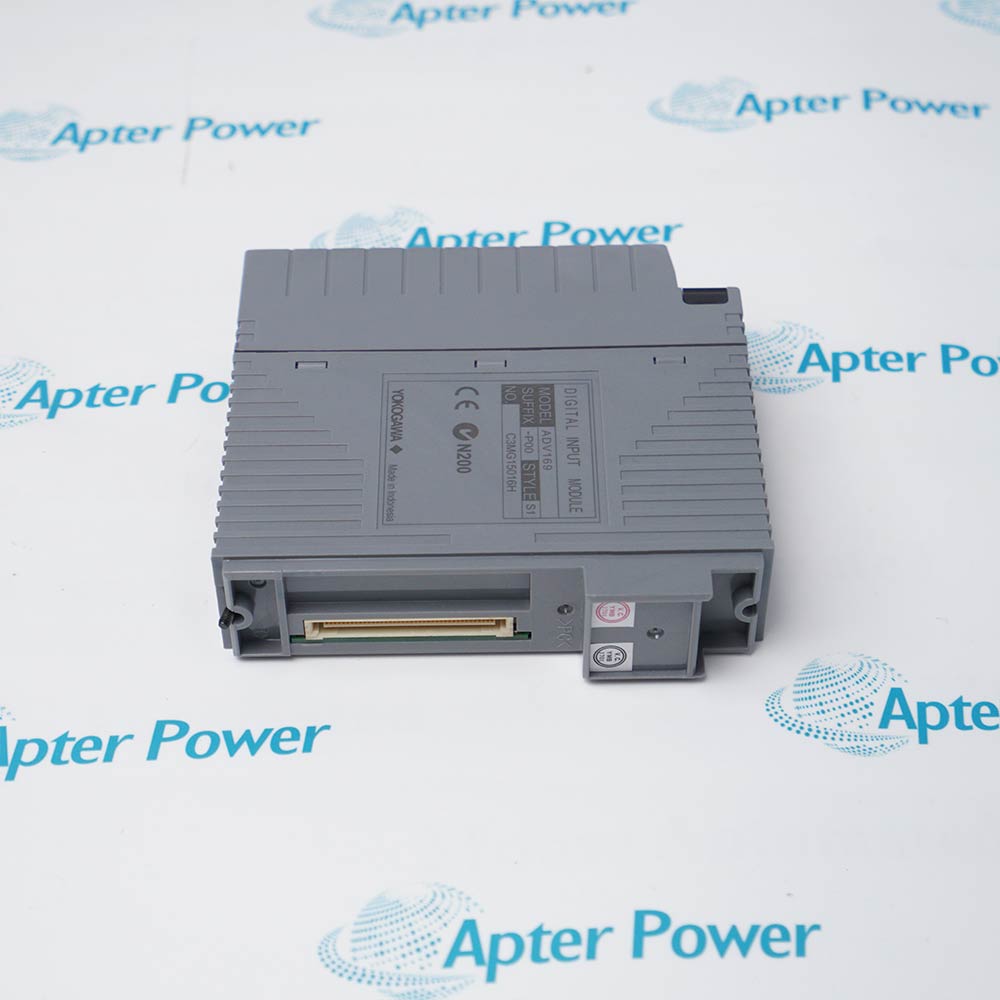

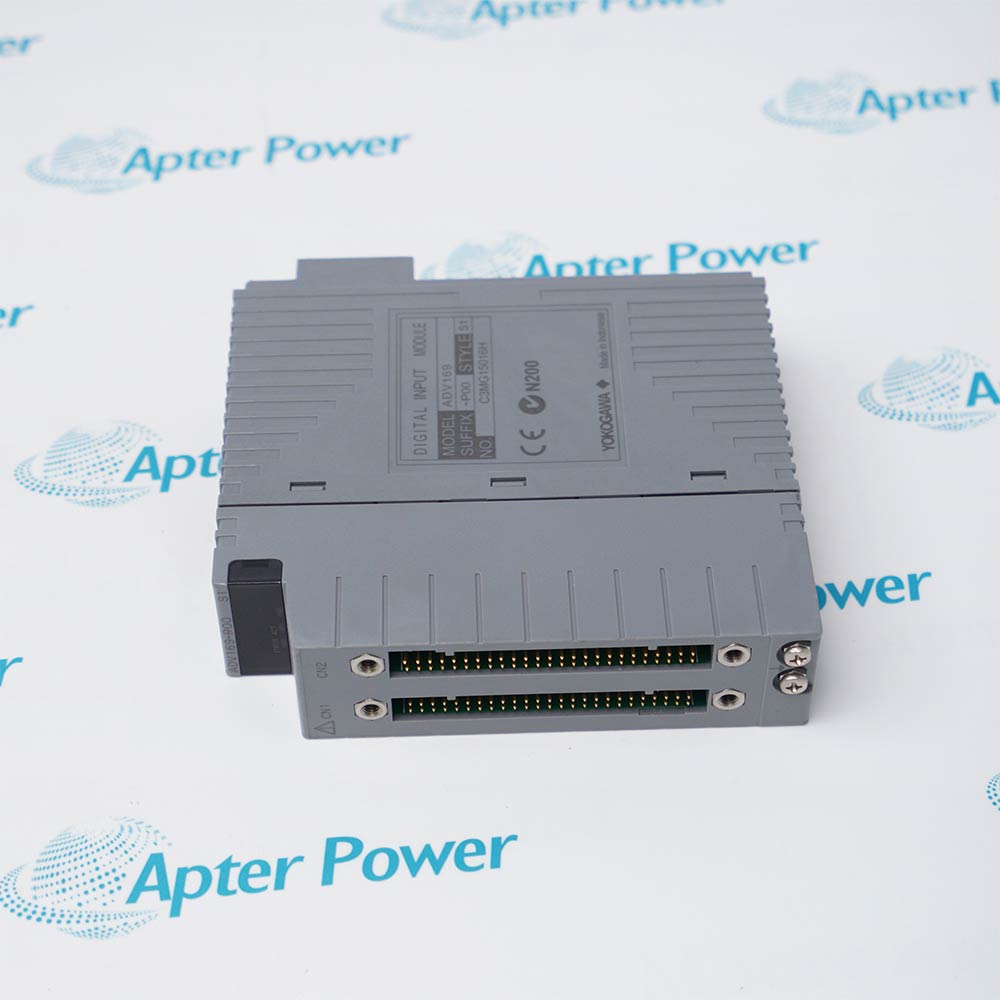

Yokogawa ADV169-P00 S1 is a CENTUM VP FIO digital input module with 64 contact or voltage input channels arranged in four isolated groups. It supports dense plant-status acquisition with an 8 ms input response.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for ADV169-P00 S1
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for ADV169-P00 S1

  • Manufacturer:
    Yokogawa
  • Part Number:
    ADV169-P00 S1
  • Product Family:
    Centum CS-Centum VP
  • Product Type:
    Digital Input Module
  • Stock:
    1
  • Number of Channels:
    64 inputs
  • Signal Isolation:
    Common every 16 channels
  • Input Type:
    Contact or voltage
  • Contact Input (OFF):
    100 kΩ or more
  • Contact Input (ON):
    200 Ω or less
  • Min Current (contact short-circuited):
    1.25 mA
  • Voltage Input (OFF):
    4.5 to 25 V DC
  • Voltage Input (ON):
    ±1 V DC, 200 Ω or less
  • Contact Rating:
    5 V DC, 20 mA or more
  • Input Response Time:
    8 ms (status input)
  • Maximum Current Consumption:
    800 mA at 5 V DC
  • Pushbutton Input Function:
    Not supported
  • External Connection:
    Dedicated cable KS9
  • Compatible ST Card:
    ST6
  • Supported Node Hardware:
    AFV30, AFV40, AFV10, ANB10, ANB11, and ANR10
  • Dual-Redundant Configuration:
    Supported only when replacing a duplexed CENTUM-XL ST card
  • Environment Support:
    G3 only
  • Weight:
    0.3 kg
  • Estimated shipping dimensions:
    3.2x12.7x13cm
  • Tariff Code:
    8517795000
  • Country of origin:
    Japan
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Applications Compatibility Installation & Integration Operating Environment

Features:

  • Provides 64 channels of contact or voltage digital input.
  • Organizes field inputs into four groups with common isolation every 16 channels.
  • Updates channel state with the documented 8 ms input response.
ADV169-P00 S1 identifies the P00 digital-input configuration with the S1 style code in the CENTUM VP FIO product range.

The module brings a high channel count into the field-I/O node while keeping each group of sixteen inputs on a common isolated section.

Check the terminal-block choice, field-voltage scheme and node hardware assignment before replacing or adding the module to an operating system.

Availability is subject to Apter Power inventory and sourcing confirmation.
Verified resources for Yokogawa ADV169-P00-S1: Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Collects dense on/off status information from process switches and auxiliary contacts.
  • Supports cabinet designs that require up to 64 field points in one FIO input position.
  • Feeds discrete plant-state information to CENTUM VP control and monitoring functions.
  • Accepts documented no-voltage contact and voltage-input connection methods.
  • Works with the specified Yokogawa terminal blocks, including KS9 and ST6 arrangements where applicable.
  • Requires the matching node interface and engineering definition for the selected input type.
  • Route each set of sixteen channels according to its common-isolation grouping.
  • Verify terminal polarity and field supply selection before landing voltage-input wiring.
  • Reserve the documented 800 mA load on the 5 V system supply for node planning.
  • Install the module in the supported FIO node and enclosure specified by Yokogawa.
  • Keep ambient temperature and humidity within the limits of the complete node assembly.
  • Protect field terminals from condensation, conductive dust and unauthorized live work.
Description
The ADV169-P00 S1 is a digital input module for Yokogawa CENTUM-ST systems. It provides 64 input channels for receiving contact or voltage status signals from field devices. Signal isolation is common every 16 channels. The module is compatible with ST6 cards and connects via a dedicated KS9 cable. Power consumption is 800 mA (5V DC), and weight is approximately 0.30 kg.

When using the ADV169-P00 S1, engineers can connect contact inputs (dry contacts) or voltage inputs. For contact input, OFF signal is 100 kΩ or more, ON signal is 200 Ω or less, with a minimum current of 1.25 mA when short‑circuited.

The ADV169-P00 S1 has a contact rating of 5V DC at 20 mA or more. It has no output channels; it is a dedicated input module. The module is isolated with common minus side every 16 channels. This means channels 1‑16 share a common reference, channels 17‑32 share another, etc.

For legacy CENTUM-ST system expansions, the ADV169-P00 S1 provides high‑density 64‑channel digital input capability. It is part of the ADV169 model family. The module does not include the ISA Standard G3 option (suffix S1).
Alternative Names
ADV169-P00-S1 ADV169 P00 S1 ADV169P00S1 Yokogawa ADV169-P00 S1 Yokogawa ADV169-P00 Yokogawa ADV169 Yokogawa ADV169 Digital Input Module Yokogawa ADV169 Compatible ST6 Input Module
Technical notes
Before fitting Yokogawa ADV169-P00 S1, confirm the P00/S1 ordering codes, KS9 or ST6 terminal arrangement, field-input method and available 5 V node power.
