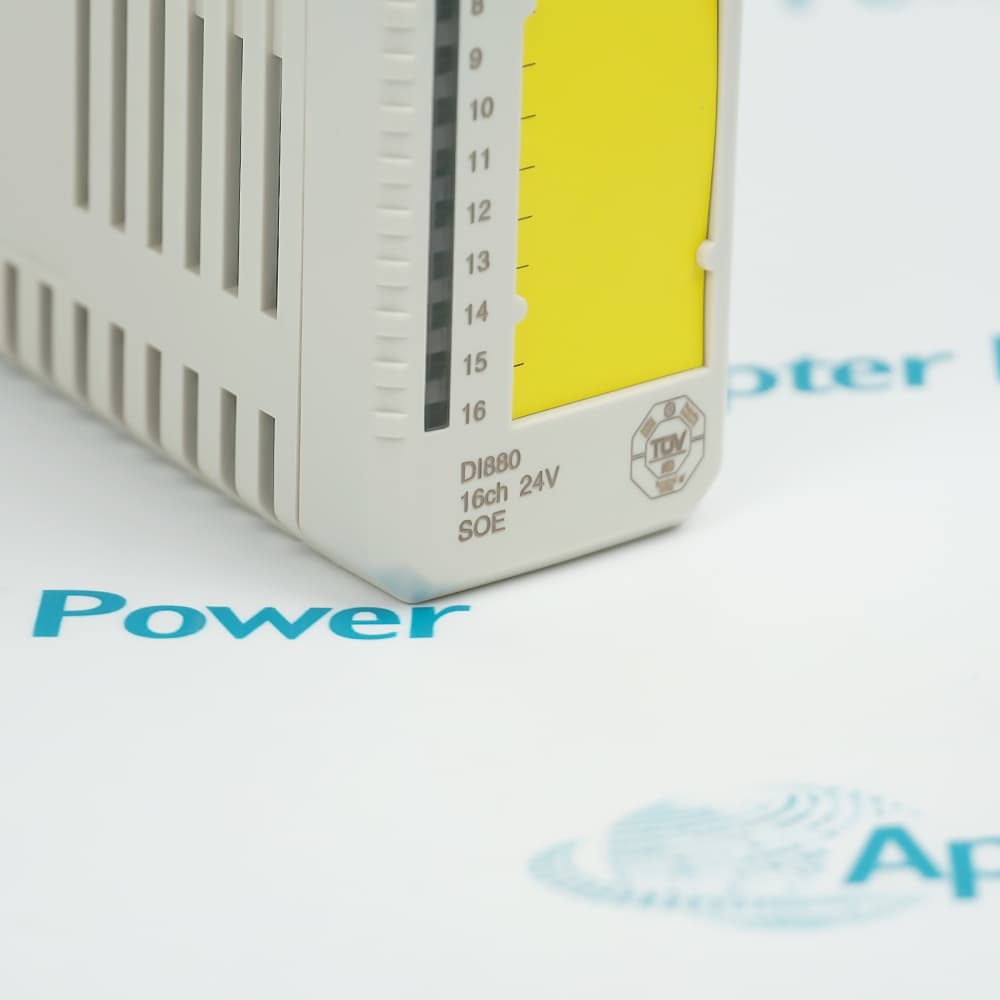

        ABB DI880 3BSE028586R1
        ABB DI880 3BSE028586R1
        ABB DI880 3BSE028586R1
        ABB DI880 3BSE028586R1
        ABB DI880 3BSE028586R1
        ABB DI880 3BSE028586R1
        Ask our team:
        • Phone: +86 181 0690 9650
        • E-Mail sales1@apterpower.com

        • Lifecycle Status

          Active / Available from OEM
          Enhance your S800 I/O system reliability with this authentic ABB digital input module, sourced by Apter Power to ensure precise, high-speed data capture for your critical automation processes.

        DI880 3BSE028586R1

        / 4.9
        1001 reviews ｜ Need a Specific Revision?
        The ABB DI880 3BSE028586R1 is a 16-channel 24 V DC digital input module that captures field input signals while providing Sequence of Events (SOE) recording, advanced diagnostics, and reliable operation for single or redundant S800 I/O systems.
        In Stock
        Ships by Friday, October 30
        Fast Shipping Available
        Get a quick price for DI880 3BSE028586R1
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for DI880 3BSE028586R1

        • Manufacturer:
          ABB
        • Part Number:
          DI880 3BSE028586R1
        • Product Family:
          ABB Advant OCS and Advant-800xA
        • Product Type:
          Digital Input Module
        • Stock:
          5
        • Signal specification:
          24 V d.c.
        • Number of channels:
          16
        • Signal type:
          Current sinking
        • HART:
          No
        • SOE:
          Yes
        • Redundancy:
          Yes
        • High integrity:
          Yes
        • Intrinsic safety:
          No
        • Mechanics:
          S800
        • Input voltage range,:
          -30..+5 V
        • Input voltage range,:
          11..30 V
        • Input impedance:
          3.1 kΩ
        • Isolation:
          Groupwise isolated from ground
        • Filter times (digital, selectable):
          0 to 127 ms
        • Current limiting:
          Built in current limited sensor power
        • Maximum field cable length:
          600 meters (656 yards)
        • Event recording accuracy:
          -0 ms / +1.3 ms
        • Event recording resolution:
          1 ms
        • Rated insulation voltage:
          50 V
        • Dielectric test voltage:
          500 V a.c.
        • Power dissipation:
          2.4 W
        • Current consumption +5 V Modulebus:
          Typ. 125 mA, Max. 150 mA
        • Current consumption +24 V external:
          15 mA + sensor power, Max. 527 mA
        • Front LED's:
          F(ault), R(un), W(arning), P(rimary), Channel 1-16 Status
        • Supervision:
          Process power, Internal circuitry
        • Status indication of supervision:
          Module Error, Module Warning, Internal channel error
        • Temperature, Operating:
          0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C
        • Temperature, Storage:
          -40 to +70 °C (-40 to +158 °F)
        • Pollution degree:
          Degree 2, IEC 60664-1
        • Relative humidity:
          5 to 95 %, non-condensing
        • Protection class:
          IP20 according to IEC 60529
        • Use with MTU:
          TU810, TU812, TU814, TU818, TU830, TU833, TU842, TU843, TU852
        • Weight:
          0.15 kg
        • Estimated shipping dimensions:
          4.3x11x11.8cm
        • Tariff Code:
          2942000000
        • Country of origin:
          Sweden
        • Place of shipment:
          Xiamen, Fujian, China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Diagnostics Operation Application Scenarios

        Features:

        • Captures Sequence of Events with 1 ms resolution and a large event queue for accurate process analysis.
        • Provides front-panel status LEDs, process power supervision, internal circuitry monitoring, and channel diagnostics for simplified maintenance.
        • Supports redundant configuration and meets SIL3 and Category 4 certification requirements for high integrity industrial systems.
        The ABB DI880 3BSE028586R1 expands digital signal acquisition capabilities within the S800 I/O family by combining reliable input processing with advanced event monitoring. Sixteen current sinking input channels enable efficient collection of 24 V DC field signals while integrated sensor power helps simplify field wiring. The module also supports cable lengths up to 600 meters, making it suitable for distributed installations.

        Flexible configuration options allow the ABB DI880 3BSE028586R1 to operate in either standalone or redundant control architectures. Groupwise isolation from ground, optical isolation barriers, EMC protection, and configurable filter times contribute to stable signal acquisition even in electrically demanding industrial environments. Low power consumption further supports efficient system operation.

        Industrial facilities that require dependable monitoring, accurate event logging, and continuous system supervision can benefit from the ABB DI880 3BSE028586R1. Operating temperatures from 0 to +55 °C, IP20 protection, multiple compatible MTUs, and built-in diagnostic functions make the module well suited for process automation, safety-related control systems, and other high availability applications.

        The DI880 3BSE028586R1 ABB Digital Input Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        ABB DI880 3BSE028586R1 Digital Input Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        ABB DI880 3BSE028586R1 Digital Input Module Specs

        General

        • Manufacturer ABB
        • Model DI880 3BSE028586R1
        • Condition New Original ready stock
        • Product Family AI880A,DO880,AO845A
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Real-time monitoring of internal circuitry and process power supply, supporting automatic isolation of channel-level hardware errors.
        • Advanced onboard diagnostic system, combined with front-end LED indicators, provides intuitive display of fault, run, and warning status.
        • Built-in exclusive shutter filter effectively suppresses and filters invalid false alarm signals caused by field interference.
        • Supports channel-level sensor power supply current limiting protection, automatically monitoring for short circuits or open circuits in external circuits.
        • Supports single-unit or dual-module redundant hot-swappable configurations, ensuring uninterrupted 24/7 operation of the high-integrity safety control system.
        • 16 24V d.c digital input channels share a single ground isolation group, maintaining an impedance of 3.1 kΩ.
        • Built-in high-precision Sequence Event Recording (SOE) function, with a time resolution of up to 1 ms to accurately pinpoint the first fault.
        • Strong environmental adaptability, supporting a wide operating temperature range of 0 to +55 °C and meeting explosion-proof standards for hazardous areas such as ATEX Zone 2.
        • Widely used in ESD (Emergency Shutdown) and F&G (Fire and Gas Monitoring and Control) systems in industries such as chemical, petrochemical, and power.
        • Deeply integrated into high-safety critical control and high-integrity automated drive systems such as the ABB System 800xA.
        • Used for industrial automation process control requiring strict compliance with IEC 61508 standards and SIL3 level safety protection.
        • Suitable for monitoring applications in steel metallurgy, oil and gas pipelines, and other fields with stringent requirements for recording millisecond-level emergencies.
        Description
        The ABB DI880 3BSE028586R1 is a high integrity digital input module developed for the S800 I/O platform. It provides 16 current sinking digital input channels for 24 V DC signals and supports both single and redundant configurations. Every channel includes current limiting components, EMC protection, input status indication, and an optical isolation barrier to improve signal reliability in industrial environments.

        Each input operates within an input voltage range of -30 to +5 V for logic "0" and 11 to 30 V for logic "1", with an input impedance of 3.1 kΩ. Groupwise isolation from ground enhances electrical protection, while selectable digital filter times from 0 to 127 ms allow the module to adapt to different signal conditions. Built-in current limited sensor power is provided for every input channel, simplifying field device connections.

        The ABB DI880 3BSE028586R1 incorporates an advanced Sequence of Events (SOE) function capable of collecting events with 1 ms resolution. The event queue stores up to 512 × 16 events and supports detailed event reporting, including channel value, queue full status, synchronization jitter, uncertain time, shutter filter activity, and channel error. The integrated shutter filter also helps suppress unwanted events for improved reporting accuracy.

        Comprehensive diagnostics further increase system availability. Front-panel LEDs display Fault, Run, Warning, Primary, and individual channel status, while supervision functions continuously monitor process power and internal circuitry. Status indications include module error, module warning, and internal channel error, allowing maintenance personnel to identify operating conditions quickly and efficiently.

        With a power dissipation of only 2.4 W, operating temperatures from 0 to +55 °C, IP20 protection, and compatibility with multiple MTUs including TU810, TU812, TU814, TU818, TU830, TU833, TU842, TU843, and TU852, the ABB DI880 3BSE028586R1 offers dependable digital input acquisition for demanding automation applications. The module is certified for SIL3 according to IEC 61508 and Category 4 according to EN 954-1, making it suitable for high integrity industrial systems.
        Alternative Names
        D1880 3BSE028586R1 DI88O 3BSEO28586R1 DI880 3BSE028586R1 DO880 3BSE028602R1 SS823 3BSE038226R1 AI880A 3BSE039293R1 CI840A 3BSE041882R1
        Technical notes
        The ABB DI880 3BSE028586R1 module delivers groupwise isolated 24 VDC current-sinking inputs with a 3.1 kΩ impedance and custom filter times ranging from 0 to 127 ms. It integrates seamlessly with multiple S800 Module Termination Units like the TU843, certified safely for harsh ATEX Zone 2 hazardous areas.
        Exceptional Service

        Our Mission

        • 100% Satisfaction

          We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.

        • Trust Guaranteed

          Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.

        • Expertise

          Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

        FAQS

        The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
        VIEW ALL FAQS
        How does ABB DI880 3BSE028586R1 improve signal reliability?
        Every input channel incorporates current limiting components, EMC protection, optical isolation, and selectable digital filtering from 0 to 127 ms to reduce unwanted signal disturbances.
        Can ABB DI880 3BSE028586R1 operate in redundant systems?
        Yes. ABB DI880 3BSE028586R1 supports both redundant and single configurations, making it suitable for applications requiring higher system availability.
        Does ABB DI880 3BSE028586R1 support high integrity applications?
        Certainly. The module is certified for SIL3 according to IEC 61508 and Category 4 according to EN 954-1, making it appropriate for high integrity automation systems.
        Which field devices can connect to ABB DI880 3BSE028586R1?
        The module accepts 24 V DC current sinking digital input signals and provides one current limited sensor power output for each input channel.
        What diagnostic information can ABB DI880 3BSE028586R1 provide?
        Front LEDs indicate Fault, Run, Warning, Primary, and channel status, while supervision functions report process power, internal circuitry, module error, module warning, and internal channel error.
