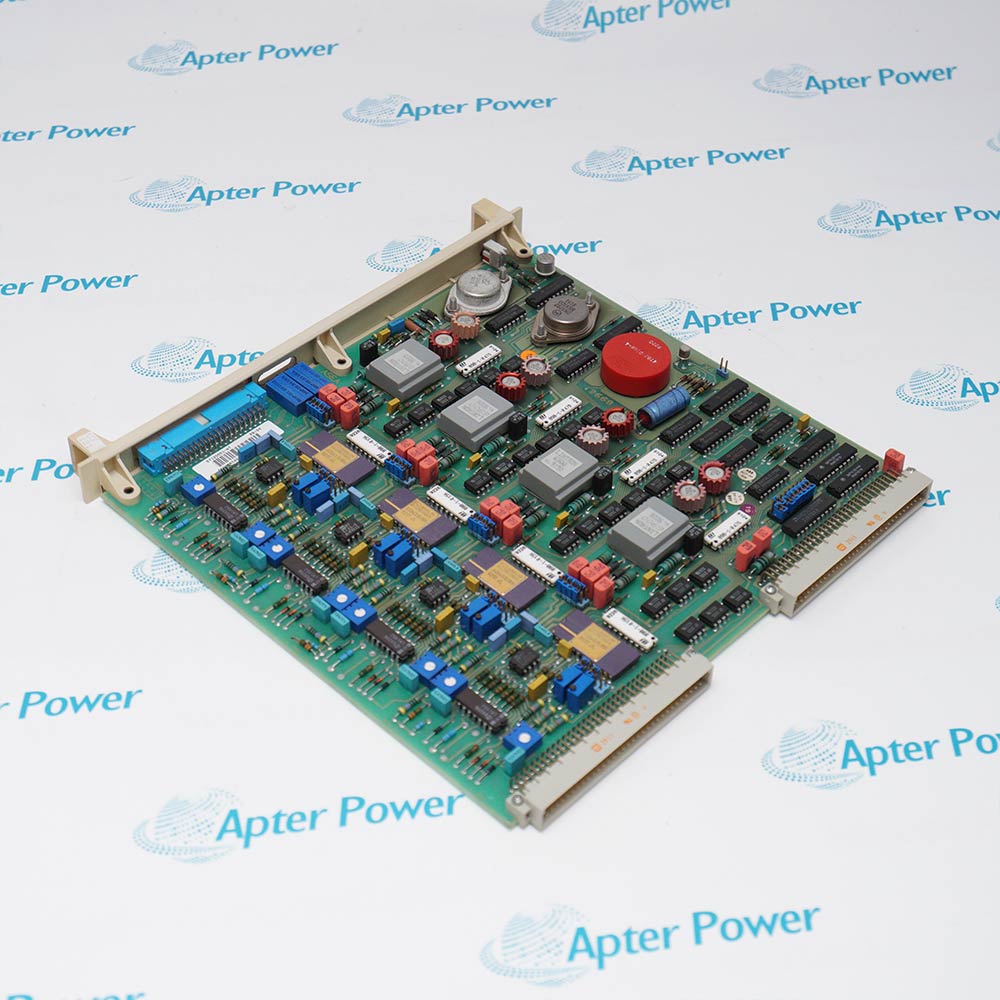

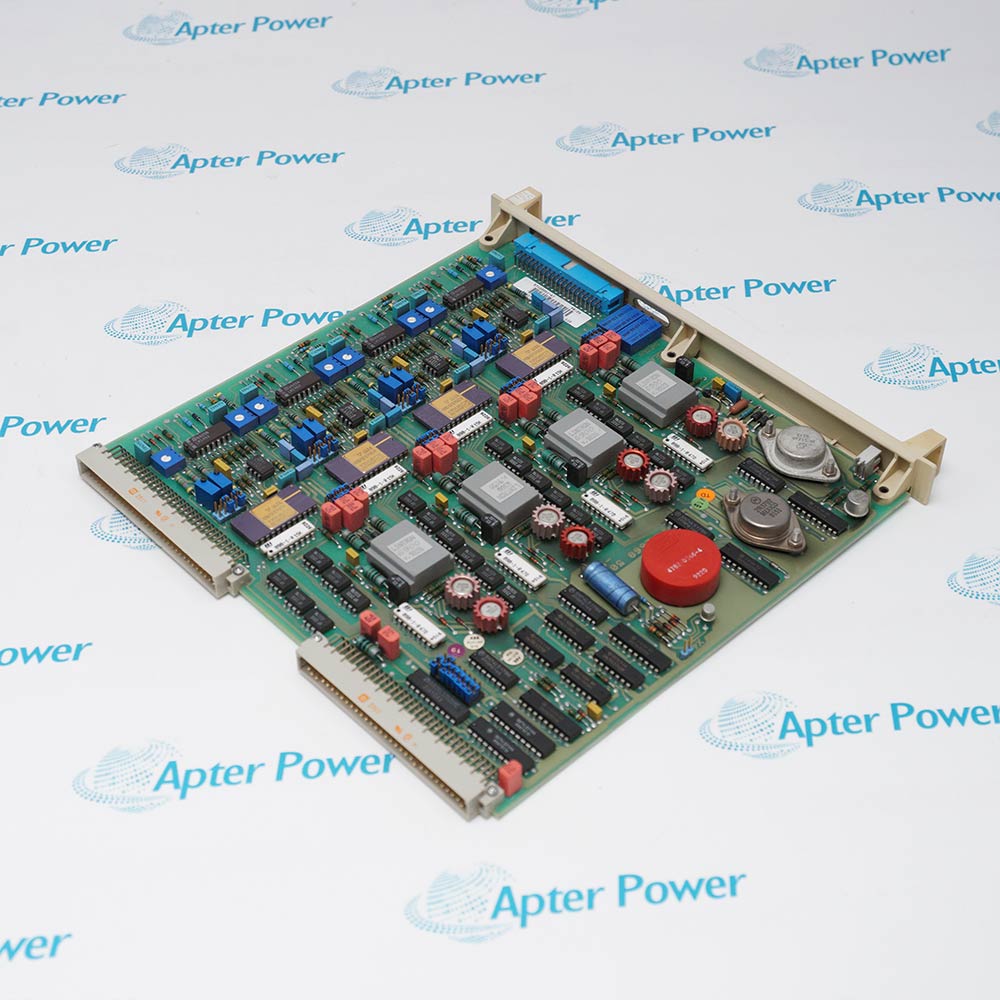

ABB DSAO110 57120001-AT is a four-channel isolated analog output board for 0–10 V and 0–20 mA process signals.
In Stock
Ships by Friday, October 30
Fast Shipping Available
Get a quick price for DSAO110 57120001-AT
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for DSAO110 57120001-AT

  • Manufacturer:
    ABB
  • Part Number:
    DSAO110 57120001-AT
  • Product Family:
    ABB Advant OCS and Advant-800xA
  • Product Type:
    4-channel isolated analog output board
  • Stock:
    1
  • ABB Type Designation:
    DSAO110
  • Function:
    Analog output board
  • Output Channels:
    4
  • Channel Isolation:
    Isolated outputs
  • Voltage Output Range:
    0 to 10 V
  • Current Output Range:
    0 to 20 mA
  • Documented Accuracy:
    0.05 percent
  • New Front Plate Reference:
    29491274-11
  • Installed Combination:
    DSAO110 with DSTA160
  • ABB Replacement Combination:
    DSAO120A with DSTA171
  • Replacement Requirement:
    Field rewiring required
  • WEEE Category:
    5, small equipment
  • Battery Content:
    0
  • Verified Physical Data:
    22.5 cm width and 1.8 cm height only
  • Weight:
    0.595 kg
  • Tariff Code:
    8538900000
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Output Conversion Front Plate and Termination Replacement Architecture Application
  • Four isolated analog output channels
  • 0–10 V and 0–20 mA output ranges
  • ABB replacement path uses DSAO120A with DSTA171 and requires rewiring

DSAO110 57120001-AT is an ABB analog output board for voltage and current control signals.

Its documented replacement route changes both the board and terminal unit and therefore is not a drop-in wiring substitution.

Verify product ID, termination, field wiring, signal range, load, front plate, database, and exchange conditions before ordering.

Availability, condition, price, and shipping time for DSAO110 57120001-AT are confirmed during quotation.

ABB DSAO110 57120001-AT Analog Output Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • DSAO110 provides four isolated analog output channels
  • Each board supports 0–10 V and 0–20 mA output ranges
  • ABB specifies 0.05 percent output accuracy
  • ABB points to front plate 29491274-11 for DSAO110
  • The documented installed combination is DSAO110 with DSTA160
  • The replacement combination uses DSAO120A with DSTA171
  • ABB identifies DSAO120A as an eight-output board with OSP control
  • DSAO120A with DSTA171 replaces DSAO110 with DSTA160
  • ABB explicitly requires reconnection of field wiring for this replacement
  • Generating isolated analog voltage commands
  • Generating isolated analog current commands
  • Replacing DSAO110 57120001-AT in an installed S100 output station
Description
DSAO110 57120001-AT is an ABB analog output board with four isolated channels for voltage or current control signals.

ABB specifies 0–10 V and 0–20 mA output ranges with documented 0.05 percent accuracy and identifies DSAO120A with DSTA171 as the replacement path for DSAO110 with DSTA160.

Confirm the exact product ID, termination unit, field wiring, signal range, load, front plate, and any rewiring required by the replacement path.
Alternative Names
DSAO110 DSAO 110 57120001-AT EXC57120001-AT DSAO110 57120001-AT ABB DSAO110 57120001-AT
Technical notes
ABB DSAO110 57120001-AT is the four-channel isolated output board. Verify DSTA160 wiring; the DSAO120A with DSTA171 replacement requires reconnection.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How should a buyer decide between ABB DSAO110 57120001-AT and the DSAO120A replacement path?
Confirm the installed board, DSTA160 terminal unit, signal ranges, controller support, wiring-change scope, outage plan, and whether the site accepts the ABB migration route.
Can ABB DSAO110 57120001-AT reuse the existing terminal unit and field wiring?
A like-for-like DSAO110 replacement may retain the verified DSTA160 arrangement, but the DSAO120A and DSTA171 migration requires documented field rewiring.
What should be included in the rewiring plan for ABB DSAO110 57120001-AT replacement?
Map every output loop, terminal number, polarity, voltage or current mode, load, shielding, grounding, database channel, and commissioning test before the outage.
What commissioning work should be planned after installing ABB DSAO110 57120001-AT?
Plan loop-by-loop checks of terminal wiring, polarity, voltage or current mode, connected load, channel scaling, commanded output, fail-state behavior, and controller indications before returning the process to service.
How can output-loop compatibility be checked for ABB DSAO110 57120001-AT?
Review each loop's selected voltage or current mode, receiving-device input, burden or load, isolation, external supply, and required fail-state behavior.
Does replacing ABB DSAO110 57120001-AT require rewiring?
Yes. ABB explicitly notes field rewiring for the documented DSAO120A and DSTA171 replacement combination.
What must be checked before ordering ABB DSAO110 57120001-AT?
Verify product ID, terminal unit, signal mode, load, wiring, front plate, database, condition, and whether the exchange or replacement route is required.
