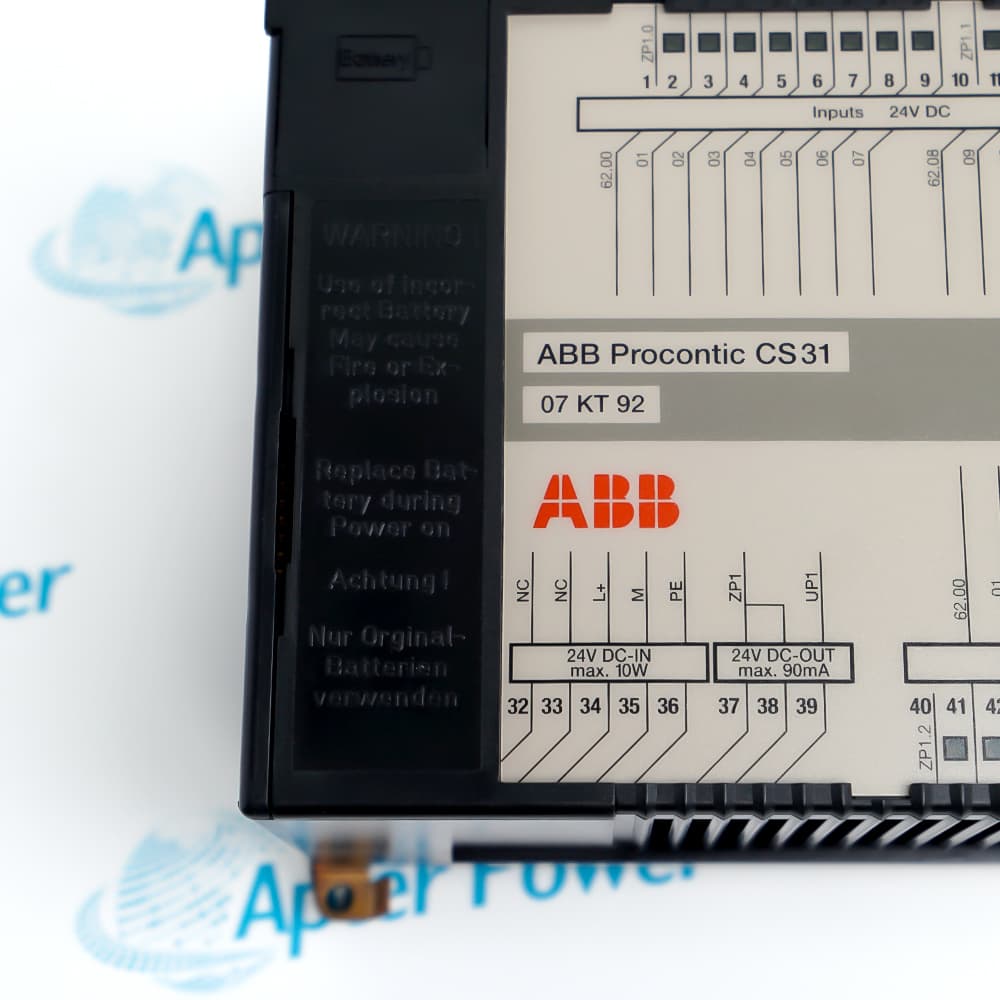

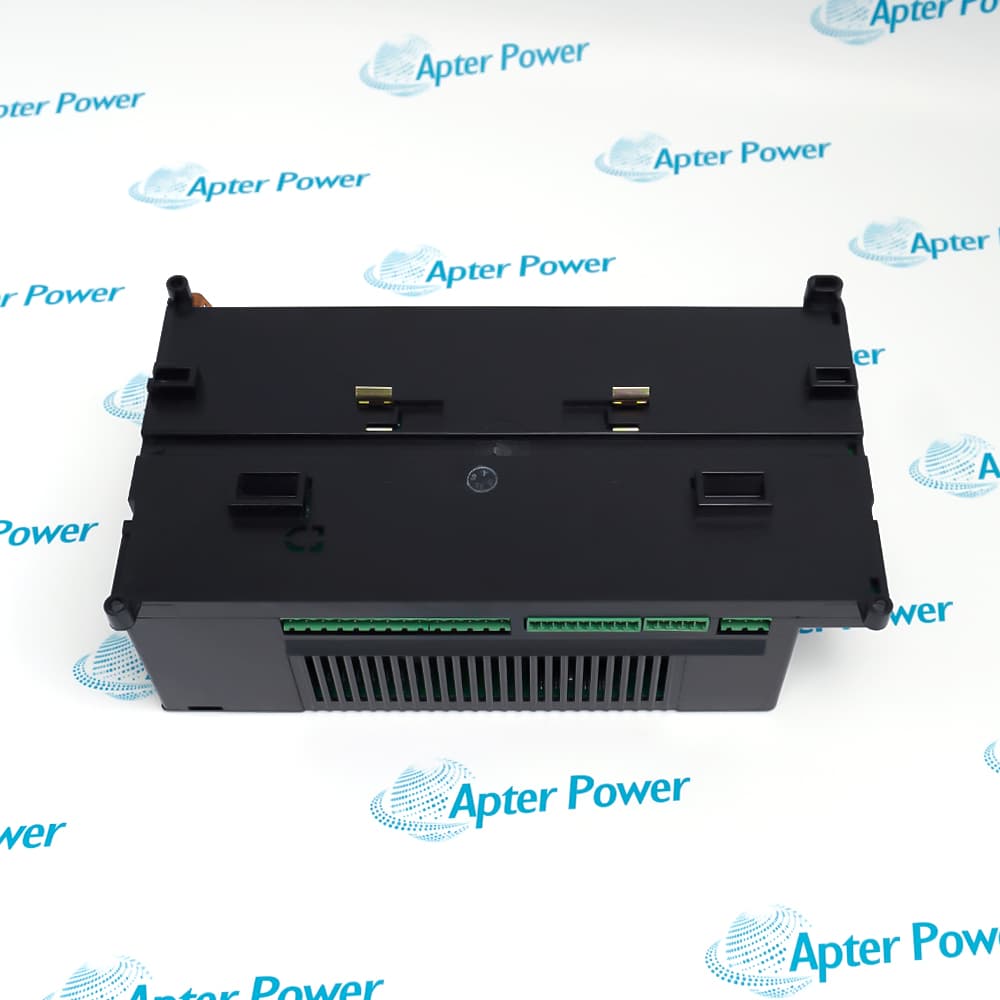

ABB GJR5250500R0262 07KT92 is a 24 V DC Procontic CS31 central unit combining local mixed I/O, serial communications, and integrated ARCNET.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for GJR5250500R0262 07KT92
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for GJR5250500R0262 07KT92

  • Manufacturer:
    ABB
  • Part Number:
    GJR5250500R0262 07KT92
  • Product Family:
    ABB Procontic
  • Product Type:
    Procontic CS31 PLC Central Unit with ARCNET
  • Stock:
    1
  • Supply Voltage:
    24 V DC
  • Operating Modes:
    CS31 bus master; CS31 slave/local processor; stand-alone central unit
  • User Program Memory:
    Up to 56 kB
  • User Data Memory:
    Up to 30 kB
  • Digital Inputs:
    12 × 24 V DC, arranged in two isolated groups
  • Digital Outputs:
    8 × transistor, 24 V DC, 0.5 A nominal per channel
  • Analog Inputs:
    4, configurable for documented voltage or current ranges
  • Analog Outputs:
    2 × -10…+10 V, 12-bit conversion
  • High-speed Counter:
    1 × 50 kHz
  • Serial Interfaces:
    COM1 and COM2 for programming, ASCII, or MODBUS functions as documented
  • Dimensions:
    24.0 × 14.0 × 8.5 cm
  • Weight:
    1.6 kg
  • Tariff Code:
    8537101190
  • Country of origin:
    Sweden
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Operating Modes Communications Diagnostics Application
  • CS31 master, CS31 slave, or stand-alone controller operation
  • Integrated digital and analog I/O with high-speed counter
  • R262 hardware variant with built-in ARCNET coupler

GJR5250500R0262 07KT92 is an ABB Procontic CS31 central unit designed for distributed or stand-alone automation control.

It combines programmable control, local mixed I/O, CS31 system-bus access, serial communications, high-speed counting, and ARCNET networking in one DIN-rail unit.

Before installation or replacement, verify the R262 order number, program backup, controller role, terminal mapping, system constants, bus addresses, ARCNET wiring, and serial configuration.

Availability, condition, price, and shipping time for GJR5250500R0262 07KT92 are confirmed during quotation.

ABB GJR5250500R0262 07KT92 Procontic CS31 Central Unit Manuals, Product Family, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • CS31 master mode controls distributed system-bus devices
  • CS31 slave mode serves as a local processor within a distributed system
  • Stand-alone mode operates the local controller without CS31 master duties
  • COM1 supports programming and documented active or passive serial functions
  • COM2 supports documented serial communication duties configured by the project
  • R262 integrates a 2.5 Mbit/s ARCNET coupler with BNC coax connection
  • Use the channel LEDs to check the twelve digital inputs and eight transistor outputs.
  • Read the RUN, battery, supply, and error-class LEDs to separate controller, power, and program conditions.
  • For CS31 or ARCNET faults, check the bus-status LEDs together with wiring, termination, station addressing, and the controller project.
  • Central CS31 bus-master control of distributed Procontic I/O stations
  • CS31 slave operation as an intelligent local preprocessing controller
  • Stand-alone machine control using integrated mixed I/O, counters, and serial devices
Description
GJR5250500R0262 07KT92 is an ABB Procontic CS31 programmable central unit with local mixed I/O and an integrated ARCNET coupler.

The controller can operate as a CS31 bus master, CS31 slave, or stand-alone unit while providing digital and analog I/O, two serial interfaces, a high-speed counter, and network expansion.

Before installation or replacement, confirm the R262 order identity, operating mode, saved program and operands, system constants, I/O wiring, CS31 addressing, ARCNET topology, battery, and communication settings.
Alternative Names
GJR5250500R0262 07KT92 GJR5250500R0262 GJR5 2505 00 R262 07KT92 07 KT 92 07KT92 R262 07 KT 92 R262 ABB GJR5250500R0262 ABB Procontic CS31 07 KT 92 R262
Technical notes
ABB GJR5250500R0262 07KT92 is the R262 unit with integrated ARCNET. Preserve controller mode, program, system constants, I/O ranges, CS31 address, ARCNET topology, and serial settings.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What distinguishes ABB GJR5250500R0262 07KT92 from the R202 version?
The R262 order variant includes the ARCNET coupler inside the central-unit housing. R202 must not be quoted as equivalent when the existing project uses the integrated ARCNET interface.
Can ABB GJR5250500R0262 07KT92 operate without a CS31 remote I/O bus?
Yes. ABB documents stand-alone operation in addition to CS31 master and slave modes. The role is selected through system constants and activation of the controller operating mode.
What must be restored when replacing ABB GJR5250500R0262 07KT92?
Restore the user program, operand data, system constants, controller role, CS31 address, serial modes, ARCNET address, counter setup, analog ranges, and documented retentive-memory strategy.
Why can ARCNET communication fail after ABB GJR5250500R0262 07KT92 is changed?
Check the rear address switch, BNC connection, RG62 coax, 93-ohm termination, node uniqueness, hub topology, project routing, and the internal 24 V supply before rejecting the controller.
Can the onboard 24 V output of ABB GJR5250500R0262 07KT92 power arbitrary field loads?
No. ABB assigns that limited output specifically to the twelve digital input signals. Actuators and other loads require the correctly protected external supply arrangement.
How should COM1 and COM2 duties be separated on ABB GJR5250500R0262 07KT92?
Preserve the documented programming, active/passive, ASCII, or MODBUS roles and their system constants. Do not move a device between ports without checking pinout, mode, baud, and protocol logic.
Which terminal blocks are included with ABB GJR5250500R0262 07KT92 from the factory?
ABB's ordering section lists the central unit with its removable 5.08 mm and 3.81 mm terminal blocks. Programming cables, battery module, simulator, and software are separate accessories.
