Features:
- Three nameplate segments define the complete legacy ABB board identity.
- Cabinet position and harness mapping establish the installed duty.
- Board revision and connector condition affect replacement suitability.

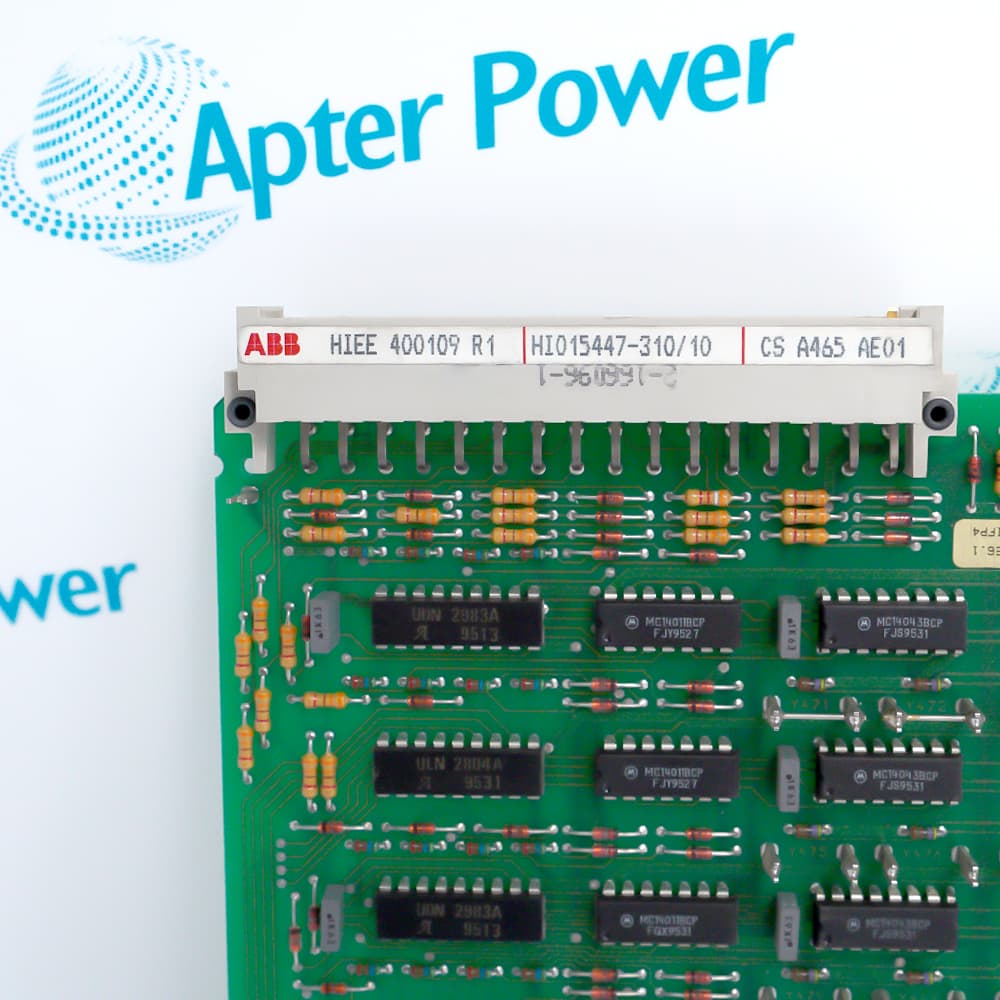

HIEE400109R1, HI015447-310/10 and CS A465 AE01 are retained together for the requested assembly.
The component belongs to a fixed cabinet location whose function is defined by the parent system and connected interfaces.
Record both board faces, slot, plugs and revision evidence before removal and controlled testing.
HIEE400109R1 supply is reviewed against the full nameplate evidence.
Verified resources for ABB HIEE400109R1 HI015447-310/10 CS A465 AE01:
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Maintaining the same circuit-board position in a legacy ABB cabinet.
- Supporting outage replacement with complete three-code traceability.
- Providing a verified spare for an established UNITROL-related installation.
- Harness labels are preserved to maintain the original cabinet interfaces.
- Connector orientation and mounting are compared before board insertion.
- The parent system startup sequence governs return to operation.
- Any board-specific settings are recorded directly from the removed assembly.
- Cabinet documentation is used to restore jumpers or option selections.
- Functional testing confirms that the installed configuration responds as expected.
- All three identity segments must agree with the replacement evidence.
- A shared CS A465 marking does not prove the same product revision.
- Edge contacts, plug layout and populated components are compared visually.
