    Apter Power provides 6ES7153-2BA82-0XB0 quotations, manuals, product selection, and system-matching assistance.

6ES7153-2BA82-0XB0

/ 4.9
1001 reviews | Need a Specific Revision?

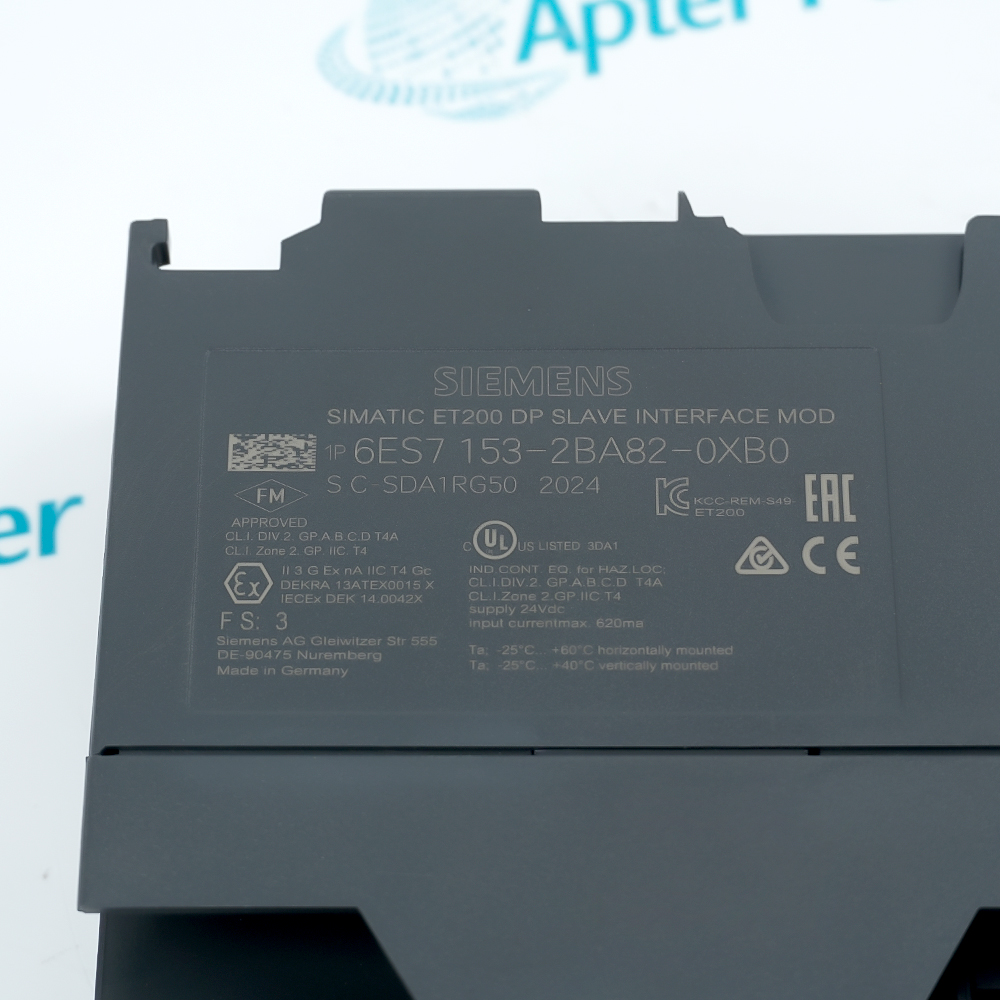

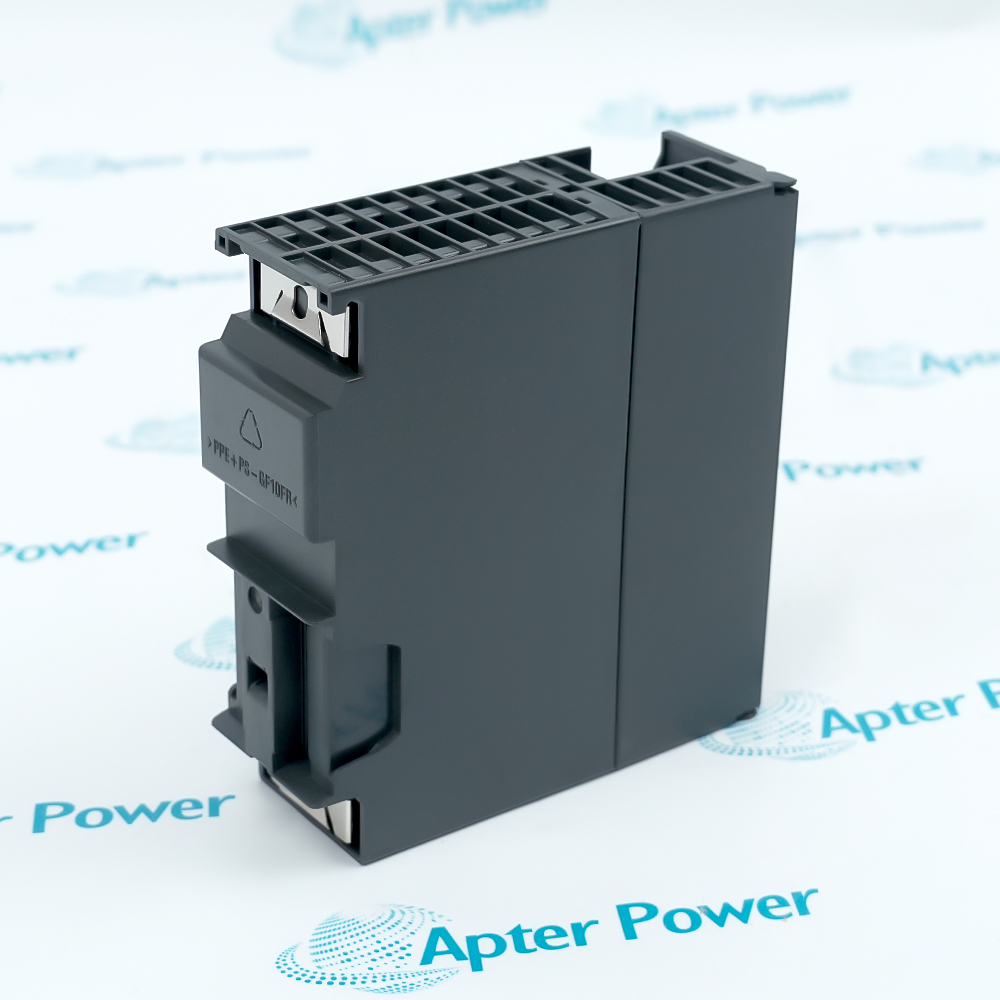

Siemens 6ES7153-2BA82-0XB0 is an outdoor IM153-2 HF interface module that links an ET 200M or DP/PA Link station to PROFIBUS DP.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 6ES7153-2BA82-0XB0
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 6ES7153-2BA82-0XB0

  • Manufacturer:
    Siemens
  • Part Number:
    6ES7153-2BA82-0XB0
  • Product Family:
    Siemens ET 200M
  • Product Type:
    IM153-2 HF PROFIBUS DP Interface Module
  • Stock:
    1
  • Rated Supply:
    24 V DC
  • Permitted Supply Range:
    20.4 to 28.8 V DC
  • Mains Buffering:
    5 ms
  • Maximum Current Consumption:
    650 mA
  • Typical Inrush Current:
    3 A
  • Backplane Output:
    5 V DC; 1.5 A maximum
  • Typical Power Loss:
    5.5 W
  • Input Address Volume:
    244 bytes
  • Output Address Volume:
    244 bytes
  • Maximum Modules per Station:
    12
  • Maximum Timestamped Inputs:
    128 per station; 32 per slot
  • Timestamp Accuracy:
    1 ms with up to 8 modules; 10 ms with 12 modules
  • Message Buffers:
    15
  • Messages per Buffer:
    20
  • PROFIBUS Data Rate:
    12 Mbit/s maximum
  • PROFIBUS Connector:
    9-pin Sub-D socket
  • Permitted Station Addresses:
    1 to 125
  • Automatic Baud Detection:
    Yes
  • SYNC and FREEZE:
    Supported
  • Direct Data Exchange:
    Supported as sender
  • Isolation Test Voltage:
    500 V
  • Operating Temperature:
    -25 to 60 °C
  • Maximum Installation Altitude:
    3,000 m
  • Configuration Software:
    STEP 7 / COM PROFIBUS / GSD-based tools
  • Weight:
    0.635 lbs (0.288 kg)
  • Estimated shipping dimensions:
    12.9x15.2x5.1cm
  • Tariff Code:
    85176200
  • Country of origin:
    Germany
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Station Capacity PROFIBUS DP Timestamping Redundancy

Features:

  • One PROFIBUS DP interface exchanges up to 244 input and 244 output bytes with the master.
  • The High Feature station supports twelve modules, redundancy, timestamping, and 64-channel modules.
  • A 24 V DC input feeds the interface electronics and the 5 V backplane supply.
Siemens 6ES7153-2BA82-0XB0 connects the ET 200M or DP/PA Link module chain to its configured PROFIBUS DP master.

Timestamp buffers in 6ES7153-2BA82-0XB0 preserve the sequence of selected digital-input changes for controller processing.

The paired-module arrangement of 6ES7153-2BA82-0XB0 supports the documented redundant station configuration.

The Siemens 6ES7153-2BA82-0XB0 IM153-2 HF PROFIBUS DP Interface Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7153-2BA82-0XB0 IM153-2 HF PROFIBUS DP Interface Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Module Chain and Address Volume

  • Module count: One interface module coordinates a maximum of twelve S7-300 modules.
  • Input volume: The PROFIBUS slave provides up to 244 bytes of input address space.
  • Output volume: The PROFIBUS slave provides up to 244 bytes of output address space.
  • Expanded modules: The station supports documented 64-channel modules and expanded HART auxiliary values.

Bus Interface and Services

  • Connector: A 9-pin Sub-D socket forms the PROFIBUS DP connection.
  • Transmission rate: The interface operates at bus speeds up to 12 Mbit/s.
  • Address range: The configured slave address can be set from 1 through 125.
  • Bus services: Automatic baud detection, SYNC, FREEZE, and direct data exchange are supported.

Event Capture and Buffering

  • Signal capacity: The station can timestamp up to 128 digital inputs, limited to 32 signals per slot.
  • Eight-module timing: Up to eight modules use the documented 1 ms timestamp accuracy.
  • Twelve-module timing: A twelve-module station uses the documented 10 ms timestamp accuracy.
  • Message storage: Fifteen buffers retain twenty timestamp messages in each buffer.

Paired Interface Operation

  • Module pairing: Two interface modules occupy the documented redundant ET 200M or link arrangement.
  • Master paths: Each interface provides the corresponding PROFIBUS DP path to the redundant master system.
  • Shared station: The paired interfaces coordinate the same downstream module or link structure.
  • Configuration match: Addressing, module order, GSD data, and redundancy parameters must match the engineered station.
Description
Siemens 6ES7153-2BA82-0XB0 is an outdoor IM153-2 High Feature interface module for SIMATIC ET 200M and DP/PA Link configurations. It connects the distributed station to PROFIBUS DP and transfers up to 244 input bytes and 244 output bytes between the DP master and the installed modules.

One 6ES7153-2BA82-0XB0 can coordinate as many as twelve S7-300 modules, including the documented 64-channel digital modules and expanded HART auxiliary values. Redundant station arrangements use paired interface modules so the ET 200M or link configuration can connect to the designated redundant DP masters.

Timestamping inside 6ES7153-2BA82-0XB0 records rising and falling signal changes with 1 ms accuracy for up to eight modules, or 10 ms accuracy when twelve modules are used. The station can timestamp as many as 128 digital signals, with no more than 32 assigned to one slot.

The 24 V DC input of 6ES7153-2BA82-0XB0 supplies the interface electronics and feeds up to 1.5 A at 5 V DC to the backplane. Its 9-pin Sub-D connection supports PROFIBUS DP rates up to 12 Mbit/s, automatic baud-rate detection, and station addresses from 1 through 125.
Alternative Names
6ES71532BA820XB0 6ES7153 2BA82 0XB0 6ES7 153 2BA82 0XB0 Siemens 6ES7153-2BA82-0XB0 6ES7153-2BA82-0XB0 IM153-2 HF 6ES7153-2BA82-OXBO 6ES7I53-2BA82-0XB0 Siemens IM153-2 6ES7153-2BA82-0XB0
Technical notes
Redundant and timestamped PROFIBUS DP operation lets 6ES7153-2BA82-0XB0 coordinate up to twelve modules in the documented station arrangement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why can 6ES7153-2BA82-0XB0 detect PROFIBUS but not exchange I/O data?
Compare the 6ES7153-2BA82-0XB0 address, GSD file, configured module order, input/output lengths, baud rate, and master parameter assignment.
How does module count change timestamp accuracy on 6ES7153-2BA82-0XB0?
The 6ES7153-2BA82-0XB0 provides 1 ms accuracy with up to eight modules and 10 ms accuracy when twelve modules are installed.
What must match when replacing one module in a redundant 6ES7153-2BA82-0XB0 pair?
Verify the 6ES7153-2BA82-0XB0 article number, station address, redundancy configuration, firmware expectations, bus module, and the complete downstream module order.
Why can some digital inputs lack timestamps on 6ES7153-2BA82-0XB0?
The 6ES7153-2BA82-0XB0 limits timestamping to 128 signals per station and 32 per slot, so the engineered assignment must remain within both limits.
How should a BF condition on 6ES7153-2BA82-0XB0 be investigated?
Check the 6ES7153-2BA82-0XB0 Sub-D connector, termination, shielding, slave address, baud detection, DP master state, and configured GSD parameters.
What limits the ET 200M chain behind 6ES7153-2BA82-0XB0?
The 6ES7153-2BA82-0XB0 station supports twelve modules and 244 input plus 244 output bytes, subject to the configured module data lengths.
