1336-RFB-30-A-4

/ 4.9
1001 reviews | Need a Specific Revision?

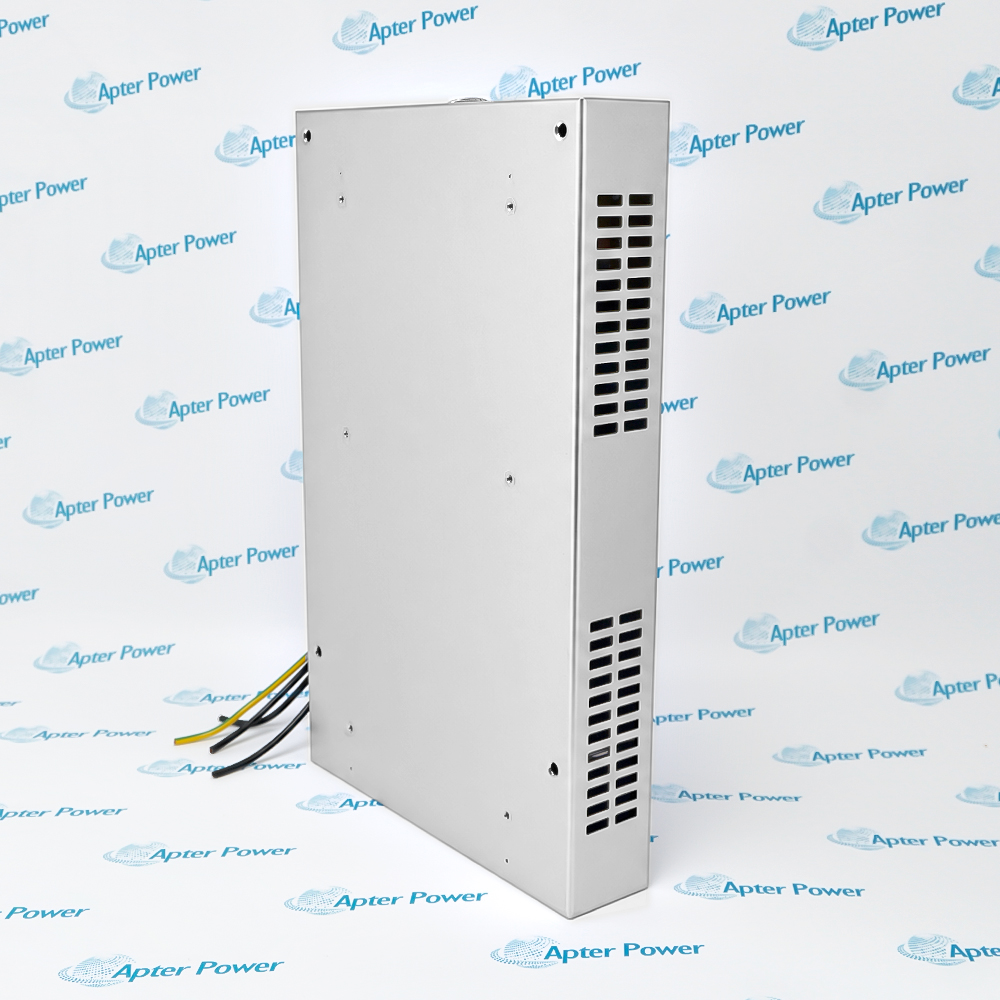

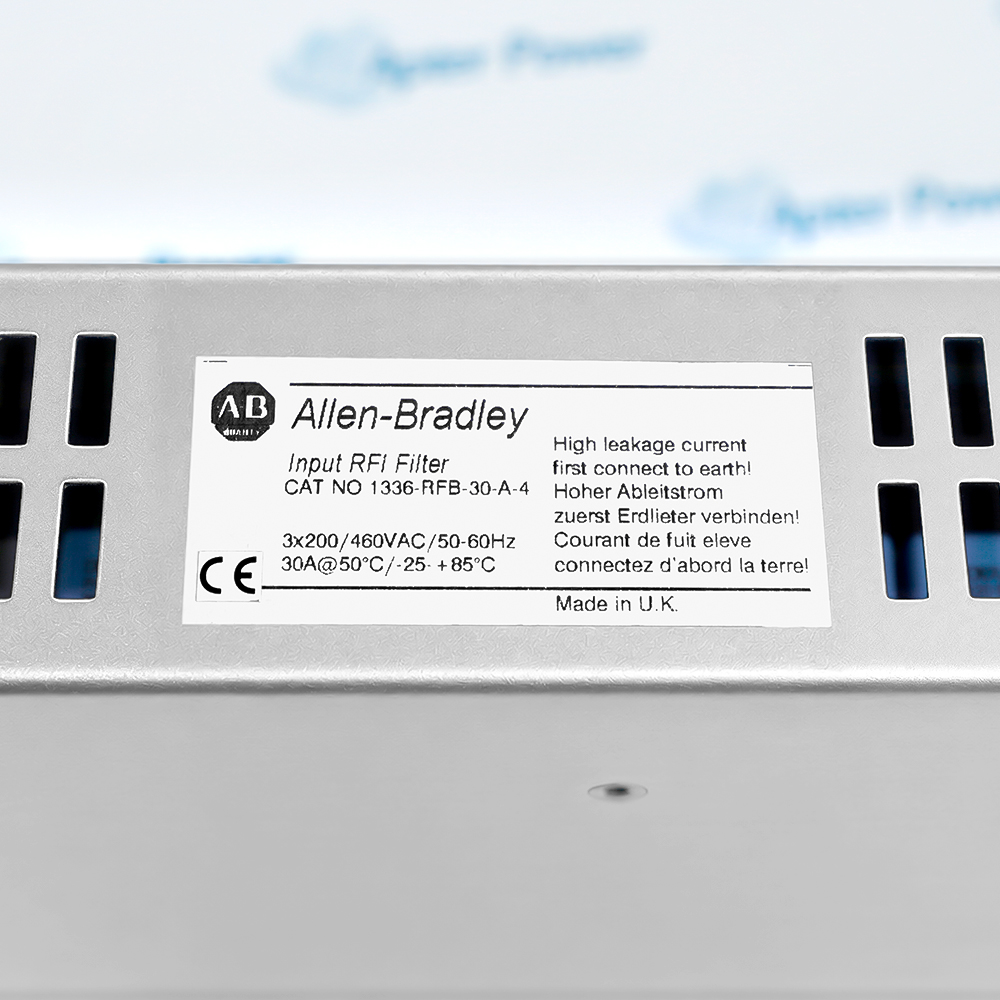

Allen-Bradley 1336-RFB-30-A-4 is an input RFI filter for compatible 1336 adjustable-frequency AC drive installations.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1336-RFB-30-A-4
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1336-RFB-30-A-4

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1336-RFB-30-A-4
  • Product Family:
    1336 Drives
  • Product Type:
    Input RFI Filter
  • Stock:
    1
  • Filter Series:
    A
  • Function:
    Reduces conducted radio-frequency emissions in main supply lines and ground wiring
  • Official Voltage Class:
    380–480 V AC
  • Power Dissipation:
    35 W
  • Compatible Drives:
    1336S/F-BRF75–BRF200; 1336E-BRF75–BRF100
  • Compatible Families:
    1336 PLUS, 1336 PLUS II, 1336 FORCE, and 1336 IMPACT
  • Dimensions:
    41.37 × 26.01 × 5.80 cm
  • Weight:
    4.9 kg
  • Tariff Code:
    8504909000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Drive Matching EMC Wiring Grounding Application
  • Reduces conducted radio-frequency emissions in the incoming supply and ground wiring
  • Officially selected for documented 380–480 V 1336 PLUS, PLUS II, FORCE, and IMPACT drive ranges
  • Panel-mounts with the drive as one assembly using the supplied Figure 2 hardware

Allen-Bradley 1336-RFB-30-A-4 is the equivalent notation for the official 1336-RFB-30-A4 Input RFI Filter designed for compatible Bulletin 1336 adjustable-frequency AC drives.

It connects between the AC supply and drive input terminals to limit conducted radio-frequency emissions into supply and grounding conductors.

Before installation or replacement, verify the official drive-selection row, -AE enclosure or EMC-kit requirement, Figure 2 mounting, supply arrangement, shielding, and protective earth connection.

Availability, condition, price, and shipping time for 1336-RFB-30-A-4 are confirmed during quotation.

Allen-Bradley 1336-RFB-30-A-4 Product Series, Service, Industry Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Use the official A4 selection row for 1336S/F-BRF75–BRF200 drives
  • Use the same selection row for 1336E-BRF75–BRF100 drives
  • Confirm an -AE enclosure option or the documented 1336x-AEx EMC Enclosure Kit
  • Connect incoming AC supply conductors to the filter before the drive input terminals
  • Route incoming supply cabling in conduit or use shielding or armor with equivalent attenuation
  • Bond cable shield or armor to the filter, drive, and motor case as documented
  • Provide a solid protective-earth connection because the filter can generate ground-leakage current
  • Use only a nominally balanced, grounded AC supply arrangement
  • Do not use the filter with a grounded-delta supply
  • EMC-focused 1336 PLUS and PLUS II drive installations within the official A4 selection range
  • EMC-focused 1336 FORCE drive installations within the official A4 selection range
  • EMC-focused 1336 IMPACT drive installations within the official A4 selection range
Description
Allen-Bradley 1336-RFB-30-A-4 is the equivalent catalogue notation for the officially documented 1336-RFB-30-A4 input RFI filter used with compatible 1336 adjustable-frequency AC drives.

The filter is installed between the incoming AC supply and the drive input terminals to reduce conducted radio-frequency emissions in the supply and ground wiring.

Confirm the official drive selection row, EMC enclosure requirement, panel-mounting arrangement, grounded supply type, cable shielding, and solid earth connection before installation.
Revisions

Revision Part #

Also known as

1336-RFB-30-A-4 Ser A
1336-RFB-30-A-4, Series A, Rev A
Alternative Names
1336-RFB-30-A-4 1336-RFB-30-A4 1336 RFB 30 A 4 1336 RFB 30 A4 1336RFB30A4 Allen-Bradley 1336-RFB-30-A-4 Allen-Bradley 1336-RFB-30-A4
Technical notes
Allen-Bradley 1336-RFB-30-A-4 equals official 1336-RFB-30-A4. Use the documented drive match and solid earth; do not install on grounded-delta supplies.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How does Allen-Bradley 1336-RFB-30-A-4 help with an EMC-related supply problem?
It reduces conducted RF emissions on the supply and ground path. It does not correct poor bonding, damaged shielding, or other sources of electrical noise.
Can Allen-Bradley 1336-RFB-30-A-4 be fitted to any 1336 drive in the panel?
No. Use the official model-to-drive selection table. Similar-looking 1336 drives can require a different filter and mounting arrangement.
Does Allen-Bradley 1336-RFB-30-A-4 replace a braking resistor or line reactor?
No. It is an EMC filter. It neither absorbs regenerative energy nor provides the impedance function of a line reactor.
Why does Allen-Bradley 1336-RFB-30-A-4 require a solid earth connection?
Filter operation can create earth-leakage current. Correct protective earthing supports personnel safety, equipment protection, and intended EMC performance.
Can Allen-Bradley 1336-RFB-30-A-4 be used on a grounded-delta supply?
No. The manufacturer specifically warns against using this RFI filter with a grounded-delta supply arrangement.
Why must motor and supply cables be shielded or armored with Allen-Bradley 1336-RFB-30-A-4?
Unshielded cable runs can radiate interference and undermine the filter’s benefit. Bond shields or armor at the documented points.
What installation arrangement matters most for Allen-Bradley 1336-RFB-30-A-4?
Mount the filter and drive as one assembly using the supplied hardware and the official Figure 2 layout; do not substitute an unverified panel arrangement.
