1394C-SJT10-D

/ 4.9
1001 reviews | Need a Specific Revision?

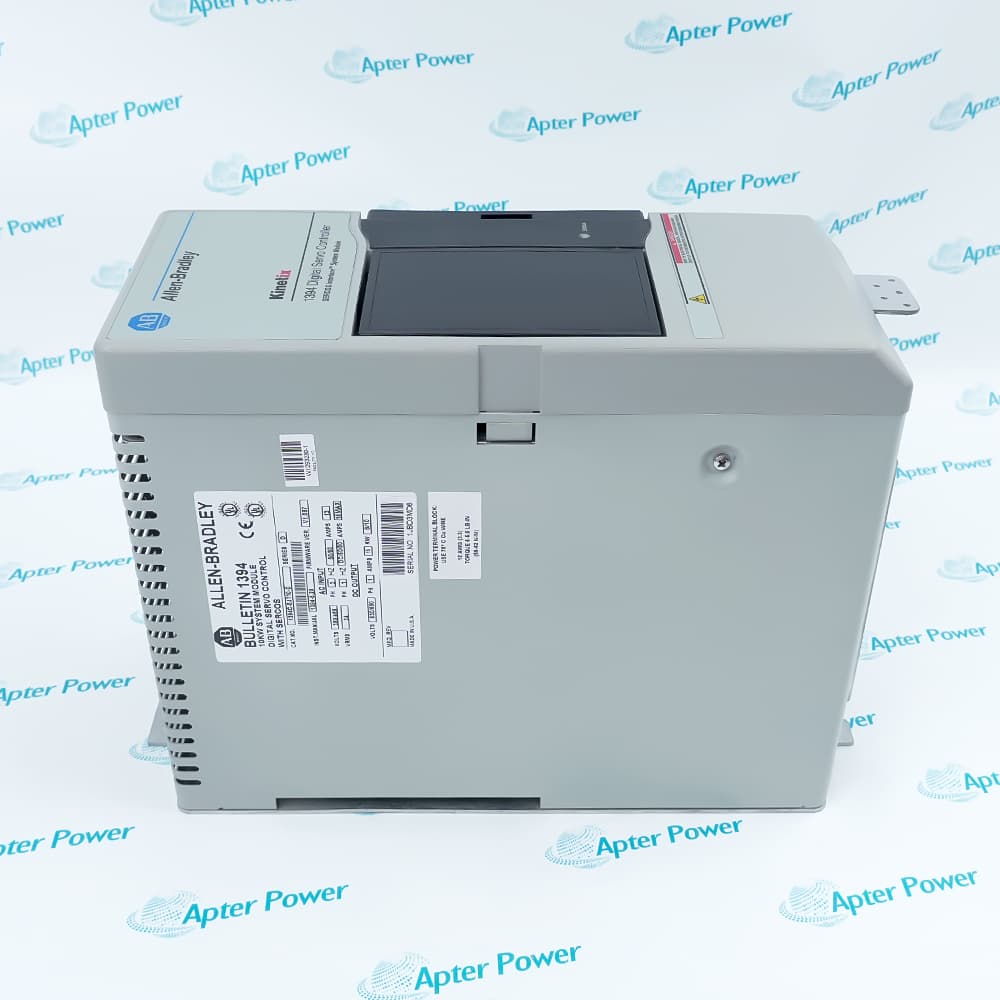

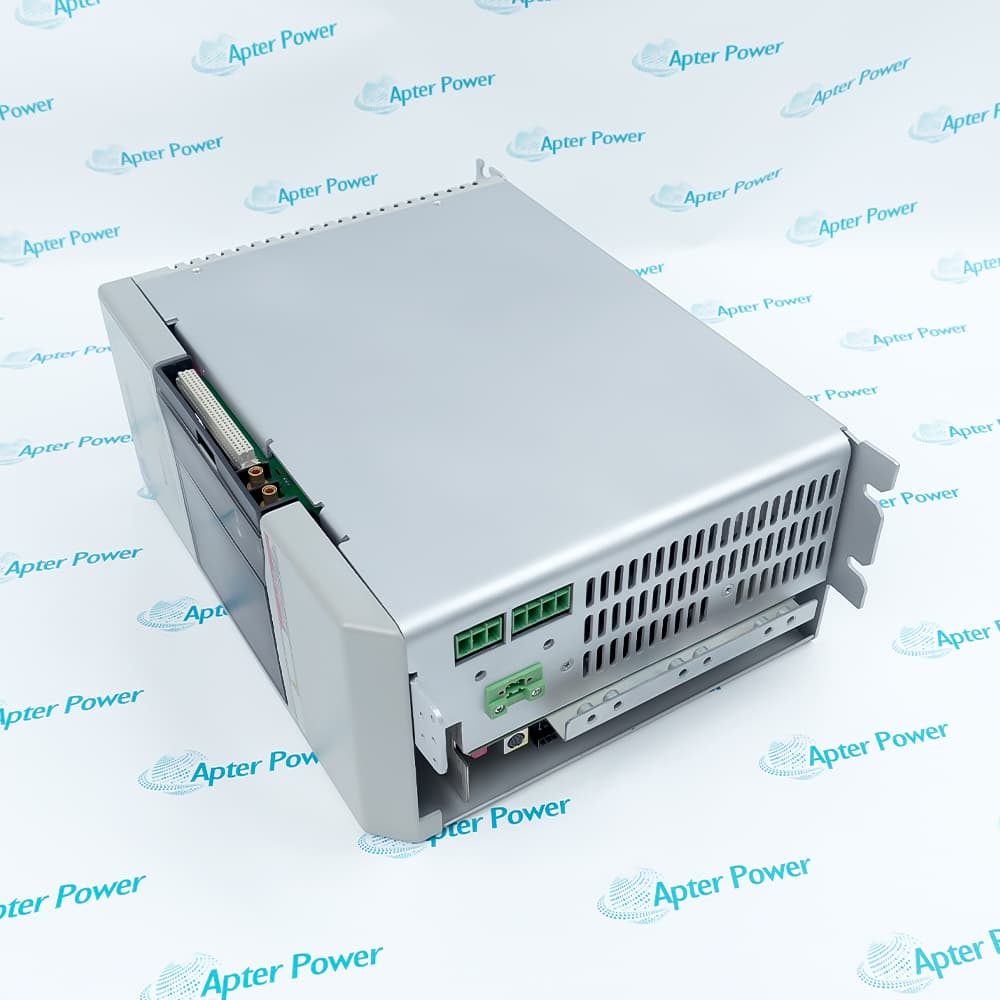

Allen-Bradley 1394C-SJT10-D is a Series C 10 kW SERCOS multi-axis servo system module that supplies and coordinates as many as four compatible Bulletin 1394 axis modules.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1394C-SJT10-D
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1394C-SJT10-D

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1394C-SJT10-D
  • Product Family:
    Kinetix Servo Drive
  • Product Type:
    10 kW SERCOS Multi-Axis Servo System Module
  • Stock:
    1
  • Rated AC input:
    324 to 528 VAC, three-phase, 50/60 Hz
  • AC input current:
    13.0 A rms
  • Peak inrush current:
    8 A
  • Line-loss ride-through:
    20 ms
  • Nominal bus output:
    530/680 VDC
  • Continuous power output:
    8/10 kW
  • Peak power output:
    28 kW
  • Efficiency:
    99%
  • Continuous output current:
    14.73 A DC
  • Intermittent output current:
    29.46 A DC
  • Capacitance:
    345 µF
  • Inductance:
    750 µH
  • Internal shunt:
    200 W continuous; 40,000 W peak for 2 s maximum
  • Dimensions:
    15.0 × 40.0 × 28.0 cm
  • Recommended system fuses:
    Bussmann KTK-R-30 or LPJ-SP 30, or equivalent
  • Weight:
    10.68 kg
  • Tariff Code:
    8503009090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals System Matching Power & Protection SERCOS Commissioning Application
  • Use 1394C-SJT10-D only as the documented Series C SERCOS system module
  • Match every axis module, motor, feedback cable, line filter and shunt to the approved four-axis design
  • Preserve SERCOS addressing, axis parameters, protection settings and interlocks before removal

1394C-SJT10-D is an Allen-Bradley 10 kW SERCOS multi-axis servo system module for the Bulletin 1394 SERCOS Interface System platform.

Allen-Bradley 1394C-SJT10-D is a Series C 10 kW SERCOS multi-axis servo system module that supplies and coordinates as many as four compatible Bulletin 1394 axis modules. 1394C-SJT10-D is the complete system-module catalog number; compatible axis modules, SERCOS controller hardware, line filter, shunt hardware, motors and cables are separate products.

Before installation or replacement, verify the complete nameplate, compatible companion hardware, wiring or network design, saved configuration and commissioning plan.

Availability, condition, price, and shipping time for 1394C-SJT10-D are confirmed during quotation.

Allen-Bradley 1394C-SJT10-D 10 kW SERCOS Multi-Axis Servo System Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Pair only documented Bulletin 1394 axis modules with the common DC bus
  • Match each axis module to its motor, feedback and brake hardware
  • Use the supported ControlLogix or SoftLogix SERCOS interface and project
  • Verify the three-phase source, line filter, fuses and input contactor
  • Check total continuous and peak demand for all installed axes
  • Calculate regenerative energy before relying on the internal shunt
  • Verify fiber direction, node addresses, ring rate and optical continuity
  • Confirm motor identity, feedback polarity, travel limits and safe direction
  • Prove interlocks, controlled stopping and diagnostic recovery for every axis
  • Four-axis coordinated machine motion under a ControlLogix SERCOS controller
  • Multi-axis packaging, converting or material-handling systems using compatible 460 V servo motors
  • Legacy Bulletin 1394 SERCOS motion systems using MP-Series, 1326AB or 1326AS servo motors
Description
1394C-SJT10-D is an Allen-Bradley 10 kW SERCOS multi-axis servo system module for the Bulletin 1394 SERCOS Interface System platform.

Allen-Bradley 1394C-SJT10-D is a Series C 10 kW SERCOS multi-axis servo system module that supplies and coordinates as many as four compatible Bulletin 1394 axis modules. 1394C-SJT10-D is the complete system-module catalog number; compatible axis modules, SERCOS controller hardware, line filter, shunt hardware, motors and cables are separate products.

Before installation or replacement, confirm the complete 1394C-SJT10-D identity, compatible hardware, wiring, saved configuration, software release and system requirements.
Revisions

Revision Part #

Also known as

1394C-SJT10-D Ser C
1394C-SJT10-D/C, Series C, Rev C
Alternative Names
1394C-SJT10-D 1394C SJT10 D 1394CSJT10D Allen-Bradley 1394C-SJT10-D Rockwell Automation 1394C-SJT10-D 1394C-SJT10-D/C 1394C-SJT10-D Series C
Technical notes
1394C-SJT10-D is the Series C 10 kW SERCOS system module, not an axis module or accessory. Match the four-axis power design, protection, shunt duty and Logix/SERCOS configuration before replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can 1394C-SJT10-D replace an earlier 1394-SJT10-D without engineering changes?
No. Confirm Series C system-module requirements, SERCOS architecture, contactor and protection design, axis-module compatibility, connector layout and the approved machine project before replacement.
Which axis modules and motors can be paired with 1394C-SJT10-D?
Use only combinations documented for the 1394 SERCOS system. Match bus voltage, axis-module power, motor family, feedback, brake wiring and the Logix motion configuration for every axis.
Can 1394C-SJT10-D be commissioned without a local HIM?
Yes. This catalog is the SERCOS system module without a HIM; setup and diagnostics are performed through the supported ControlLogix or SoftLogix SERCOS interface and Logix software.
When does 1394C-SJT10-D need an external shunt?
Calculate the regenerative-energy duty for the actual motors, inertia and move profile. Use the documented external shunt when the internal shunt's continuous or peak capability would be exceeded.
Why might the SERCOS ring fail to phase up after installing 1394C-SJT10-D?
Check transmit/receive fiber direction, ring continuity, node address, data rate, optical power, controller module configuration, firmware compatibility and the first fault reported by each axis.
What project data should be preserved before removing 1394C-SJT10-D?
Preserve the Logix project, SERCOS node mapping, axis parameters, motor and feedback identities, travel limits, interlocks, shunt design, contactor sequence and active diagnostic history.
How should 1394C-SJT10-D be validated before returning a machine to service?
Verify protective earth, line protection, contactor and DC-bus behavior first; then phase the ring, test each axis at reduced risk, confirm direction and feedback, and prove limits, interlocks and emergency stopping.
