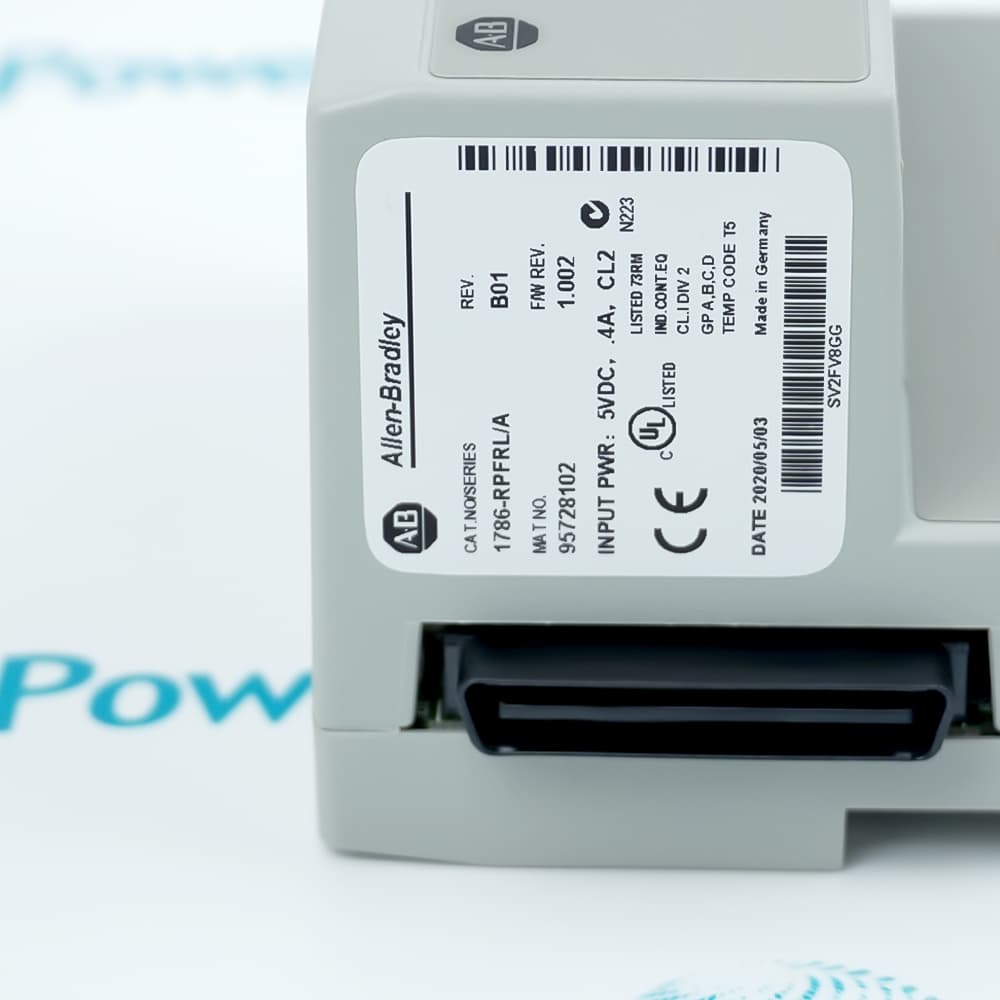

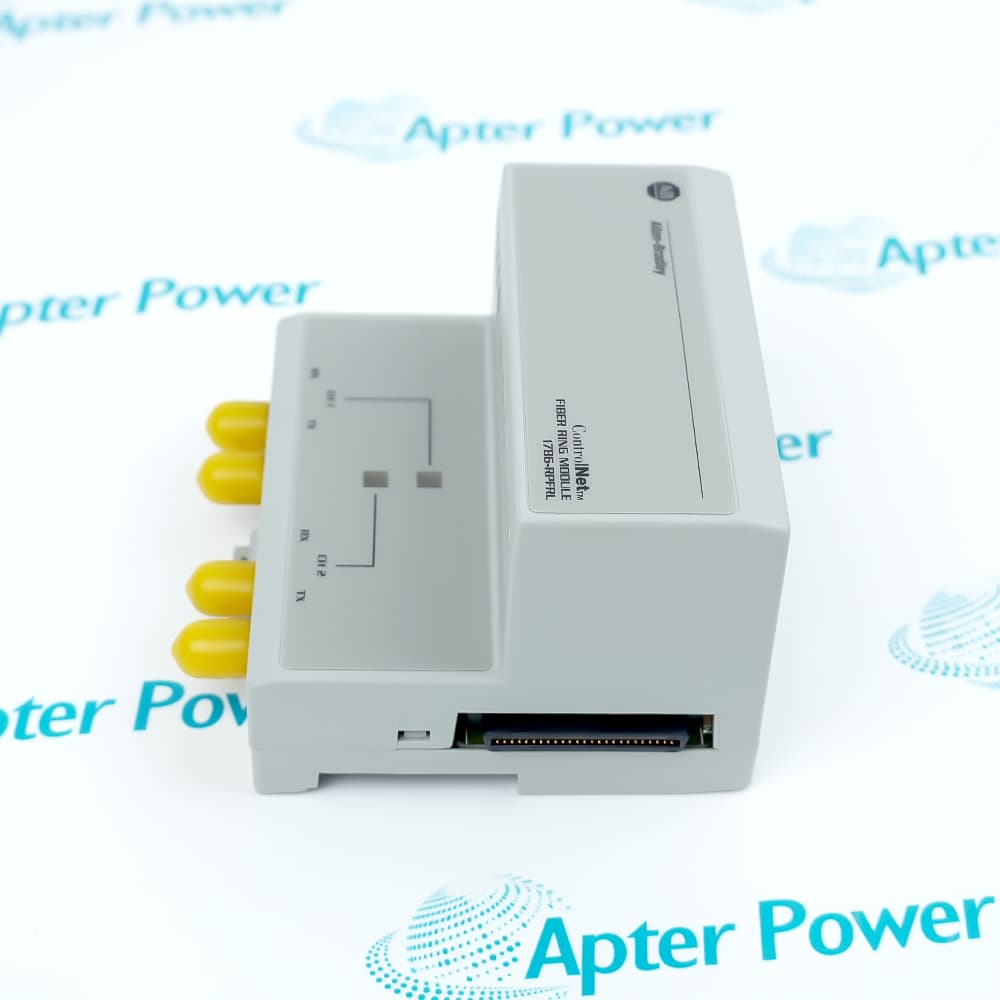

Allen-Bradley 1786-RPFRL
Allen-Bradley 1786-RPFRL
Allen-Bradley 1786-RPFRL
Allen-Bradley 1786-RPFRL
Allen-Bradley 1786-RPFRL
Allen-Bradley 1786-RPFRL
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com
  • Lifecycle status

    Discontinued
    Discontinued date: 2022-09-30
    Replacement category: Engineering Replacement

1786-RPFRL

/ 4.9
1001 reviews | Need a Specific Revision?
Allen-Bradley 1786-RPFRL is a two-channel ControlNet fiber-ring repeater for 62.5/125 µm multimode fiber with a 15 dB optical budget.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1786-RPFRL
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1786-RPFRL

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1786-RPFRL
  • Product Family:
    1786 Repeaters
  • Product Type:
    Long-Distance ControlNet Fiber Ring Repeater Module
  • Stock:
    1
  • Fiber Topology:
    Redundant optical ring
  • Fiber Channels:
    2
  • Fiber Type:
    62.5/125 µm multimode
  • Communication Rate:
    5 Mbps
  • Required Adapter:
    1786-RPA/B
  • Current Load:
    570 mA at 5 V DC maximum
  • Power Dissipation:
    2.8 W
  • Relay Rating:
    900 mA at 30 V DC, Class 2 resistive
  • Operating Temperature:
    0°C to 60°C
  • Storage Temperature:
    -40°C to 85°C
  • Relative Humidity:
    5% to 95%, non-condensing
  • Dimensions:
    10.5 × 11.5 × 7 cm
  • Maximum ControlNet Network Length:
    20 km or less
  • Ring Member Modules:
    20 maximum
  • Weight:
    0.18 kg
  • Tariff Code:
    8517623990
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Ring Layout Optical Link Return to Service Application
  • Two-channel long-distance ControlNet fiber-ring repeater
  • Works with the 1786-RPA/B repeater adapter
  • Supports 62.5/125 µm multimode fiber

1786-RPFRL carries ControlNet traffic around a redundant optical ring rather than extending a single radial fiber path.

Its two channels maintain the ring path while local indicators and a relay expose conditions needed during commissioning and fault isolation.

Correct fiber polarity and distance budgeting are central to a successful replacement because optical continuity cannot be inferred from physical connector engagement alone.

Availability, condition, price, and shipping time for 1786-RPFRL are confirmed during quotation.

Allen-Bradley 1786-RPFRL Long-Distance ControlNet Fiber Ring Repeater Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Install no more than two 1786-RPFRL/B modules on one 1786-RPA/B adapter
  • Limit a fiber ring to 20 member modules and the complete ControlNet network to 20 km or less
  • Route the two optical channels separately and preserve the documented RX-to-TX ring direction
  • Use 62.5/125 µm multimode fiber at 1300 nm with ST connectors
  • Keep total connector, splice and fiber loss below the 15 dB optical budget
  • Use plastic or ceramic ST connectors; do not install metal ST connectors
  • Set SMAX at least one address above the highest scheduled ControlNet node
  • Verify both channel LEDs and the external fault-relay response during a controlled link interruption
  • Confirm ring recovery without exceeding the 20-member or 20 km network limits
  • Long-distance ControlNet segment extension
  • Redundant fiber-ring communication
  • EMI-resistant links between separated industrial areas
Description
Allen-Bradley 1786-RPFRL extends ControlNet through a redundant long-distance fiber ring and operates with a 1786-RPA/B repeater adapter.

The module provides two optical channels for 62.5/125 µm multimode fiber, channel activity indication, and a relay contact used to report ring or module conditions to external monitoring circuits.

A replacement must preserve the ring direction, paired fiber paths, connector type, adapter placement, optical distance budget, relay wiring, and the order of adjacent repeater modules.
Revisions

Revision Part #

Also known as

1786-RPFRL/B
1786-RPFRL Series B
Alternative Names
1786-RPFRL Allen-Bradley 1786-RPFRL Rockwell Automation 1786-RPFRL 1786-RPFRL/B Allen-Bradley 1786-RPFRL/B Allen-Bradley ControlNet 1786-RPFRL
Technical notes
1786-RPFRL/B requires a 1786-RPA/B adapter, 62.5/125 µm multimode fiber, plastic or ceramic ST connectors and a verified 15 dB optical-loss budget; use no more than two ring repeaters per adapter, 20 members per ring and 20 km for the complete ControlNet network.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What must remain unchanged when replacing Allen-Bradley 1786-RPFRL in a live ring design?
Preserve the two fiber-channel paths, ring direction, multimode fiber type, connector assignments, relay wiring, and physical position beside the 1786-RPA/B adapter.
Can Allen-Bradley 1786-RPFRL be installed without 1786-RPA/B?
No. The official architecture requires the repeater adapter to power and connect the fiber-ring repeater module.
Is single-mode fiber suitable for Allen-Bradley 1786-RPFRL?
No. Rockwell Automation specifies 62.5/125 µm multimode fiber for this model; use the catalog specifically intended for other fiber types and distances.
What can cause channel activity to disappear on Allen-Bradley 1786-RPFRL?
Check fiber polarity, connector seating and cleanliness, damaged fiber, excessive optical loss, the paired repeater, adapter power, and ring continuity.
How should Allen-Bradley 1786-RPFRL be positioned with other repeater modules?
Follow the official module-ordering rules at the 1786-RPA/B adapter, especially when copper or extra-long-distance repeater modules share the assembly.
What should be proven after servicing Allen-Bradley 1786-RPFRL?
Verify both optical channels, ring recovery behavior, channel indicators, external relay operation, and stable ControlNet communication before closing the maintenance window.
Why can Allen-Bradley 1786-RPFRL restore one optical channel without restoring ring redundancy?
Check both transmit and receive paths, channel polarity, ring direction, connector cleanliness, optical loss, the partner repeater, and the 1786-RPA/B assembly rather than treating one active channel as a complete ring.
