    Lifecycle: Discontinued. Date: 2024-12-31. Engineering replacement review is required.

1756-DHRIO

/ 4.9
1001 reviews | Need a Specific Revision?

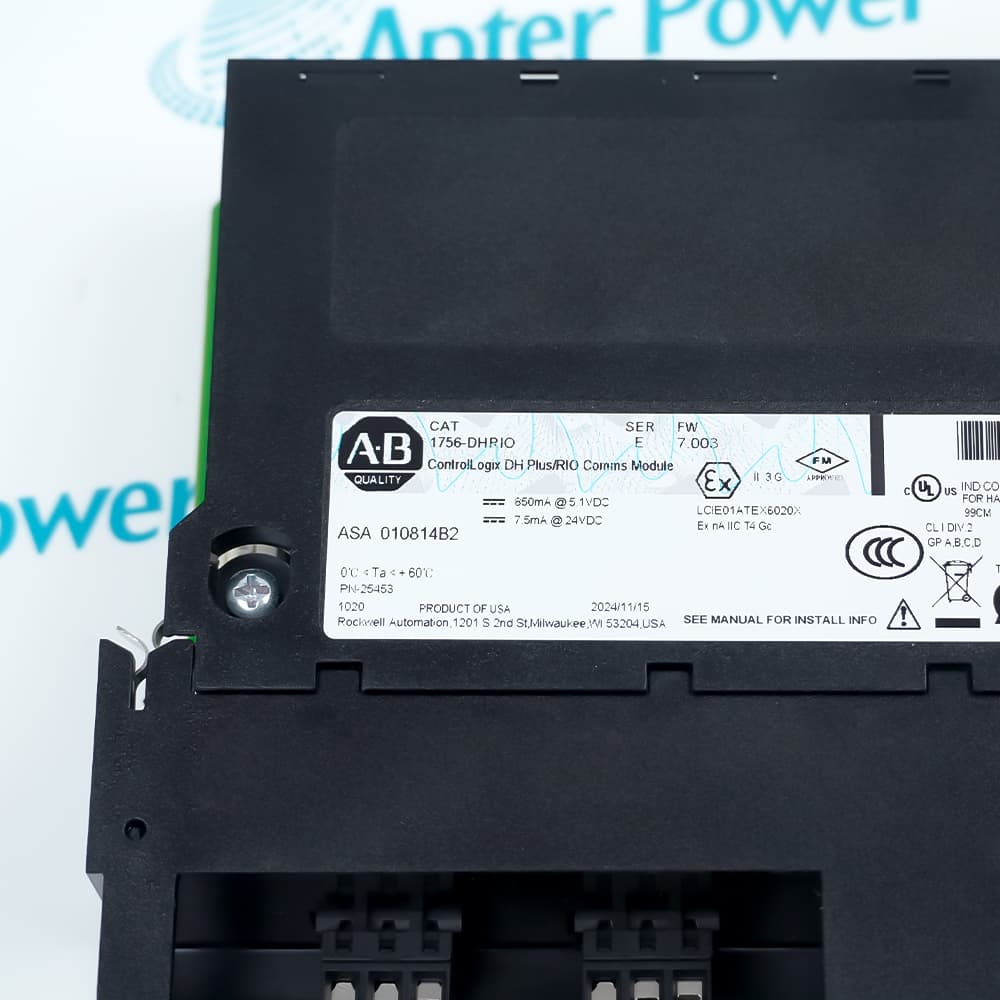

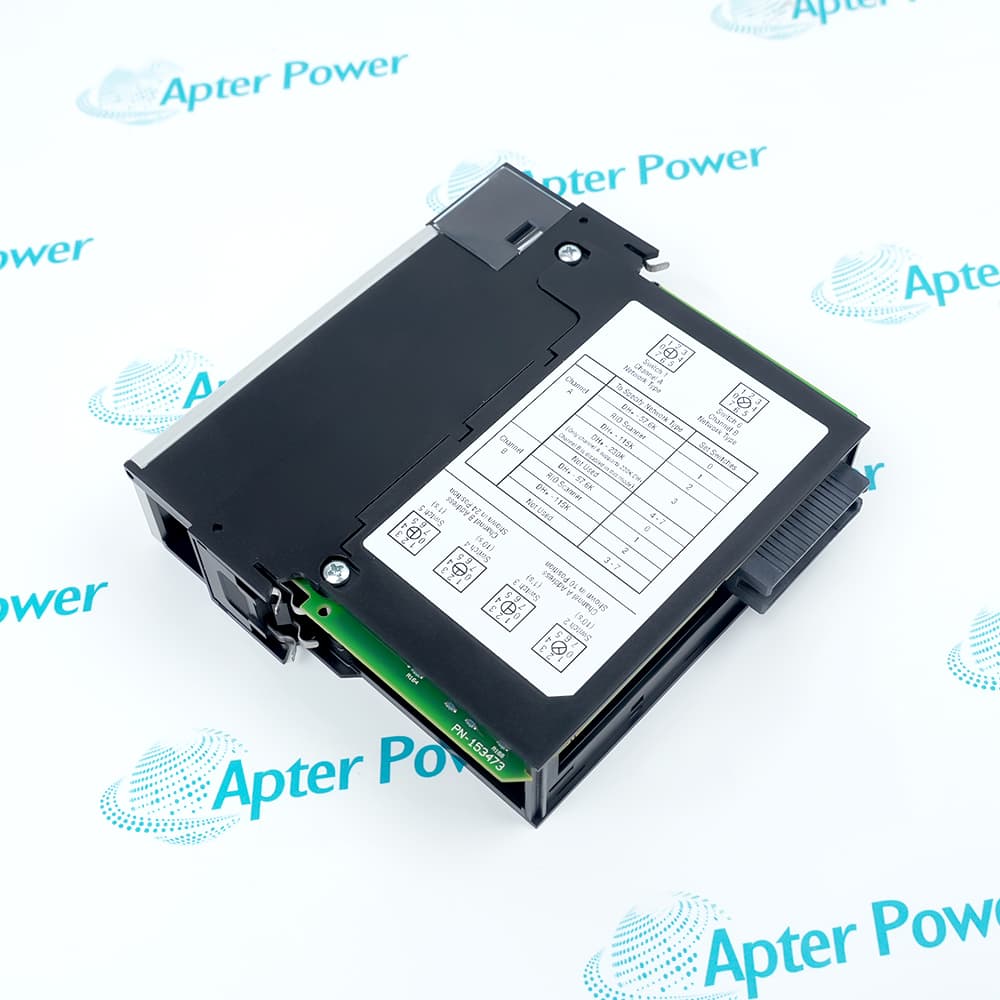

Allen-Bradley 1756-DHRIO is a discontinued two-channel ControlLogix module for Data Highway Plus messaging and Remote I/O scanner service.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1756-DHRIO
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1756-DHRIO

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1756-DHRIO
  • Product Family:
    ControlLogix
  • Product Type:
    ControlLogix Data Highway Plus and Remote I/O Communication Module
  • Stock:
    1
  • Channels:
    2, individually selectable for DH+ or Remote I/O
  • Communication rates:
    57.6, 115.2 or 230.4 Kbps
  • Remote I/O role:
    Scanner only
  • Remote I/O capacity:
    32 logical rack connections and 16 block-transfer connections per channel
  • Maximum connections:
    32
  • Current draw:
    850 mA at 5.1 V DC; 1.7 mA at 24 V DC
  • Power dissipation:
    4.5 W
  • Thermal dissipation:
    15.4 BTU/h
  • Slot width and location:
    1 slot; chassis-based, any slot
  • Compatible chassis:
    1756-A4, A7, A10, A13 and A17
  • Network cable:
    Belden 9463, 20 AWG copper twinaxial
  • Operating temperature:
    0 to +60 °C
  • Storage temperature:
    -40 to +85 °C
  • Relative humidity:
    5 to 95%, noncondensing
  • Enclosure type:
    Open-style
  • Weight:
    0.3 kg
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals DH+ Routing Remote I/O Series E Migration Application
  • Assign each channel explicitly as DH+ or Remote I/O before reconnecting the network
  • Preserve routing tables, link IDs, node addresses, rack assignments and communication rates
  • Review Series E firmware and electronic keying when replacing an earlier module

1756-DHRIO is an Allen-Bradley ControlLogix DH+ and Remote I/O communication module.

Its two channels can be configured independently; DH+ supports messaging, while Remote I/O operation is scanner-only for digital and block-transfer data.

Confirm firmware, routing, keying, cable polarity, network termination and controller project compatibility before restoring communications.

Availability, condition, price, and shipping time for 1756-DHRIO are confirmed during quotation.

Allen-Bradley 1756-DHRIO ControlLogix Communication Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Preserve local and remote link IDs and controller message paths
  • Restore node addresses and channel communication rates
  • Remember that Channel A and the programming port are not isolated from each other
  • Configure 1756-DHRIO as a scanner, not as an adapter
  • Restore logical rack, starting-group and block-transfer assignments
  • Match Belden 9463 polarity, communication rate and network termination
  • Do not downgrade Series E firmware 7.x to version 6.x
  • Update EDS and controller-software support before installation
  • Handle electronic keying and routing-table restoration according to the network role
  • 1756-DHRIO Data Highway Plus messaging on either independently configured channel
  • 1756-DHRIO Remote I/O scanner operation with up to 32 logical racks and 16 block transfers per channel
  • Mixed service with one 1756-DHRIO channel assigned to DH+ and the other assigned to Remote I/O
Description
1756-DHRIO provides two channels that can be configured individually for Data Highway Plus or Remote I/O communication. Rockwell Automation specifies 57.6, 115.2, and 230.4 Kbps rates for the module.

1756-DHRIO supports DH+ messaging and Remote I/O scanner operation for installed legacy architectures. Each channel may carry different addressing, rack, scan, and cabling requirements that must be documented independently.

1756-DHRIO was officially discontinued by Rockwell Automation on December 31, 2024. Replacement planning must preserve both channel modes, node or rack data, controller project, block-transfer requirements, firmware, cable records, and the manufacturer engineering-replacement guidance.
Revisions

Revision Part #

Also known as

1756-DHRIO Ser A
1756-DHRIO/A, Series A, Rev A
1756-DHRIO Ser B
1756-DHRIO/B, Series B, Rev B
1756-DHRIO Ser C
1756-DHRIO/C, Series C, Rev C
1756-DHRIO Ser D
1756-DHRIO/D, Series D, Rev D
1756-DHRIO Ser E
1756-DHRIO/E, Series E, Rev E
Alternative Names
1756-DHRIO 1756 DHRIO Allen-Bradley 1756-DHRIO Allen Bradley 1756-DHRIO Rockwell Automation 1756-DHRIO ControlLogix 1756-DHRIO 1756-DHRIO/E
Technical notes
1756-DHRIO is a two-channel ControlLogix DH+/RIO module whose Remote I/O function is scanner-only. Series E firmware 7.x is not backward-compatible with 6.x, so routing, keying and project compatibility must be reviewed.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can 1756-DHRIO operate as a Remote I/O adapter?
No. Rockwell Automation specifies 1756-DHRIO as a Remote I/O scanner only. Use hardware documented for the adapter role when a ControlLogix chassis must appear as an RIO adapter.
Can one 1756-DHRIO channel run DH+ while the other runs Remote I/O?
Yes. The two ports are independently selectable. Configure each channel's role and communication rate explicitly and document the cable and node or rack assignments before changing the module.
Can Series E firmware 7.x be downgraded to version 6.x to match an old spare?
No. Rockwell Automation states that Series E 7.x firmware is not backward-compatible with 6.x. Plan the replacement around the approved controller software, EDS files and routing configuration.
Can a Series E 1756-DHRIO replace an older Series B, C or D module?
It can be used as a replacement when the project and electronic keying are handled correctly. Preserve DH+ routing tables; for Remote I/O applications use compatible or disabled keying as directed by the official release information.
Why can a DH+ node appear online while messages still fail through 1756-DHRIO?
Check the module routing table, local and remote link IDs, destination node, controller message path and whether Channel A's programming port shares the expected path. A healthy physical link does not prove the inter-network route is correct.
Why can Remote I/O adapters disappear after replacing 1756-DHRIO?
Verify that the channel is configured as RIO scanner, the communication rate matches every adapter, rack sizes and starting groups are restored, Belden 9463 polarity is correct and both end terminations match the network design.
Is the local programming port isolated from both 1756-DHRIO network channels?
No. The official specifications state there is no isolation between Channel A and the programming port. Account for that relationship when troubleshooting grounds, cabling and service connections.
