1771-IFEK

/ 4.9
1001 reviews | Need a Specific Revision?

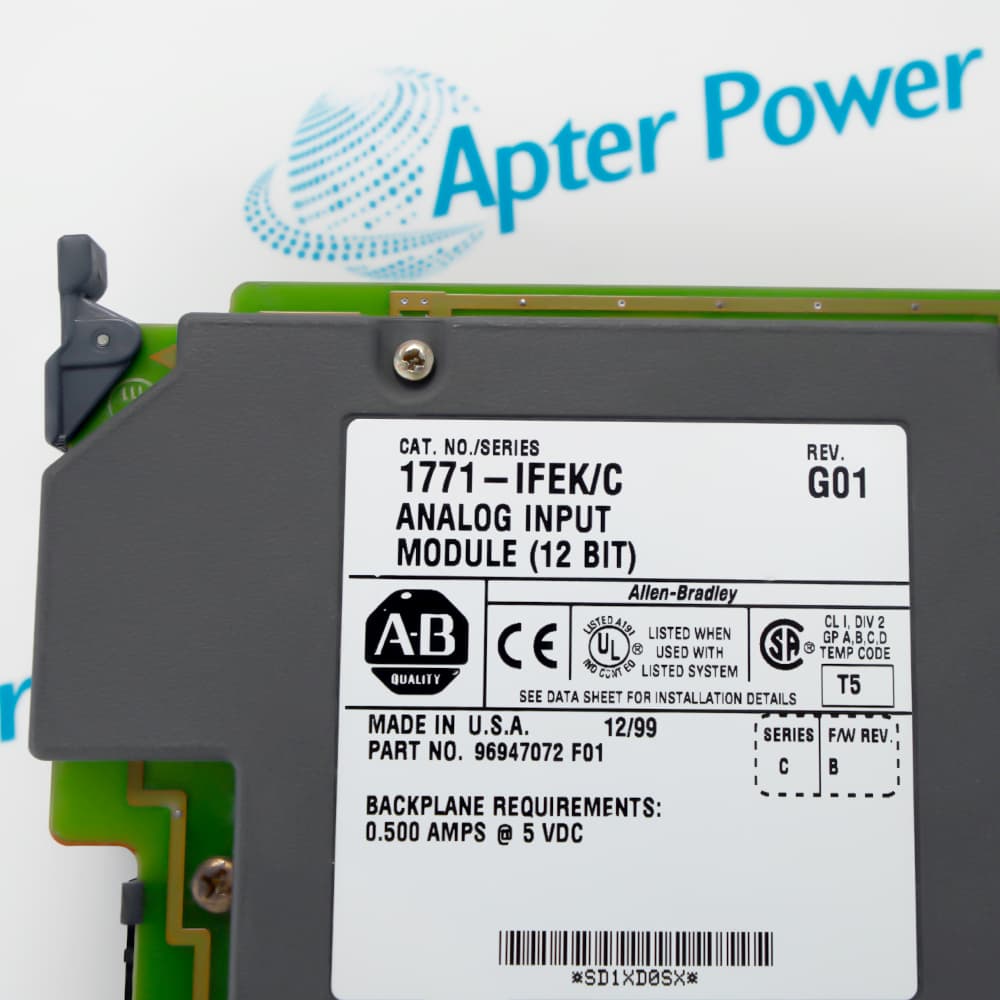

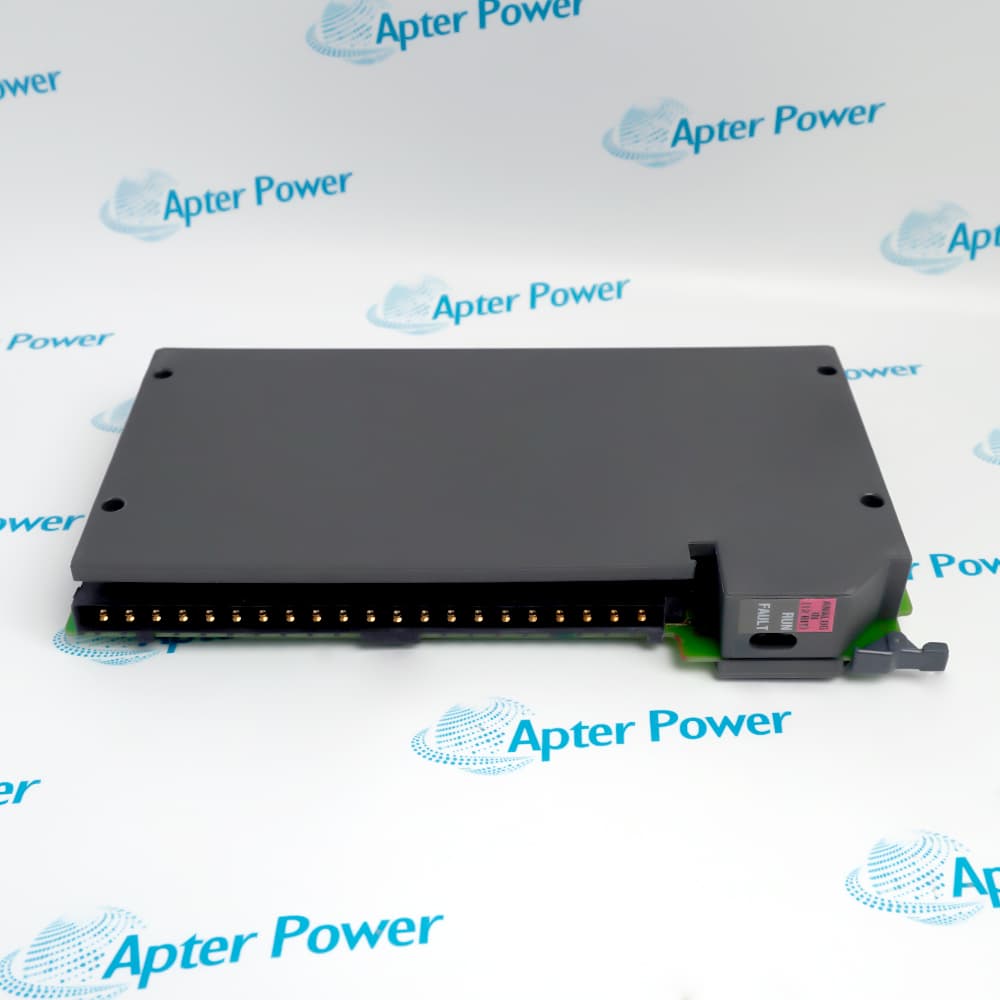

Allen-Bradley 1771-IFEK is the conformally coated catalog variant of the 1771-IFE analog input module for PLC-5 and 1771 I/O systems.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1771-IFEK
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1771-IFEK

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1771-IFEK
  • Product Family:
    PLC-5
  • Product Type:
    Conformally Coated Analog Input Module
  • Stock:
    1
  • Protective Construction:
    Conformal coating identified by the K suffix
  • Input Capacity:
    8 differential or 16 single-ended channels
  • Voltage Input Ranges:
    1 to 5 V, 0 to 5 V, -5 to +5 V, -10 to +10 V, and 0 to 10 V
  • Current Input Ranges:
    4 to 20 mA, 0 to 20 mA, and -20 to +20 mA
  • Resolution:
    12-bit or 12-bit plus sign, depending on range
  • Data Transfer:
    PLC block transfer
  • Chassis Occupancy:
    One 1771 I/O slot
  • External Module Power:
    Not required
  • Backplane Current:
    Approximately 500 mA at 5 V DC
  • Field-Wiring Arm:
    1771-WG
  • Operating Temperature:
    0 to 60°C
  • Storage Temperature:
    -40 to 85°C
  • Relative Humidity:
    5 to 95%, non-condensing
  • Tariff Code:
    8538900000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Signal Selection Block Transfer Installation Application
  • Supports eight differential or sixteen single-ended analog input channels
  • Accepts configurable voltage or current signals and exchanges data through block transfers
  • Receives module operating power from the 1771 chassis backplane

1771-IFEK configuration begins with selecting the required differential or single-ended channel arrangement and matching each field signal to the documented voltage or current range.

Confirm the Series C hardware, 1771-WG field-wiring arm, chassis slot and addressing, signal polarity, grounding method, scaling, and PLC-5 block-transfer setup before commissioning the module.

Retain the complete K-suffix catalog number when the installation requires the conformally coated version; substituting a standard 1771-IFE may not provide the same environmental construction.

Availability, condition, price, and shipping time for 1771-IFEK are confirmed during quotation.

Allen-Bradley 1771-IFEK Conformally Coated Analog Input Module Manuals, Product Family, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Configure the module for differential or single-ended input wiring
  • Select the documented voltage or current range for each application
  • Retain the saved scaling and channel configuration during replacement
  • Input data and configuration use PLC block-transfer operations
  • The processor program must address the correct rack, group, and slot
  • Verify block-transfer lengths and control words before commissioning
  • Use the documented 1771-WG field-wiring arm
  • Confirm that the replacement catalog number retains the K coating suffix
  • Remove power and verify grounding and terminal assignments before insertion
  • Coated analog input service in industrial control cabinets
  • Mixed voltage and current acquisition in PLC-5 systems
  • Maintenance replacement where contaminant and humidity protection is specified
Description
1771-IFEK is the conformally coated catalog variant of the Allen-Bradley 1771-IFE analog input module for supported PLC-5 and 1771 I/O installations.

Based on the Series C 1771-IFE platform, the module accommodates eight differential or sixteen single-ended analog inputs. Supported channel configurations include documented voltage and current signal ranges used for process measurement.

Input configuration and measurement data are exchanged with the controller through block transfers. The module receives its operating power from the 1771 chassis backplane and uses the specified 1771-WG field-wiring arm for signal connections.

Before installing or replacing a 1771-IFEK, confirm the complete K-suffix catalog number, hardware series, channel arrangement, signal type and range, wiring-arm compatibility, chassis slot and addressing, grounding method, scaling, and existing PLC-5 block-transfer configuration.
Alternative Names
1771-IFEK 1771 IFEK 1771IFEK Allen-Bradley 1771-IFEK Allen Bradley 1771-IFEK Rockwell Automation 1771-IFEK PLC-5 1771-IFEK
Technical notes
1771-IFEK uses conformal-coated Series C hardware; retain the 1771-WG wiring arm and restore the original input-mode and block-transfer settings to avoid configuration errors.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
When is the conformal coating on 1771-IFEK important for a replacement decision?
The K-suffix coating is relevant when the installed module was selected for added protection against contaminants or humidity. Confirm the original environmental requirement instead of substituting an uncoated module by appearance alone.
Can 1771-IFEK be replaced by a standard 1771-IFE?
Do not treat the catalog numbers as automatically interchangeable. Confirm that the application still requires conformal coating and that the Series C input configuration, wiring arm, range, and approvals match.
Can 1771-IFEK reuse an installed 1771-WG field-wiring arm?
It can be retained only after the arm, terminal assignments, channel wiring, connector condition, and chassis keying are verified against the Series C installation documentation.
What PLC changes may be required when installing 1771-IFEK in a different slot?
Moving the module changes its rack, group, or slot relationship. Update and verify the block-transfer instructions, data addresses, channel configuration, and any logic that references its status or input words.
What should be checked if 1771-IFEK produces unstable analog readings after installation?
Review signal range selection, differential or single-ended wiring, shielding, grounding, source impedance, terminal condition, and restored block-transfer configuration before replacing the module again.
Does 1771-IFEK require a separate external module power supply?
The underlying Series C module uses chassis-backplane power rather than a separate module supply. Verify available backplane capacity and keep transmitter or field-loop supplies distinct from module operating power.
What must be preserved before replacing 1771-IFEK?
Save the block-transfer setup, differential or single-ended selection, channel ranges, scaling, alarm behavior, slot assignment, and field wiring, and verify that the replacement retains the required K coating suffix.
