1771-IL

/ 4.9
1001 reviews | Need a Specific Revision?

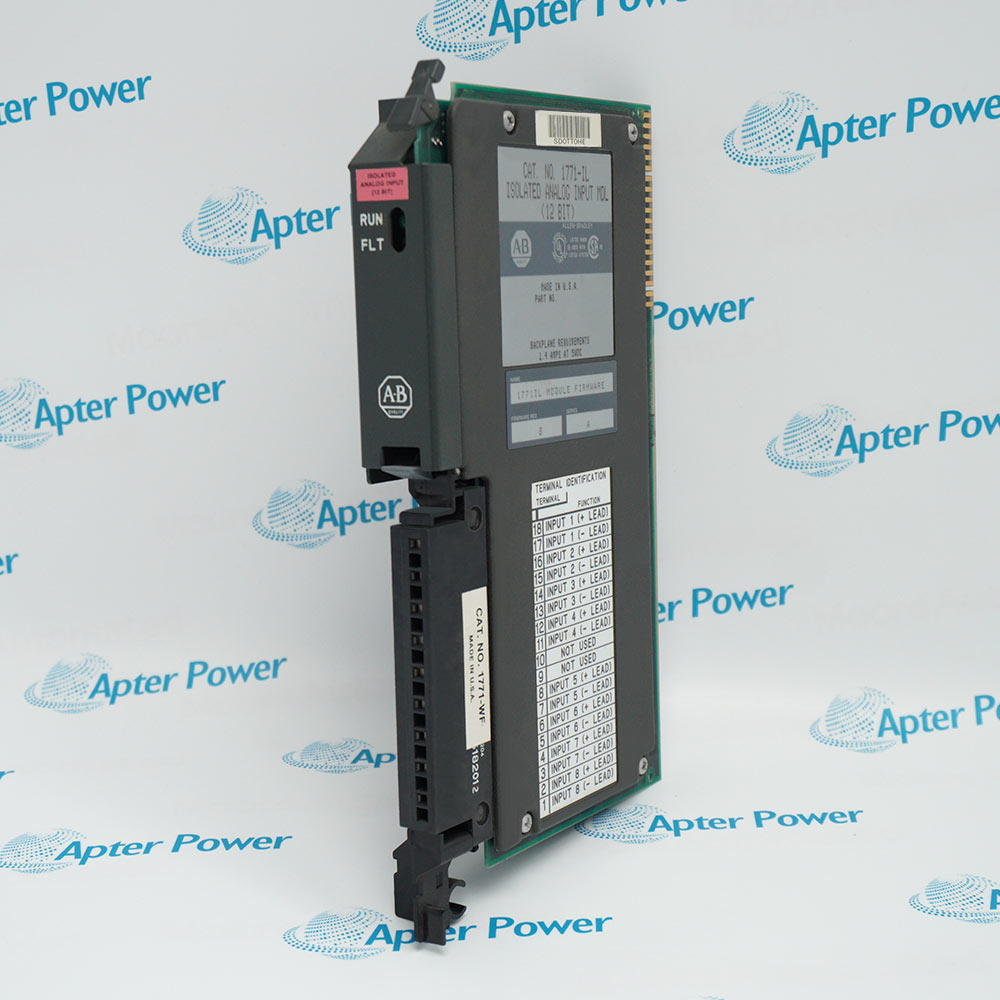

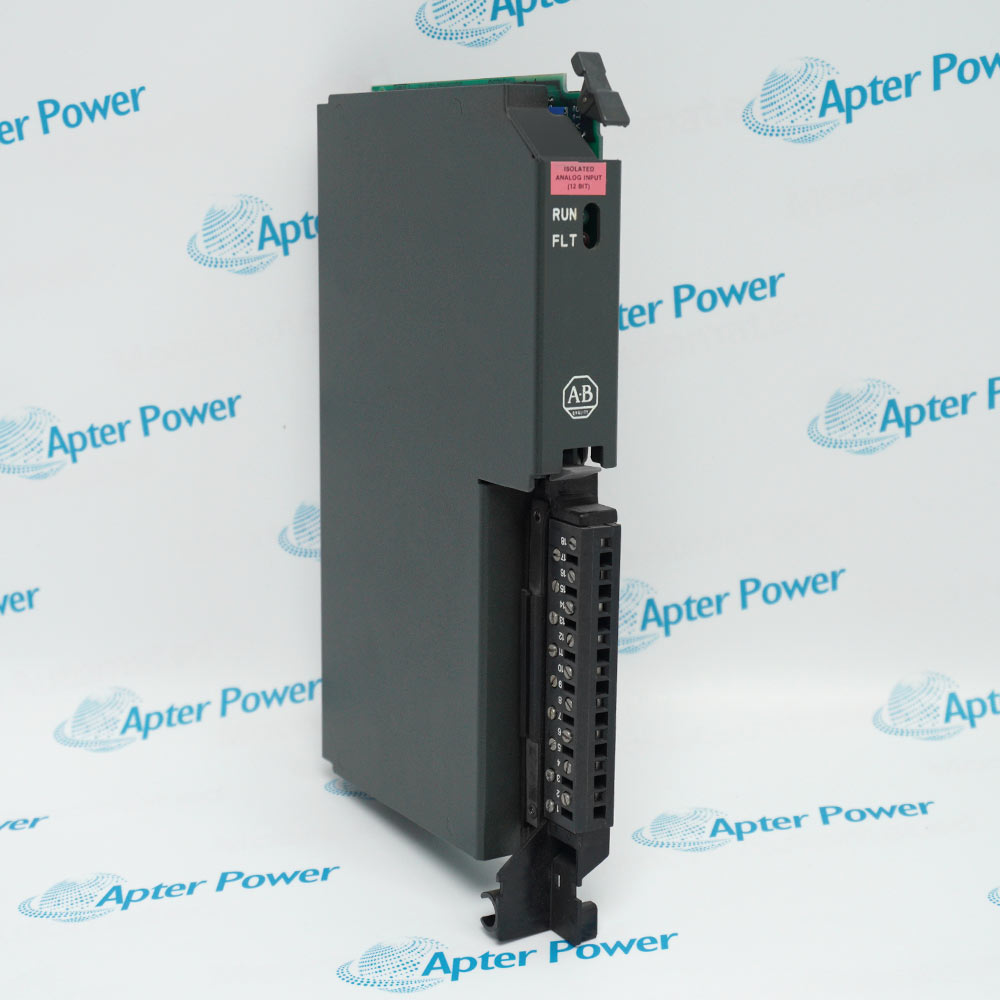

Allen-Bradley 1771-IL is an eight-channel isolated analog input module for voltage and current measurement in PLC-5 and 1771 I/O systems.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 1771-IL
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 1771-IL

  • Manufacturer:
    Allen-Bradley
  • Part Number:
    1771-IL
  • Product Family:
    PLC-5
  • Product Type:
    8-Channel Isolated Analog Input Module
  • Stock:
    1
  • Input Channels:
    8 fully isolated differential channels
  • Voltage Input Ranges:
    1 to 5 V, 0 to 5 V, -5 to +5 V, and -10 to +10 V
  • Current Input Ranges:
    4 to 20 mA, 0 to 20 mA, and -20 to +20 mA
  • Converter Resolution:
    16-bit binary
  • Typical Voltage Accuracy at 25°C:
    0.01% of full scale
  • Maximum Voltage Accuracy at 25°C:
    0.05% of full scale
  • Typical Current Accuracy at 25°C:
    0.06% of full scale
  • Maximum Current Accuracy at 25°C:
    0.1% of full scale
  • Linearity and Repeatability:
    ±1 least significant bit
  • Isolation:
    1000 V peak channel-to-channel and channel-to-ground for 1 second
  • Input Impedance:
    Greater than 10 MΩ in voltage mode; 250 Ω in current mode
  • Common-Mode Rejection:
    Greater than 120 dB at 60 Hz with 1 kΩ source imbalance
  • Normal-Mode Rejection:
    Greater than 120 dB at 60 Hz
  • Eight-Channel Scan Time:
    50 ms
  • Backplane Current:
    1.0 A at 5 V DC
  • Power Dissipation:
    6.5 W maximum
  • Field-Wiring Arm:
    1771-WF
  • Keying Positions:
    10–12 and 32–34
  • Operating Temperature:
    0 to 60°C
  • Storage Temperature:
    -40 to 85°C
  • Relative Humidity:
    5 to 95%, non-condensing
  • Dimensions:
    23.5 × 5.5 × 32.5 cm
  • Weight:
    0.7 kg
  • Tariff Code:
    8538900000
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Signal Selection Isolation Planning Installation Application
  • an eight-channel isolated analog input module for voltage and current measurement in PLC-5 and 1771 I/O systems
  • Each differential channel is electrically isolated and supports selectable unipolar or bipolar voltage and current ranges, 16-bit conversion, block-transfer communication, autocalibration, and programmable scaling or alarm functions
  • Before installation or replacement, confirm Series B hardware, chassis slot, input range, transmitter wiring, isolation requirement, field-wiring arm, keying, grounding, calibration schedule, and saved block-transfer configuration

1771-IL is an eight-channel isolated analog input module for voltage and current measurement in PLC-5 and 1771 I/O systems.

Each differential channel is electrically isolated and supports selectable unipolar or bipolar voltage and current ranges, 16-bit conversion, block-transfer communication, autocalibration, and programmable scaling or alarm functions.

Before installation or replacement, confirm Series B hardware, chassis slot, input range, transmitter wiring, isolation requirement, field-wiring arm, keying, grounding, calibration schedule, and saved block-transfer configuration.

Availability, condition, price, and shipping time for 1771-IL are confirmed during quotation.

Allen-Bradley 1771-IL 8-Channel Isolated Analog Input Module Manuals, Datasheets, Links

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

  • Configure each channel for the documented voltage or current range
  • Preserve scaling, data format, and alarm selections from the processor program
  • Verify transmitter polarity and source impedance before energizing inputs
  • Each differential input is isolated from the other input channels
  • Channel-to-ground isolation supports sources with different ground potentials
  • Shield routing and grounding should follow the official wiring diagrams
  • Install the documented 1771-WF field-wiring arm and chassis keying
  • Match the rack, group, slot, and addressing method used by the block-transfer program
  • Run the documented calibration and verification steps after replacement when required
  • Isolated 4–20 mA process-transmitter acquisition
  • Mixed unipolar and bipolar voltage monitoring
  • Analog measurement where signal sources have different ground potentials
Description
With eight isolated differential channels, the 1771-IL accepts process voltage or current signals while maintaining isolation between individual channels and from each channel to ground.

The Series B module provides 16-bit conversion and supports five documented voltage ranges and three current ranges. Its software configuration also provides engineering-unit scaling, digital filtering, real-time sampling, input alarms, and automatic calibration.

Signal wiring terminates on a 1771-WF field-wiring arm, and the module draws 1.2 A from the 5 V DC chassis backplane. Measurement values, channel status, and configuration information are exchanged with the controller through block-transfer instructions.

The hardware-series designation, channel jumper positions, selected ranges, wiring-arm assignment, grounding, scaling, alarm limits, chassis addressing, and block-transfer files together define the usable configuration of a 1771-IL installation.
Alternative Names
1771-IL 1771 IL 1771IL Allen-Bradley 1771-IL Allen Bradley 1771-IL Rockwell Automation 1771-IL PLC-5 1771-IL
Technical notes
1771-IL uses Series B hardware and a 1771-WF wiring arm; preserve the selected input ranges, isolation wiring, grounding, addressing, and block-transfer configuration during replacement.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Can 1771-IL accept both voltage and current transmitters?
Yes. The module supports documented unipolar and bipolar voltage and current ranges, but each channel's range, wiring, scaling, and alarm configuration must match the application.
Can 1771-IL replace a nonisolated 1771 analog input module without rewiring?
Do not assume a drop-in exchange. Compare the field-wiring arm, terminal assignments, signal ranges, addressing, grounding, isolation strategy, scaling, and block-transfer program before selecting 1771-IL.
Can 1771-IL reuse an installed 1771-WF field-wiring arm?
The arm may be retained when its keying, terminals, channel assignments, shields, conductors, and connector condition match the Series B installation; inspect it before transferring the module.
What must be copied before replacing 1771-IL?
Preserve the rack, group, slot, block-transfer instructions, channel ranges, data format, scaling, alarms, calibration settings, and transmitter wiring before removing the installed module.
When should 1771-IL calibration be verified after replacement?
Verify calibration before returning critical loops to service, after wiring or range changes, and whenever the application's accuracy schedule requires it; follow the official offset and gain procedure.
Can 1771-IL be used with different 1771 addressing methods?
The manual documents half-slot, one-slot, and two-slot addressing subject to chassis and processor rules; verify the existing rack configuration and module-group placement.
Why can 1771-IL readings shift after replacement?
Check the selected range, current-versus-voltage wiring, source impedance, shielding, grounding, scaling, calibration, block-transfer data format, and the restored channel configuration.
