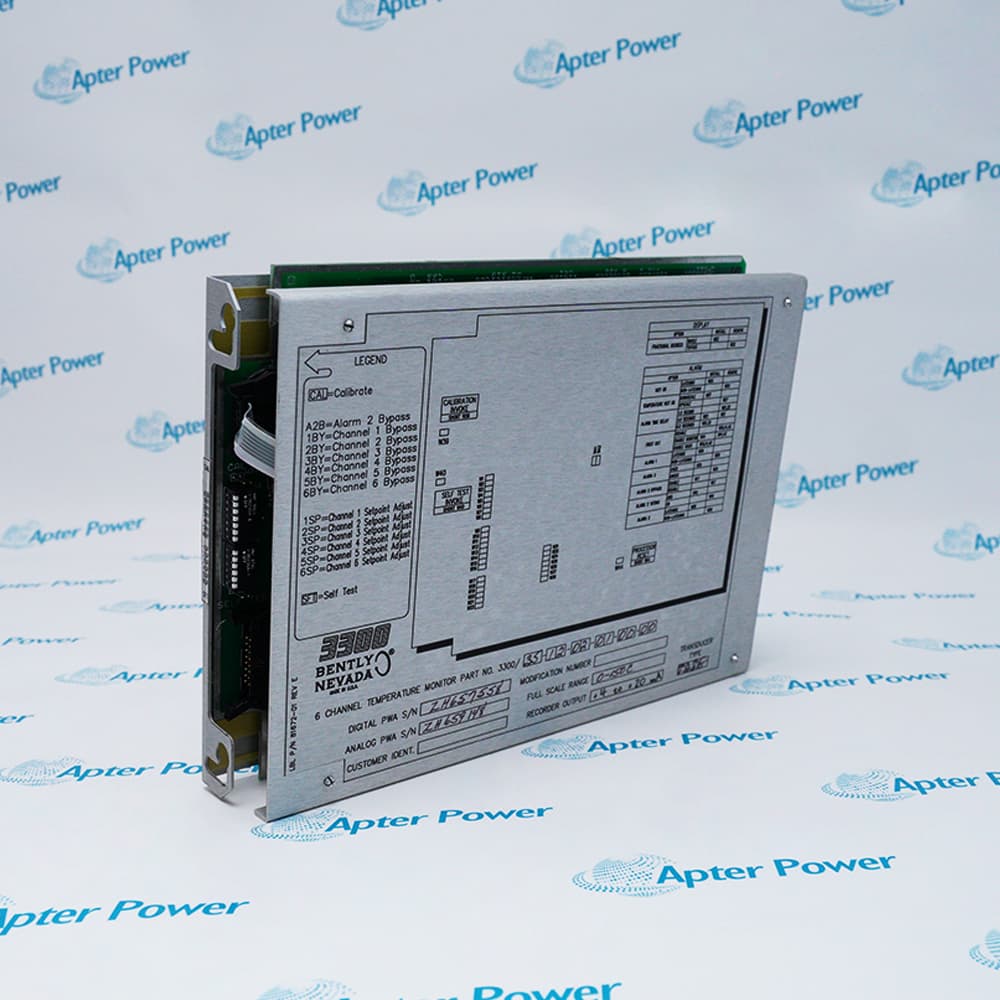

Bently Nevada 3300/35-12-02-01-00-00 monitor module, showing display area and front panel hardware details

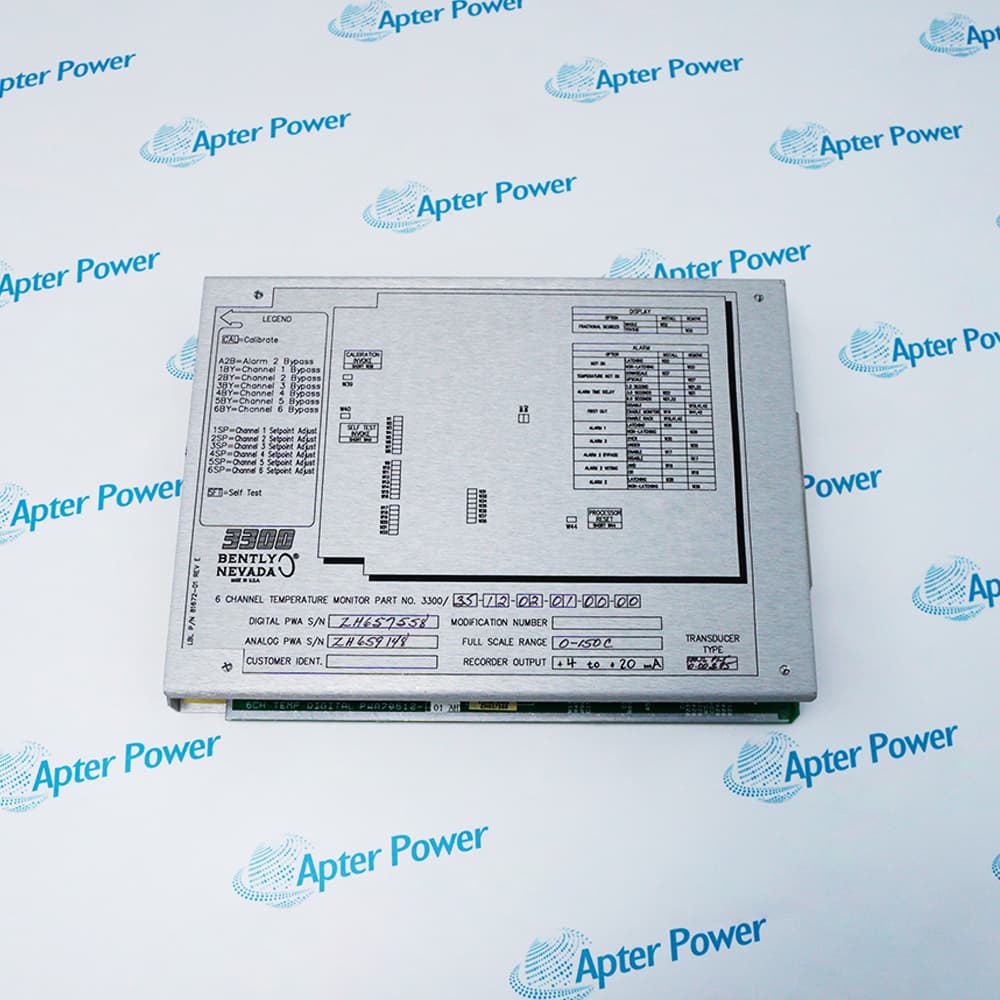

Bently Nevada 3300/35-12-02-01-00-00 3300 system module, machinery monitoring hardware with casing and connector details
Bently Nevada 3300/35-12-02-01-00-00 3300 system monitor module, industrial equipment protection component
Bently Nevada 3300/35-12-02-01-00-00 monitor module, showing display area and front panel hardware details
Bently Nevada 3300/35-12-02-01-00-00 3300 system module, machinery monitoring hardware with casing and connector details
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com

3300/35-12-02-01-00-00

/ 4.9
1001 reviews | Need a Specific Revision?
The Bently Nevada 3300/35-12-02-01-00-00 Six-Channel Temperature RTD Input Monitor is a high-precision temperature monitoring module designed for continuous industrial applications. It supports six independent RTD inputs and delivers reliable measurement and alarm functions for critical equipment protection.
Get a quick price for 3300/35-12-02-01-00-00
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 3300/35-12-02-01-00-00

  • Manufacturer:
    Bently Nevada
  • Part Number:
    3300/35-12-02-01-00-00
  • Product Family:
    3300 System
  • Full-scale Range Option:
    1 2 = 0-150°C
  • Transducer Input Option:
    0 2 = 100 Ω platinum (0.00385) (3-wire).
  • Alarm Relay Option:
    0 1 = Epoxy-sealed
  • Agency Approval Option:
    0 0 = Not required
  • Safety Barriers:
    0 0 = None
  • Power:
    Nominal consumption 4 watts.
  • Display Accuracy:
    Within ±1°C (1.8°F) maximum when tenths digit is displayed. ±1.5°C (2.7°F) when tenths digit is not displayed. Specified at ambient temperature of +25°C (+77°F).
  • Output Impedance:
    100 Ω. Minimum load resistance is 10 k Ω.
  • Operating Temperature:
    0°C to +65°C (+32°F to +150°F).
  • Storage Temperature:
    -40°C to +85°C (-40°F to +185°F).
  • Relative Humidity:
    To 95%, non-condensing.
  • Space Requirements:
    Two rack positions (any positions except 1 and 2, which are reserved for the Power Supply and System Monitor, respectively).
  • Weight:
    2.1 kg
  • Estimated shipping dimensions:
    5.1x20.3x30.5cm
  • Tariff Code:
    8486403900
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications System Integration Application Operating Efficiency

Features:

  • Six independent RTD input channels for simultaneous temperature monitoring
  • High measurement accuracy up to ±1°C under standard conditions
  • Robust epoxy-sealed alarm relay for reliable industrial operation
The Bently Nevada 3300/35-12-02-01-00-00 is designed to meet the demanding requirements of industrial temperature monitoring. With its six-channel architecture, it enables operators to monitor multiple critical points within machinery such as turbines and compressors. This capability is essential for detecting abnormal thermal conditions early and preventing equipment damage. The module plays a key role in predictive maintenance strategies.

Functionally, the Bently Nevada 3300/35-12-02-01-00-00 supports 100 Ω platinum RTD inputs using a 3-wire configuration, ensuring precise and stable signal acquisition. Its measurement accuracy and output characteristics allow it to deliver consistent performance in real-time monitoring systems. The inclusion of an epoxy-sealed relay enhances reliability, especially in environments exposed to vibration or contaminants. These features make it a dependable solution for continuous operation.

In practical applications, the Bently Nevada 3300/35-12-02-01-00-00 is widely used in industries such as power generation, oil and gas, and manufacturing. Its ability to operate within a broad temperature and humidity range ensures adaptability to various site conditions. Installed within a 3300 rack system, it integrates seamlessly with other monitoring modules. This makes the Bently Nevada 3300/35-12-02-01-00-00 an essential component for achieving comprehensive machine condition monitoring.

The 3300/35-12-02-01-00-00 Bently Nevada Six-Channel Temperature RTD Input Monitor may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 3300/35-12-02-01-00-00 Six-Channel Temperature RTD Input Monitor Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 3300/35-12-02-01-00-00 Six-Channel Temperature RTD Input Monitor Specs

General

  • Manufacturer GE / Bently Nevada
  • Model 3300/35-12-02-01-00-00
  • Condition New Original ready stock
  • Product Family 3300/35-13-02-01-00-00,3300/35-12-05-01-00-00,3300/35-12-02-00-00-00
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Flexible Adaptation: This model supports SDI/DDI architecture, easily integrating with existing 3300 series monitoring frameworks.
  • Signal Isolation: Internal circuitry ensures electrical isolation between the field transmitter signal and the control system.
  • Local Visualization: Operators can directly read the current channel temperature on the front panel LCD screen.
  • Alarm Linkage: Seamless integration with field audible and visual alarms or logic controllers is achieved through a backplane relay module.
  • Large Motors: Monitor the operating temperature of stator windings and front and rear bearings to prevent insulation aging.
  • Turbine Machinery: Real-time tracking of the metal temperature of thrust bearings in steam turbines or gas turbines.
  • Pump Sets and Stations: Monitor the thermal state of the sealing chambers and bearings of critical delivery pumps in petrochemical processes.
  • Air Separation Compressors: Precisely control the temperature of exhaust gas and lubrication oil circuits in each stage of multi-stage compression.
  • Accurate Sensing: Six-channel independent sampling eliminates signal interference during multi-point monitoring, ensuring data accuracy.
  • Trend Insight: Provides critical thermal load data for maintenance personnel, supporting dynamic adjustments to equipment operating load.
  • Response Efficiency: Hardware-level logic processing speed ensures the detection of temperature surges within milliseconds.
  • Decision Basis: Intuitive numerical feedback from the panel simplifies on-site inspection personnel's assessment of equipment health status.
Description
The Bently Nevada 3300/35-12-02-01-00-00 is a six-channel temperature monitoring module engineered for integration within the 3300 monitoring system. It is specifically designed to accept 100 Ω platinum RTD inputs (0.00385, 3-wire), enabling accurate and stable temperature measurement across a full-scale range of 0 to 150°C. With six independent channels, the Bently Nevada 3300/35-12-02-01-00-00 allows simultaneous monitoring of multiple measurement points, making it ideal for complex industrial systems requiring real-time thermal supervision.

The Bently Nevada 3300/35-12-02-01-00-00 provides high measurement accuracy, with ±1°C when displaying tenths of a degree and ±1.5°C without tenths display at a reference ambient temperature of +25°C. Its output impedance of 100 Ω and minimum load resistance of 10 kΩ ensure stable signal transmission and compatibility with connected systems. The epoxy-sealed alarm relay enhances reliability, particularly in environments where durability and long-term operation are critical.

In terms of environmental adaptability, the Bently Nevada 3300/35-12-02-01-00-00 operates reliably within a temperature range of 0°C to +65°C and can be stored between -40°C and +85°C. It also supports up to 95% non-condensing humidity, making it suitable for a wide range of industrial conditions. The module requires two rack positions within the 3300 system (excluding positions 1 and 2), ensuring proper integration with power supply and system monitor modules.

Compared with the thermocouple-based 3300/30 monitor, the Bently Nevada 3300/35-12-02-01-00-00 is optimized for RTD inputs, offering higher accuracy and stability in temperature measurement. This makes it particularly suitable for applications where precise thermal control is essential, such as turbines, compressors, and process equipment monitoring. The Bently Nevada 3300/35-12-02-01-00-00 is therefore a preferred choice in industries requiring consistent and reliable temperature data.
Alternative Names
3300/35-12-02-01-00-01 3300/35-12-02-01-00-02 3300/35-12-02-01-01-00 3300/35-12-02-01-02-00 3300/35-13-02-01-00-00 3300/35-12-02-02-00-00 3300/35-12-02-04-00-00
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Why does the Bently Nevada 3300/35-12-02-01-00-00 use RTD inputs?
RTD sensors provide higher accuracy and stability compared to thermocouples, making them suitable for applications requiring precise temperature measurement.
What is the significance of the ±1°C accuracy?
This level of accuracy ensures reliable temperature readings, which is critical for maintaining safe operating conditions in sensitive equipment.
How does the module handle environmental conditions?
It operates between 0°C and +65°C and tolerates up to 95% non-condensing humidity, making it suitable for harsh industrial environments.
How does the six-channel design benefit users?
It allows monitoring of up to six independent temperature points, improving system visibility and enabling more comprehensive equipment protection.
