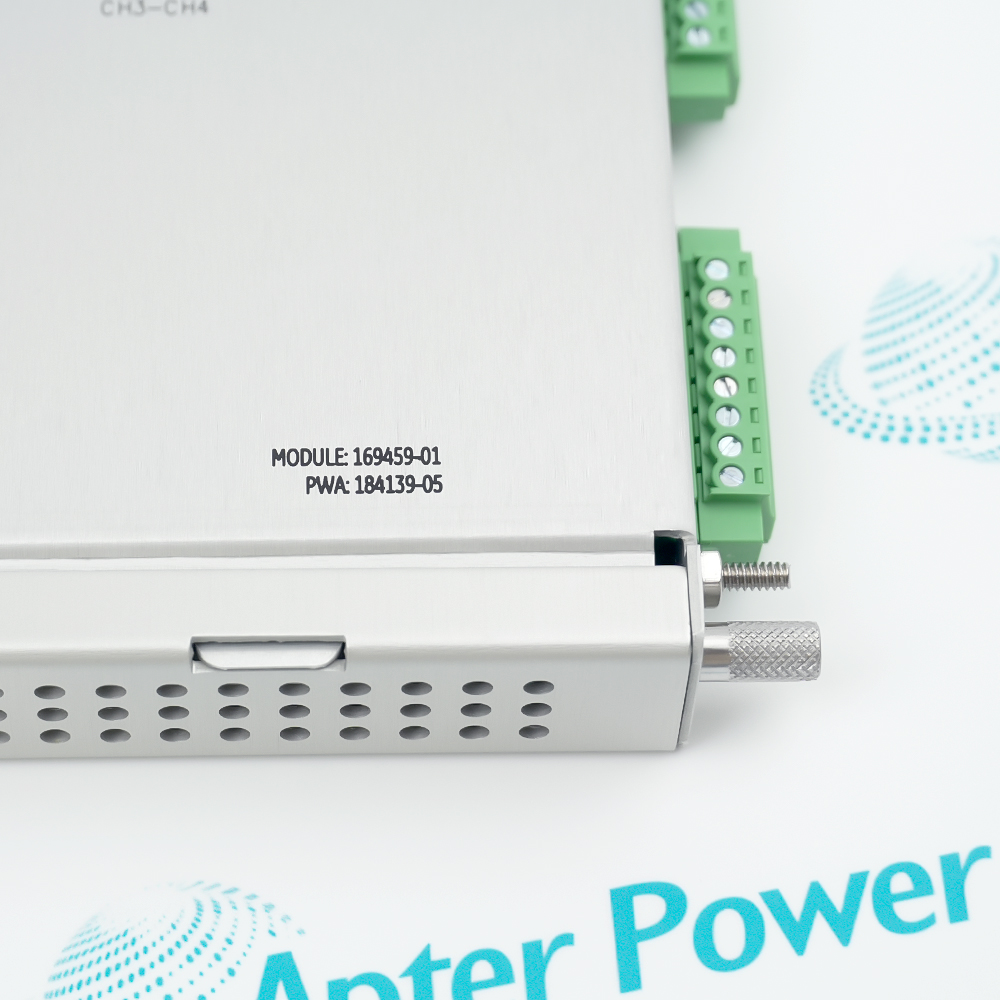

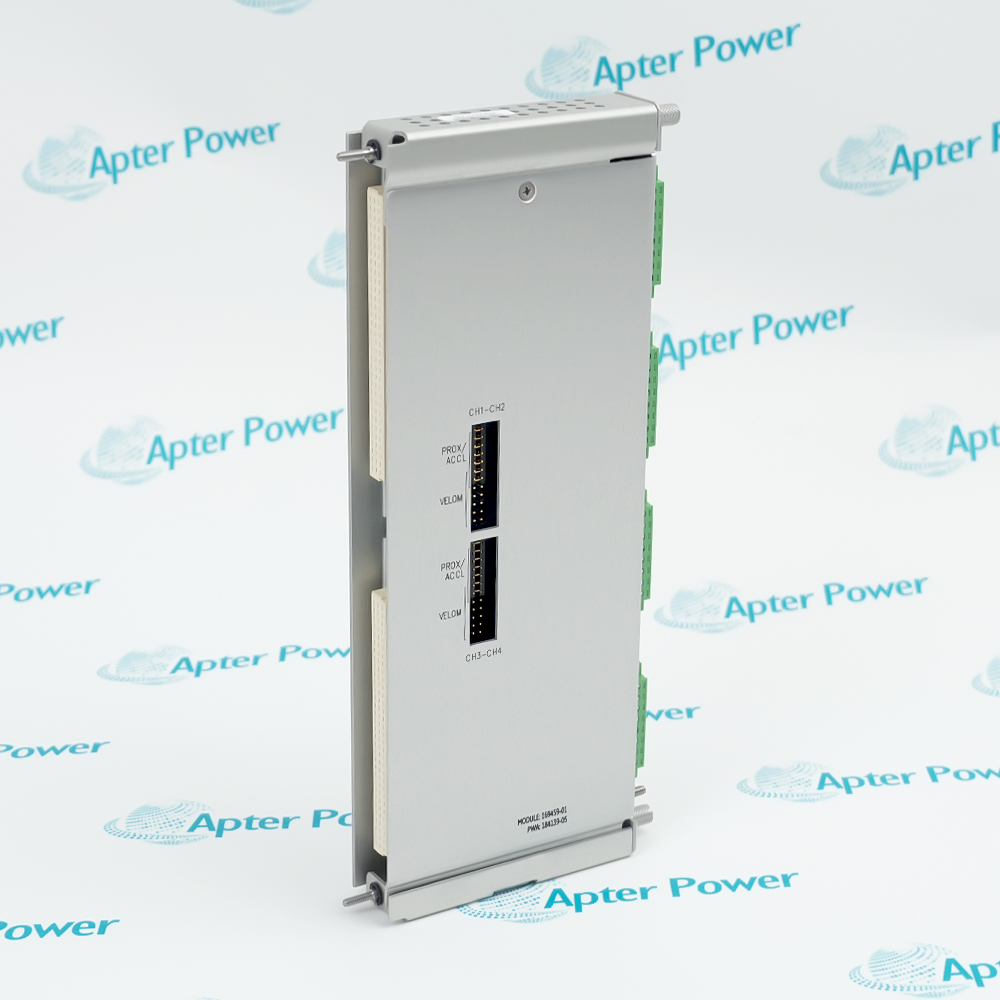

Bently Nevada 169459-01 is the internally terminated Multimode Prox/Velom I/O Module used with supported 3500/44M and 3500/46M monitors.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 169459-01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 169459-01

  • Manufacturer:
    Bently Nevada
  • Part Number:
    169459-01
  • Product Family:
    3500 System
  • Product Type:
    169459-01
  • Stock:
    3
  • Manufacturer:
    Bently Nevada
  • Part Number:
    169459-01
  • Module Type:
    Multimode Prox/Velom I/O Module
  • Termination:
    Internal
  • Supported Monitor Context:
    3500/44M and 3500/46M
  • Configuration Control:
    Channel transducer type and scale
  • Weight:
    0.4 kg
  • Estimated shipping dimensions:
    2.5x11x24.1cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Termination Channel Setup Monitor Interface Product Applications

Features:

  • Internal termination: The -01 suffix identifies the wiring arrangement used at the I/O module.
  • Multimode input interface: The module routes configured Prox/Velom transducer signals to the associated monitor.
  • 3500 monitor context: The part is listed for supported 3500/44M and 3500/46M configurations.
Internal termination distinguishes this version from the 169459-02 external-termination arrangement and affects rack wiring selection.

The associated monitor setup determines the installed transducer type, scale and measurement assignment for each channel.

Capture slot position, terminal mapping and channel configuration before an exchange, then test diagnostics, signal response and alarm behaviour after installation.

Apter Power provides quotation, documentation and procurement support for the Bently Nevada 169459-01 Multimode Prox/Velom I/O Module.
Bently Nevada 169459-01 Multimode Prox/Velom I/O Module Manuals,Datasheets,Link
Important Notice: Accessories, manuals, cables, calibration data and software are included only when listed in the quotation.
  • Internal wiring: Use the -01 module where the rack design calls for internal terminations.
  • Related version: -02 is the external-termination configuration.
  • Terminal map: Record every conductor before removal.
  • Rack access: Plan the work around the internal termination layout.
  • Transducer type: Preserve the configured input selection.
  • Scale: Retain range and engineering units.
  • Slot: Restore the module to the approved rack position.
  • Alarm mapping: Keep each channel associated with the documented alarm path.
  • 3500/44M: Use according to the applicable Aero monitor configuration.
  • 3500/46M: Use according to the applicable Hydro monitor configuration.
  • Input mapping: The supported monitor still requires the correct per-channel setup.
  • Documentation: Keep the exact monitor and I/O combination together.
  • Channel service: Support approved proximity, velocity or related multimode inputs.
  • Monitor role: Retain the application defined by the associated 3500/44M or 3500/46M.
  • Replacement: Back up configuration and wiring evidence.
  • Commissioning: Test diagnostics, signal response and alarm paths.
Description
The internal-termination version is ordered as 169459-01. Current 3500/44M and 3500/46M documentation identifies it as a Multimode Prox/Velom I/O Module and distinguishes it from the external-termination version.

169459-01 routes supported proximity, velocity, seismic, dynamic-pressure or air-gap transducer inputs to the associated monitor configuration. The actual channel type and scale remain defined in the rack setup.

Before exchanging 169459-01, record the slot, terminal assignments, transducer type and software configuration. After installation, restore the approved settings and test every affected channel and alarm path.
Alternative Names
Bently Nevada 169459-01 16945901 169459 01 176449-06 144403-01 140471-01 140482-01 169459-02
Technical notes
169459-01 is the internal-termination Multimode Prox/Velom I/O Module; 169459-02 is the external-termination version. Do not swap termination styles without confirming rack wiring and the applicable 3500 monitor configuration.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
Which termination architecture should an existing rack use before selecting 169459-01?
Select it for the documented internal-termination arrangement; 169459-02 is the separate external-termination configuration.
Can 169459-01 replace 169459-02 without changing rack wiring?
We would not treat 169459-02 as a wiring-neutral replacement because it uses a different termination architecture; review the rack wiring and connector arrangement before any change.
Can 169459-01 be selected for both configured 3500/44M and 3500/46M monitor systems?
It is listed for supported configurations in both monitor families, but the installed monitor option and transducer setup still need to match.
Can any proximity or velocity sensor be connected to 169459-01 without channel setup changes?
A sensor should be connected only when the associated monitor is configured for its transducer type, measurement, sensitivity, and alarm logic; the I/O part number alone does not establish universal sensor compatibility.
Should a quotation for 169459-01 be changed to 169715-01 because both are Multimode I/O modules?
We recommend against that substitution: 169459-01 is Prox/Velom I/O, while 169715-01 is the distinct positive-input version.
Does 169459-01 provide monitoring by itself when removed from its 3500 monitor?
It operates as the I/O interface for the associated 3500/44M or 3500/46M monitor; signal processing and alarm configuration remain in the monitor system.
