        172103-01

        / 4.9
        1001 reviews ｜ Need a Specific Revision?

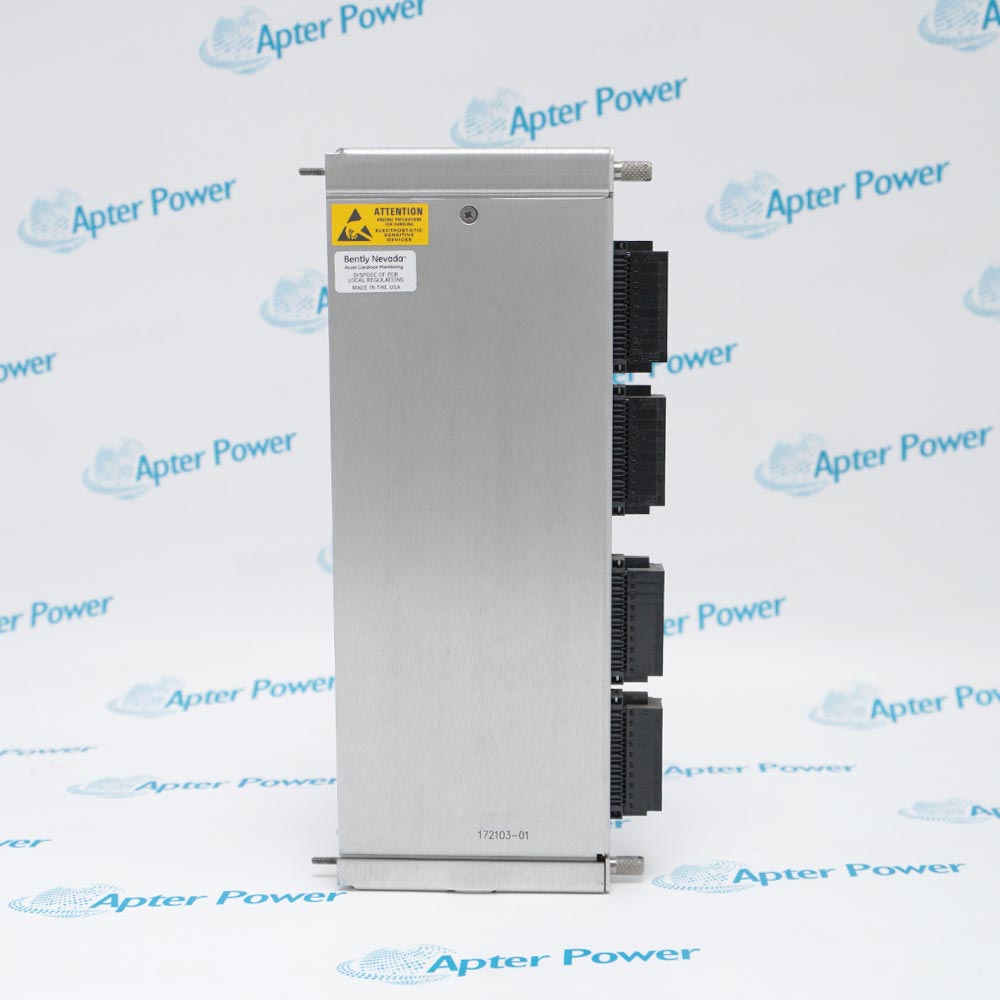

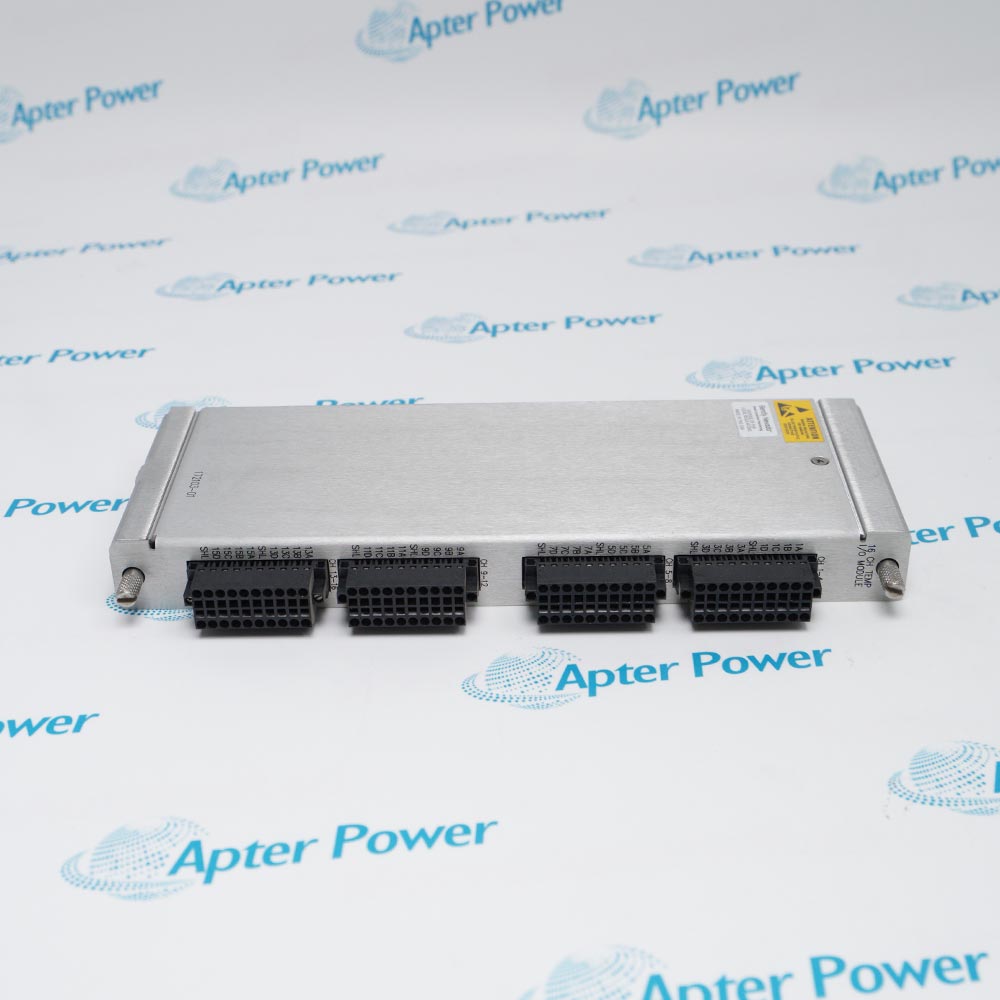

        The Bently Nevada 172103-01 is a 3500/65 RTD/Isolated Tip TC I/O Module with Internal Terminations, designed specifically for handling critical temperature monitoring challenges in industrial rotating machinery applications.
        Get a quick price for 172103-01
        Quantity
        *E-mail
        Company
        *Mobile
        *Content
        Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)
        Get a Quote
        Warranty Policy
        We provide 1 year warranty for all remaining parts.
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        Return Notice
        The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
        In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
        Shipping Mode
        Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.Various transportation options are available in each country. Shipping methods and fees are clearly indicated on all quotations.
        Parts Availability
        Apter Power offers a wide range of components, products and services related to industrial automation. We also supply new products from a variety of quality manufacturers.
        How to order
        We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online. If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.

        Technical specifications for 172103-01

        • Manufacturer:
          Bently Nevada
        • Part Number:
          172103-01
        • Product Family:
          3500 System
        • Product Type:
          3500/65 RTD/Isolated Tip TC I/O Module, Internal Terminations
        • Number of Channels:
          16 independent temperature channels
        • Input Signal Types:
          Resistance Temperature Detectors (RTD) and Isolated Tip Thermocouples (TC)
        • Power Consumption:
          3 watts nominal
        • Input Impedance:
          Greater than 1 MΩ for each lead input
        • Supported RTDs:
          100 Ω Platinum (3 or 4-wire), 120 Ω Nickel, 10 Ω Copper
        • Supported TCs:
          Type E, J, K, T (Isolated Tip only)
        • Accuracy:
          ±0.3 °C at +25 °C (for Internal Terminations)
        • Resolution:
          1 °C or 1 °F Operating Temperature -30°C
        • Rack Space Requirement:
          1 full-height rear slot in 3500 Rack
        • Weight:
          0.44 kg
        • Estimated shipping dimensions:
          2.5x11.6x24.2cm
        • Tariff Code:
          8537101190
        • Country of origin:
          USA
        • Place of shipment:
          Xiamen,Fujian,China
        By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

        More Information

        Overview Manuals Specifications Use Cases Certifications & Standards Communication & Connectivity

        Features:

        • RTD and Isolated Tip Thermocouple Temperature Monitoring for 3500 Rack Systems
        • 16-Channel Temperature Input Conditioning with User-Programmable Alarm Setpointst
        • Compatible with Triple Modular Redundant Configurations and Standard 3500 Monitors
        The Bently Nevada 172103-01 3500/65 RTD/Isolated Tip TC I/O Module with Internal Terminations serves as the dedicated temperature monitoring interface within a 3500 rack, providing precise temperature measurement capabilities across 16 independent channels. The 172103-01 accepts both resistance temperature detector (RTD) and isolated tip thermocouple (TC) temperature inputs, conditions these signals, and compares them against user-programmable alarm setpoints to enable early detection of thermal anomalies. The 172103-01 is configured using the 3500 Rack Configuration Software, allowing operators to set up the module to accept isolated tip thermocouples, 3-wire RTD, 4-wire RTD, or a combination of TC and RTD inputs depending on the specific application requirements.

        The 172103-01 provides essential temperature monitoring functions critical to the protection of rotating machinery assets, and is a vital component of the overall monitoring path, directly influencing the accuracy and reliability of thermal protection strategies. One 172103-01 module occupies a standard slot within the 3500 rack and integrates seamlessly with the rack backplane for signal processing and communication with other system modules.

        For Triple Modular Redundant (TMR) applications, the 172103-01 must be installed in groups of 3 adjacent monitors. In addition to standard single-module operation, the TMR configuration performs dual voting mechanisms to ensure accurate operation and prevent single-point failures. The 172103-01 TMR setup continually monitors the health of all three modules through internal voting logic. If the system detects that one 172103-01 module is providing inconsistent or out-of-tolerance readings compared to the other two, it will automatically disregard the faulty channel and place an event in the System Event List, maintaining continuous and reliable temperature monitoring.

        The 172103-01 Bently Nevada RTD/Isolated Tip TC I/O Module with Internal Terminations may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
        Bently Nevada 172103-01 RTD/Isolated Tip TC I/O Module with Internal Terminations Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        Bently Nevada 172103-01 RTD/Isolated Tip TC I/O Module with Internal Terminations Specs

        General

        • Manufacturer Bently Nevada
        • Model 172103-01
        • Condition New Original ready stock
        • Product Family 172109-01,172115-01,3500/65
        Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
        • Critical Asset Monitoring: Tracking bearing, stator, and winding temperatures in large rotating machinery such as turbines, generators, and compressors.
        • Industrial Process Safety: Collecting temperature signals from chemical reactors, power plant boilers, and oil pipelines to trigger alarms if thresholds are exceeded.
        • Triple Modular Redundancy (TMR): Installed in groups of three for high-reliability applications where "voting" logic is required to avoid single-point failures.
        • Field Versatility: Simultaneously monitoring a mix of 3-wire RTDs, 4-wire RTDs, and isolated-tip thermocouples on a single module.
        • Electrical Safety: Complies with EN 61010-1 for laboratory and industrial control equipment safety.
        • Electromagnetic Compatibility (EMC): Meets EN 61000-6-2 (immunity) and EN 61000-6-4 (emissions) for industrial environments.
        • Hazardous Area Approvals: Options include Class 1, Division 2 (Groups A, B, C, D) for North America and ATEX/CSA certifications for explosive atmospheres.
        • Machinery Protection: Designed to meet the API 670 standard for machinery protection systems.
        • Input Connectivity: Features a 20-position black connector header for up to 16 channels of RTD or TC signals.
        • Configuration: All channel parameters, including alarm setpoints and sensor types, are managed via the 3500 Rack Configuration Software.
        • System Integration: Data is shared across the 3500 backplane to other modules like the 3500/92 Communication Gateway for transmission to DCS/PLC systems via Modbus or Ethernet.
        • Proportional Outputs: Individual 4-20 mA outputs can be routed through the I/O module for connection to external control systems.
        Description
        The Bently Nevada 172103-01 is a high-density I/O module specifically designed for the 3500/65 16-Channel Temperature Monitor. This module features Internal Terminations, allowing for direct wiring connections at the rear of the 3500 rack. It is engineered to interface with both Resistance Temperature Detectors (RTDs) and isolated tip Thermocouples (TCs), facilitating the integration of 16 independent temperature channels into the machinery protection system.

        This 172103-01 module is purpose-built to handle the challenges of high-density temperature monitoring in critical rotating machinery, such as large steam turbines or industrial compressors. By providing 16 channels in a single slot, the 172103-01 solves the problem of limited rack space and complex external wiring, eliminating the need for separate external terminal blocks and reducing the overall footprint of the protection system.

        In demanding environments, the 172103-01 is designed to address the issue of signal integrity and common-mode noise when monitoring bearing temperatures or motor windings. It solves the problem of ground loops and electrical interference specifically by supporting isolated tip thermocouples and providing filtered inputs. This ensures that the 3500/65 monitor receives accurate data for comparing against user-programmable alarm setpoints, preventing false trips or undetected overheating.

        Furthermore, the 172103-01 supports Triple Modular Redundant (TMR) configurations, where it is installed in groups of three to ensure continuous operation. This specific setup for the 172103-01 is designed to handle critical failure risks in high-availability processes, solving the problem of single-point failures through hardware voting. This makes the 172103-01 an essential component for industries where unplanned downtime must be strictly avoided.
        Alternative Names
        145988-02 172109-01 172115-01 3500/65
        Technical notes
        The 172103-01 is programmed using the 3500 Rack Configuration Software, allowing flexible configuration to accept isolated tip thermocouples, 3-wire RTD, 4-wire RTD, or a combination of TC and RTD inputs depending on the specific monitoring requirements of the application.
