Bently Nevada 3500/33 sixteen-channel relay module for configurable alarm and machinery shutdown logic

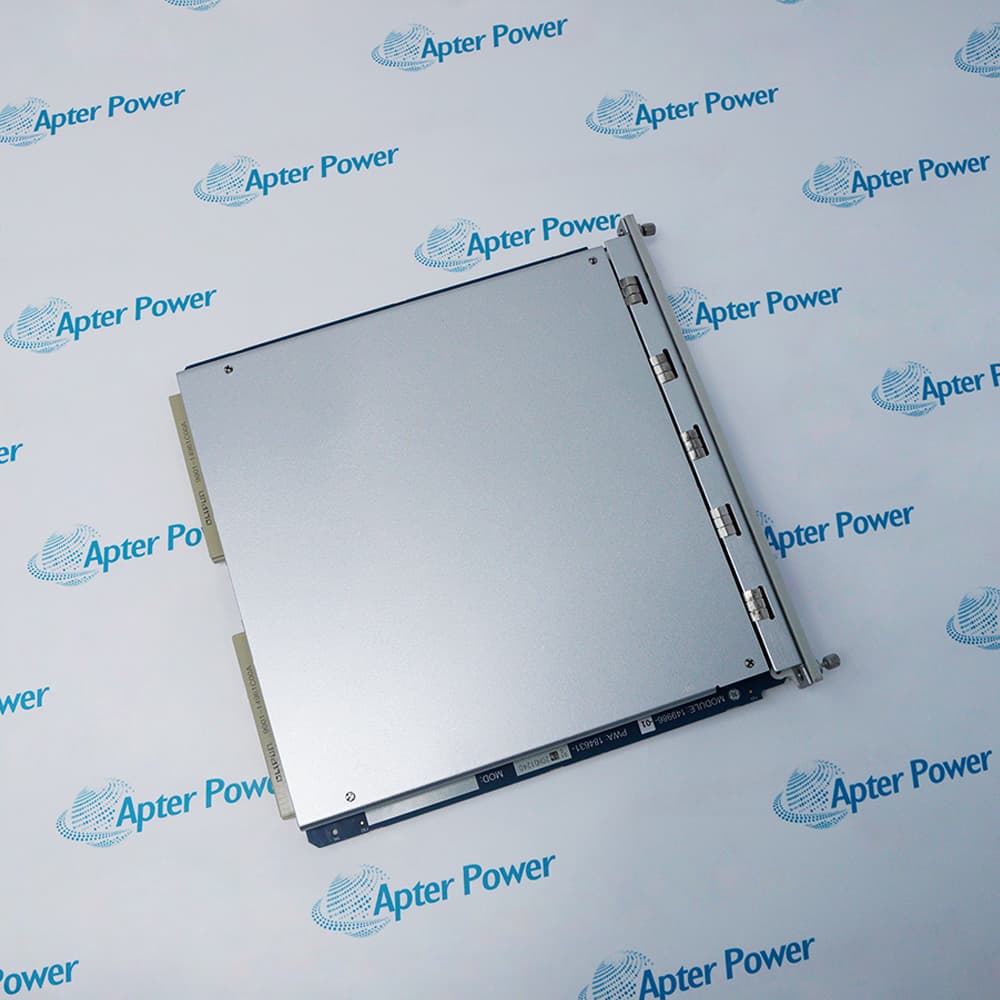

Bently Nevada 3500/33 relay module with labeled front panel, channel status indicators, and extraction handle

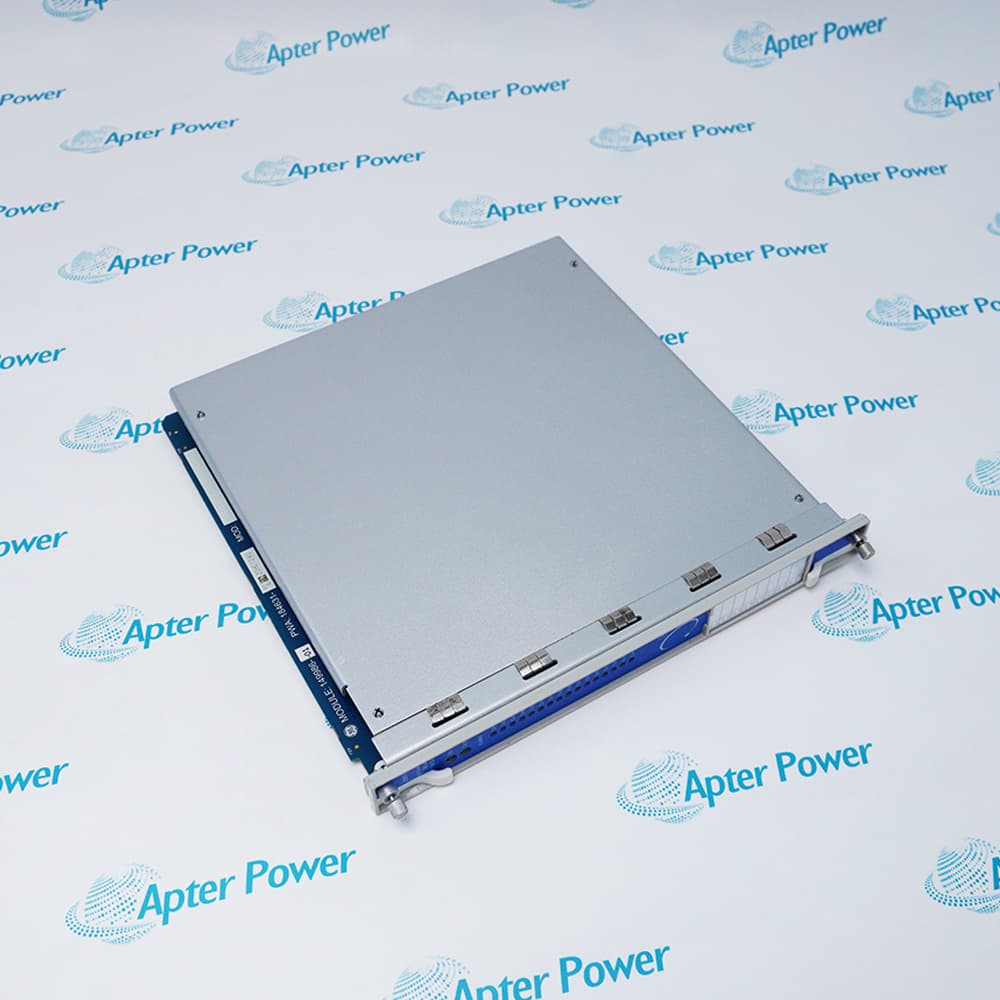

Bently Nevada 3500/33 sixteen-channel relay module with electronic board, relay components, and backplane connector
Bently Nevada 3500/33 sixteen-channel relay module for configurable alarm and machinery shutdown logic
Bently Nevada 3500/33 relay module with labeled front panel, channel status indicators, and extraction handle
Bently Nevada 3500/33 sixteen-channel relay module with electronic board, relay components, and backplane connector
Ask our team:
  • Phone: +86 181 0690 9650
  • E-Mail sales1@apterpower.com

3500/33

/ 4.9
1001 reviews | Need a Specific Revision?
The Bently Nevada™ 3500/33 16-channel relay module allows for the flexible installation of multiple 16-channel relay modules in the same rack configuration to meet application requirements.
Get a quick price for 3500/33
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 3500/33

  • Manufacturer:
    Bently Nevada
  • Part Number:
    3500/33
  • Product Family:
    3500 System
  • Power Consumption:
    5.8 watts typical
  • OK LED:
    Illuminated when the 3500/33 16-Channel Relay Module is operating properly
  • TX/RX LED:
    Transmit and receive flashes when the 3500/33 16-Channel Relay Module is communicating with other modules in the 3500 rack
  • CH Alarm LED:
    Illuminated when Relay channel is in an alarm state
  • Relay Type:
    Single-pole Double-throw (SPDT) Relay
  • Environmental Sealing:
    Epoxy-sealed
  • Relay Arc Suppressor:
    250 Vrms Installed as standard
  • Relay Contact Life:
    10,000 cycles
  • Weight:
    0.75 kg
  • Estimated shipping dimensions:
    2.6x25.2x24.1cm
  • Tariff Code:
    8537101190
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Specifications Applications Operating Environment Temperature & Humidity Range

Features:

  • Relay Output Interface for Machine Protection and Control Systems
  • Combines 16-Channel Relay Capability with Independent Programmable Logic
  • Operates in Conjunction with the 3500 Rack Configuration Software and TDI Module
The Bently Nevada 3500/33 16-Channel Relay Module serves as the primary relay output interface in a 3500 rack, providing 16 independently programmable relay outputs for alarm annunciation and machine shutdown functions. It continuously processes status inputs from all monitor channels within the rack and converts these into physical relay contact closures based on user-configured voting logic. Seamless integration with the 3500 system is standard with the 3500/33, and its flexible slot placement allows installation in any position to the right of the Transient Data Interface (TDI) Module to accommodate varying rack configurations. The 3500/33 has established itself as a critical protection component within the 3500 machinery monitoring system, offering epoxy-sealed environmental protection and SPDT relay contacts with 250 Vrms arc suppression as standard features.

The 3500/33 provides essential relay output functions for the entire rack, and is a critical component of the protection path, directly affecting the proper execution of machine shutdown and alarm sequences. Any number of 3500/33 relay modules can be installed per rack depending on the number of required relay outputs. The 3500/33 occupies a single full-height slot in the rack and is always positioned in slots to the right of the TDI Module.

For expanded relay output applications, the 3500 System accommodates multiple 3500/33 16-Channel Relay Modules installed in available rack slots. In addition to standard single module operation, multiple modules operate independently. The 3500 multi-relay configuration executes alarm logic using the internal programming specified in the Rack Configuration Software. Using this method, the relay system continually monitors the status of all configured inputs. If the system detects that any monitored channel exceeds configured alert or danger thresholds, it will automatically activate the corresponding relay output and place an event in the System Event List based on the programmed AND/OR logic.

The 3500/33 Bently Nevada 16-Channel Relay Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 3500/33 16-Channel Relay Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 3500/33 16-Channel Relay Module Specs

General

  • Manufacturer Bently Nevada
  • Model 3500/33
  • Condition New Original ready stock
  • Product Family 3500/33-02-02,149986-01,149992-01
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • Machinery Protection: Integrating alarm configurations to prevent equipment failures in pumps, compressors, and turbines.
  • Oil & Gas: Monitoring and protecting critical assets during production.
  • Power Generation: Overseeing the status of generators and supporting the overall reliability of the power grid.
  • Manufacturing: Controlling machinery and providing real-time feedback in automated production lines.
  • Safety Voting Logic: Independently programmed to perform AND/OR voting logic based on alarming inputs (Alert, Danger, Not-OK) from any rack monitor channel.
  • Industrial Standards: Complies with EN 61000-6-2 (Immunity) and EN 61000-6-4 (Emissions) for industrial environments.
  • Hazardous Area Certifications: Options include CSA/NRTL/C (Class I, Division 2) and ATEX/IECEx/CSA (Class I, Zone 2).
  • Sealing: Components are epoxy-sealed for protection.
  • Operating Temperature:-30 °C to +65 °C (-22 °F to +150 °F).
  • Storage Temperature:-40 °C to +85 °C (-40 °F to +185 °F).
  • Humidity:95% non-condensing.
Description
The Bently Nevada™ 3500/33 16-Channel Relay Module is a full-height module designed to provide 16 relay outputs for comprehensive machinery protection and control systems. This 3500/33 module can be installed in any of the slots positioned to the right of the Transient Data Interface (TDI) Module, with the flexibility to accommodate multiple 16-channel relay modules within the same rack configuration based on application requirements.

The 3500/33 16-Channel Relay Module features independently programmable outputs that can be configured to perform sophisticated voting logic for each relay channel. This 3500/33 module is specifically engineered to handle critical alarm annunciation and machine shutdown sequences, providing reliable protection for rotating machinery assets in industrial environments.

Each relay within the 3500/33 16-Channel Relay Module incorporates dedicated Alarm Drive Logic functionality. The programming capabilities for this Alarm Drive Logic utilize both AND and OR logic operations, enabling the 3500/33 to process various input conditions including alarming inputs with alert and danger status indicators, Not-OK conditions, and individual measured variables sourced from any monitor channel or any combination of monitor channels installed within the rack. The 3500/33 16-Channel Relay Module configuration and Alarm Drive programming are accomplished through the 3500 Rack Configuration Software, allowing users to establish customized protection schemes tailored to specific machinery monitoring needs.
Alternative Names
3500/33-01-00 3500/33-01-01 3500/33-02-02 149986-01 149992-01 149992-02 149992-03
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What is the Bently Nevada 3500/33 16-Channel Relay Module?
The Bently Nevada 3500/33 16-Channel Relay Module is a full-height rack module designed to provide 16 relay outputs for machinery protection and control systems. It plays a critical role in monitoring and safeguarding rotating equipment in industrial environments.
Where can the 3500/33 module be installed within a system?
The 3500/33 module can be installed in any slot located to the right of the Transient Data Interface (TDI) Module within a 3500 rack. Multiple 16-channel relay modules can also be integrated into the same rack, depending on system requirements and application scale.
How does the relay output configuration work?
Each relay output is independently programmable, allowing users to configure sophisticated voting logic. This flexibility enables the system to respond accurately to various operating conditions and enhances overall system reliability.

Product Browsing History
