Features:
- High-speed redundant tachometer design ensures reliable overspeed detection for critical rotating machinery protection.
- API 670 and API 612 compliance supports standardized safety requirements in turbomachinery applications.
- Flexible voting configurations (2-out-of-2 or 2-out-of-3) enhance system reliability and fault tolerance.

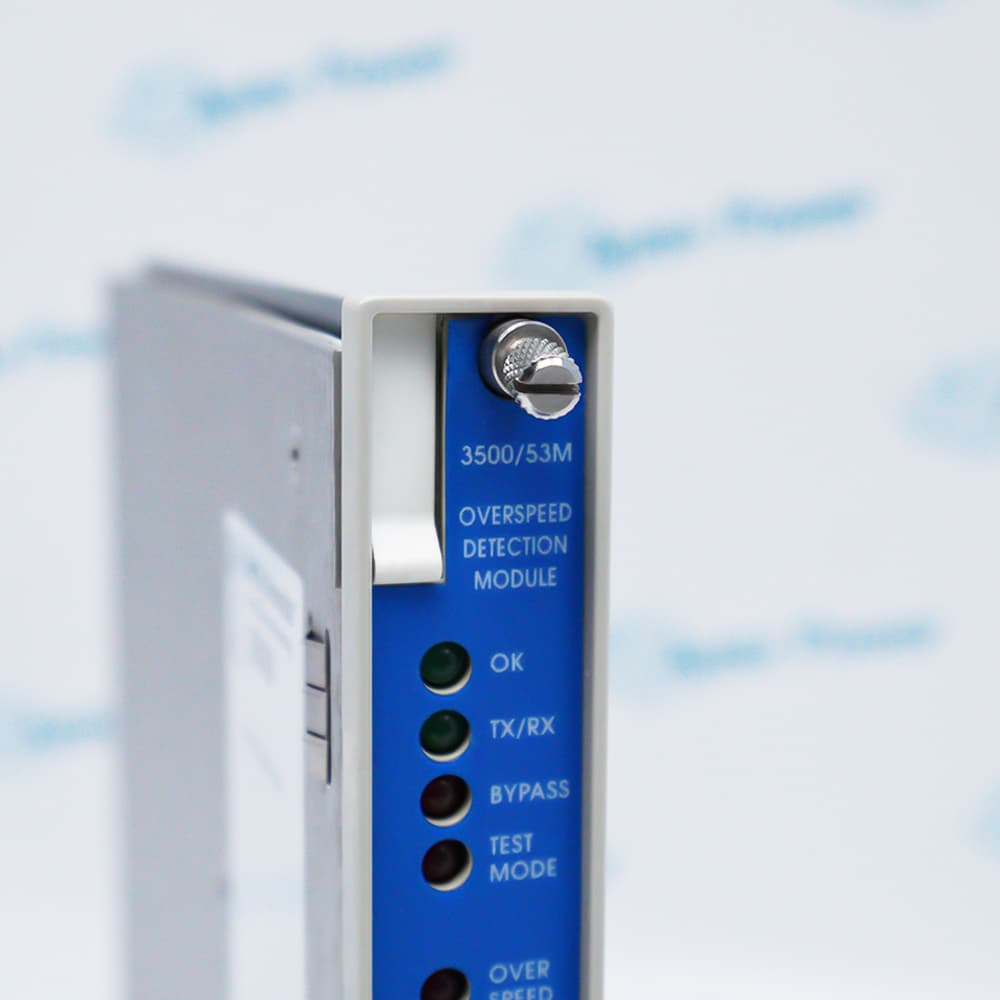

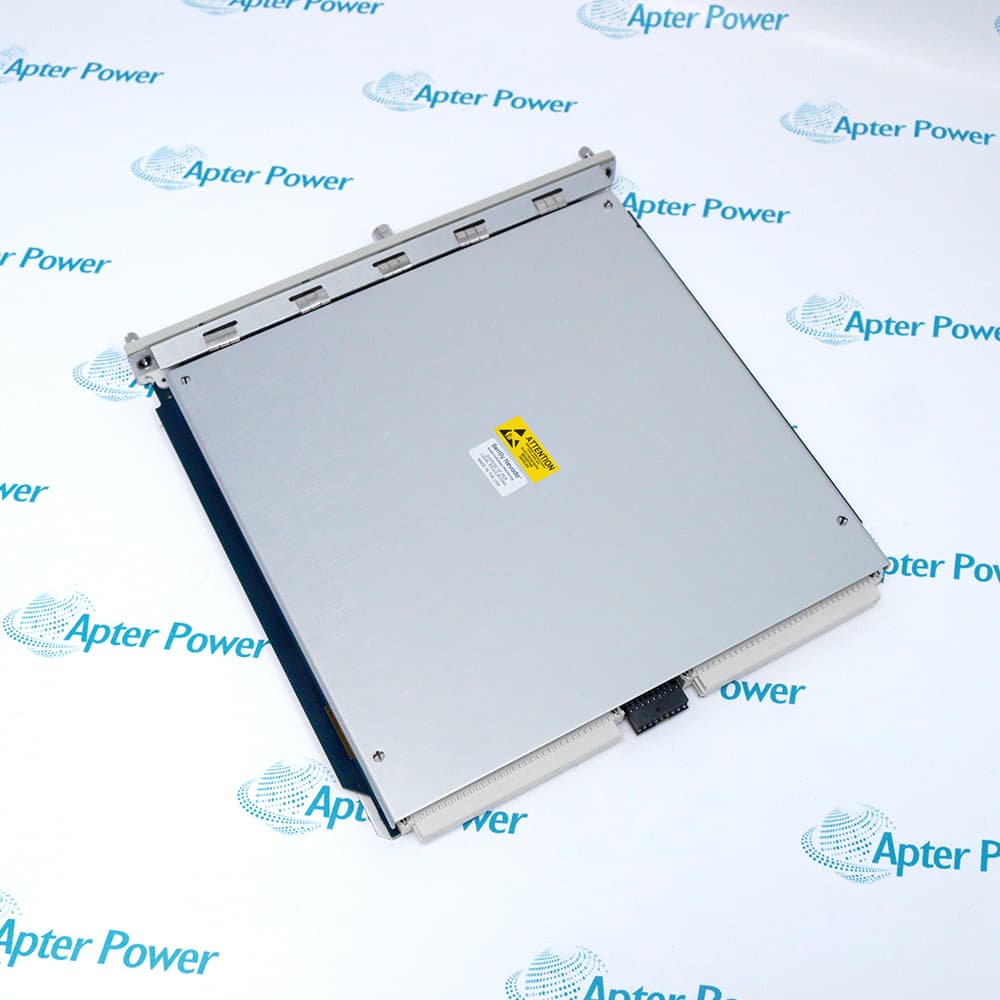

The Bently Nevada 3500/53M 286566-01 is designed as a dedicated electronic overspeed detection module used in machinery protection systems. It plays an important role in monitoring rotational speed and triggering protective actions when unsafe operating conditions occur. In industrial environments such as turbines, compressors, and pumps, overspeed events can lead to severe mechanical damage. This module helps prevent such failures by providing fast-response detection within a redundant system architecture. Its integration into the 3500 Series system ensures coordinated machinery protection.
From a functional perspective, Bently Nevada 3500/53M 286566-01 operates with a redundant tachometer configuration that enhances reliability. It supports system designs using 2-out-of-2 or 2-out-of-3 voting logic, with the latter being the recommended configuration for higher fault tolerance. The module is powered through a 3500 rack system with redundant power supplies, ensuring continuous operation even under partial system failure. Electrical characteristics such as 20 kΩ input impedance and -24 Vdc transducer power supply contribute to stable signal processing. These features allow accurate overspeed detection in high-speed rotating equipment.
In practical industrial applications, Bently Nevada 3500/53M 286566-01 is widely used in compliance-driven environments where API 670 and API 612 standards are required. It provides rapid response capability to detect overspeed conditions and initiate protective actions before equipment damage occurs. The module’s output and contact specifications, including 100,000-cycle contact life, support long-term operational durability. Its ability to integrate into existing 3500 rack architectures makes it suitable for retrofit and new installations. Overall, it strengthens machinery safety systems by ensuring reliable speed monitoring under demanding conditions.
The 3500/53M 286566-01 Bently Nevada Electronic Overspeed Detection Module may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 3500/53M 286566-01 Electronic Overspeed Detection Module Manuals,Datasheets,Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Bently Nevada 3500/53M 286566-01 Electronic Overspeed Detection Module Specs
General
- Manufacturer Bently Nevada
- Model 3500/53M 286566-01
- Condition New Original ready stock
- Product Family 3500/53M,3500/53M 134939-01,3500/53M-02-02
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
- Multi-setpoint Alarms: The firmware goes beyond simple peak overspeed detection, independently monitoring multiple sets of setpoints for rotor acceleration and reverse rotation to prevent runaway vehicles from escalating.
- Auto Threshold: For any sensor dynamic input above 0.0167 Hz, the module automatically activates an adaptive threshold algorithm with a minimum peak-to-peak trigger value of 1 V, effectively filtering out pseudo-speed fluctuations caused by spindle mechanical eccentricity.
- High-Precision, Wide-Range Pulse Per Revolution Configuration: The module supports freely defining speed measurement gear characteristics from 1 to 255 pulses per revolution in hardware. Even at extremely low speeds (as low as 1 rpm), it can still provide seamless output through ultra-low frequency proximity sensing calculations.
- Internal Self-test (IDS): The module has a built-in online background self-test routine that allows for millisecond-level inspection of the internal frequency/voltage (F/V) digital-to-analog converter chain and register stack without releasing the output relay.
- Broad-spectrum sensor compatibility interface: The rear I/O physical terminal block features high-impedance signal isolation, supporting negative voltage eddy current preamplifiers from +10.0 V to -24.0 V (such as the 3300 XL speed probe), and is also directly compatible with passive magnetoelectric speed sensors (Magnetic Pickups) that do not require an external power supply.
- Full-duplex redundant bus bridging: The module communicates at high speed with the 3500/20 rack interface module (RIM) via a backplane blind-plug interface, supporting hot-swapping without configuration loss, and network parameters are independently latched via the rack base.
- Hard-wired Emergency Trip System (ETS) relay output: Paired with a corresponding overspeed I/O module, it outputs a high-speed Form C SPDT relay dry contact with a 5A @ 30VDC / 250VAC electrical contact capacity, which can be directly connected in series to drive the solenoid valve circuit of the turbine emergency trip system.
- Single-unit multi-channel independent power supply with short-circuit protection: When the backplane distributes the sensor operating power to the field terminals, each speed measurement channel integrates an independent self-resetting fuse current-limiting circuit. A short circuit in the field wiring of a single channel will not affect other redundant speed measurement channels within the same module.
- Industrial drive gas turbine power shaft fracture protection: In large gas turbines in petrochemical pipeline gas transmission stations, sudden load shedding can easily cause the power shaft to fracture instantaneously due to excess energy. This module captures high acceleration pulses to achieve emergency shutdown control within <30 ms.
- Emergency Braking for Extraction Steam Turbines in Thermal Power Plants During Load Shedding: Deployed in power plant generator units, when a sudden grid failure causes the unit to disconnect and shed load, the module rapidly closes the main steam valve through a 2-out-of-3 hard-wired triple-redundancy voting system, preventing destructive accidental shutdowns or actual overspeeding.
- Multi-stage Centrifugal Air Compressor Reverse Rotation Monitoring: On the main shaft of a multi-stage compressor in a chemical air separation unit, its unique reverse rotation detection function prevents high-pressure gas backflow from driving the main shaft in reverse during compressor shutdown, which could cause the bushing to seize and burn out.
- Large-diameter High-Pressure Boiler Feed Pump Sudden Overspeed Protection: Installed at the main feed pump end of a large supercritical boiler, it provides the highest level of hard-lock protection independent of the main DCS controller when a logic lock-up occurs in the transmission hydraulic coupling or frequency converter control, causing continuous equipment speed increases.
