3500/42M 140482-01

/ 4.9
1001 reviews | Need a Specific Revision?

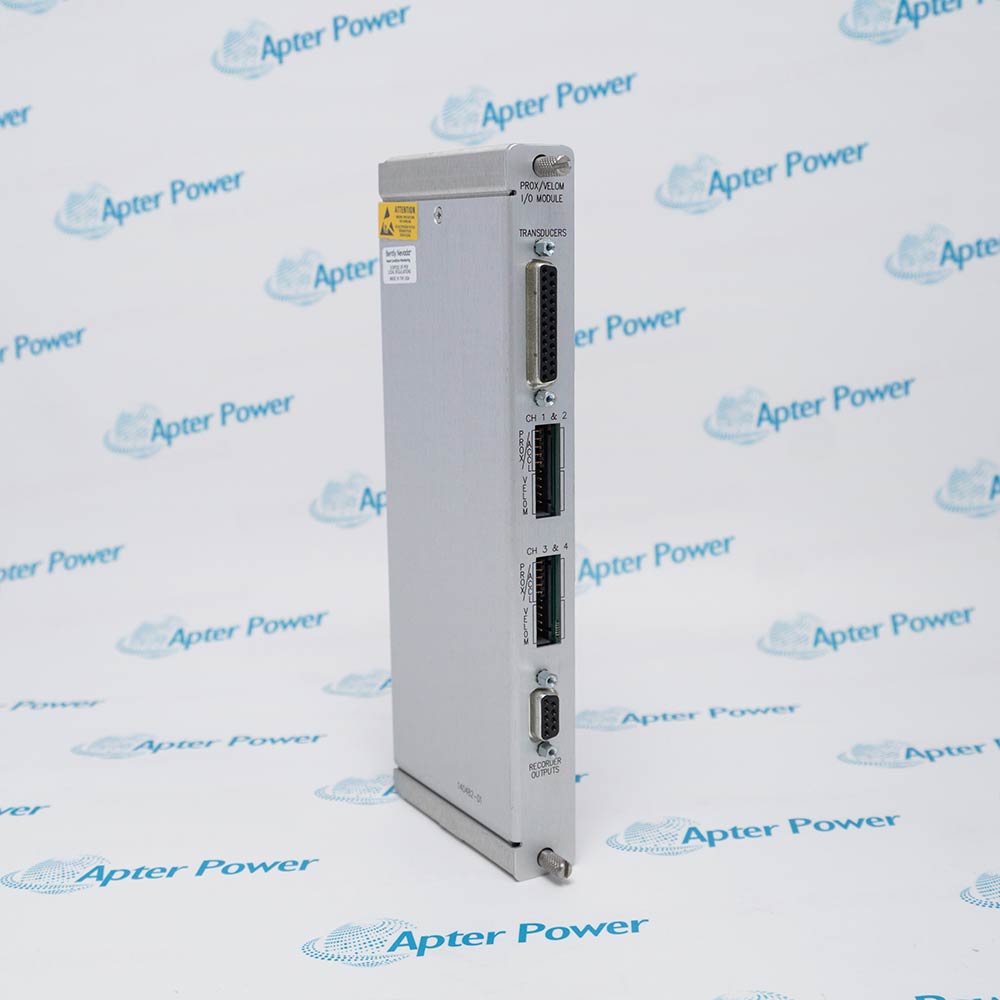

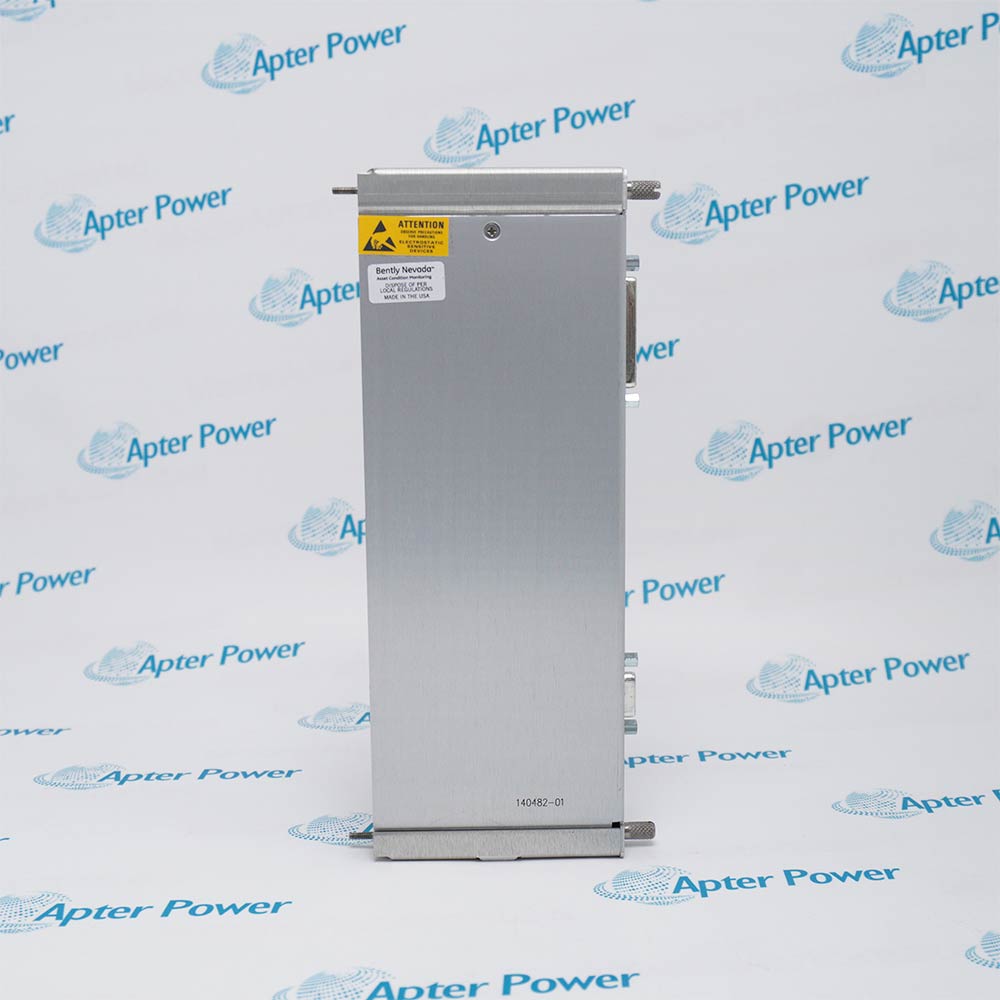

Bently Nevada 3500/42M 140482-01 is the external-termination Prox/Velom I/O module for configured 3500/42M channels using supported proximity and seismic inputs.
In Stock
Ships by Thursday, October 29
Fast Shipping Available
Get a quick price for 3500/42M 140482-01
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 3500/42M 140482-01

  • Manufacturer:
    Bently Nevada
  • Part Number:
    3500/42M 140482-01
  • Product Family:
    3500 System
  • Product Type:
    External-termination Prox/Velom I/O module
  • Stock:
    1
  • Paired Monitor:
    3500/42M Proximitor Seismic Monitor
  • Ordering Option:
    A10
  • Termination Architecture:
    External terminations
  • Supported Input Groups:
    Prox/Accel, Velomitor and HTVS
  • External ET Blocks:
    125808-08 or 128015-08
  • ET Cable Families:
    129525 and 129529
  • Procurement Scope:
    External termination block and cable ordered separately
  • Weight:
    0.4 kg
  • Estimated shipping dimensions:
    2.5x11x24cm
  • Tariff Code:
    Please confirm the destination before shipping.
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen,Fujian,China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Module Role Configuration Context Installation Context Product Applications

Features:

  • External-termination Prox/Velom I/O option for the 3500/42M monitor
  • Supports documented Prox/Accel, Velomitor and HTVS input groups
  • Uses a separately selected external termination block and interconnecting cable
3500/42M 140482-01 provides the rack-side I/O interface for an external-termination 3500/42M channel.

The external block and cable remain separate procurement items and form part of the complete channel configuration.

Internal-termination 140471-01 and Prox/Seismic 128240-01 are different documented I/O arrangements.

Apter Power supports the Bently Nevada 3500/42M 140482-01 external-termination Prox/Velom I/O module with quotation, documentation, sourcing coordination and termination planning.
Bently Nevada 3500/42M 140482-01 External-Termination Prox/Velom I/O Module Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
  • The module provides the rack-side I/O interface for a configured 3500/42M monitor channel.
  • Supported input groups include documented Prox/Accel, Velomitor and HTVS arrangements.
  • External field landing is completed through a matching termination block and cable.
  • An existing external-termination channel establishes the correct I/O architecture for replacement planning.
  • Termination blocks 125808-08 and 128015-08 are the documented external options for the supported input groups.
  • Sensor group and interconnecting cable family complete the purchasing configuration beyond the rack module itself.
  • The paired monitor channel, transducer family, block identity and cable record simplify a planned exchange.
  • Rack seating and the two ends of the external cable are useful physical reference points during installation.
  • The official 3500/42M documentation and site procedure define the appropriate commissioning scope.
  • External-termination Prox/Accel channels in a configured 3500/42M system.
  • External-termination Velomitor velocity-monitoring channels.
  • External-termination HTVS seismic-monitoring channels.
Description
External field terminations are the defining architecture of 3500/42M 140482-01. The rack I/O module connects through a separate cable to a matching termination block instead of landing field wiring directly at the rack.

A configured channel can use 3500/42M 140482-01 with documented Prox/Accel, Velomitor or HTVS input groups. This keeps the rack-side interface tied to the selected sensor group and external hardware.

For maintenance planning, 3500/42M 140482-01 should be sourced together with the paired monitor, external block and cable family already used by the channel. Apter Power can help align these elements before quotation.
Alternative Names
140482-01 14048201 3500 42M 140482 01
Technical notes
3500/42M 140482-01 uses external terminations for supported Prox/Accel, Velomitor or HTVS inputs, while the termination block and cable are selected separately. To preserve the intended field interface and reduce commissioning delays, we recommend matching the paired monitor, sensor group, external block and cable as one configuration.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
How can a technician divide a channel fault after replacing 3500/42M 140482-01?
Reviewing the transducer loop, external block and cable, module seating and paired monitor channel separately helps identify the affected section efficiently.
What gives commissioning confidence when 3500/42M 140482-01 is used with different supported input groups?
A channel-type match to the installed transducer, followed by the site's manufacturer-based commissioning procedure, gives the project team a controlled basis.
How can a buyer identify the correct external hardware for 3500/42M 140482-01?
The configured input group determines the documented termination-block and cable family, which are selected separately from the rack I/O module.
What information helps when a reading becomes intermittent after work around 3500/42M 140482-01?
The module position, external block identity, cable record and transducer documentation give maintenance a focused configuration reference.
Why is the external-block record important when ordering 3500/42M 140482-01?
It helps Apter Power align the separately selected block and cable with the monitor's input group instead of quoting the rack module in isolation.
Can 140471-01 serve as a direct replacement for 3500/42M 140482-01?
We would not recommend treating it as direct replacement because 140471-01 uses internal termination and would change the documented field-interface architecture.
