    For Bently Nevada 2300/20-CN, Apter Power provides quotations, manuals and approval-option matching.

2300/20-CN

/ 4.9
1001 reviews | Need a Specific Revision?

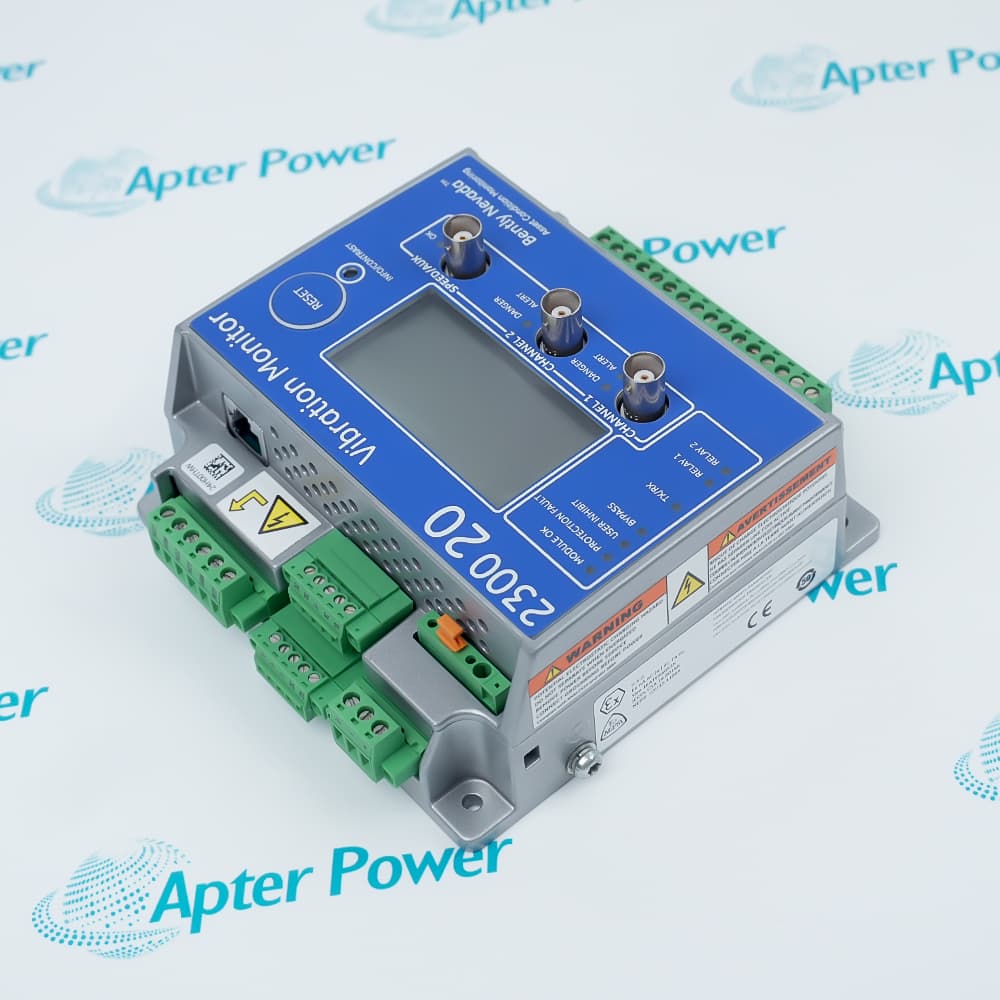

Designed for continuous machinery protection, Bently Nevada 2300/20-CN is a two-channel vibration monitor with a China country-approval ordering option, local indication and Ethernet communications.
In Stock
Ships by Wednesday, October 28
Fast Shipping Available
Get a quick price for 2300/20-CN
Quantity
*E-mail
Company
*Mobile
*Content
Upload (gif, jpg, jpeg, png, bmp, doc, docx, xls, xlsx, ppt, pdf, csv)

Technical specifications for 2300/20-CN

  • Manufacturer:
    Bently Nevada
  • Part Number:
    2300/20-CN
  • Product Family:
    Bently Nevada 2300 Series Vibration Monitors
  • Product Type:
    Two-Channel Vibration Monitor
  • Stock:
    2
  • Country Approval Option:
    CN configuration for China
  • Vibration Inputs:
    2 independently and synchronously sampled channels
  • Supported Measurements:
    Acceleration, velocity or displacement according to sensor and configuration
  • Speed Channel:
    1 dedicated speed input
  • Alarm Setpoints:
    Configurable Alert and Danger levels
  • Current Outputs:
    2 configurable 4–20 mA outputs
  • Protection Relays:
    2 programmable SPDT relays
  • Buffered Connections:
    3 front BNC outputs including speed
  • Ethernet Port:
    RJ45, 10/100 Mb/s, IEEE 802.3
  • Supply Requirement:
    18–36 V DC; 7.5 W maximum
  • Weight:
    2.27 lbs (1.03 kg)
  • Estimated shipping dimensions:
    12.7×12.7×7.62cm
  • Tariff Code:
    8537109090
  • Country of origin:
    USA
  • Place of shipment:
    Xiamen, Fujian, China
By purchasing this item, you agree to the Terms & Conditions, ApterPower is not an authorized distributor for listed manufacturers or tradenames and therefore the manufacturer's warranty does not apply. All our products come with ApterPower's 1-year warranty.

More Information

Overview Manuals Approval Identity Indicator Logic Output Use Network Records

Features:

  • Carries the CN country-approval ordering option
  • Distinguishes channel alarms from monitor-health states
  • Provides measurement access locally and over Ethernet
The complete Bently Nevada 2300/20-CN number combines the two-channel monitor platform with the country-specific approval option for China.

Two synchronized vibration channels and one separate speed input feed display, alarm and relay processing without merging their signal paths.

Approval marking, certificate scope and installation conditions must be checked against the CN configuration rather than inferred from another 2300/20 suffix.

The Bently Nevada 2300/20-CN Two-Channel Vibration Monitor may still be available for purchase and support from Apter Power beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 2300/20-CN Two-Channel Vibration Monitor Manuals,Datasheets,Link Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Keeping the CN configuration identifiable

  • Suffix position: CN occupies the country-approval position in the complete monitor ordering number.

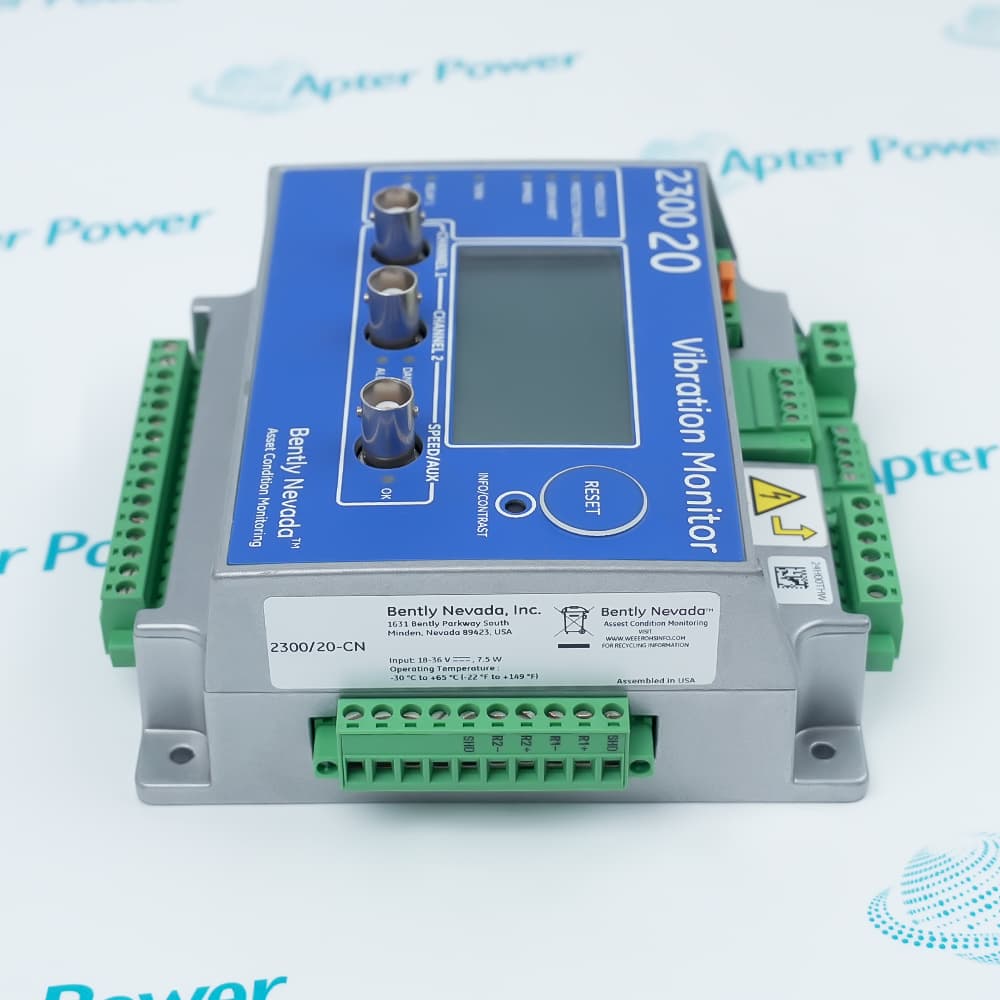

  • Nameplate check: Installed approval markings should agree with the documentation supplied for 2300/20-CN.
  • Variant boundary: The CN option must not be replaced by the 00 no-approval configuration without a new suitability review.
  • Site record: Record the complete part number so certification information remains tied to the installed unit.

Reading operating states without confusing their causes

  • Protection Fault: This state shows that a condition can affect protection decisions rather than merely reporting high vibration.
  • User Inhibit: The indication identifies intentional inhibition selected by the user or configuration.
  • Bypass: Bypass is a deliberate operating state and should be cleared through the defined control path.
  • Alert and Danger: Channel alarm LEDs identify threshold results separately from monitor-health indications.

Using outputs as parts of separate signal paths

  • Current loops: Each configurable 4–20 mA output follows its assigned measurement and full-scale value.
  • Relay circuits: Relay operation must be verified in the external circuit because the monitor has no relay-output feedback.
  • Buffered signals: Front BNC outputs provide direct access to sensor waveforms for local diagnostics.
  • Load boundary: A current-loop load outside the documented range can prevent the expected output signal.

Network and local records serve different checks

  • Modbus access: Ethernet carries process variables and monitor information to a compatible Modbus/TCP client.
  • Configuration link: Monitor Configuration software is used for channel, alarm and communication settings.
  • Alarm history: Compatible System 1 Evolution versions collect trend, waveform and event context.
  • Local fallback: The front LCD and indicators remain the first check when network communication is unavailable.
Description
The 2300/20-CN from Bently Nevada belongs to the 2300 Series of compact machinery vibration monitors. Its CN ordering position identifies the China country-approval option, so the exact marking and certificate conditions must remain tied to this complete part number.

Inside 2300/20-CN, two vibration inputs are sampled independently and synchronously. Depending on configuration and the connected supported transducer, the channels can produce acceleration, velocity or displacement measurements; a separate input supplies speed information for display and monitoring logic.

Alarm handling in 2300/20-CN combines configurable Alert and Danger processing with two programmable protection relays. Front-panel LEDs distinguish monitor health, communication, bypass, inhibited protection and relay activity, while the LCD provides overall values, setpoints, speed and configuration information.

Bently Nevada 2300/20-CN also exposes two configurable 4–20 mA signals and three buffered BNC outputs for local measurement access. A 10/100 Ethernet connection carries Modbus/TCP data and supports time-based condition information used by compatible Bently Nevada software.
Alternative Names
2300 20 CN 2300-20-CN 2300/20 CN BN2300/20-CN Bently 2300 20 CN Monitor 2300 Series China-Option Monitor Bently Nevada 2300-20-CN 2300/20 China Approval Configuration
Technical notes
Bently Nevada 2300/20-CN is the China country-approval configuration of the two-channel 2300/20 monitor. Match the CN suffix and installed approval markings before replacing another 2300/20 variant.
Exceptional Service

Our Mission

  • 100% Satisfaction

    We believe expertise is priceless. With over 20 years of experience, and top engineers on staff, we can help you solve or avoid problems that threaten your business.
  • Trust Guaranteed

    Not only do we have a vast inventory, our team makes sure every piece of equipment is in working condition. Your purchases are also backed by our Warranty.
  • Expertise

    Time is money, especially when your equipment is down. We work quickly to get your equipment on its way so you can get it back up and running.

FAQS

The following is a list of questions commonly asked by our customers. Please contact us if you have a question about our process that is not answered below.
What does CN identify in the complete Bently Nevada 2300/20-CN number?
In Bently Nevada 2300/20-CN, CN is the country-specific approval option for China; certificate and nameplate details should be checked against the destination requirements.
Can Bently Nevada 2300/20-CN be treated as the same ordering configuration as 2300/20-00?
No. Bently Nevada 2300/20-CN carries a China approval option, whereas the 00 configuration has no hazardous-area approval, so the suffixes must not be interchanged.
Why can a relay on Bently Nevada 2300/20-CN appear active without proving the field device operated?
The Bently Nevada 2300/20-CN relay output has no output-state feedback; verify the external circuit and controlled device separately during loop testing.
Which indicators help isolate an inhibited alarm on Bently Nevada 2300/20-CN?
Check the Protection Fault, User Inhibit, Bypass and Alert or Danger indications on Bently Nevada 2300/20-CN before changing alarm setpoints.
When is local alarm-data storage available on Bently Nevada 2300/20-CN?
Alarm Data Capture on Bently Nevada 2300/20-CN requires compatible System 1 Evolution software and the specified monitor firmware level, so both versions must be verified.
